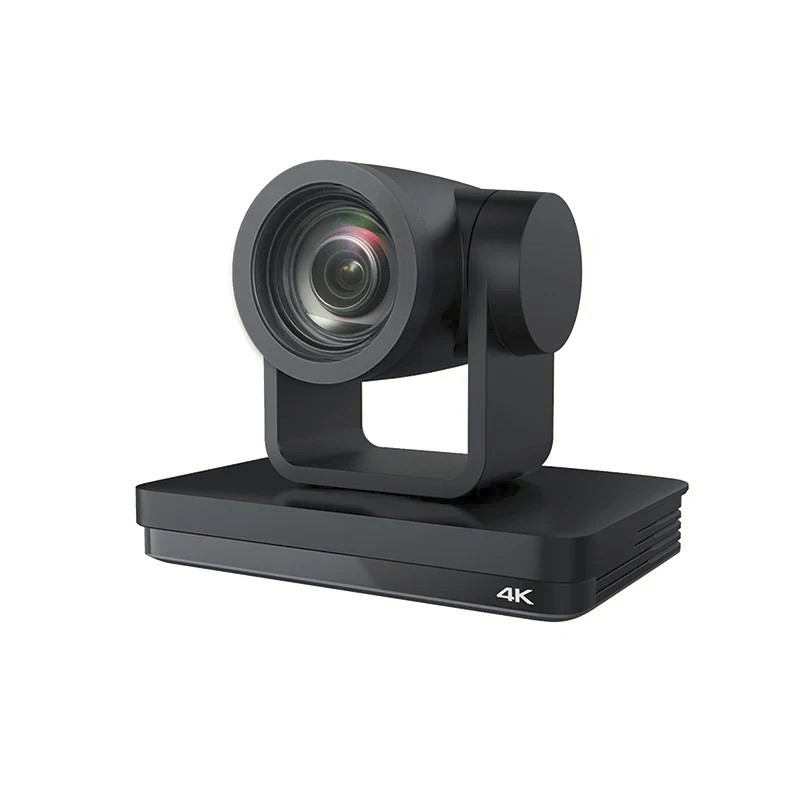

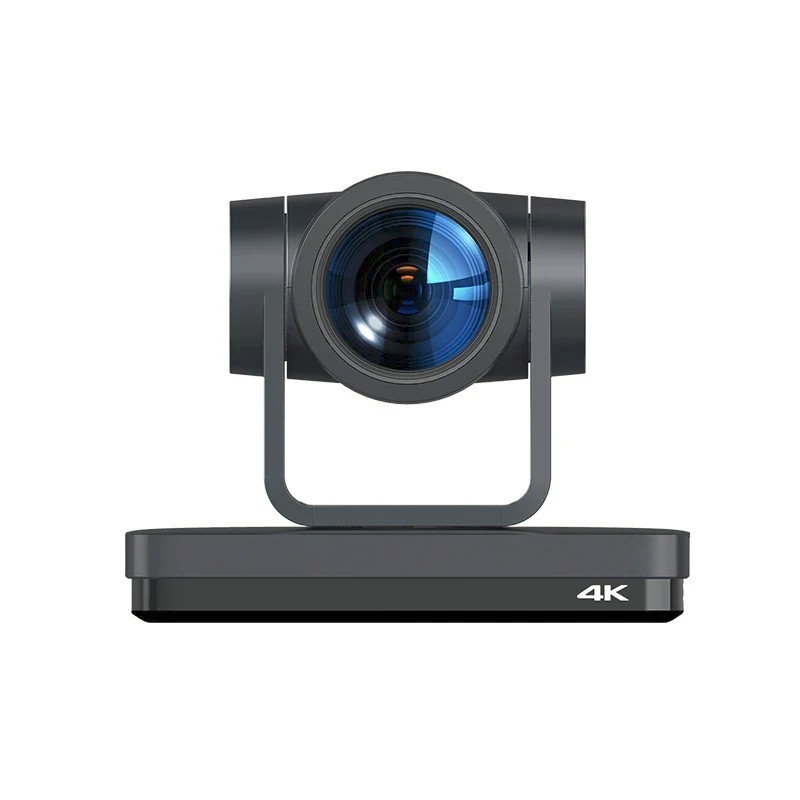

RGBlink RGB25X-UPAI-BK 25X 4K AI PTZ

The RGBlink RGB25X-UPAI-BK is a professional 4K PTZ camera for broadcast and streaming with 25× optical zoom and AI auto-tracking. An 8.51 MP sensor and a 1600 TVL lens deliver sharp 4K images. It offers HDMI and 3G-SDI outputs and IP streaming (H.264/H.265). Black finish.

The RGBlink BK series PTZ camera with 25× optical zoom shoots 4K at 60 frames per second and follows the presenter on its own using AI. It outputs simultaneously over HDMI, SDI, USB and the network, and it can be powered by a 12 V adapter or over PoE+. It suits classrooms, meeting rooms, halls and live productions.

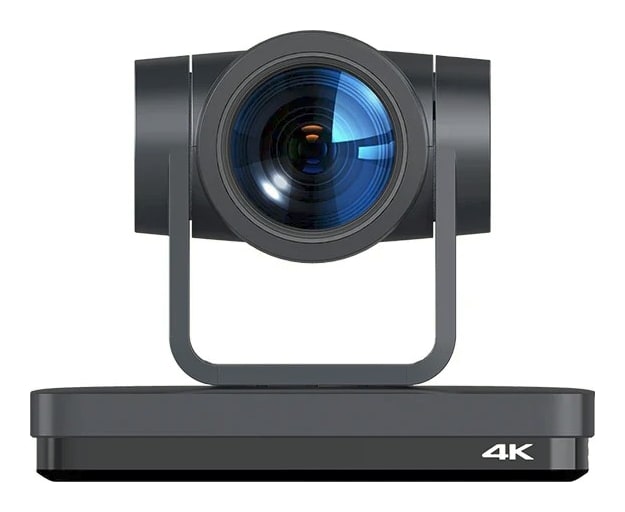

Lens with 25× optical zoom

Focal length 7.1–175.95 mm, aperture F1.61–F5.15 and horizontal field of view 59.2°–2.5° – from the whole room down to a close-up of a face. The 1/1.8″ Sony CMOS sensor with 8.51 MP and 3D noise reduction delivers a picture with a signal-to-noise ratio above 50 dB, and the camera focuses automatically, manually or at one press.

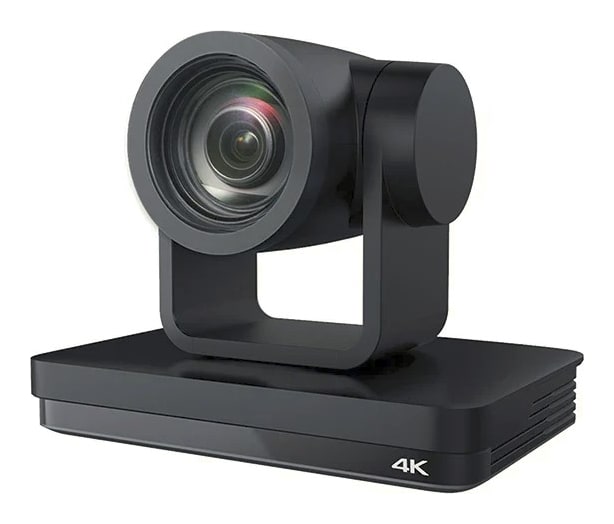

Follows the presenter using AI

The built-in processor recognises a person and keeps them in shot – continuously, or only within a zone you define in the web interface. The camera pans from −110° to +110° at up to 100°/s and tilts ±30° at up to 70°/s, stores 255 presets, and 10 of them can be recalled directly from the supplied remote control.

More information

• 4K resolution, 8.51 MP sensor, 1600 TVL lens
• 25× optical zoom
• AI auto-tracking
• HDMI and 3G-SDI outputs
• IP streaming H.264 / H.265
• Control via LAN, RS232 / RS485
