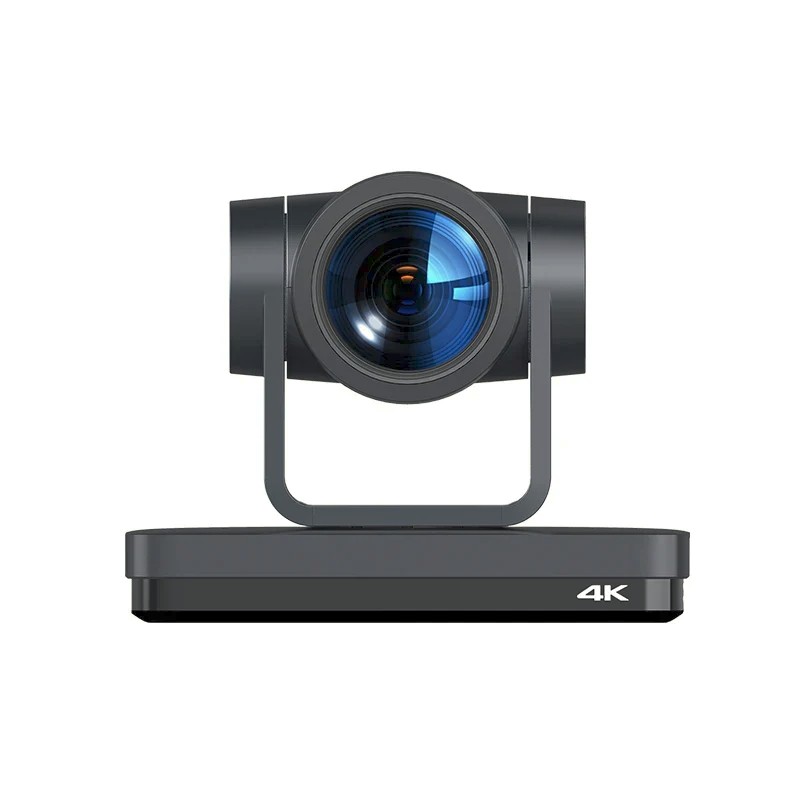

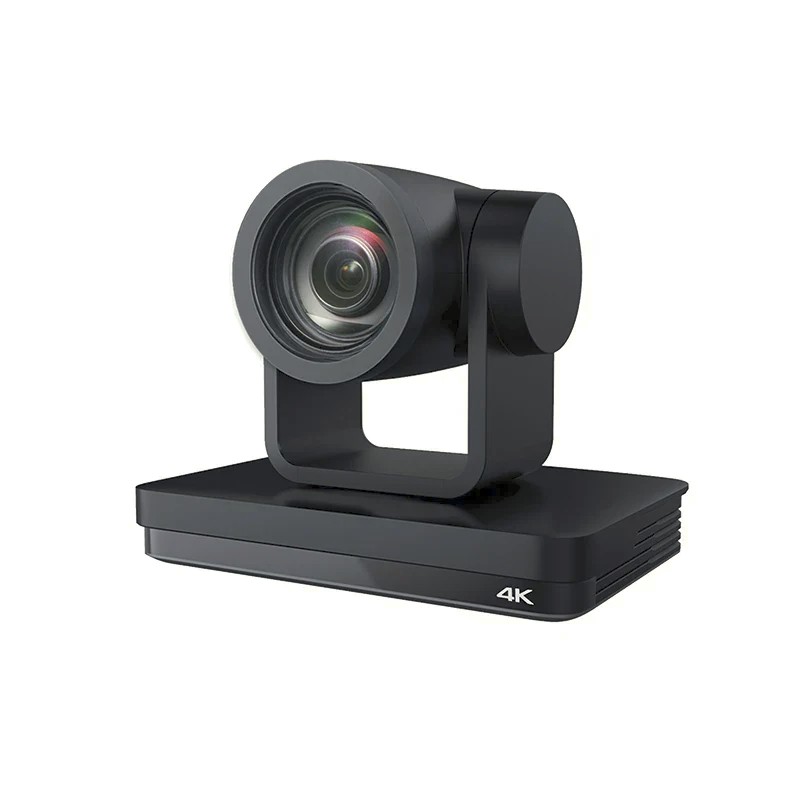

RGBlink RGB20X-UNAI-BK 20X 4K AI PTZ with NDI

  • Free transport
SKU: 981-0011-84-0

The RGBlink RGB20X-UNAI-BK is a professional 4K Ultra HD AI tracking PTZ camera featuring a 20× optical zoom lens, NDI HX3 support, and multi-interface outputs including HDMI, SDI, USB, and IP. Designed for broadcast, education, and live streaming environments, it delivers smooth AI-based subject tracking, high SNR imaging, and flexible control…

More information

1 979 € with VAT 1 635.54 € without VAT
Add to Compare Price history
Availability
on request
SKU:
981-0011-84-0
Add to Compare Price history

RGBlink RGB12X-UPAI-BK 12X 4K AI PTZ

1 539 €without VAT 1 271.9 €

Top accessories for RGBlink RGB20X-UNAI-BK 20X 4K AI PTZ with NDI

RGBlink Universal wall mount bracket for PTZ

RGBlink Universal wall mount bracket for PTZ
15 €
In stock > 5 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink RGB20X-UNAI-BK is a professional 4K Ultra HD AI tracking PTZ camera featuring a 20× optical zoom lens, NDI HX3 support, and multi-interface outputs including HDMI, SDI, USB, and IP. Designed for broadcast, education, and live streaming environments, it delivers smooth AI-based subject tracking, high SNR imaging, and flexible control with PoE support.

The RGBlink RGB20X-UNAI-BK 20X 4K AI PTZ with NDI is engineered for modern IP-based production, lecture capture, and professional live streaming applications. Equipped with a high-performance 1/1.8″ Sony CMOS sensor, the camera delivers stunning 4K UHD video up to 60 fps, ensuring crisp detail, accurate color reproduction, and low-noise performance even in challenging lighting conditions.

Its 20× optical zoom lens combined with 8× digital zoom enables precise framing across medium to large venues. Advanced AI tracking technology supports both real-time and area tracking modes, automatically keeping presenters or subjects centered without manual camera operation. The camera offers simultaneous outputs via HDMI, 3G-SDI, USB, and LAN, with support for H.264/H.265 video compression and AAC/MP3/G.711A audio formats.

With built-in NDI HX3, the RGB20X-UNAI-BK integrates seamlessly into IP workflows, allowing low-latency, high-quality video transmission over standard networks. It supports PoE, reducing cabling complexity, and provides extensive control options including VISCA, Pelco-D, and Pelco-P via RS-232/RS-422/RS-485 or network control. Precise pan/tilt motors with up to 255 preset positions make it ideal for studios, houses of worship, conference rooms, and educational facilities.

Key Features:
  • 4K Ultra HD resolution up to 3840×2160@60fps
  • 20× optical zoom, 8× digital zoom
  • AI-powered real-time and area tracking
  • NDI HX3 IP video support
  • HDMI, SDI, USB, and LAN outputs
  • H.264 / H.265 video compression
  • AAC, MP3, G.711A audio compression
  • PoE (Power over Ethernet) support
  • Up to 255 PTZ presets
  • VISCA, Pelco-D/P control protocols
  • Low noise, high SNR ≥50 dB

PACKAGE CONTENT

  • RGBlink RGB20X-UNAI-BK 4K AI PTZ Camera
  • Power adapter
  • User documentation

SPECIFICATIONS

  • Image Sensor: 1/1.8″ Sony CMOS
  • Effective Pixels: 8.51 MP (16:9)
  • Optical Zoom: 20×
  • Digital Zoom: 8×
  • Aperture: f/1.61 ~ f/5.19
  • Focal Length: 7.1 mm ~ 171.95 mm
  • Minimum Illumination: 0.05 lux (F1.8, AGC ON)
  • Shutter Speed: 1/25 – 1/10000 s
  • Signal-to-Noise Ratio (SNR): ≥50 dB
  • Digital Noise Reduction: 3D DNR
  • HDMI Video Output: Up to 3840×2160@60 fps, 1080p/i, 720p
  • SDI Video Output: 1080p/i, 720p
  • USB Video Output: Up to 3840×2160@30 fps
  • IP Streaming: NDI HX3, RTSP, RTMP
  • Pan Range: −110° to +110°
  • Tilt Range: −30° to +30°
  • Pan Speed: 0.1–100°/s
  • Tilt Speed: 0.1–70°/s
  • Presets: 255 (10 via remote control)
  • HDMI Interface: 1 × HDMI-A
  • SDI Interface: 1 × BNC
  • USB Interface: 1 × USB-A
  • LAN Interface: 1 × RJ45 (PoE supported)
  • Audio Input: 1 × 3.5 mm stereo jack
  • Control Interfaces: RS-232, RS-422, RS-485
  • Power Input: DC 12 V
  • Maximum Power Consumption: <12 W
  • Operating Temperature: −10°C to 50°C
  • Operating Humidity: 20%–80%
  • Dimensions: 220 × 144 × 159 mm
  • Weight: 1.7 kg

WE RECOMMEND

The RGBlink RGB20X-UNAI-BK is a state-of-the-art 4K PTZ camera with AI tracking that offers a wide range of outputs, including HDMI, SDI, and NDI HX3. For effective deployment in professional installations, it is essential to supplement it with compatible mounting hardware, control consoles, and signal distribution systems.

Mounting Accessories - Original brackets ensuring safe and flexible installation of the PTZ camera on a wall or ceiling.

Streaming control units and control - Powerful control units enabling 4K signal processing, streaming, and direct control of PTZ camera movement.

Wireless Video Transmission - Systems for wireless transmission of HDMI signals from a camera to a control room or monitor without the need for cabling.

Converters and Monitoring - Tools for NDI signal conversion, image preview, and video capture via USB interface.

Parameters

Parameters

Manufacturer: RGBlink
Category: PTZ

Main parameters

Camera Sensor size1/1,8"
Resolution3840 × 2160 (4K UHD)
Zoom20x
Type of bayonetFixed (integrated lens)
OutputHDMI, SDI, USB, LAN (NDI HX3 / RTSP / RTMP)

Other parameters

VersionRGB20X-UNAI-BK
Record formatH.264 / H.265 / MJPEG
Lens lens aperture1.6f
Min. focal length7.1mm
Max. focal length172mm
Media typeHDMI / SDI / USB / IP
Other featuresAI tracking
Control protocolVISCA, Pelco-D, Pelco-P, Network VISCA, ONVIF, FreeD
