RGBlink vue PTZ 2K 30X NDI Camera with TALLY (Support PoE)
SKU: 981-0011-34-0
Featuring an advanced ISP image processor and a 2-megapixel sensor, vue cameras are available in a range of models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI. This model has 30× optical zoom, NDI output, a TALLY crown visible through 360° and power over PoE.
Promotion: 1 635.58 €
1 648.9 €
1 635.58 € with VAT
1 351.72 € without VAT
Personal pickup within 90 minutes
Shipment day: 26. 10.
Shipment day: 26. 10.
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for RGBlink vue PTZ 2K 30X NDI Camera with TALLY (Support PoE)
RGBlink Universal wall mount bracket for PTZ
The universal RGBlink wall bracket holds a PTZ camera on the wall: the vertical part
15 €
In stock > 5 pcs
RGBlink PTZ & NDI camera suction top flip bracket
The black RGBlink ceiling bracket hangs a PTZ or NDI camera from the ceiling, upside
15 €
In stock > 5 pcs
RGBlink mini-edge SDI
The RGBlink mini-edge SDI combines ten input connectors in a single desk – four HDMI
1 099 €
In stock 5 pcs
RGBlink mini-max
The RGBlink mini-max is a compact 4K all-in-one video switcher and streaming solution
1 869 €
In stock 3 pcs
RGBlink RGBCTL-PNDI-OL
Touch Conference Keyboard is a newly designed next-generation network touch keyboard
1 319 €
In stock 2 pcs
RGBlink RGBCTL-PTZ-BK PTZ Controller
The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet
779 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Featuring an advanced ISP image processor and a 2-megapixel sensor, vue cameras are available in a range of models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI. This model has 30× optical zoom, NDI output, a TALLY crown visible through 360° and power over PoE.
Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.
TALLY crown visible through 360°
All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.
30×
optical zoom
1080p60
Full HD
360°
TALLY indicator
255
presets
NDI
network video

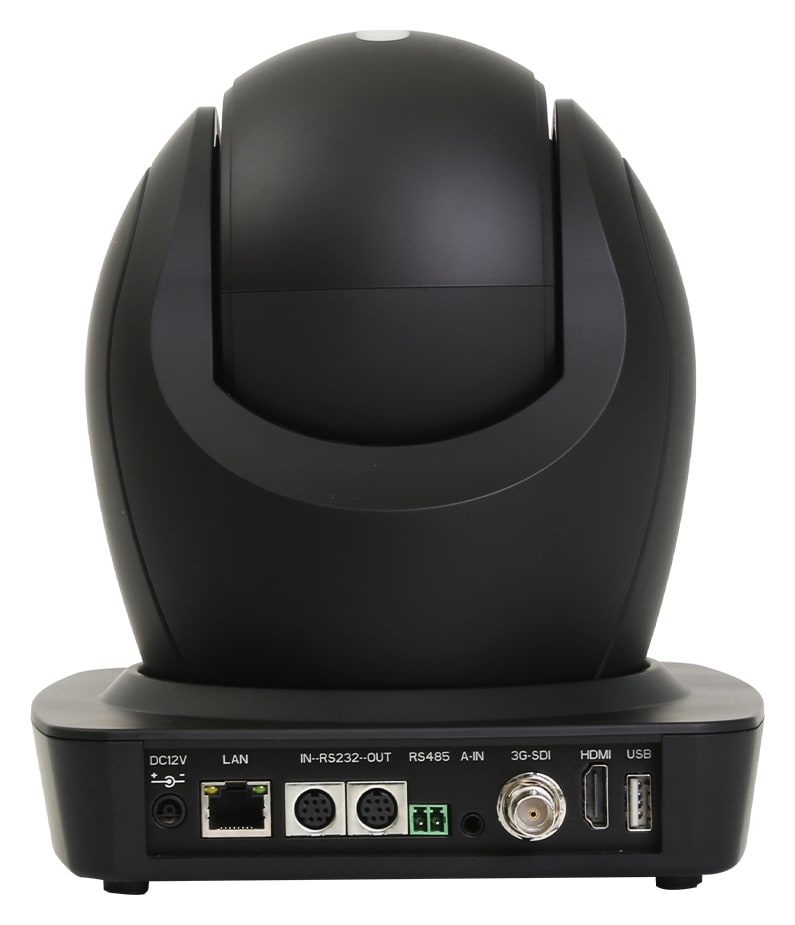

Pan, tilt and zoom
Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps.
More information
- High speed optical zoom
- RTSP/RTMP/SRT encoding output
- High performance in low light scenarios with Wide Dynamic Range
- H.265/H.264 dual stream output adapted to different network environments
- Full 1920×1080p HD resolutions up to 60 frames per second
- Pan and Tilt Control
- 12X/20X/30X optical zoom
- Low-power sleep function
- Applicable to meeting, live streaming, church, classroom and more
- Support TALLY
- Support PoE
PACKAGE CONTENT
- RGBlink RGB30X-PNDI-TLY PTZ camera – 1×
SPECIFICATIONS
- Output: 3G SDI 1xBNC
- HDMI: 1xHDMI-A
- USB: 1xUSB-A
- LAN: 1xRJ45
- Audio: IN 1x3.5mm Stereo Jack
- Control: RS232 IN/OUT 2xDIN8
- RS485: 1x4pin Terminal
- Power: 1xDC12V Jack
- Optical Zoom: f=5.2–148.4mm
- View Angle: 2.14°–58.1°
- AV: F1.3–F4.8
- Digital Zoom: 10X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D & 3D DNR
- White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
- Focus: Auto/Manual
- Aperture/Electronic Shutter: Auto/Manual
- BLC: ON/OFF
- WDR: OFF/Dynamic Level Adjustment
- Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
- SNR: >55dB
- Effective Pixels: 2.07 MP, 16:9
- Pan-and-Tilt Parameter: Pan/Tilt Movement -170°–+170° / -30°–+90°
- Pan/Tilt Control Speed: 0.1–60°/S; 0.1–30°/S
- Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
- 360° TALLY: full 360° view of TALLY
- Audio Compression Format: AAC | MP3 | G.711A
- Video Compression Format: H.264 | H.265 | Dual Streaming Output
- Output Resolutions: 720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
- Control Protocol: VISCA | Pelco-D | Pelco-P | ONVIF
- Baud Rate(bps): 115200 | 9600 | 4800 | 2400bps
- Network Protocol: RTSP | RTMP | SRT | ONVIF
- Supported Standards: SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
- Input Voltage: DC12V/1.5A
- Max Power: 12W
- Temperature: -10℃–50℃
- Humidity: 20%–80%
- Weight: Net 1.7kg
- Dimension: Net 180mm(front)×188mm(side)×198mm(height)
WE RECOMMEND
The RGBlink vue PTZ 2K 30X NDI is a professional camera with extensive connectivity options, including HDMI, SDI, and NDI, enabling integration into a wide range of production workflows. To maximize its potential, we recommend mounting accessories, wireless signal transmission, and advanced production systems that support PTZ control.
Mounts and Brackets - Accessories for securely mounting the PTZ camera on walls or other surfaces.
Production and Streaming - Equipment for processing camera signals, editing, and live broadcasting with support for PTZ protocols.
Wireless Video Transmission - Systems for wireless transmission of HDMI signals from a camera to a control room or monitor.
- RGBLink ASK nano 4K (1TX+2RX)
- RGBlink ASK Ultra p2p
- RGBlink ASK nano 4K (1T1R)
- RGBlink ASK nano (1TX+1RX)
- RGBLink ASK Ultra 2R
Monitors and Recorders - External monitors and recorders compatible with the camera's HDMI and SDI outputs.
Converters and Controls - Tools for signal conversion and advanced control of PTZ functions via NDI and other protocols.
Parameters
| Manufacturer: | RGBlink |
| Category: | PTZ |
Main parameters
| Resolution | 2K |
| Zoom | 30x |
| Type of bayonet | integrated lens |
| Output | HDMI · SDI · NDI · 3G SDI · USB · HD-SDI |
| Maximum video resolution | Full HD |
| Optical zoom | 30× |
| Video outputs | HDMI · SDI · USB · Ethernet / IP |
| Network protocols | NDI · SRT · RTMP / RTMPS · RTSP / RTP · ONVIF |
Other parameters
| Weight | 1.7kg |
| Dimensions | 180x188x198mm |
| Digital zoom | 10× |
| Number of preset positions | 255 |
| Version | PTZ |
| FPS | Full HD 60fps |
| Lens lens aperture | 1.3f |
| Min. focal length | 5.2mm |
| Max. focal length | 148.4mm |
| Other features | Streaming · Tally · PoE · NDI / NDI HX |
| Control protocol | Pelco-P · Pelco-D · VISCA · ONVIF |
