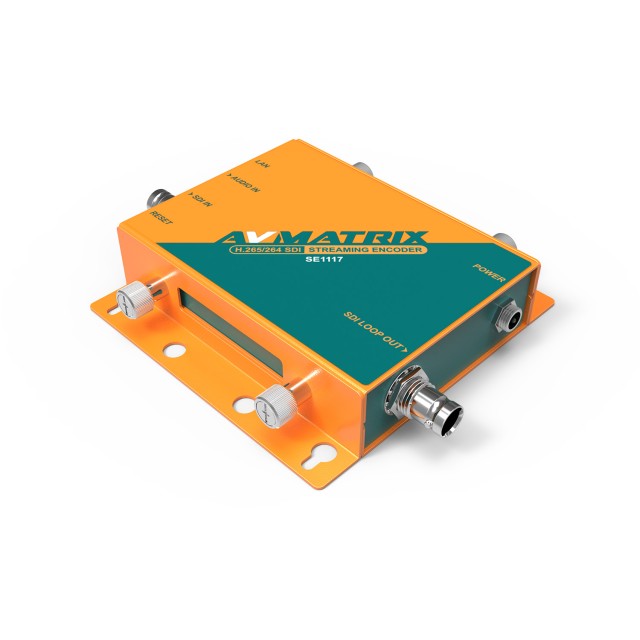

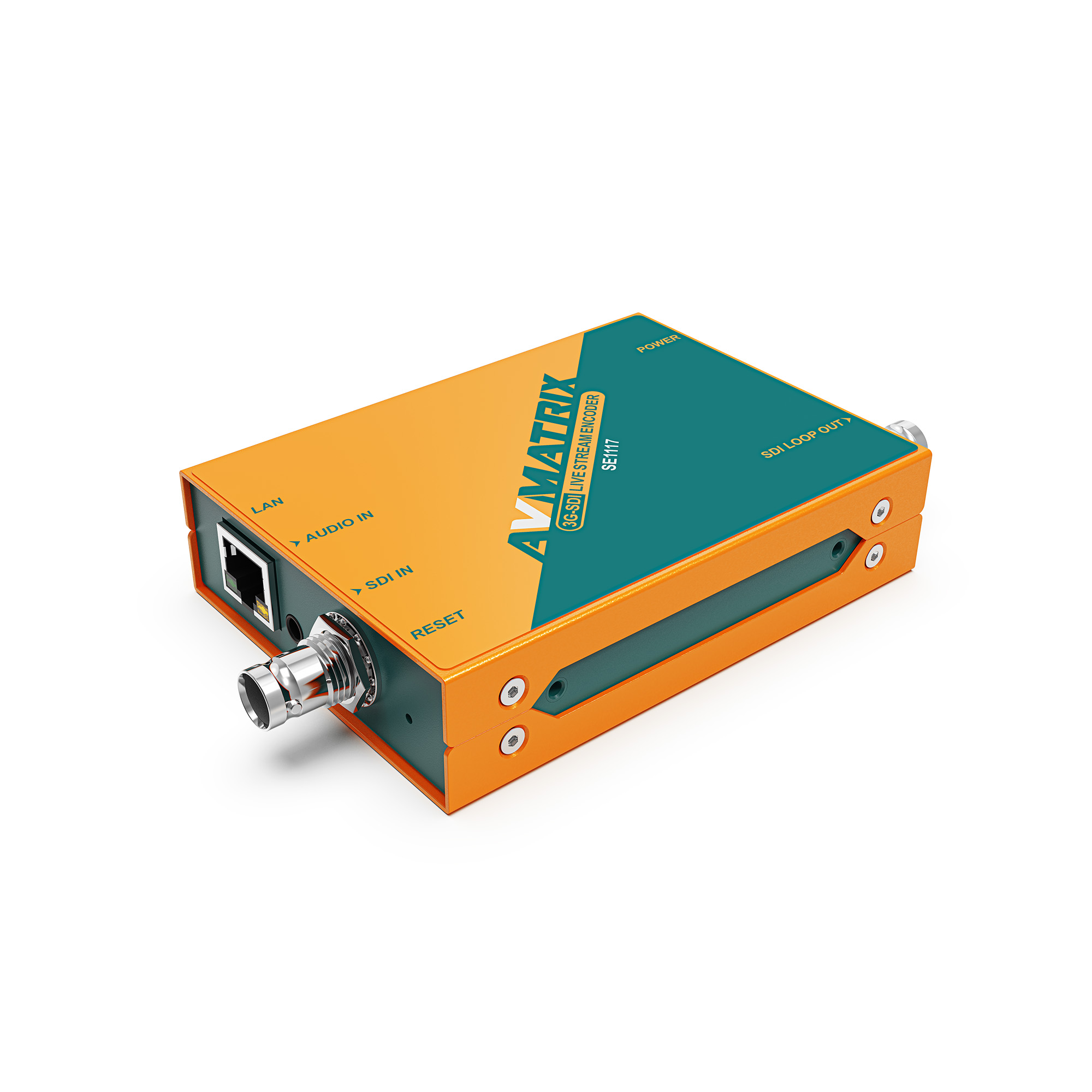

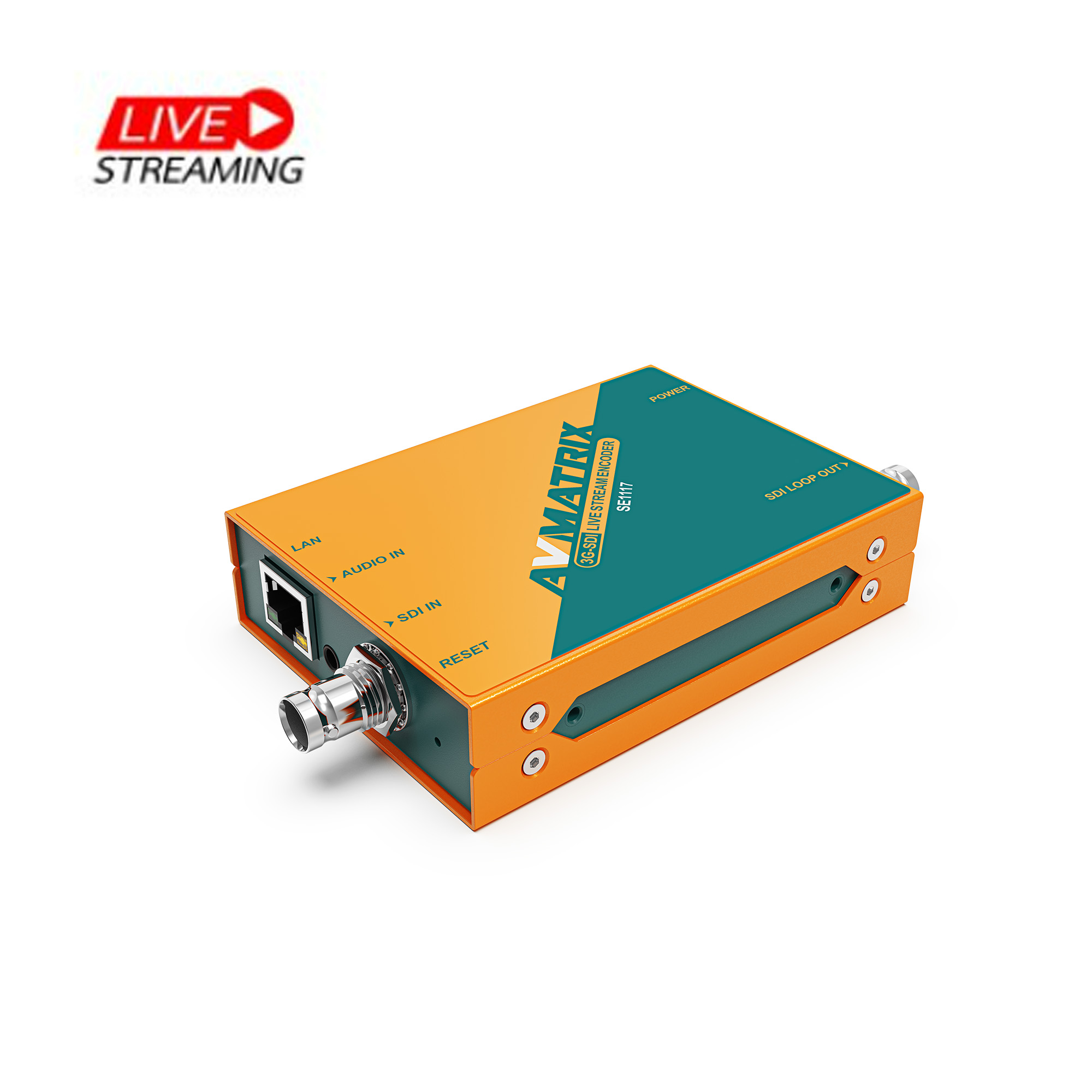

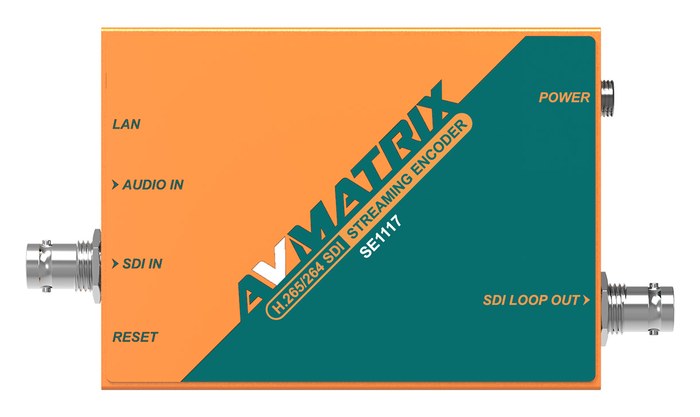

AVMATRIX SE1117 H.265/ H.264 SDI STREAMING ENCODER

AVMATRIX SE1117 is a standalone H.265/H.264 streaming encoder for 3G-SDI sources up to 1080p60. It provides a SDI loop output, analogue audio input, dual simultaneous streams and direct live streaming without a connected computer.

AVMATRIX SE1117 is a standalone H.265/H.264 streaming encoder for 3G-SDI sources up to 1080p60. It provides a SDI loop output, analogue audio input, dual simultaneous streams and direct live streaming without a connected computer.

Key features

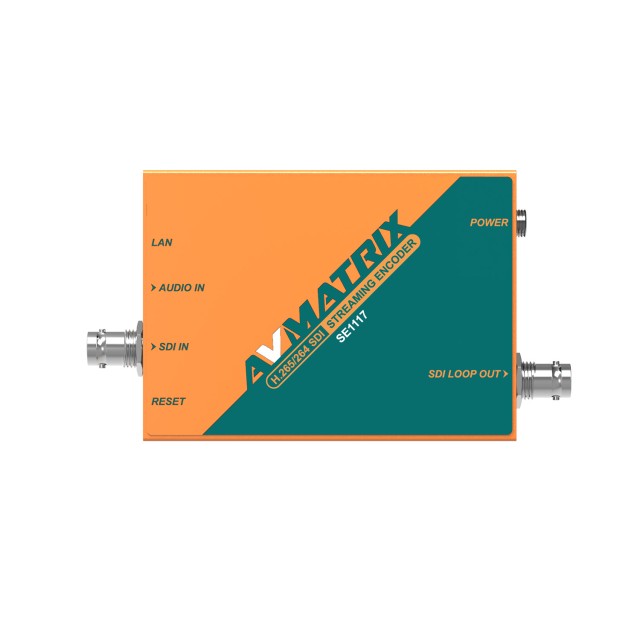

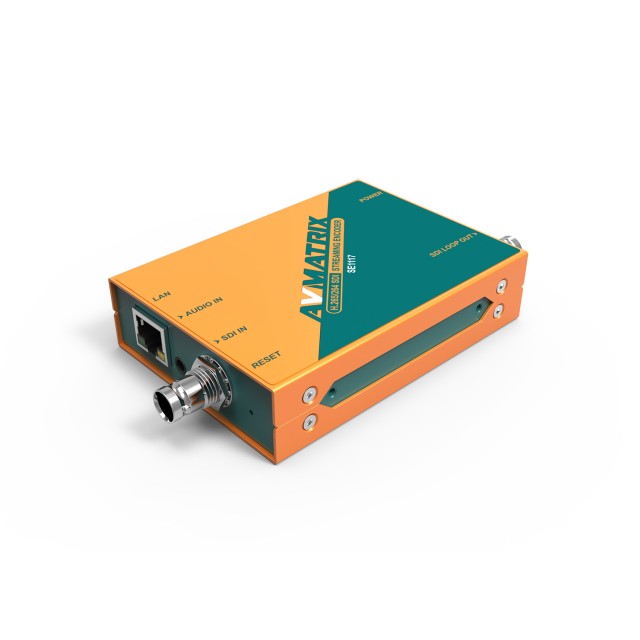

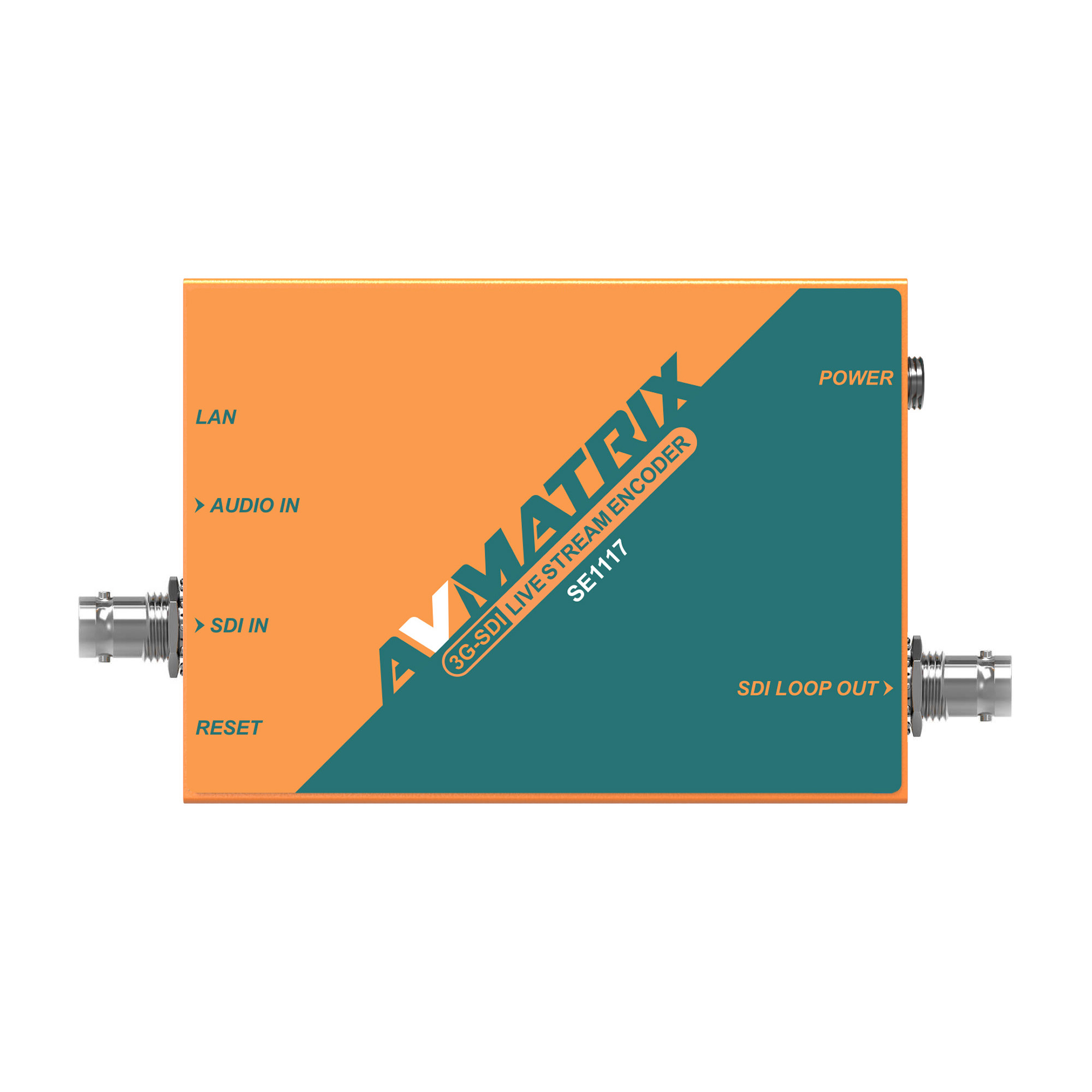

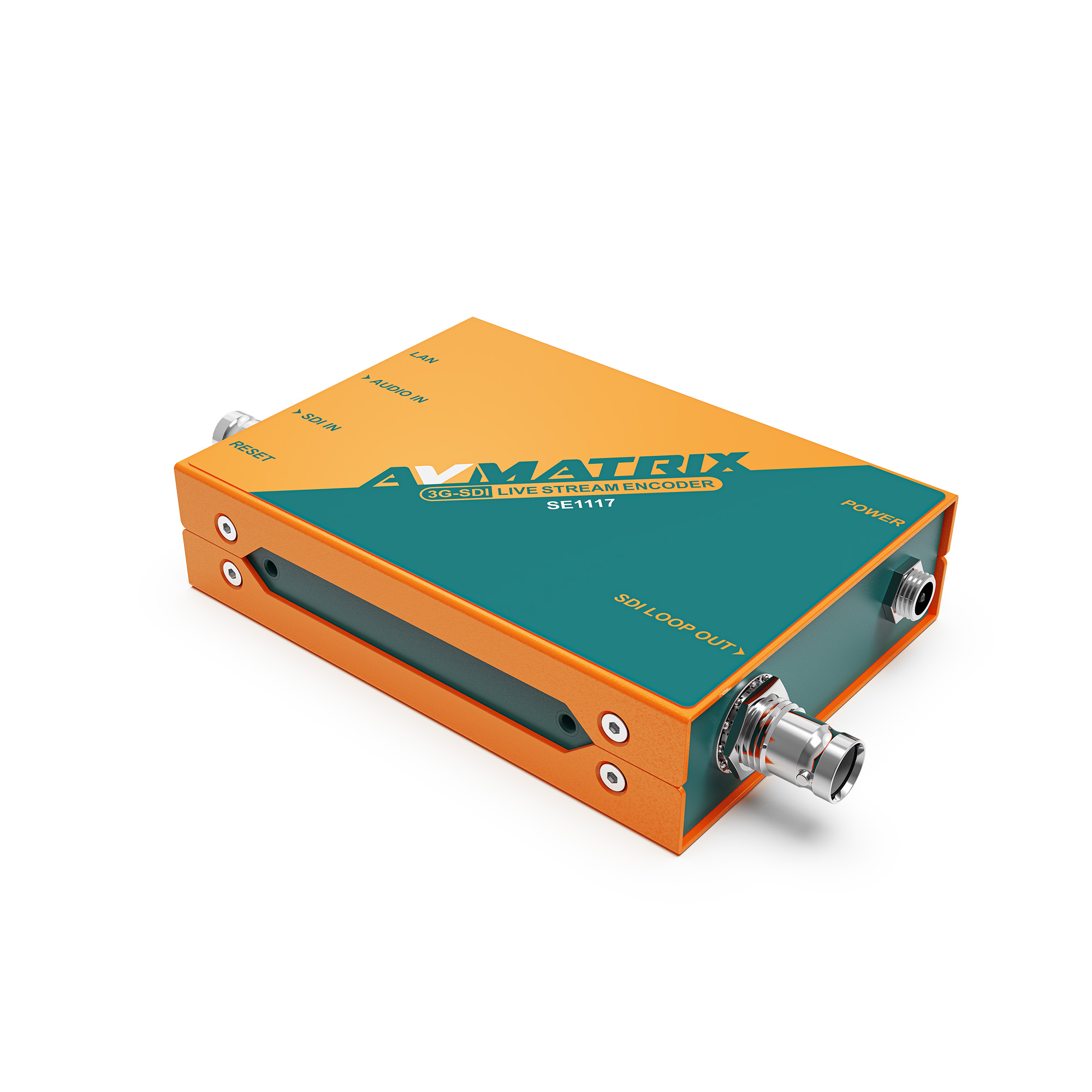

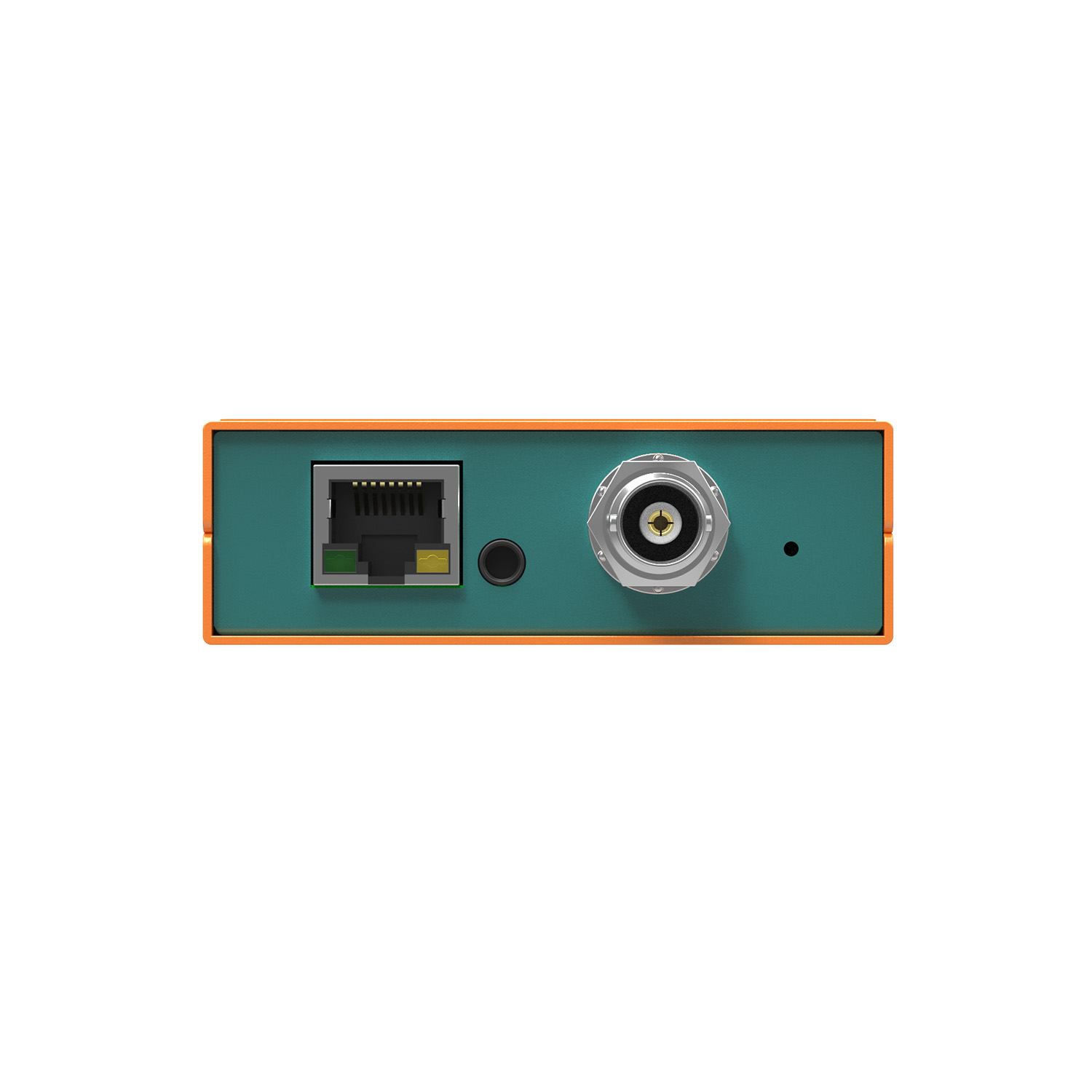

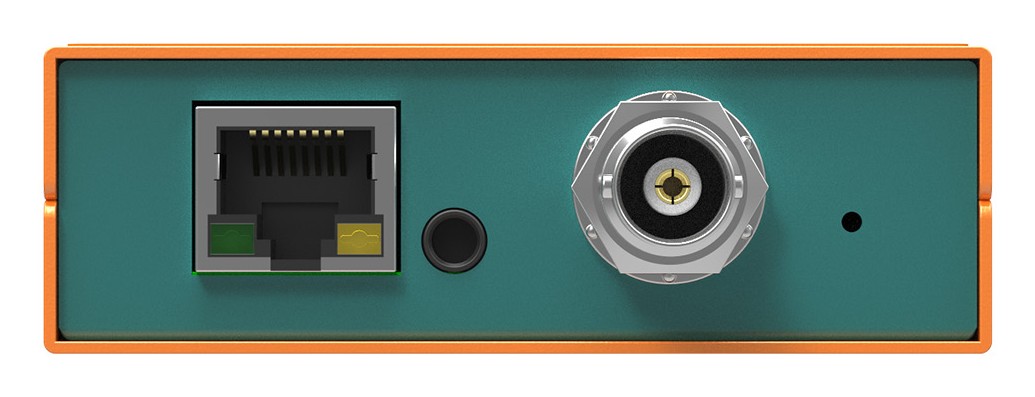

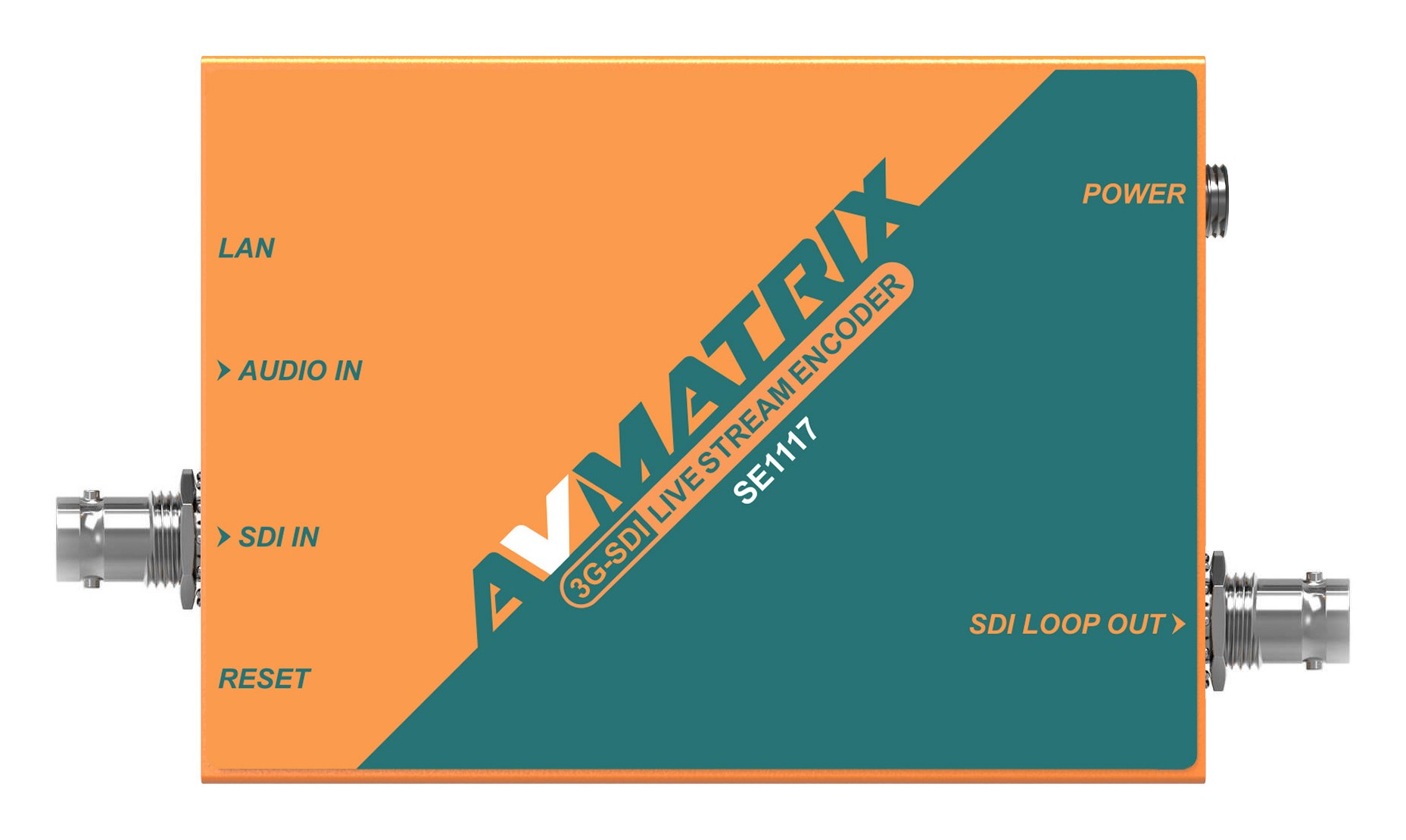

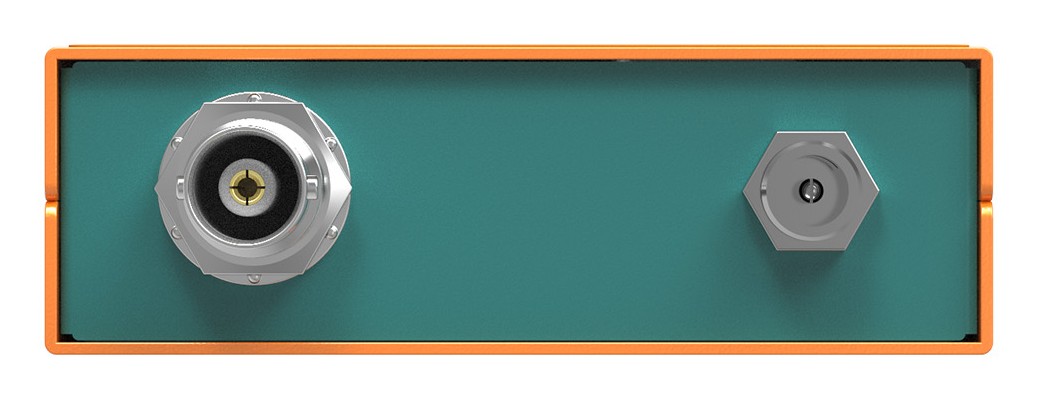

• 1× 3G-SDI input and 1× SDI loop output
• 1× analogue audio input
• H.265 and H.264 up to 1080p60
• Dual simultaneous main and sub streams
• RTSP, RTP, RTMPS, RTMP, HTTP, UDP and SRT
• Unicast and multicast
• Combined video/audio or audio-only streaming
• Image and text overlay
• Mirror and upside-down image modes
• Standalone operation without a computer

Direct streaming without a computer

The encoder accepts the production video signal, encodes it as H.264 or H.265 and sends it directly to a platform, server or local network. Main and sub streams can be configured independently for different destinations or bitrates.

Monitoring and graphic overlay

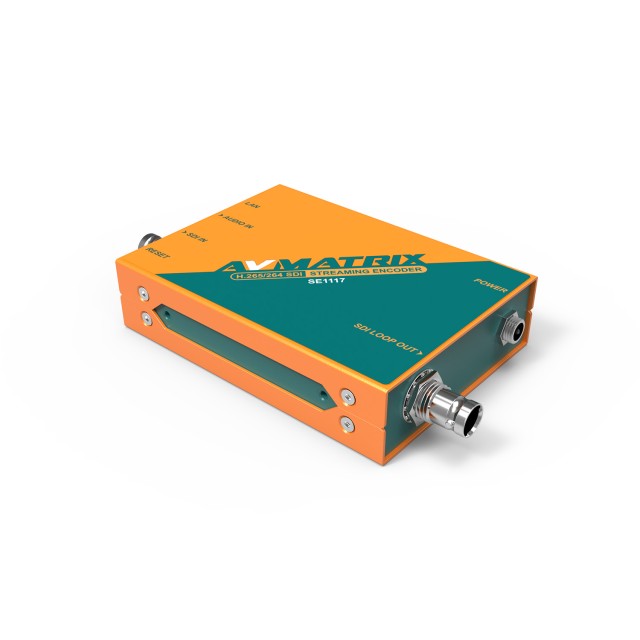

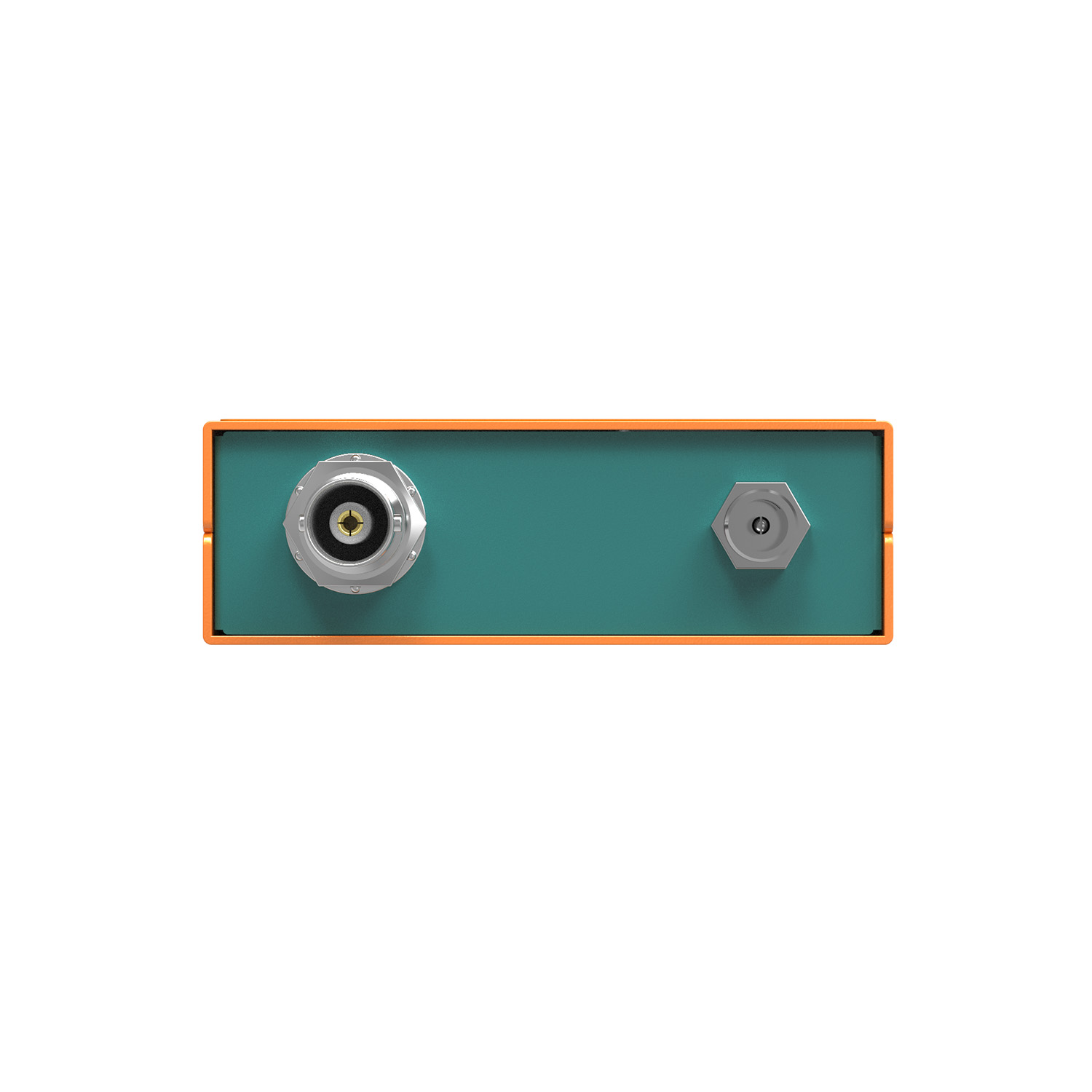

The loop output retains local monitoring. Text or images can be overlaid, horizontal or vertical flip applied, and the unit can stream video with audio or audio only.
