AVMatrix 4K HDMI Encoder & Decoder with NDI|HX

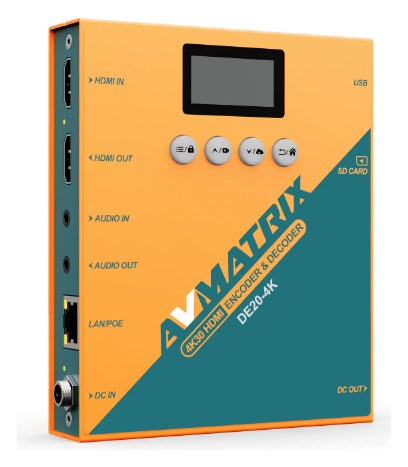

AVMATRIX DE20-4K-NDI is a professional 2-in-1 HDMI/IP encoder and decoder with integrated NDI|HX3 support. It accepts HDMI up to 4K60, encodes and decodes up to 4K30 and provides a zero-delay HDMI loop, streaming, local recording, USB capture, PTZ control and PoE+.

AVMATRIX DE20-4K-NDI is a professional 2-in-1 HDMI/IP encoder and decoder with integrated NDI|HX3 support. It accepts HDMI up to 4K60, encodes and decodes up to 4K30 and provides a zero-delay HDMI loop, streaming, local recording, USB capture, PTZ control and PoE+.

Key features

• Bidirectional HDMI/IP encoder and decoder
• HDMI input and zero-delay loop up to 4K60
• Encoding, decoding and HDMI output up to 4K30
• RTSP, RTMP, RTMPS, SRT and NDI|HX/HX2/HX3
• Bitrate up to 50Mbps
• Recording to SD card, USB drive or NAS
• USB UVC capture and USB audio
• 3.5mm audio input and output
• PTZ control over VISCA and Pelco D/P
• Tally indication, OLED display and web interface
• PoE+, DC input, DC output and USB power output

Encoder and decoder in one device

In encoder mode it converts HDMI to an IP stream while retaining 4K60 video on the loop output. In decoder mode it converts a network stream back to HDMI up to 4K30.

Streaming, recording and USB workflow

The programme can be sent to platforms, recorded to SD, USB or NAS and used simultaneously as a UVC capture source. PTZ protocol support controls compatible cameras directly in the IP workflow.

Flexible power

Alongside PoE+, a DC input can be used. DC and USB outputs can power accessories in a compact mobile setup.
