AvMatrix SE2017
SKU: SE2017
AVMATRIX SE2017 is a professional 3-in-1 encoder, recorder and USB-C capture device for HDMI or 3G-SDI sources up to 1080p60. It provides loop outputs, line audio input, recording to SD card or USB disk, RTSP/RTMP/SRT/HTTP-FLV streaming and PoE or DC power.
429 € with VAT
354.55 € without VAT
Personal pickup within 90 minutes
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 3 pcs
Praha 3 pcs
Praha 3 pcs
Top accessories for AvMatrix SE2017
Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs
Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
AVMATRIX SE2017 is a professional 3-in-1 encoder, recorder and USB-C capture device for HDMI or 3G-SDI sources up to 1080p60. It provides loop outputs, line audio input, recording to SD card or USB disk, RTSP/RTMP/SRT/HTTP-FLV streaming and PoE or DC power.
Encoder, recorder and USB capture in one
A compact device for HDMI and 3G-SDI sources up to 1080p60: it streams, records to an SD card or USB drive and doubles as a USB-C capture source, all without a production computer.
HDMI + 3G-SDIUp to 1080p60Stream · record · USB-CLoop outputsPoE or 12 V DC
Three workflows in a small body
SE2017 streams, records locally and sends video to a computer as a USB-C capture source at the same time. It suits lectures, events, conference rooms and sports streams.
2 inputs, 2 loops
HDMI and 3G-SDI inputs with pass-through outputs and a line audio input.
Recording
MP4/TS to an SD card or USB disk.
Streaming
RTSP, RTMP, SRT, HTTP-FLV, unicast and multicast, up to 32 Mbps.
Control and power
OLED display with buttons, LAN with PoE or external 12 V DC.

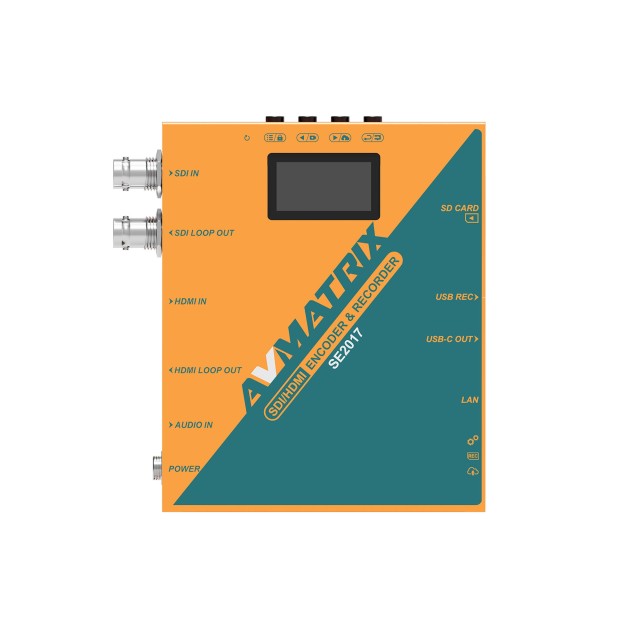

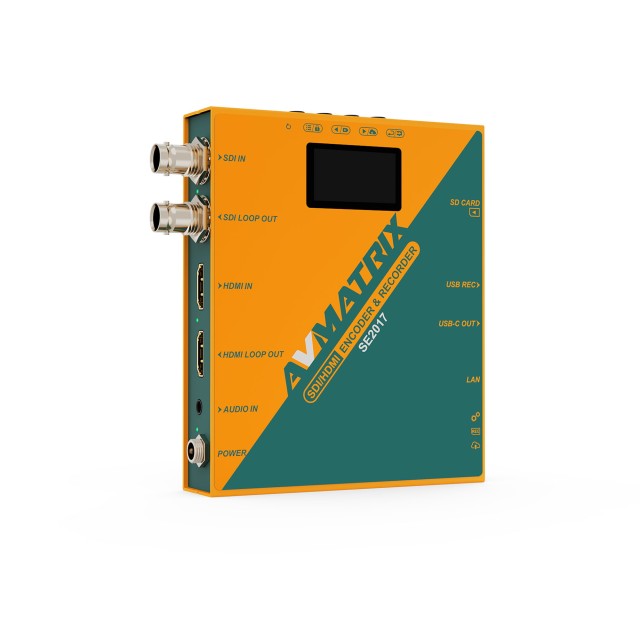

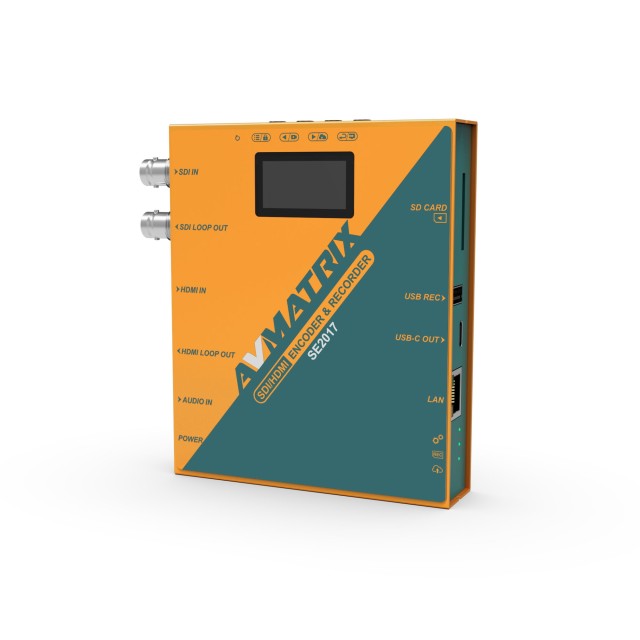

Front panel with display

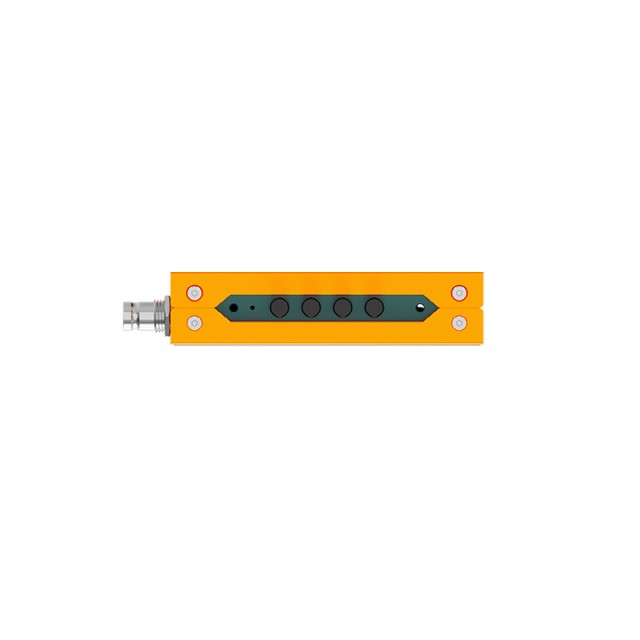

The OLED display and buttons give quick access to status and settings.

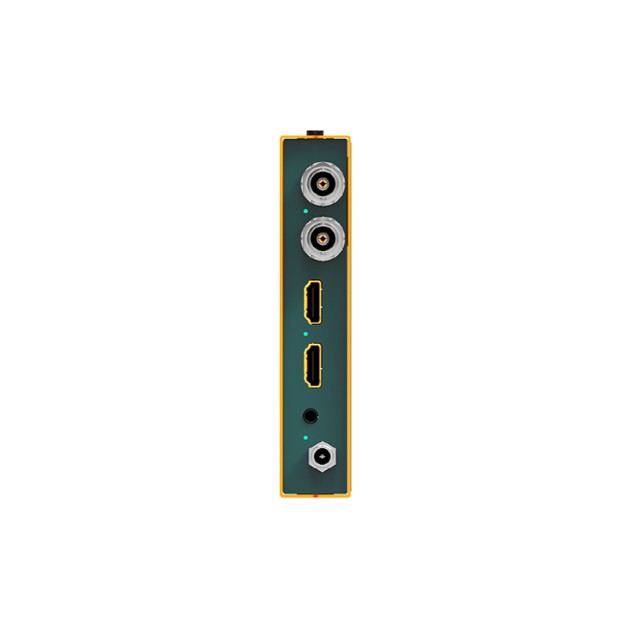

Inputs and loop outputs
HDMI and 3G-SDI inputs, matching loop outputs, audio input and power.

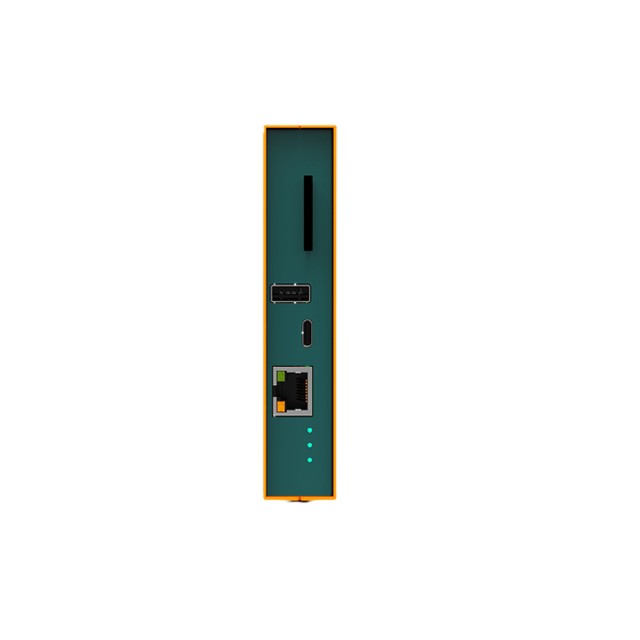

SD card, USB and LAN
SD card slot, USB for recording, USB-C capture output and LAN with PoE.
More information
About the product
HDMI/3G-SDI streaming and recording up to 1080p60
AVMATRIX SE2017 combines an encoder, recorder and USB-C capture box in one compact device. It accepts HDMI and 3G-SDI sources, adds loop outputs and a line audio input, and can operate standalone without a production computer.
Three workflows in a compact body
SE2017 can stream, record locally and send video to a computer as a USB-C capture source. It suits lectures, events, conference rooms, sports streams and long-running IP broadcasts.
HDMI and 3G-SDI with loop outputs
HDMI and 3G-SDI inputs accept signals up to 1080p60. HDMI and SDI loop outputs simplify local monitoring or integration with another switcher, recorder or distribution chain.
Recording, streaming and USB-C capture
Record to SD card or USB disk in MP4/TS format. Streaming supports RTSP, RTMP, SRT, HTTP-FLV, unicast and multicast, while USB-C output works as a capture source for streaming and conferencing software.
Front-panel control and PoE power
The OLED display and buttons provide quick access to status and settings. The LAN port adds network streaming and PoE power, while external 12 V DC power is also supported.
PACKAGE CONTENT
- AVMATRIX SE2017 ×1
- 12 V / 2 A power adapter ×1
- User documentation ×1
SPECIFICATIONS
- Video inputs: 1× HDMI, 1× 3G-SDI
- Loop outputs: 1× HDMI, 1× 3G-SDI
- USB capture: USB-C, up to 1080p60
- Audio input: 3.5 mm line input, embedding into video
- Maximum resolution: 1080p60
- Encoding: H.264/H.265, bit rate up to 32 Mbps
- Recording: SD card or USB disk, MP4/TS
- Streaming protocols: RTSP, RTMP, SRT, HTTP-FLV, unicast/multicast
- Power: PoE or 12 V DC
Parameters
Parameters
| Manufacturer: | AVMATRIX |
| Category: | Encoders |
Main parameters
| Formát/Kodek | H.264 / AVC · H.265 / HEVC |
| Maximální rozlišení videa | 1080p60 |
| Připojení | Ethernet (RJ-45) |
| Provedení | Kompaktní / Stolní |
| Síťové protokoly | RTMP / RTMPS · SRT · RTSP / RTP · Apple HLS · MPEG-TS |
| Typ napájení | PoE / PoE+ · DC adaptér (12V) |
| Video vstup enkodéru | HDMI · 3G-SDI |
| Záznamová média | SD karta · USB disk |
