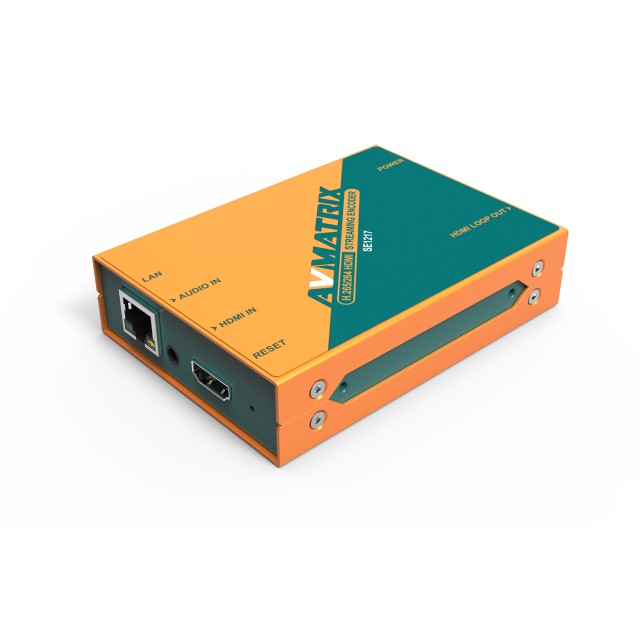

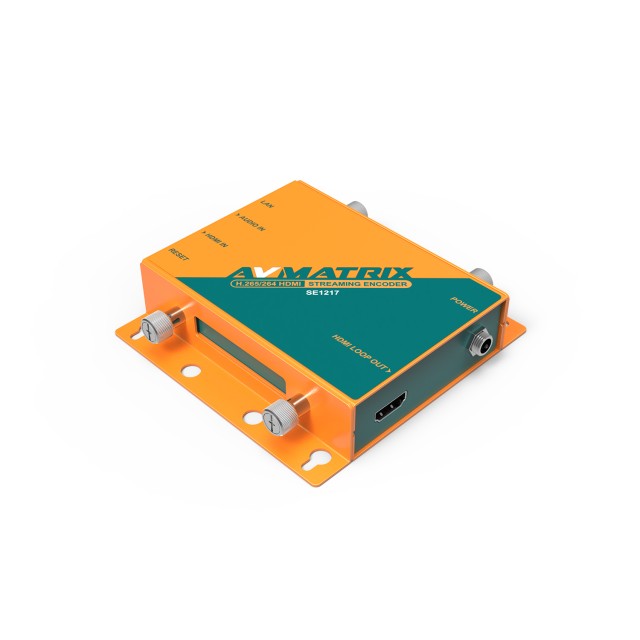

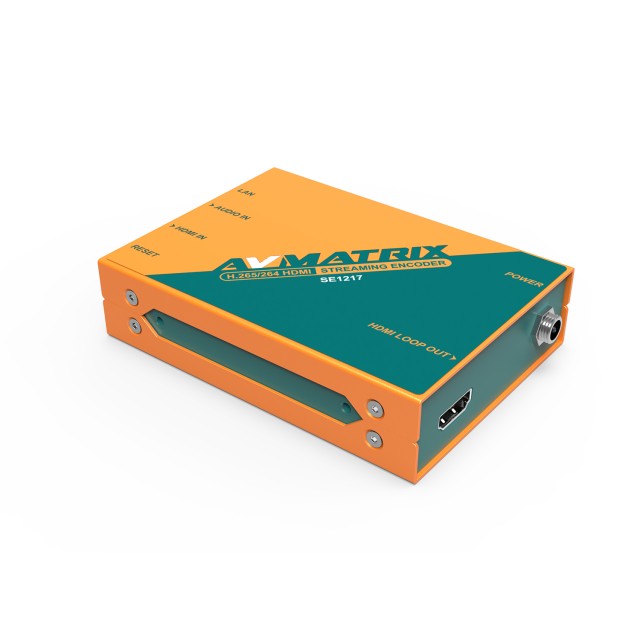

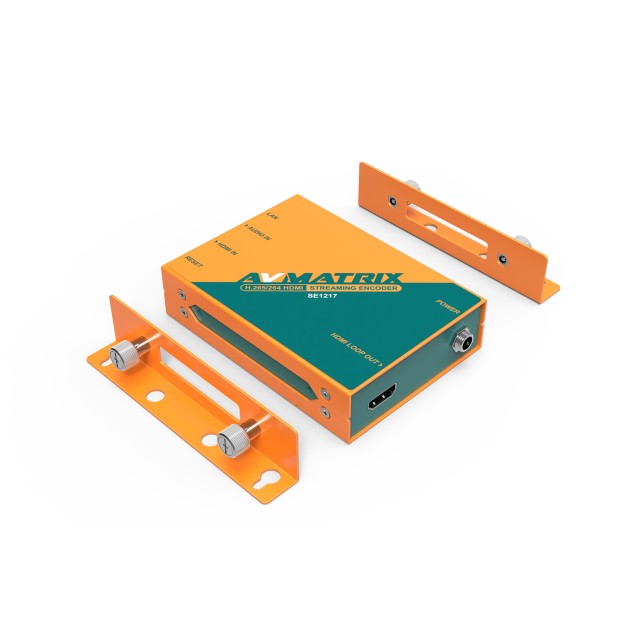

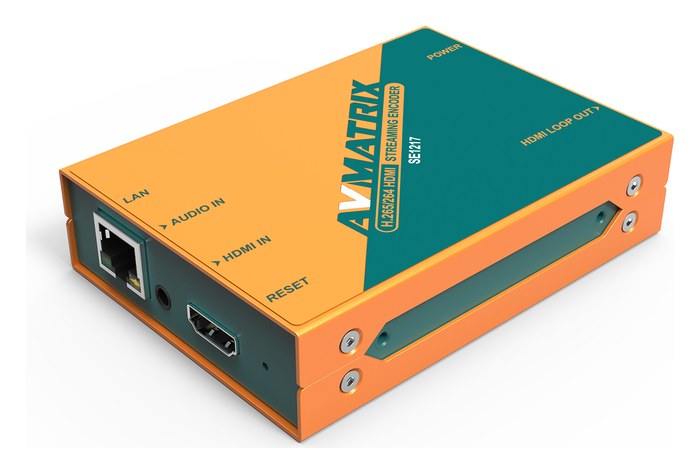

AVMATRIX SE1217 H.265/ H.264 HDMI STREAMING ENCODER

AVMATRIX SE1217 is a standalone H.265/H.264 streaming encoder for HDMI sources up to 1080p60. It provides a HDMI loop output, analogue audio input, dual simultaneous streams and direct live streaming without a connected computer.

AVMATRIX SE1217 is a standalone H.265/H.264 streaming encoder for HDMI sources up to 1080p60. It provides a HDMI loop output, analogue audio input, dual simultaneous streams and direct live streaming without a connected computer.

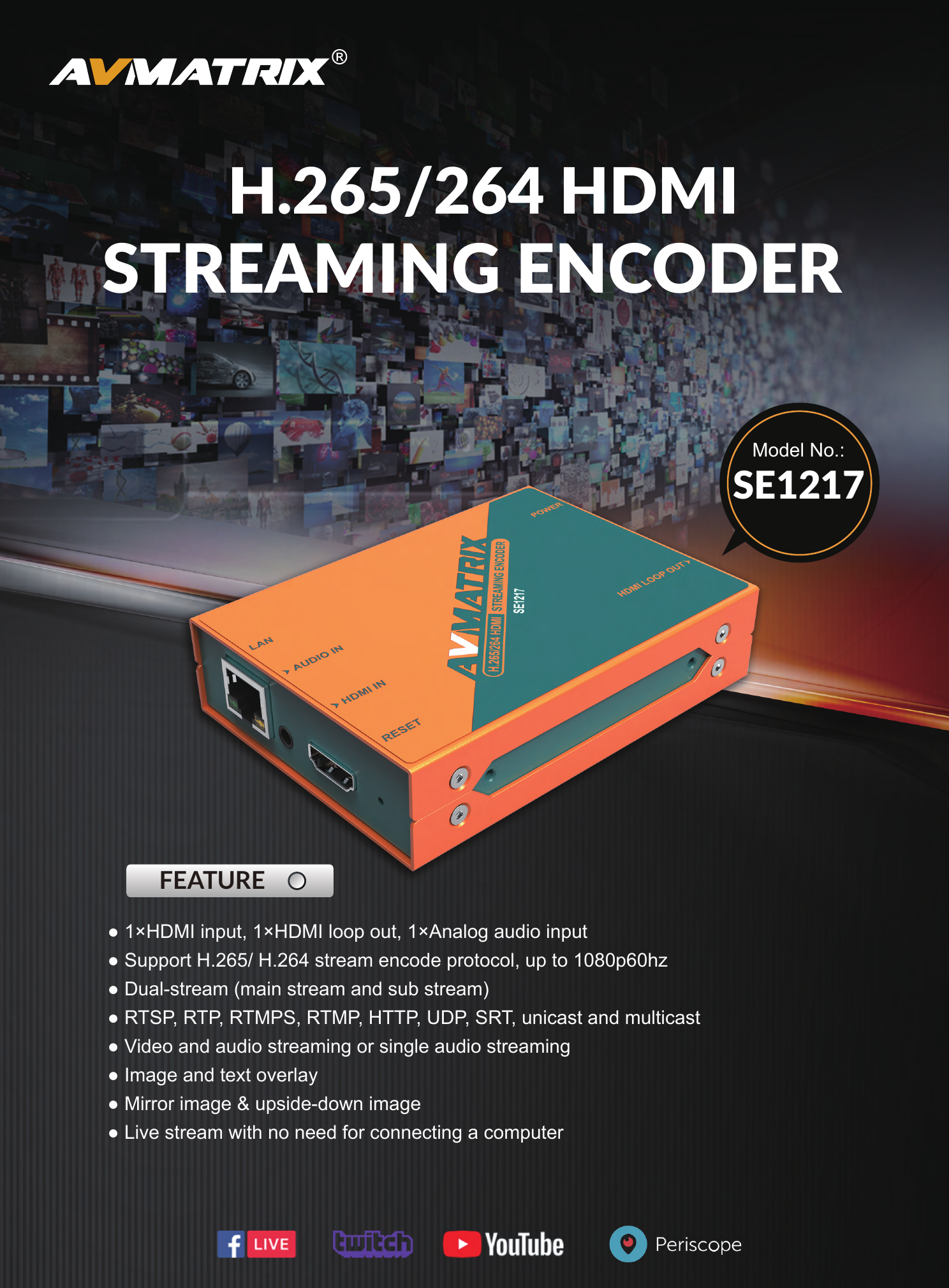

Key features

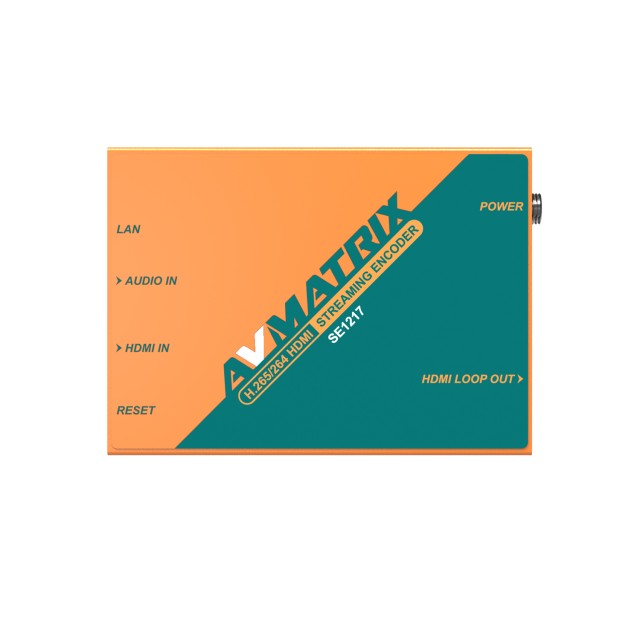

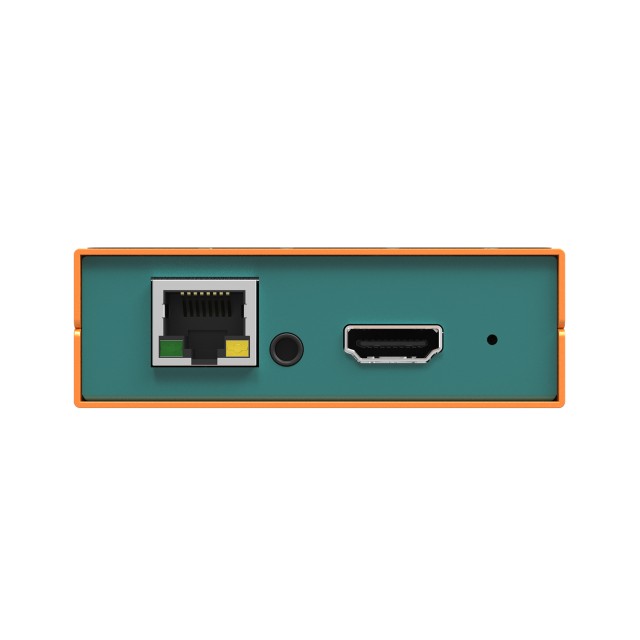

• 1× HDMI input and 1× HDMI loop output
• 1× analogue audio input
• H.265 and H.264 up to 1080p60
• Dual simultaneous main and sub streams
• RTSP, RTP, RTMPS, RTMP, HTTP, UDP and SRT
• Unicast and multicast
• Combined video/audio or audio-only streaming
• Image and text overlay
• Mirror and upside-down image modes
• Standalone operation without a computer

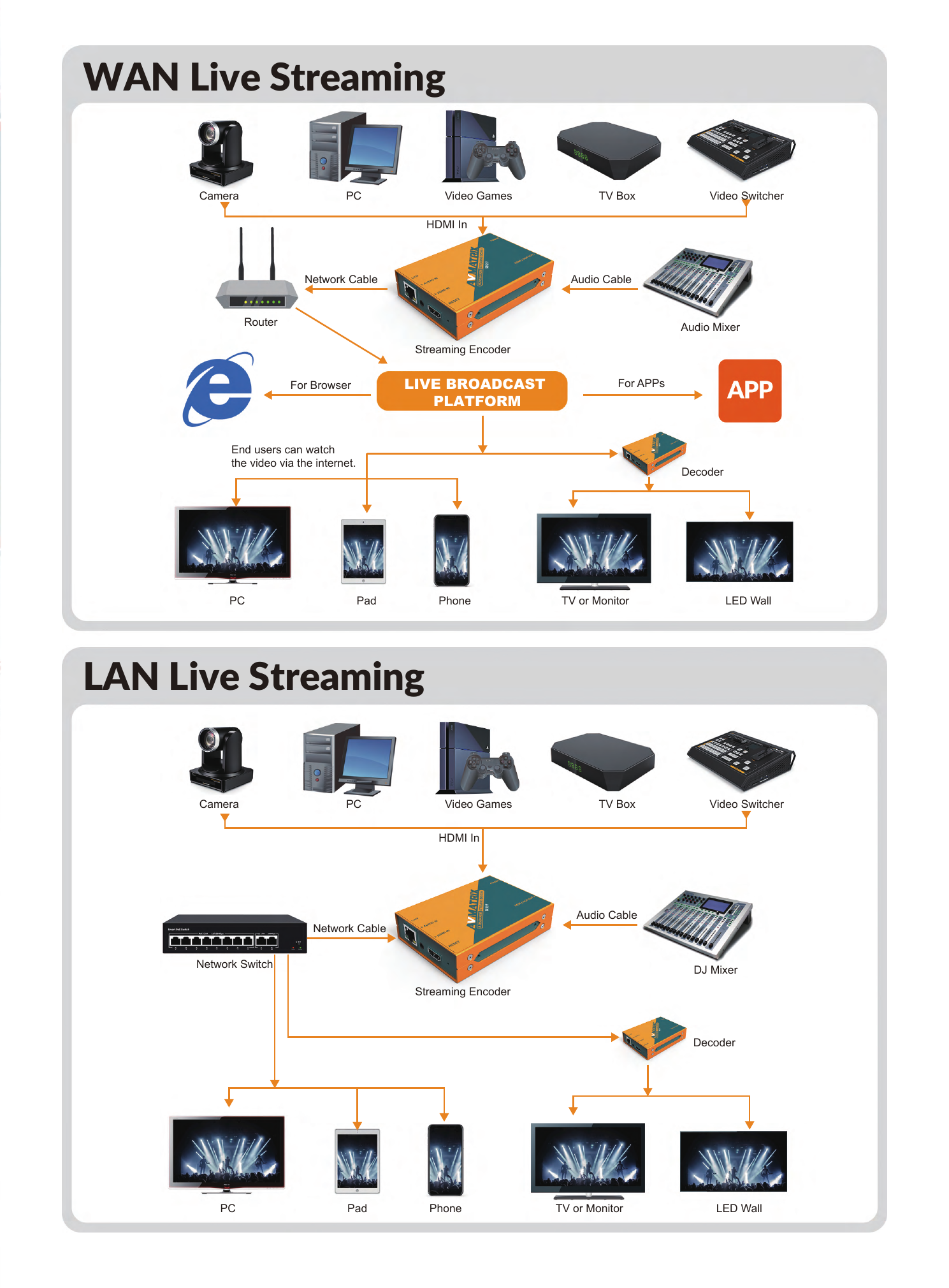

Direct streaming without a computer

The encoder accepts the production video signal, encodes it as H.264 or H.265 and sends it directly to a platform, server or local network. Main and sub streams can be configured independently for different destinations or bitrates.

Monitoring and graphic overlay

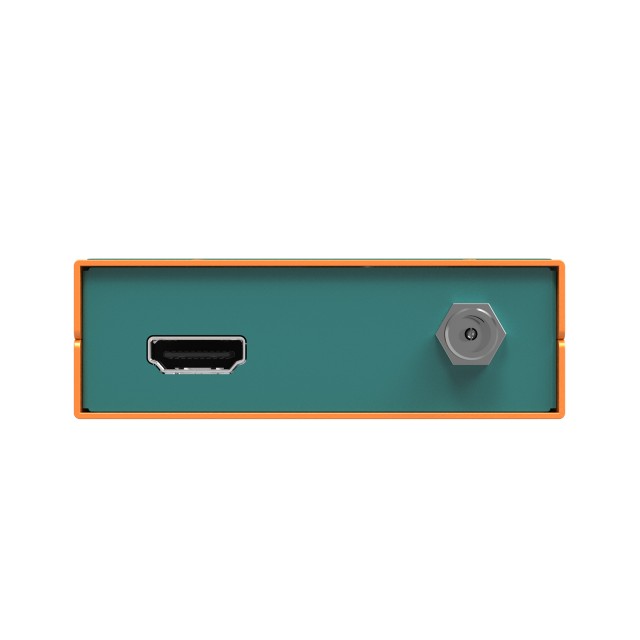

The loop output retains local monitoring. Text or images can be overlaid, horizontal or vertical flip applied, and the unit can stream video with audio or audio only.
