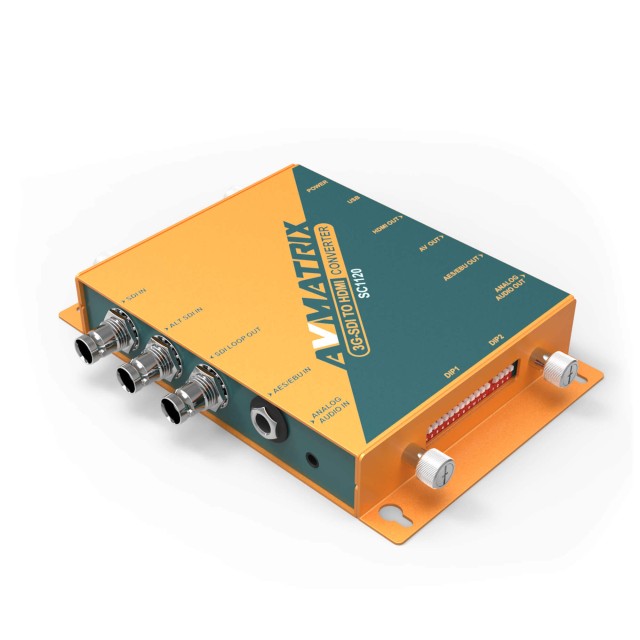

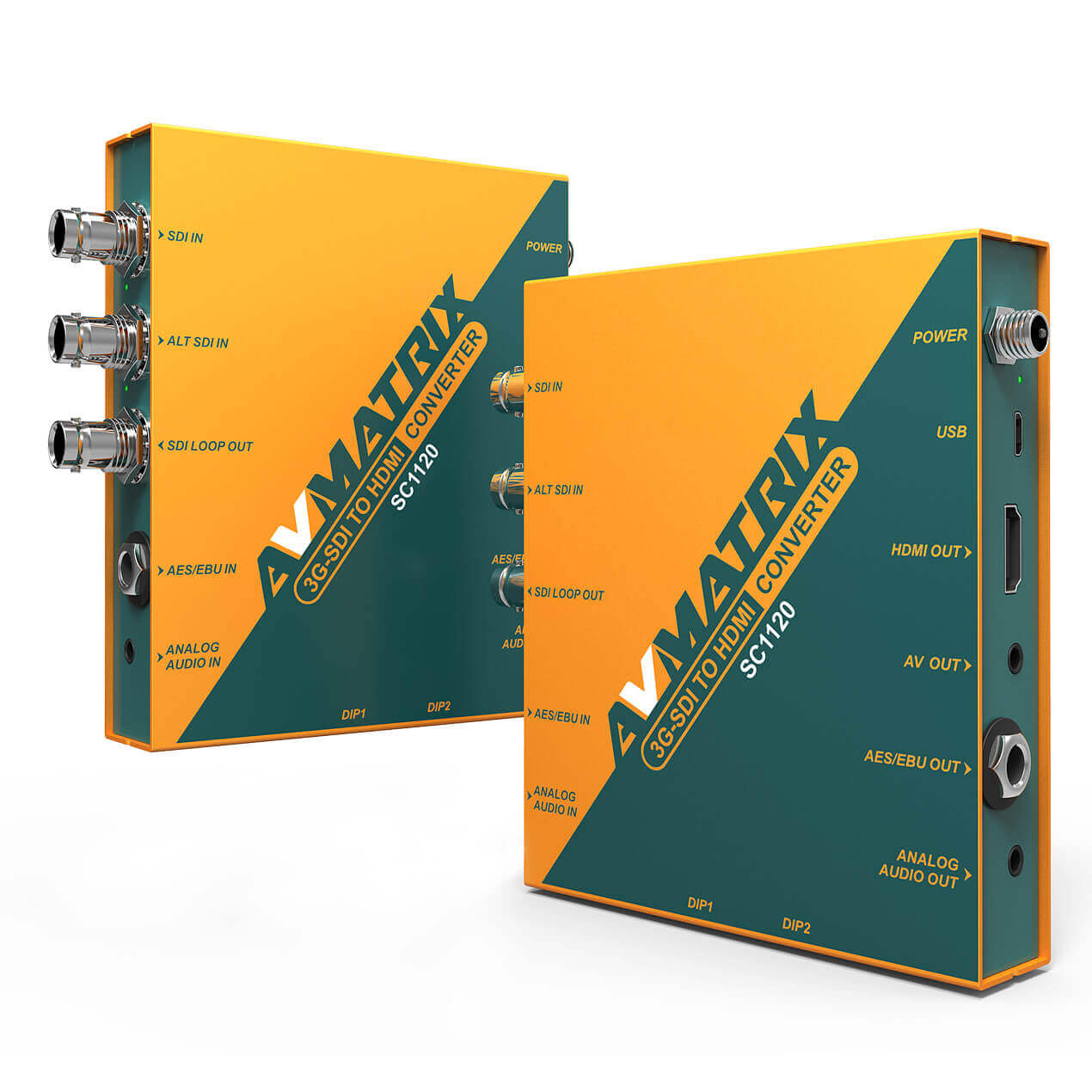

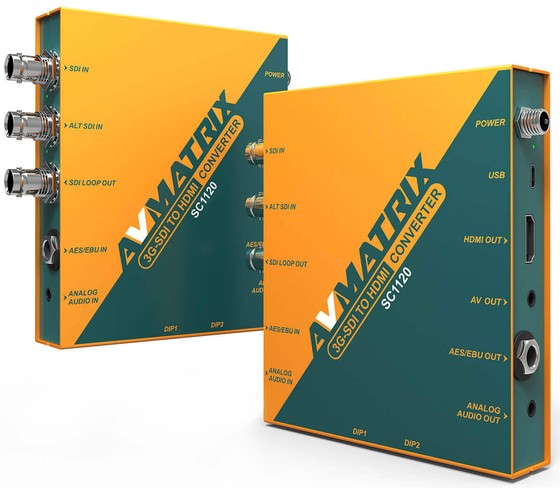

AVMATRIX SC1120 3G-SDI to HDMI & AV Scaling Converter
SKU: SC1120
AVMATRIX SC1120 is a professional 3G-SDI to HDMI and analogue AV scaling converter. From one SDI source it simultaneously creates HDMI and AV outputs, with pass-through, up/down scaling, frame-rate conversion, de-interlacing, redundant SDI input, reclocked SDI loop output and AES/EBU or analogue audio embedding/de-embedding.
241 € with VAT
199.17 € without VAT
Availability
Backordered 1 pcs - 13.11.2026
Top accessories for AVMATRIX SC1120 3G-SDI to HDMI & AV Scaling Converter
Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs
Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
AVMATRIX SC1120 is a professional 3G-SDI to HDMI and analogue AV scaling converter. From one SDI source it simultaneously creates HDMI and AV outputs, with pass-through, up/down scaling, frame-rate conversion, de-interlacing, redundant SDI input, reclocked SDI loop output and AES/EBU or analogue audio embedding/de-embedding.
SDI to HDMI and analogue AV converter in one
It converts SD/HD/3G-SDI to HDMI and analogue AV outputs at the same time. The scaler, frame rate conversion and deinterlacing suit control rooms, monitors, recorders and post-production desks.
3G-SDI inputHDMI + analogue AVBackup Alt 3G-SDIReclocked SDI loopUp to 1080p60AES/EBU and analogue

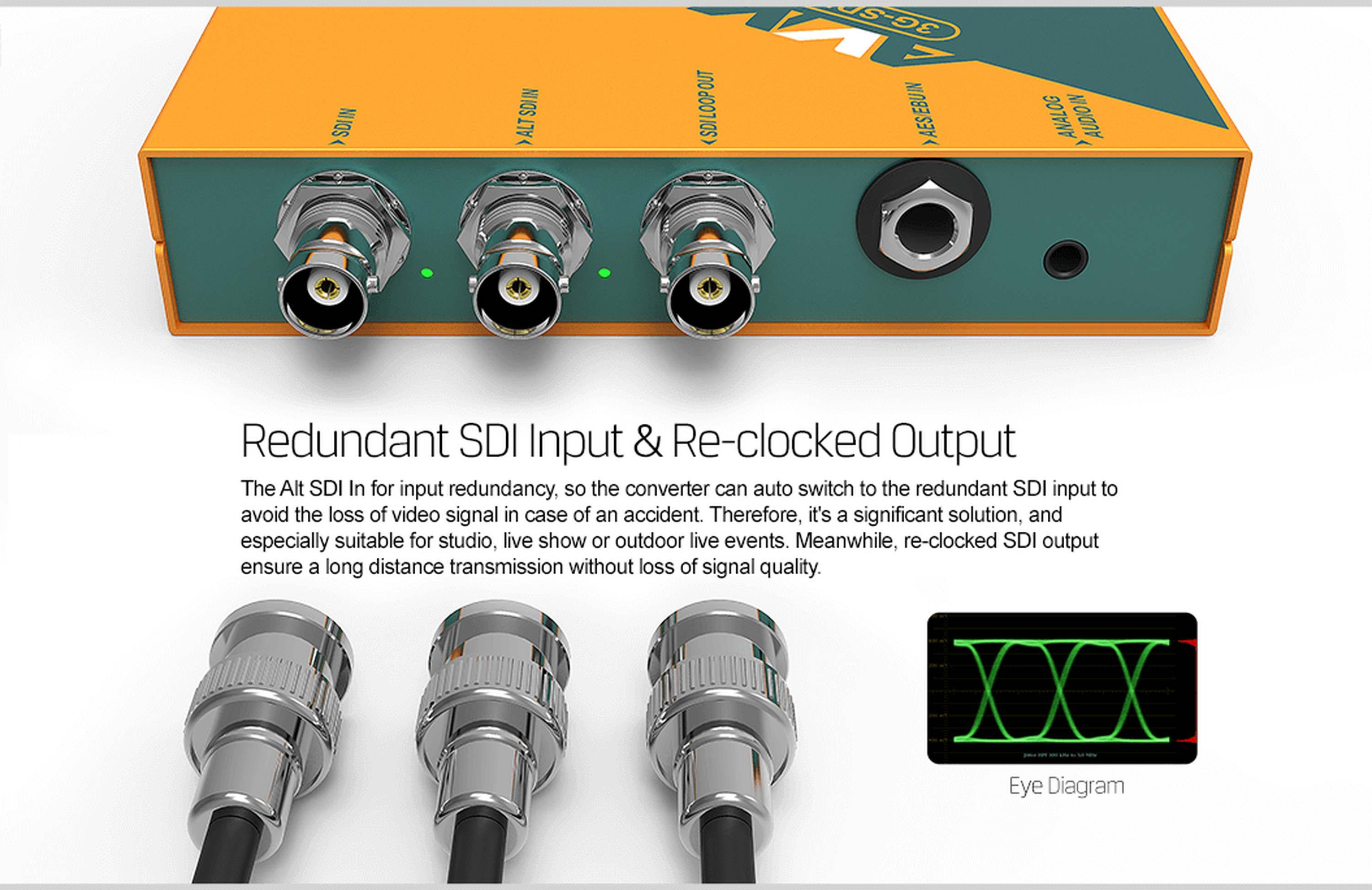

Redundant SDI input and reclocked loop
If the main signal fails, the SC1120 switches automatically to the backup SDI input, and the reclocked SDI loop helps keep quality over longer runs or further chaining.
Two output types
HDMI Type-A and analogue AV outputs at once, plus an SDI loop.

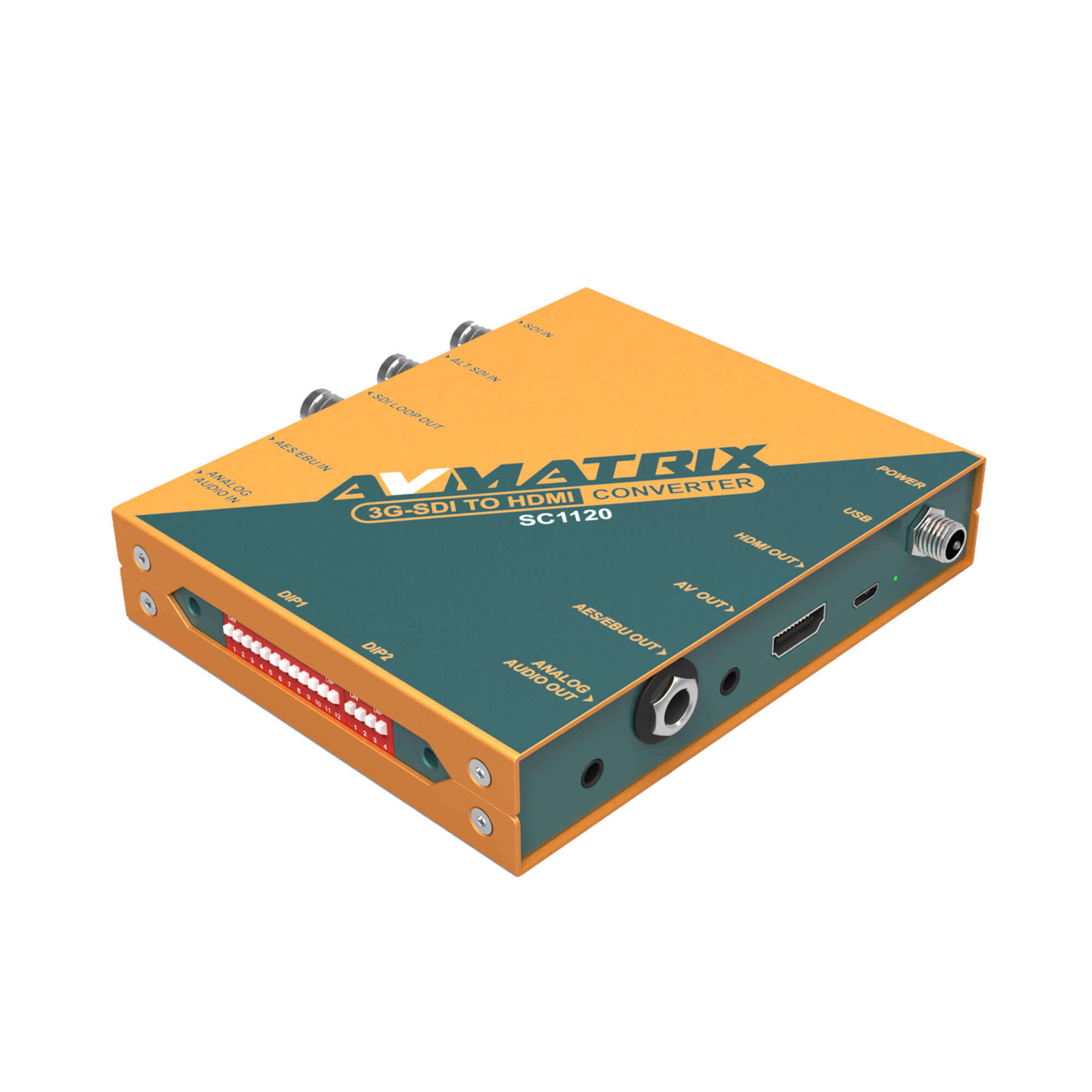

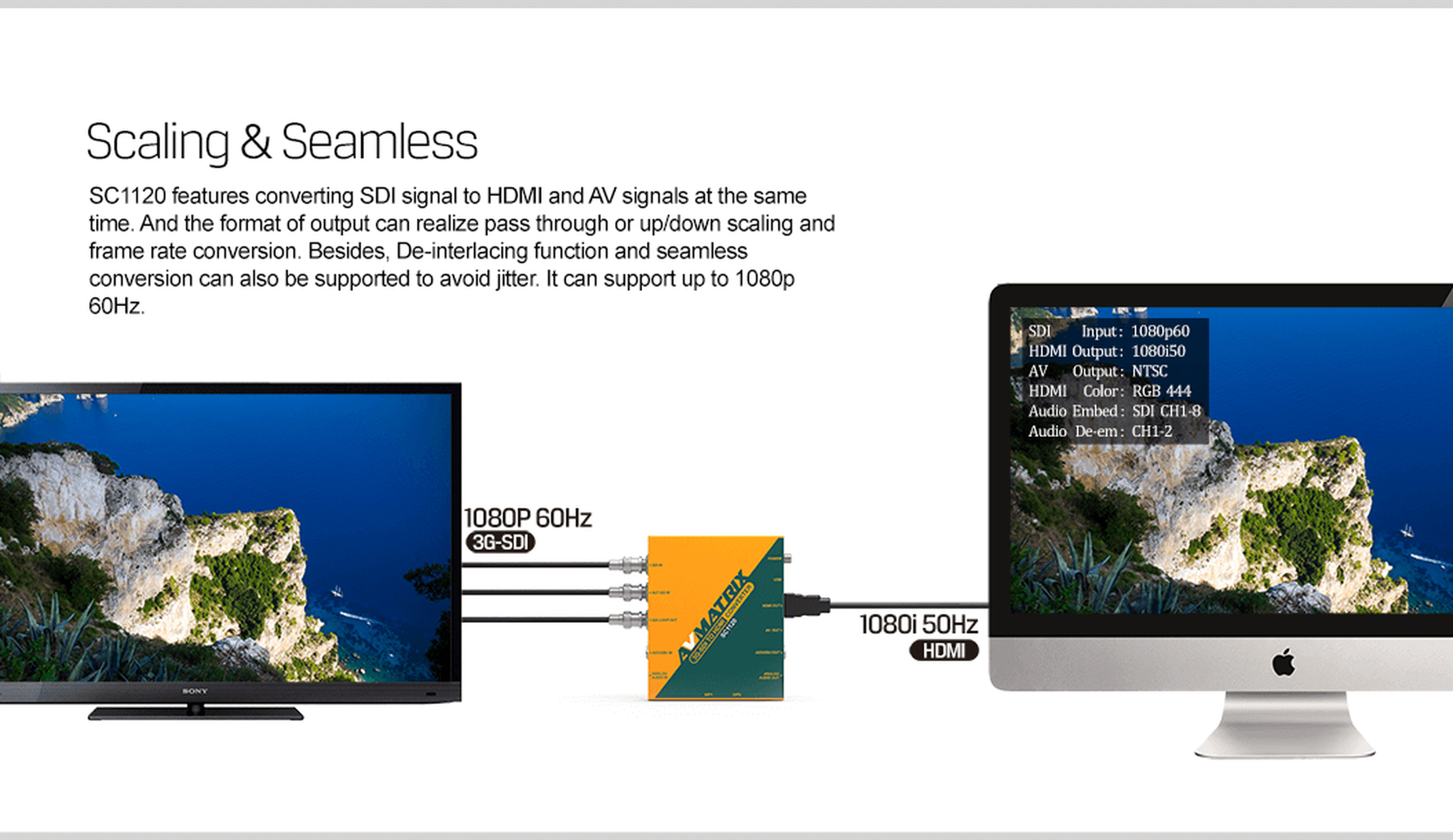

Scaling and frame rate
Pass-through or resolution and frame rate conversion up to 1080p60.

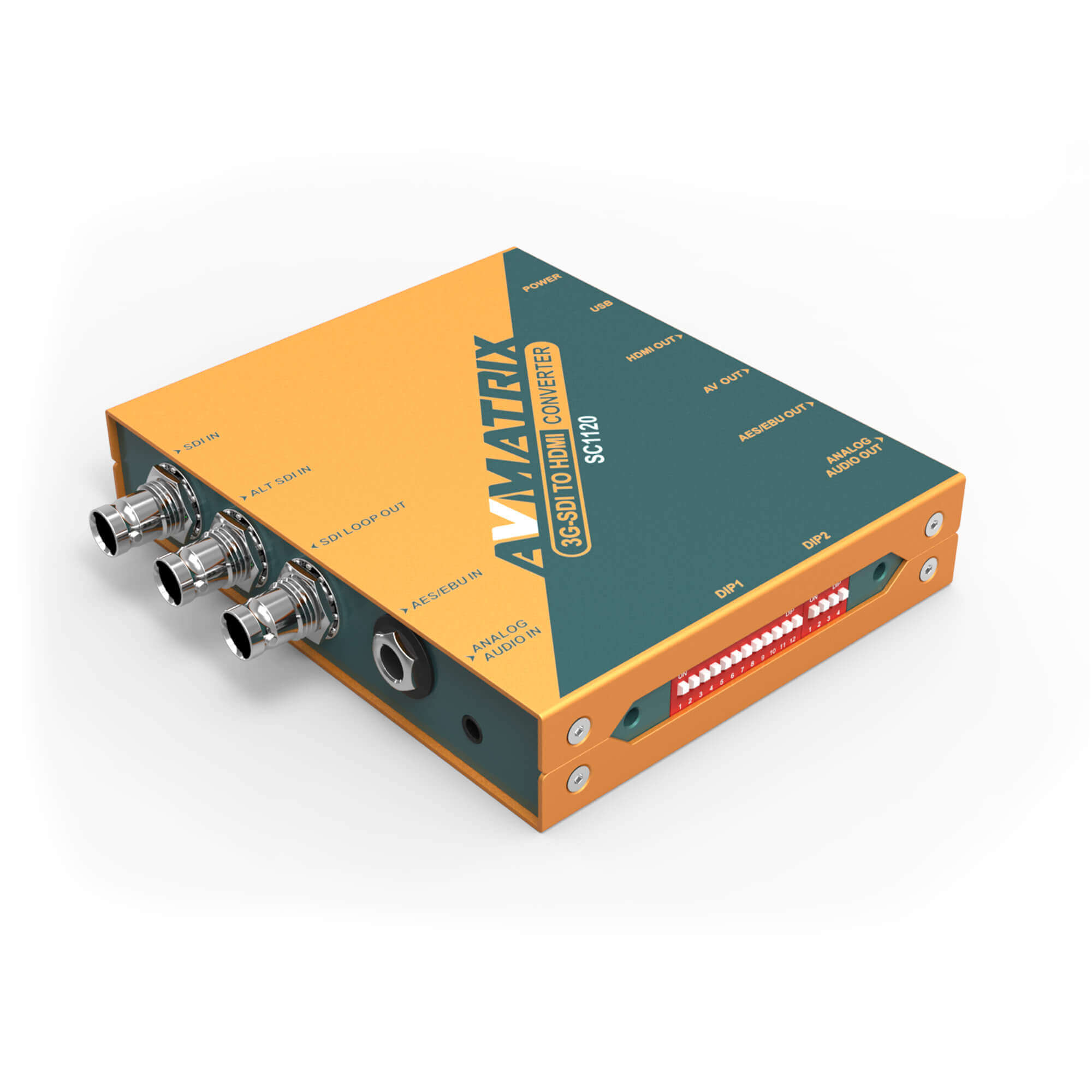

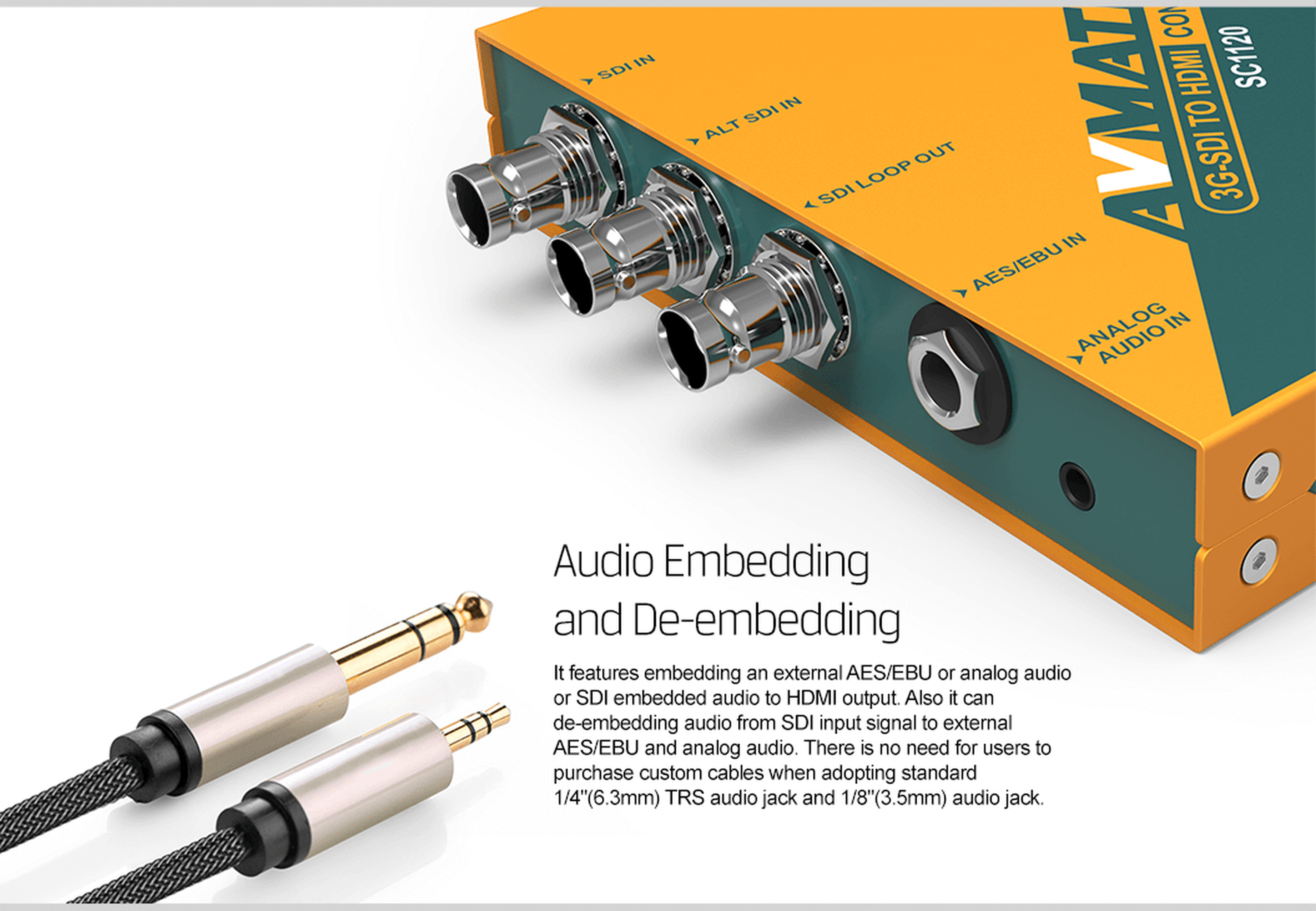

AES/EBU and analogue audio
Embedding and de-embedding of digital AES/EBU or analogue sound.

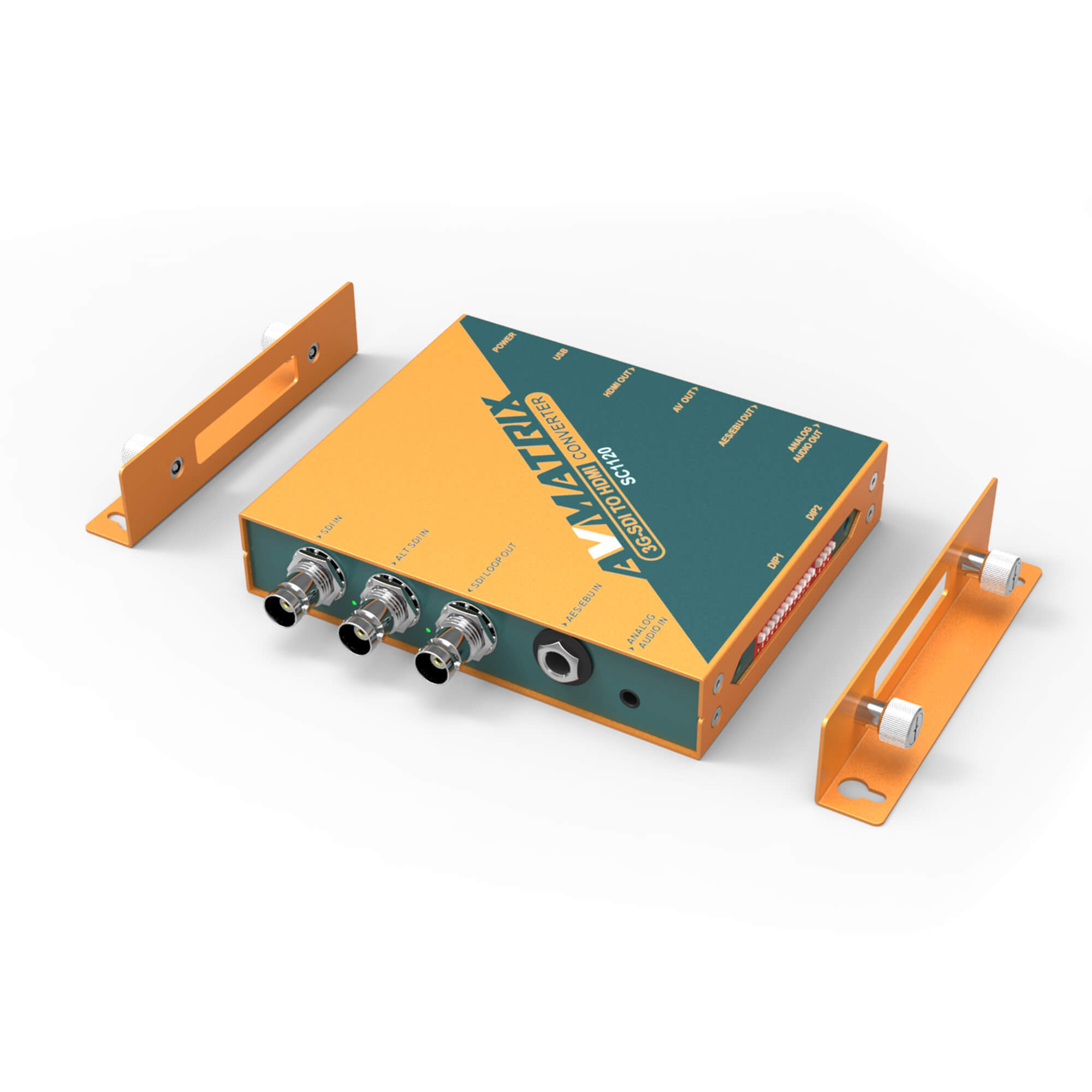

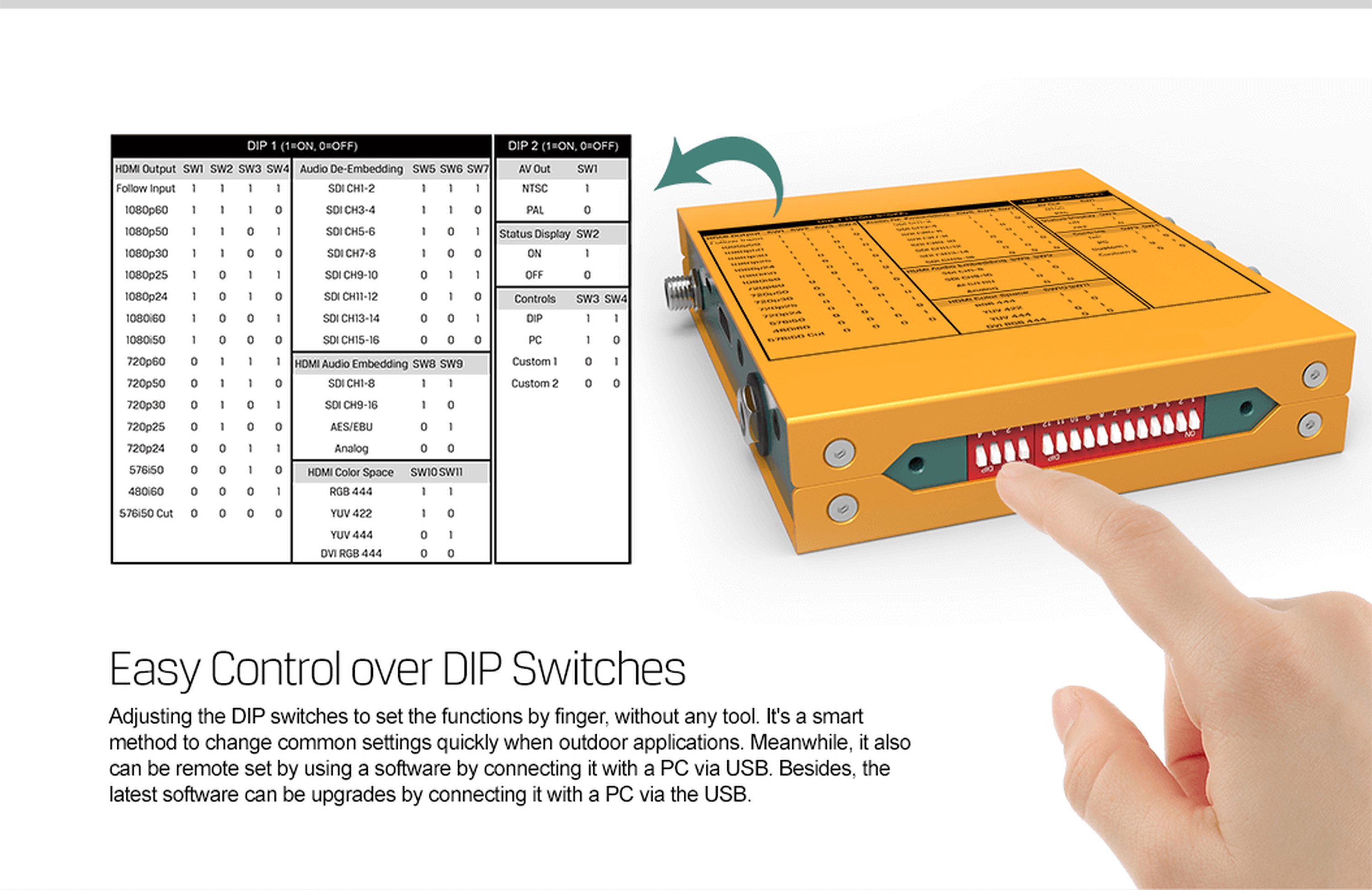

DIP or PC
Quick setup on the converter body, more advanced configuration over USB from a computer.
More information
About the product
SDI simultaneously to HDMI and analogue AV
AVMATRIX SC1120 converts SD/HD/3G-SDI to HDMI and analogue AV outputs at the same time. With integrated scaling, frame-rate conversion and de-interlacing, it fits switchers, monitors, recorders and AV post-production rooms.
- main SDI input plus alternate 3G-SDI input
- reclocked SDI loop output
- HDMI Type-A and analogue AV output
- suited to studios, live events and outdoor production
Key features
- 3G-SDI input and redundant Alt 3G-SDI input
- simultaneous HDMI and analogue AV output
- SDI loop output with reclocking
- up/down scaling and frame-rate conversion
- de-interlacing and seamless conversion without jitter
- AES/EBU or analogue audio embedding/de-embedding
PACKAGE CONTENT
- 1× AVMATRIX SC1120
- 2× mounting brackets
- 1× power adapter
- 1× Micro-USB cable
- 1× user documentation

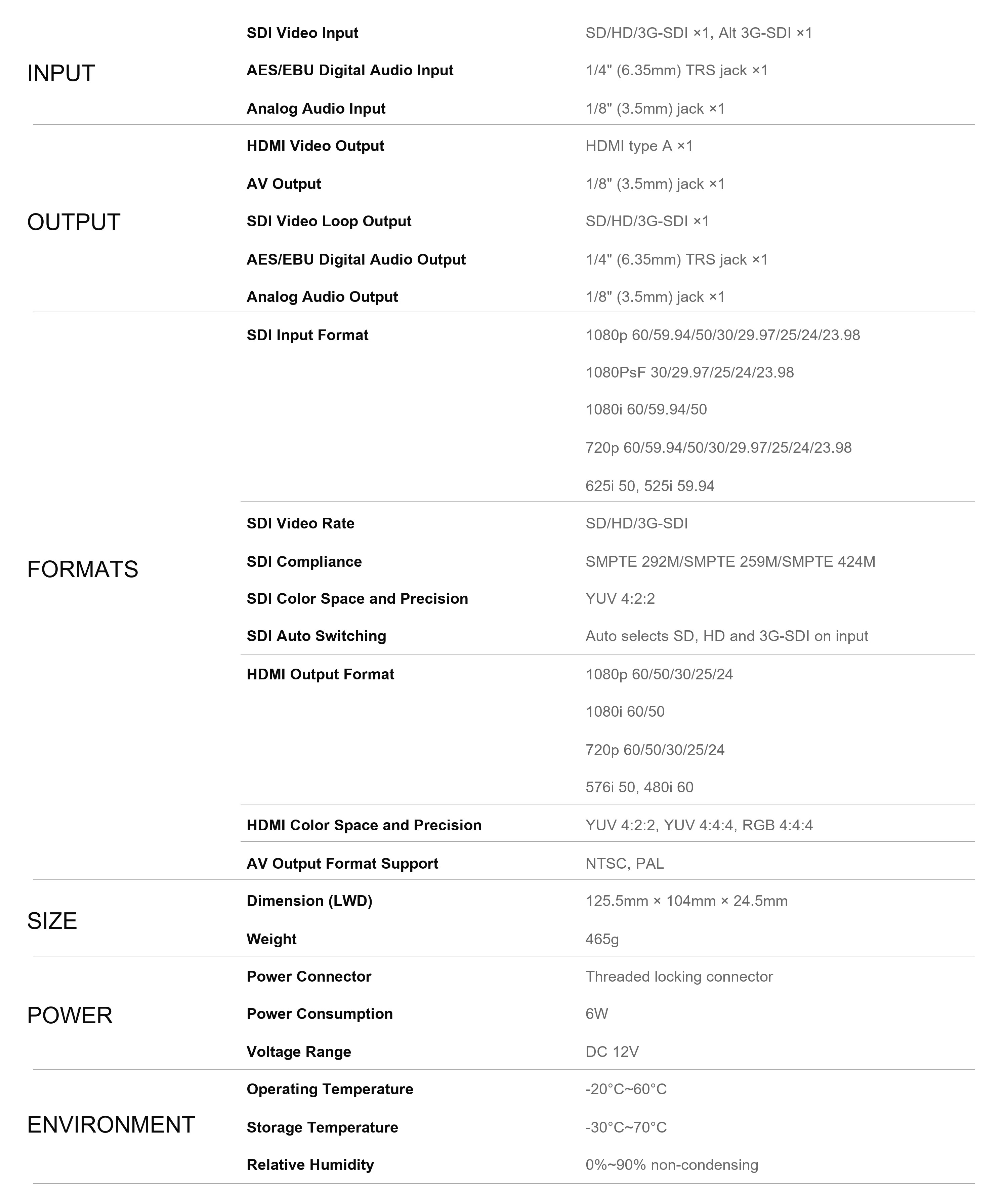

SPECIFICATIONS

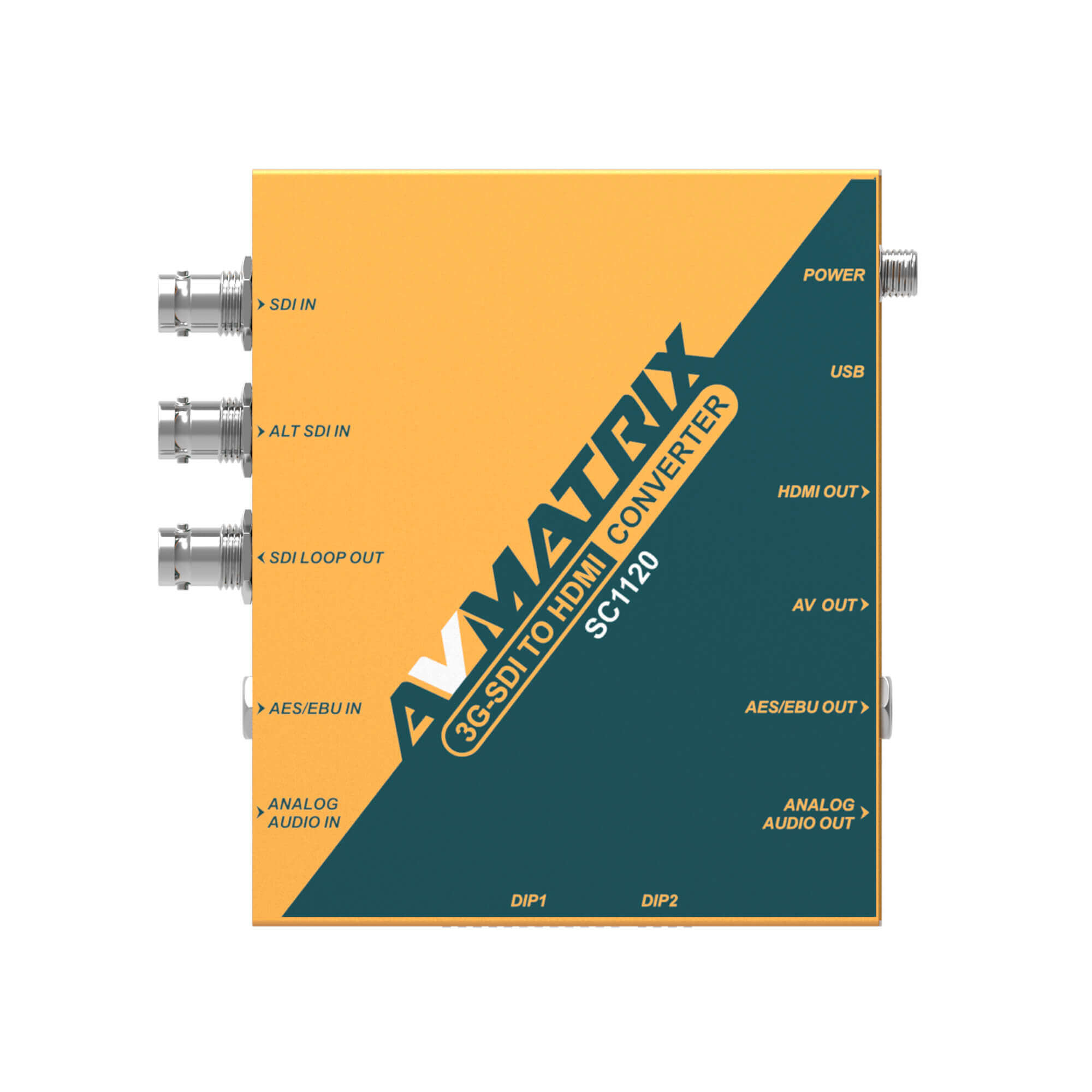

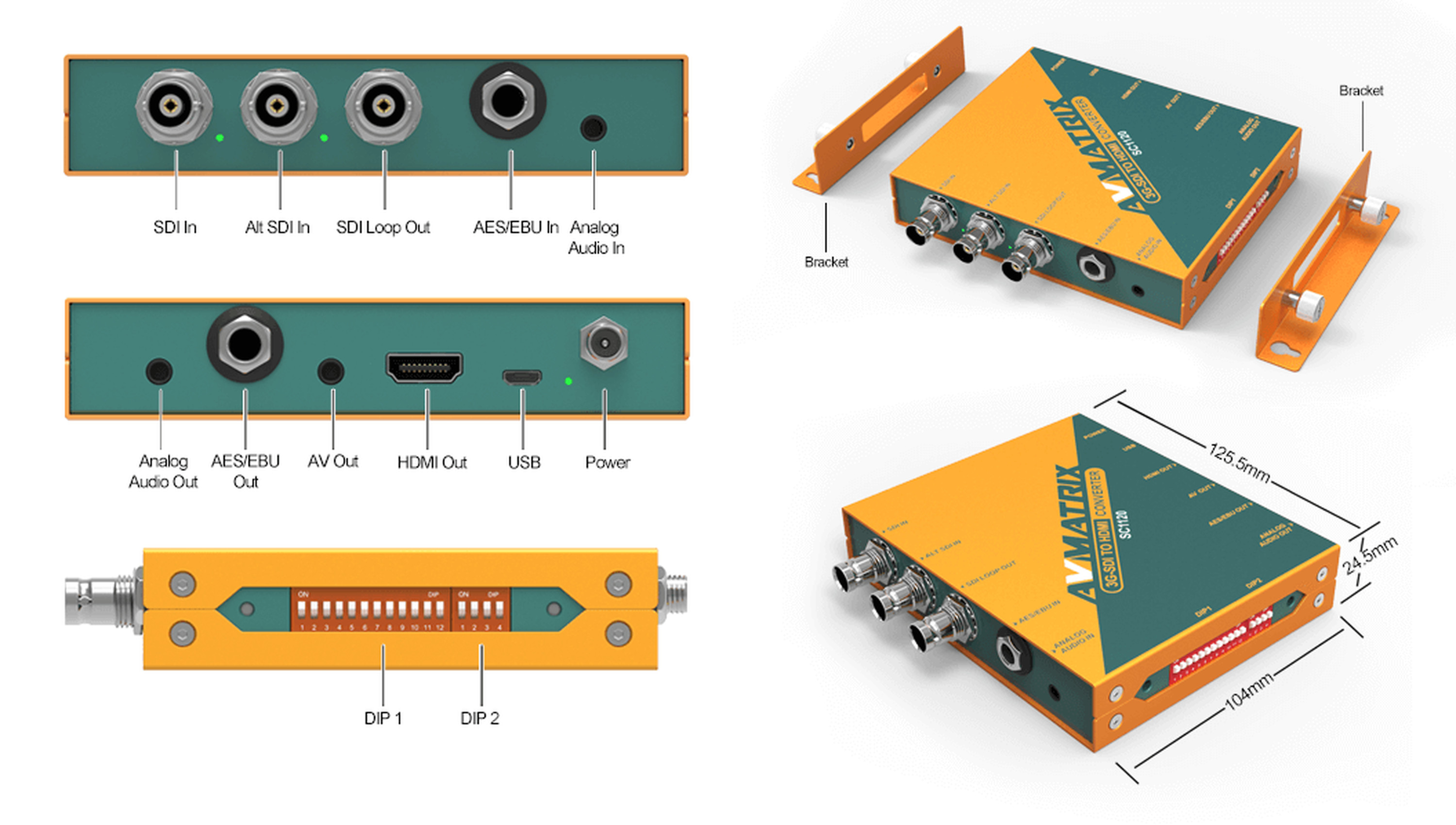

- Video inputs: 1× SD/HD/3G-SDI, 1× Alt 3G-SDI
- Video outputs: 1× HDMI Type-A, 1× analogue AV, 1× SD/HD/3G-SDI loop
- Audio inputs: AES/EBU 6.35mm TRS, analogue audio 3.5mm jack
- Audio outputs: AES/EBU 6.35mm TRS, analogue audio 3.5mm jack
- SDI formats: up to 1080p60, 1080i, 720p and SD PAL/NTSC
- HDMI output: up to 1080p60/50/30/25/24, 1080i, 720p, 576i/480i
- SDI standards: SMPTE 424M, 292M, 259M
- Processing: scaling, frame-rate conversion, de-interlacing, reclocking
- Control: DIP switches, PC over USB
- Power: threaded locking connector
WE RECOMMEND
The AVMATRIX SC1120 is a professional 3G-SDI-to-HDMI and analog AV interface scaler that enables flexible integration of SDI technology into HDMI or analog systems. For optimal use, it is recommended to pair it with compatible SDI signal sources, such as PTZ cameras and production consoles, or with devices for further processing and recording of the HDMI output.
SDI Signal Sources - Devices with SDI output that serve as the primary signal source for the SC1120 converter.
- AVMATRIX MMV1630 16-Channel 3G-SDI Multiviewer
- AVMATRIX 16×16 Seamless SDI Matrix Switcher
- AvMatrix Shark S4
- AVMatrix PTZ Camera EAGLE P30-12G-NDI
- AVMatrix PTZ Camera EAGLE P20A
- AVMATRIX Shark S6
- AvMatrix Shark S4M
- AVMatrix SHARK S8X-NDI
- AVMatrix SHARK S8X
HDMI Output Recording and Processing - Capture cards and decoders compatible with the converter’s HDMI output for streaming and post-production.
- AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
- AVMATRIX UC2218-4K Dual HDMI to USB 3.1 Type-C Video Capture
- AvMatrix UC7018
- AvMatrix VP30
- AvMatrix VP51
- AVMatrix DE21-4K PRO
Accessories - Accessories for safe mounting and installation of the converter in a professional environment.
Parameters
| Manufacturer: | AVMATRIX |
| Category: | Signal converters |
Main parameters
| Other features | Scaler · Audio input · Audio output |
| Source | SDI · 3G SDI |
| Target | HDMI · Analog |
