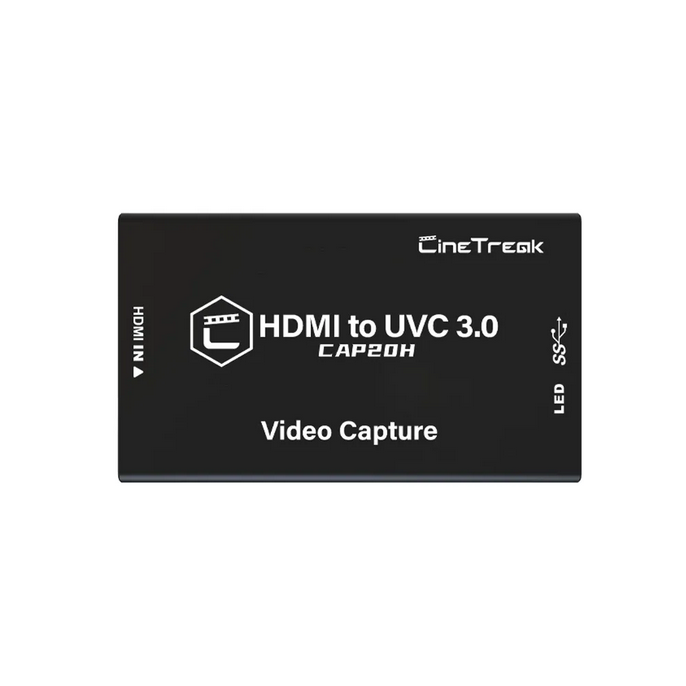

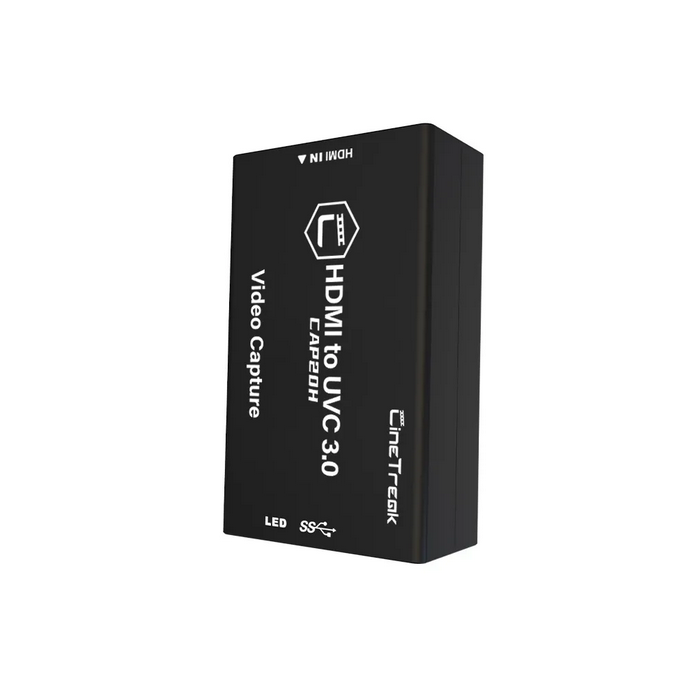

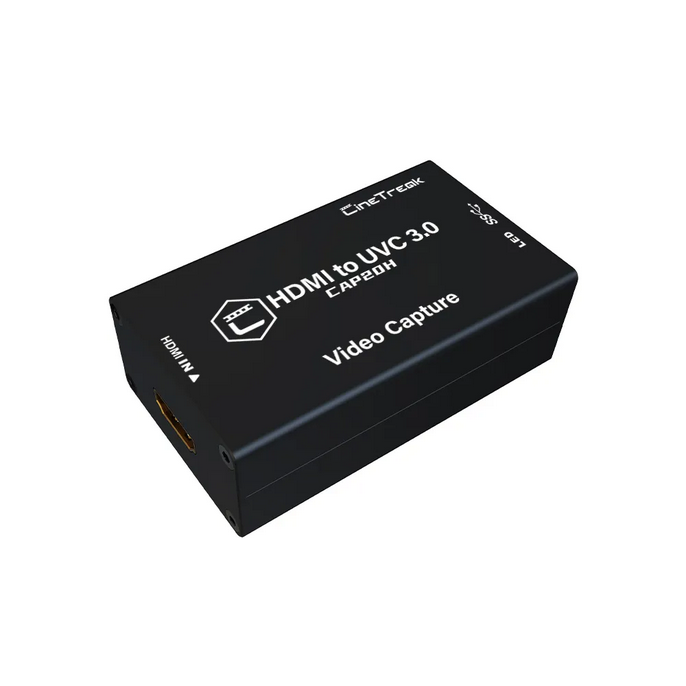

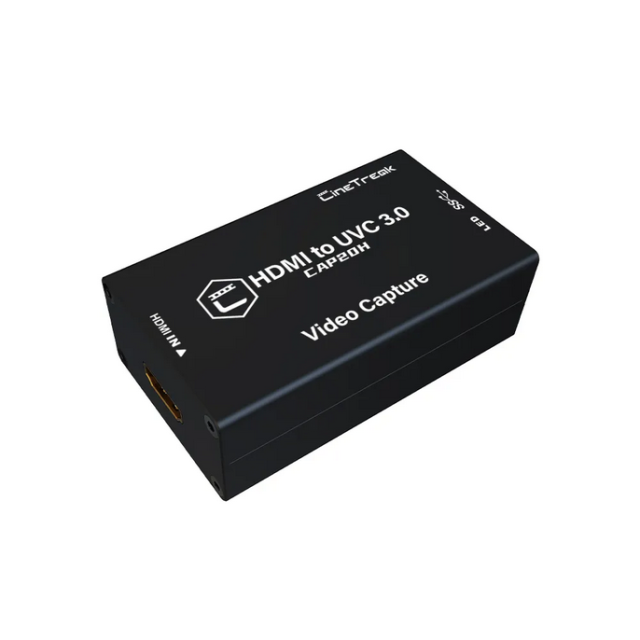

The CineTreak CAP20H is a compact HDMI to USB 3.0 video capture device, delivering uncompressed 1080p@60fps streaming via USB 3.0 and broad compatibility through UVC/UAC protocols. Ideal for live streaming, conferencing, and content creation.
The CineTreak CAP20H is a compact HDMI to USB 3.0 video capture device, delivering uncompressed 1080p@60fps streaming via USB 3.0 and broad compatibility through UVC/UAC protocols. Ideal for live streaming, conferencing, and content creation.

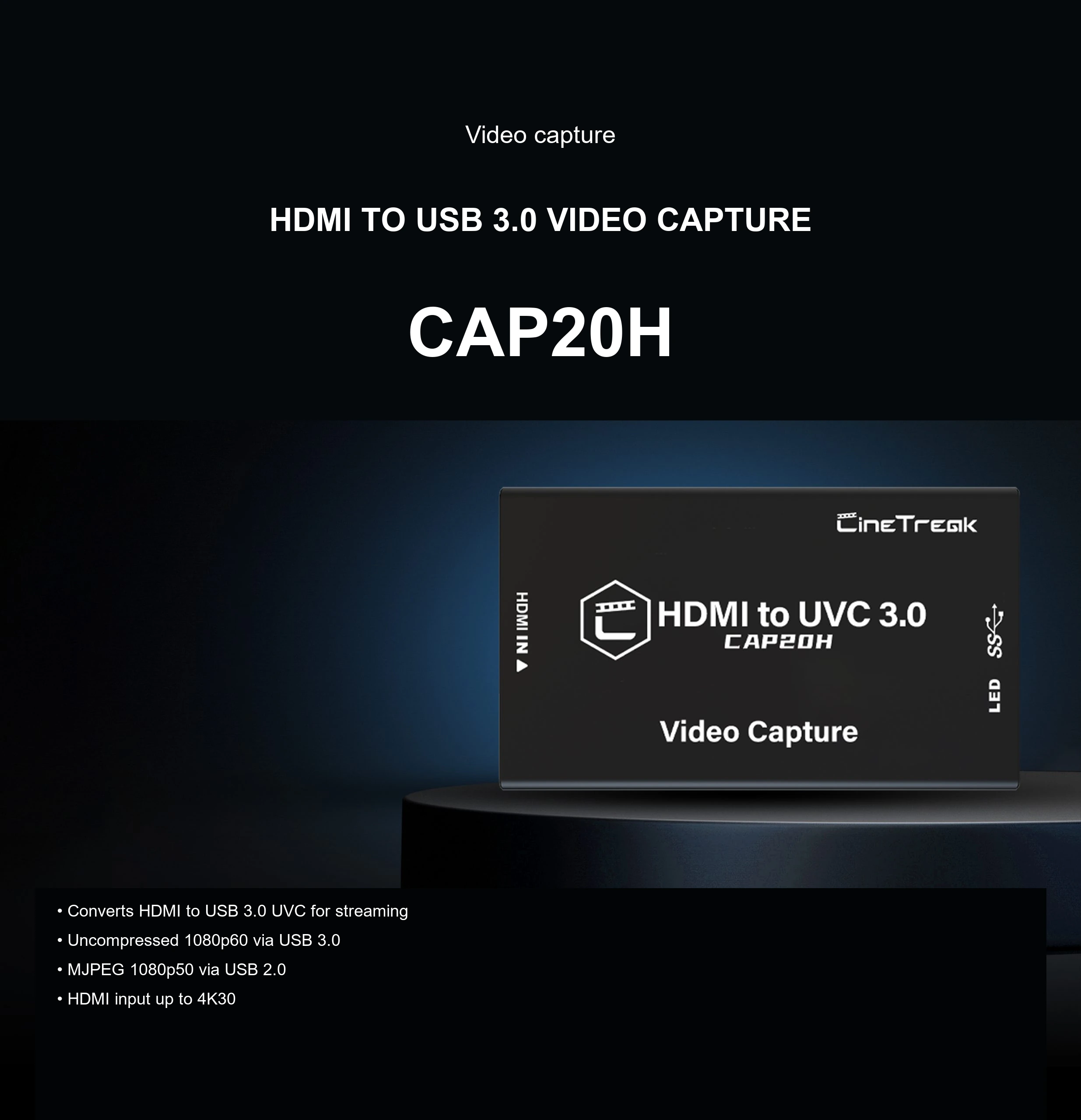

HDMI capture that works without drivers
The CineTreak CAP20H is a high-performance HDMI to USB 3.0 video capture solution, engineered for seamless integration into live streaming, video conferencing, and content production workflows. It converts HDMI input to USB 3.0 UVC output, ensuring smooth plug-and-play operation with major platforms and software.

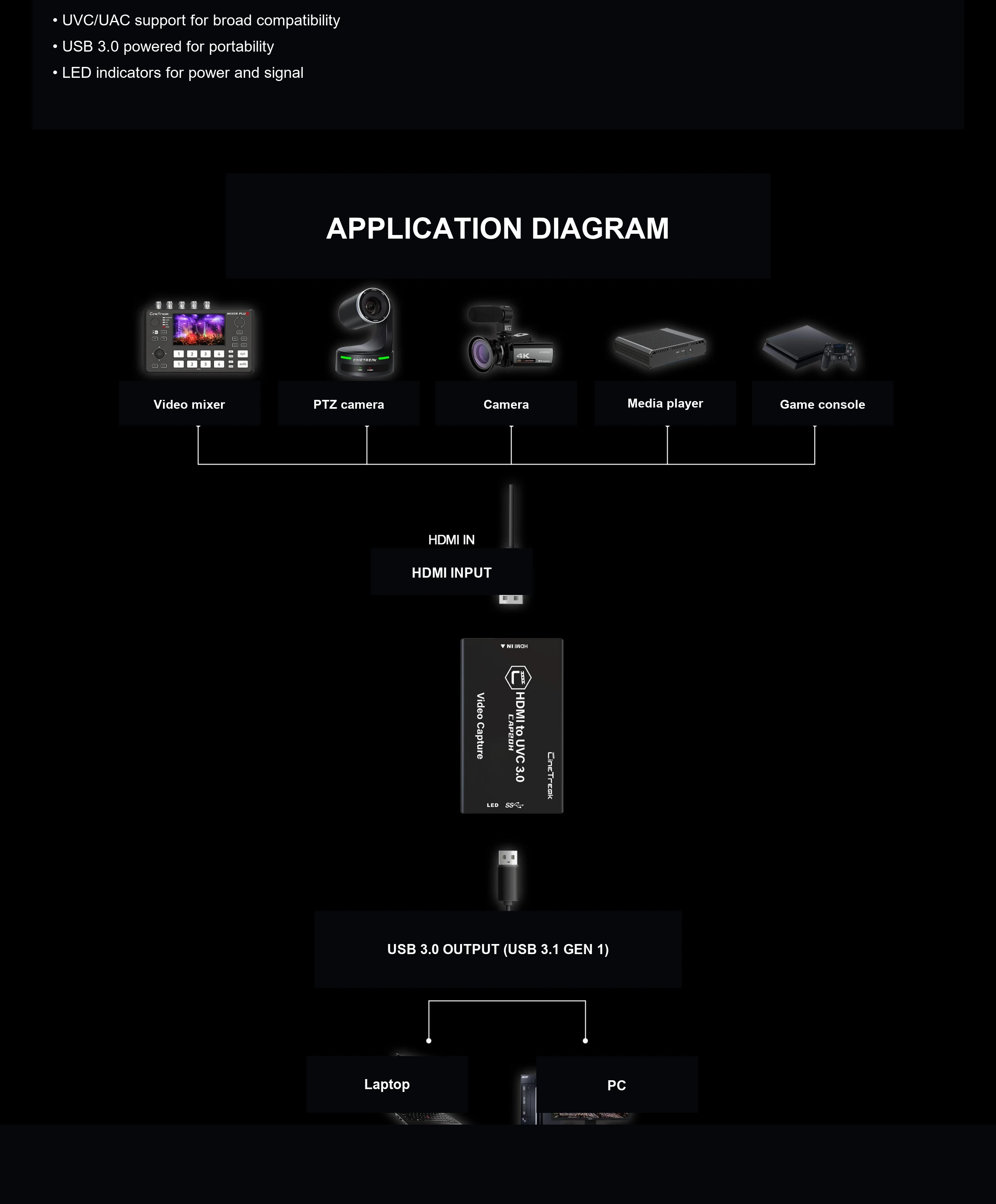

From camera or console straight to USB
Capable of uncompressed 1080p at 60fps via USB 3.0, and MJPEG 1080p at 50fps via USB 2.0, the CAP20H offers excellent image quality for demanding broadcast scenarios. It supports HDMI input resolutions up to 4K at 30fps, making it future-ready for high-resolution sources.
For live production, education and events
With support for UVC (USB Video Class) and UAC (USB Audio Class), this device ensures wide system compatibility without requiring drivers. Powered entirely via USB 3.0, it is highly portable and perfect for mobile or desktop setups. LED indicators clearly display power and signal status for easy monitoring during operation.
Compact, USB-powered and widely compatible
HDMI to USB 3.0 video capture with real-time conversion
Uncompressed 1080p@60fps via USB 3.0
MJPEG 1080p@50fps on USB 2.0
HDMI input supports up to 4K@30fps
UVC/UAC compatibility ensures driver-free operation on most systems
USB 3.0 powered for convenient portability

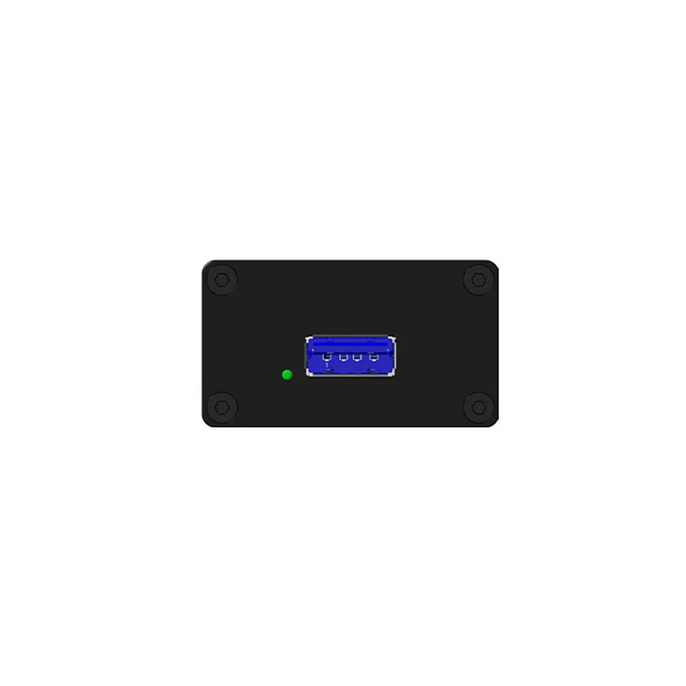

LED indicators for power and signal monitoring
PACKAGE CONTENT
CineTreak CAP20H ×1
USB 3.0 Type-A to Type-A cable ×1

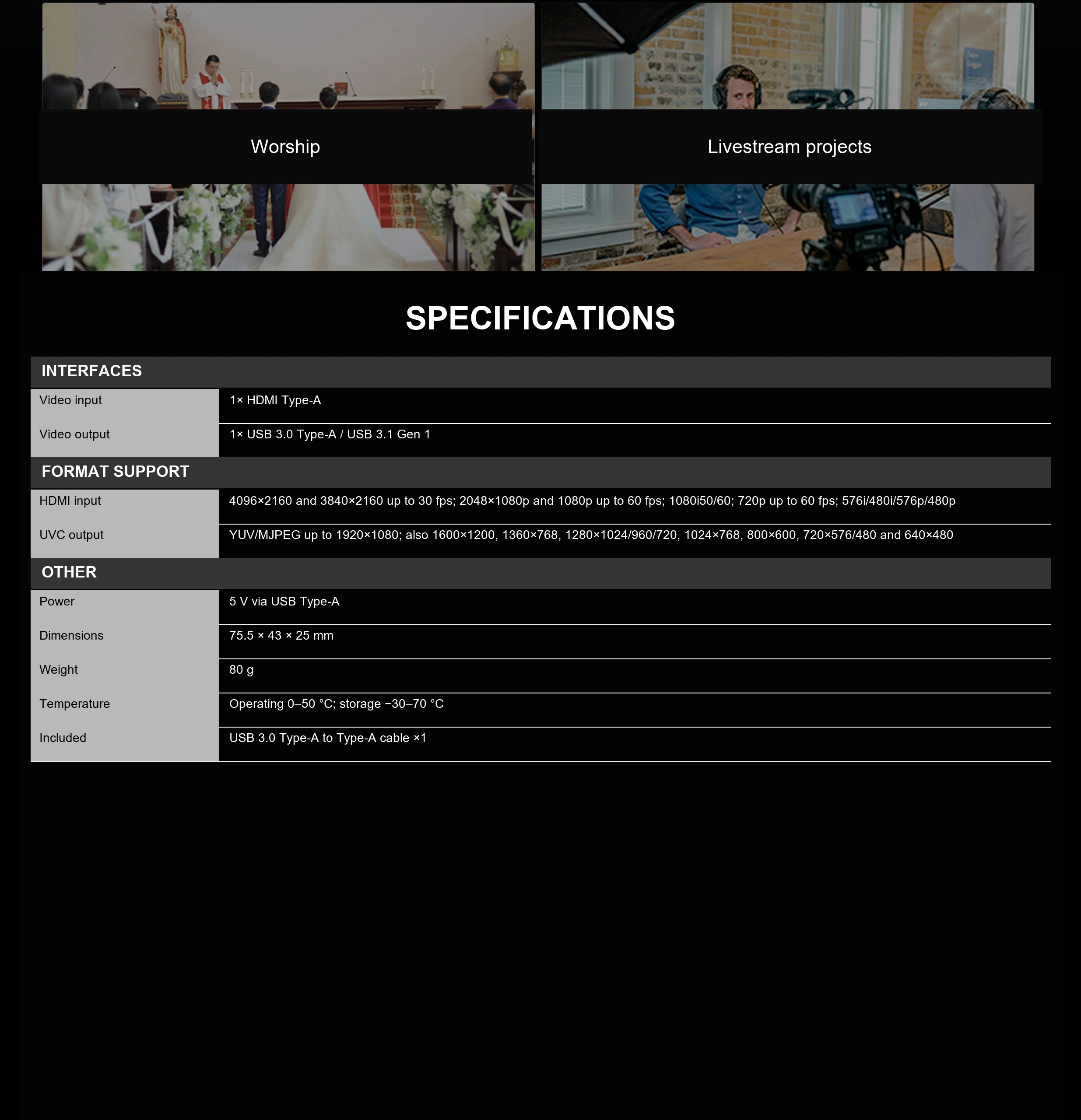

SPECIFICATIONS

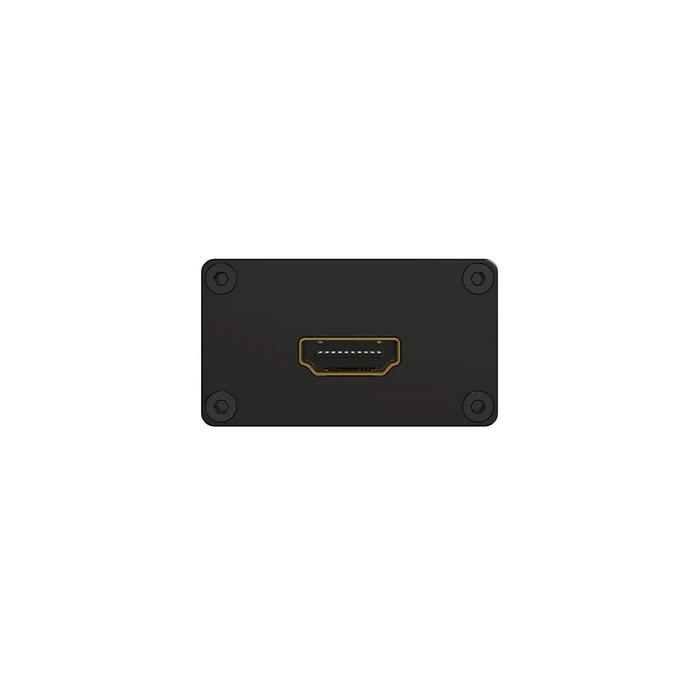

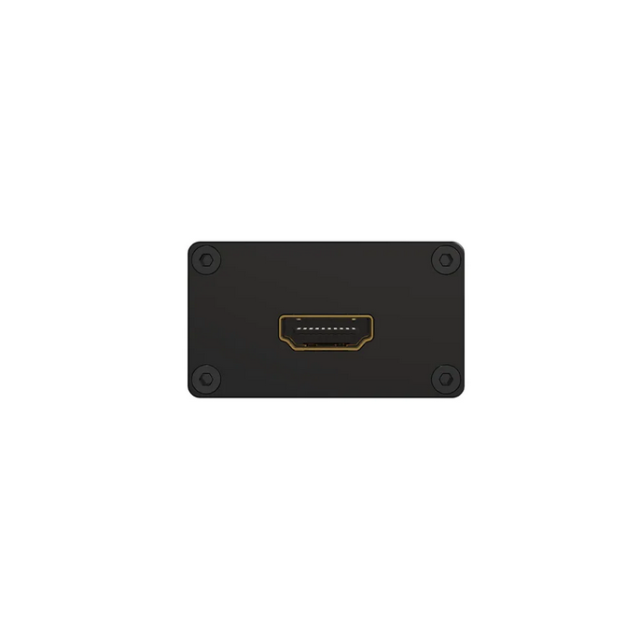

Video input: 1× HDMI Type-A
Computer output: 1× USB 3.0 Type-A / USB 3.1 Gen 1
HDMI formats: 4096×2160 and 3840×2160 up to 30 fps; 2048×1080 and 1080p up to 60 fps; 1080i, 720p and SD
UVC output: YUV/MJPEG up to 1920×1080
USB 3.0 video: Uncompressed YUV2 up to 1080p60
USB 2.0 video: MJPEG up to 1080p50
Audio: Embedded HDMI audio via UAC
Compatibility: UVC video and UAC audio; no driver required
Power: 5 V via USB Type-A
Dimensions: 75.5 × 43 × 25 mm
Weight: 80 g
Temperature: Operation 0–50 °C; storage −30–70 °C
WE RECOMMEND
The CineTreak CAP20H is a highly efficient converter for digitizing HDMI signals to a USB 3.0 interface, making it a key component for streaming and video conferencing. For optimal performance, it requires high-quality signal sources with HDMI output, such as professional PTZ cameras and production control rooms, which ensure a stable video feed at resolutions up to 1080p.
PTZ Cameras - Professional remote-controlled cameras with HDMI output that serve as the primary video source for the converter.
Production and Streaming Control Room - Equipment for processing multiple video inputs, whose resulting HDMI output can be easily streamed to a PC using the CAP20H.
