CineTreak Touch-S

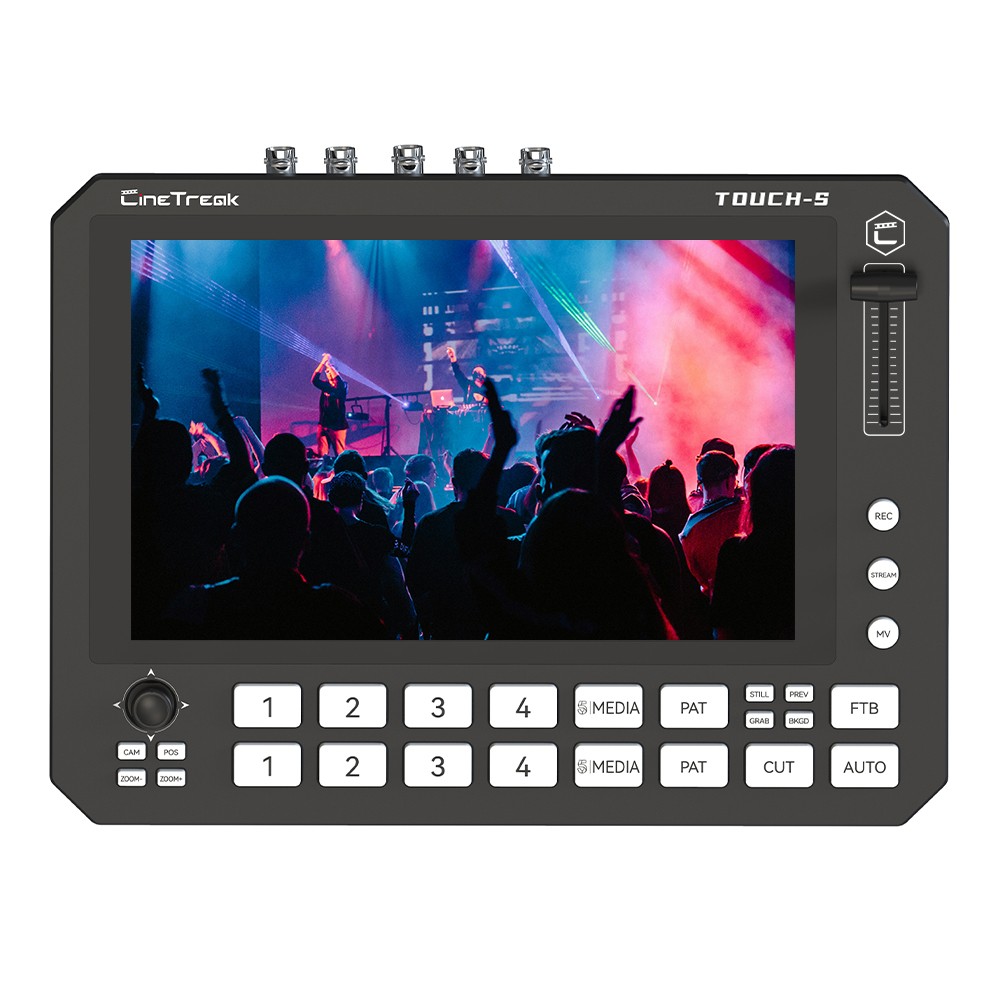

CineTreak Touch-S is a compact video switcher with a 10.1" touchscreen and two rows of physical buttons for live broadcasting, streaming and multi-camera production. Each of its four channels selects HDMI or SDI, and the switcher records in H.264, streams over RTMP, RTMPS and SRT and controls up to four PTZ cameras.

Touch and buttons in one switcher

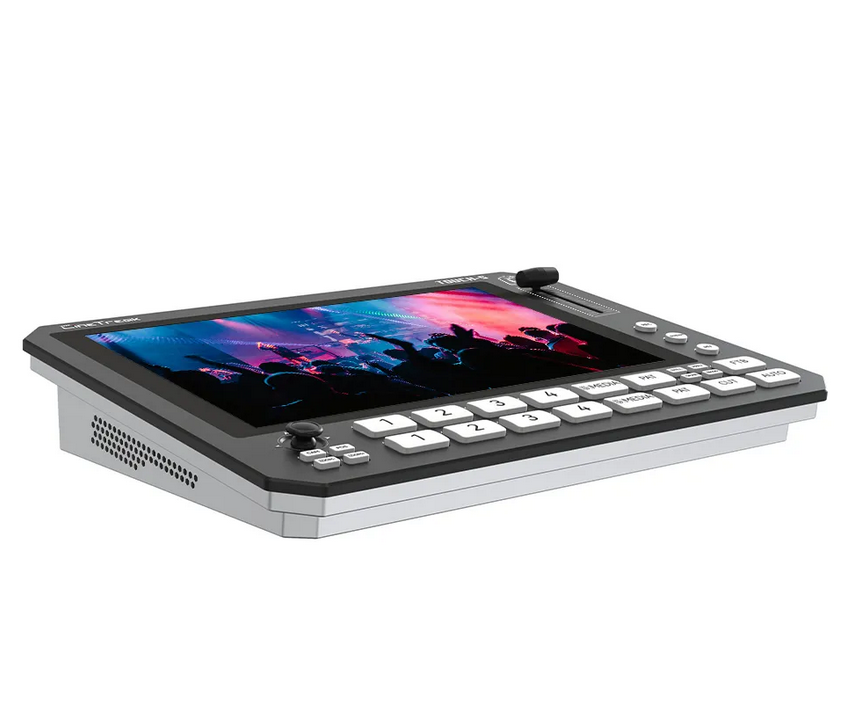

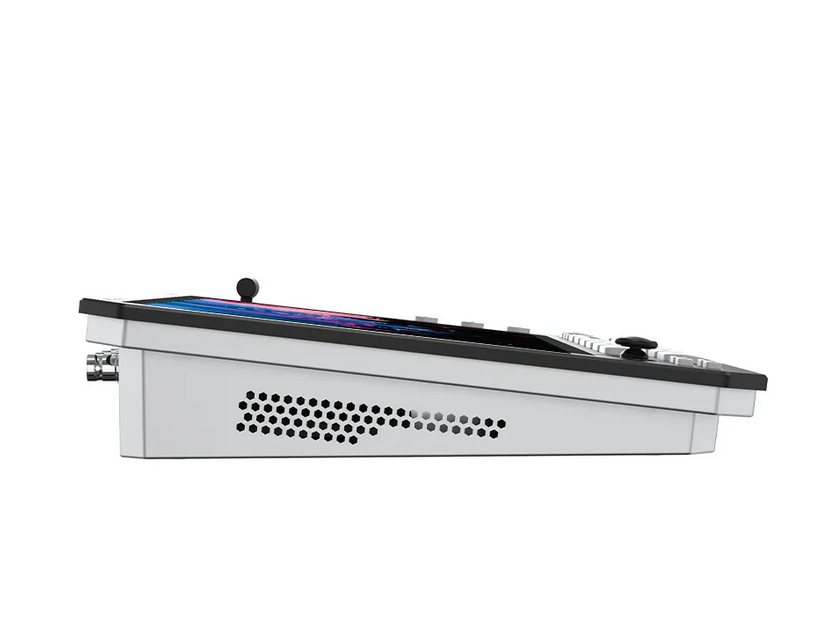

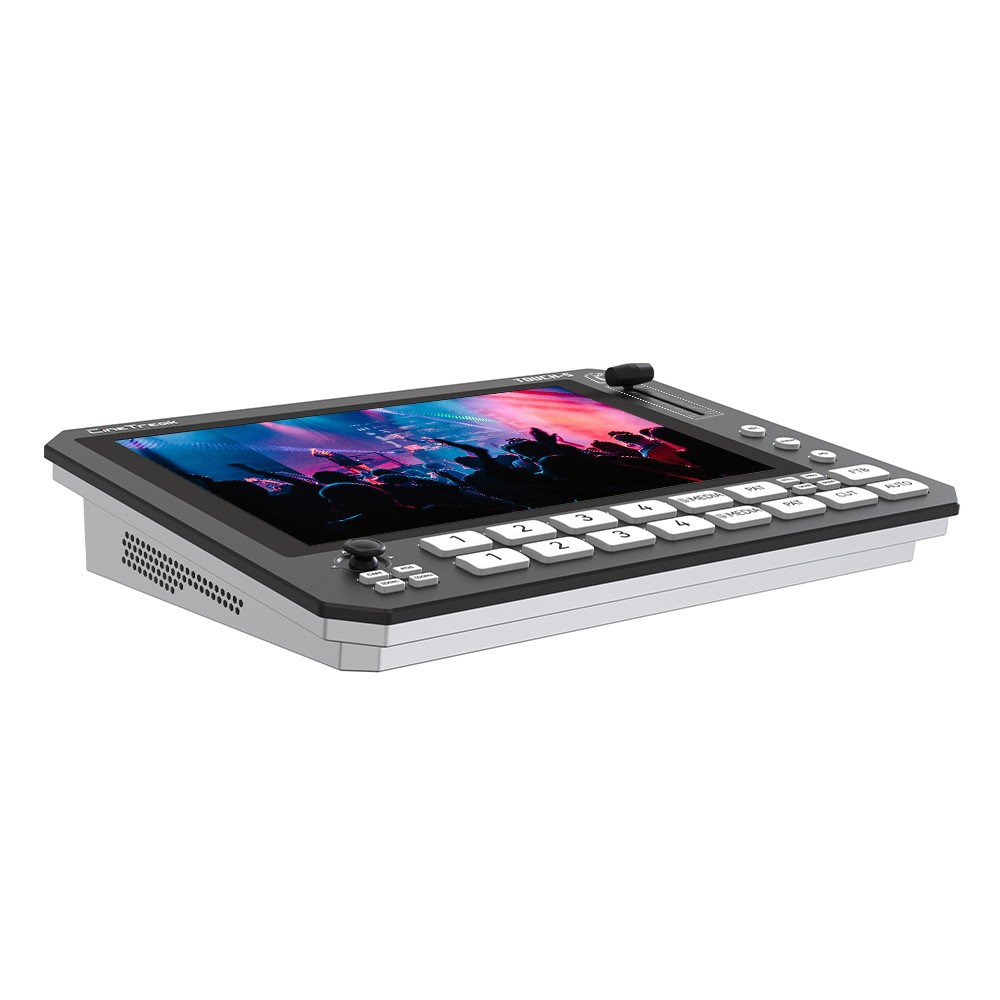

A compact all-aluminium body, a T-bar for smooth transitions and a joystick for PTZ cameras: Touch-S is built for creators, producers and AV professionals who want an entire live production in one unit.

10.1" touchscreen4× HDMI 2.0 + 4× 3G-SDISuper Source up to 4× PIPPortrait and landscapeRTMP · RTMPS · SRTNDI|HX optional

Every channel HDMI or SDI

Each of the four physical input channels has its own HDMI and SDI connector, and the source is selected per channel. Cameras with HDMI and SDI outputs can be mixed as the production requires.

Record and stream at once

Records H.264 to an SD card or USB drive with instant playback while streaming to two RTMP destinations. Recording and streaming bitrates are set separately.

PTZ camera control

Controls up to four PTZ cameras over VISCA over IP straight from the switcher, using the joystick and the CAM, POS and ZOOM buttons.

Keying and layers

Upstream luma key and chroma key, two PIP windows and POP, a downstream DSK key and two logos. The program builds up to eight layers.

A third of the power

Power consumption of 18 W at most, about a third of comparable switchers. It runs on 7–24 V, which suits mobile rigs and long broadcasts.

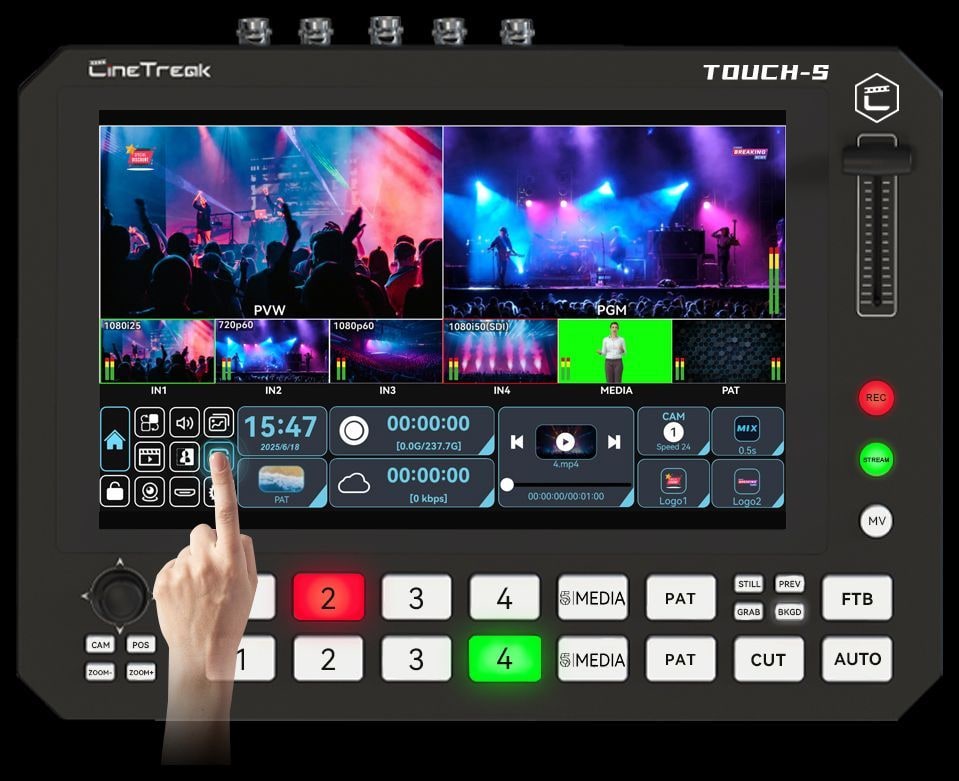

Touchscreen and physical buttons

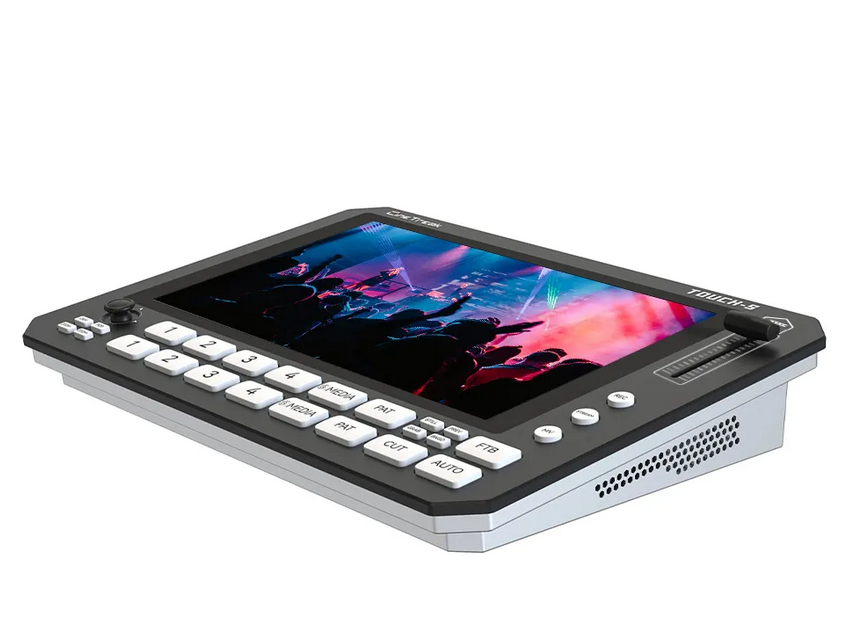

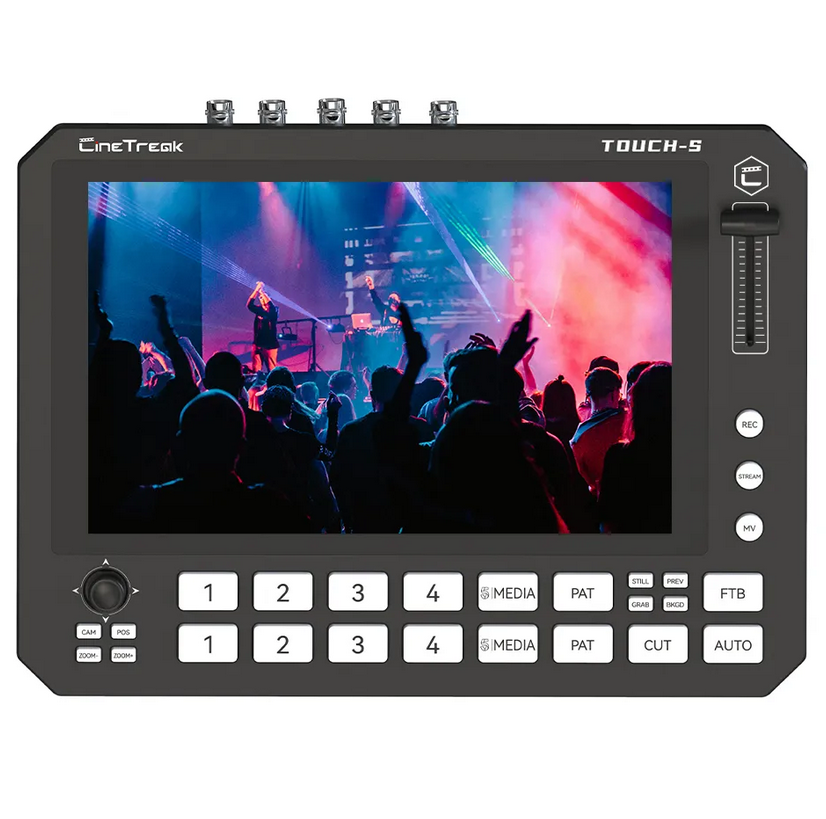

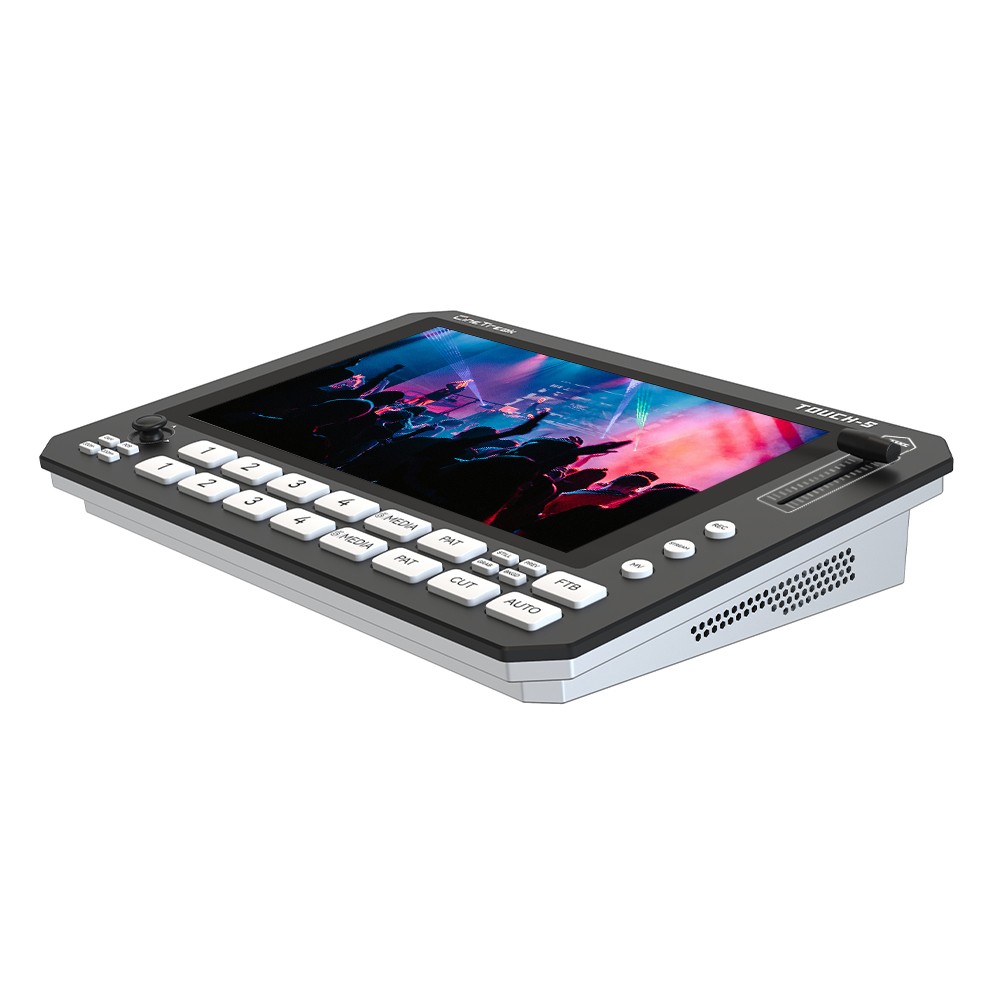

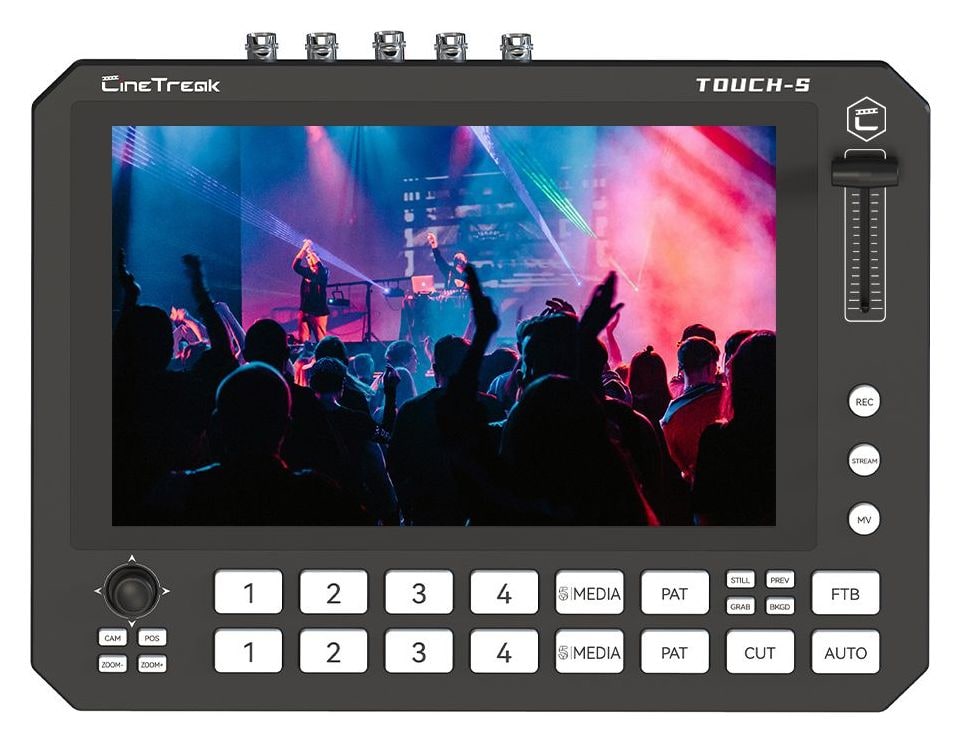

The high-precision 10.1" touchscreen with a redesigned interface and a professional monitoring layout shows preview, program and all sources. Unlike switchers that rely on touch alone or buttons alone, Touch-S adds two rows of physical buttons and a T-bar beside the screen, so switching during a live show is fast and reliable.

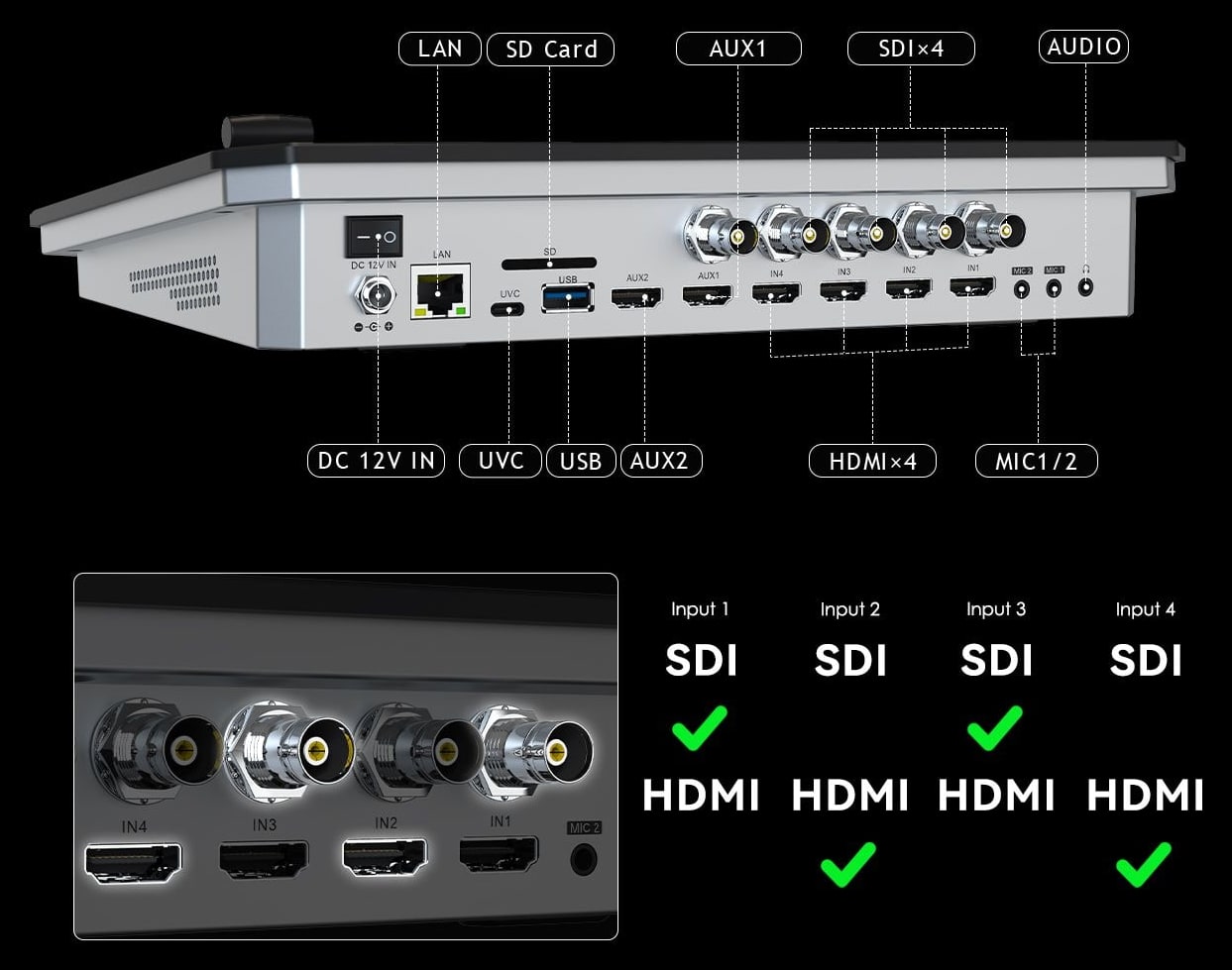

Inputs and connectors

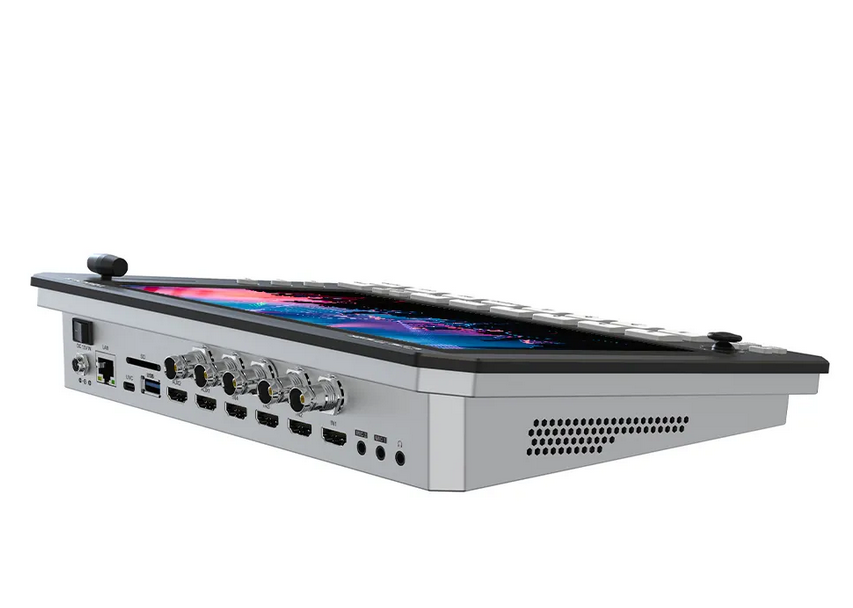

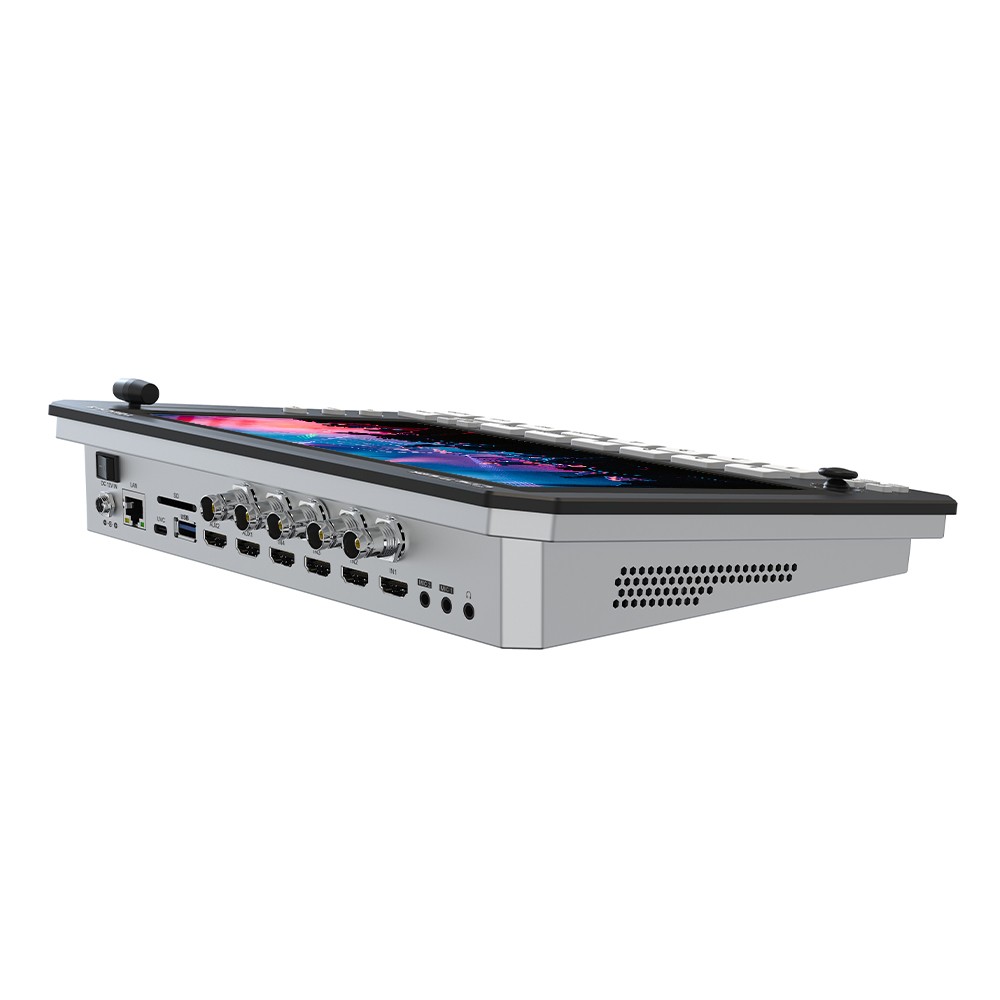

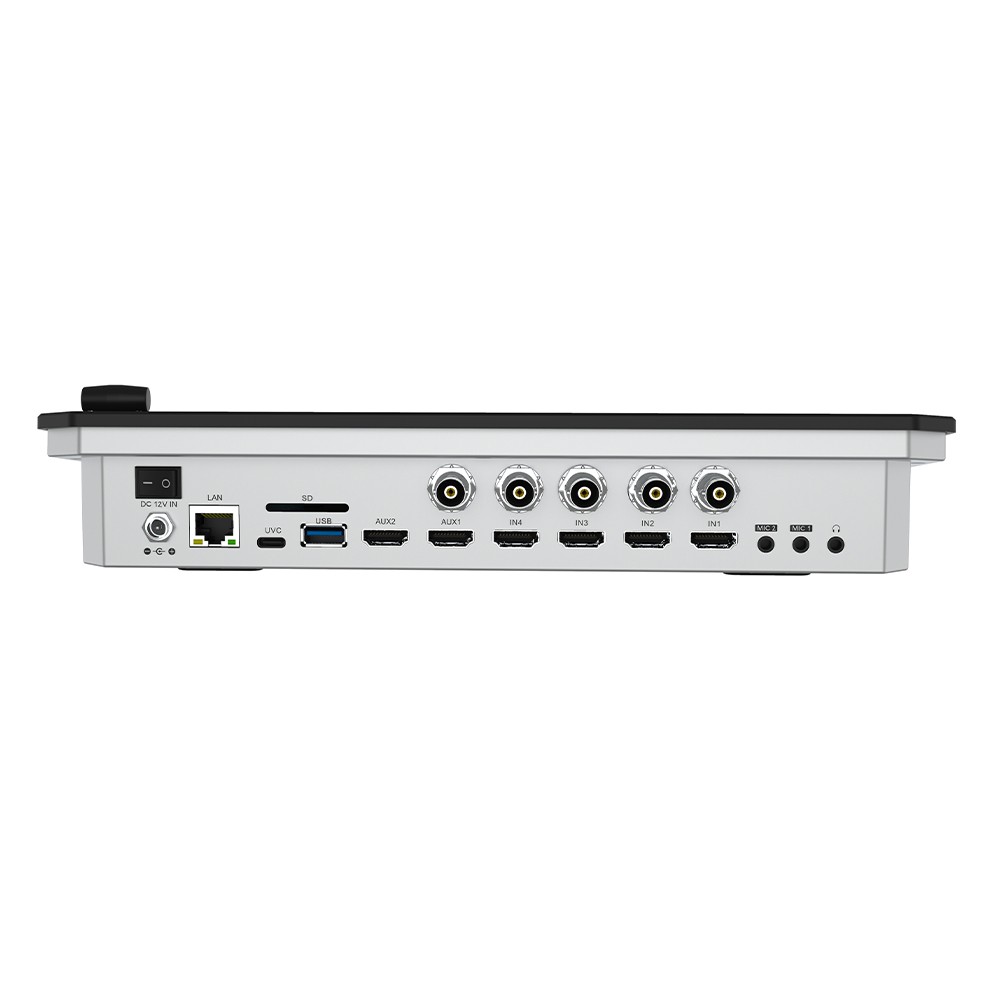

The rear panel carries four HDMI 2.0 inputs (up to 2160p60) and four 3G-SDI inputs, the AUX outputs, LAN for streaming and control, an SD card slot, USB for recording and a webcam, a USB-C UVC output, two microphone inputs, a 3.5 mm audio output and DC 12 V power.

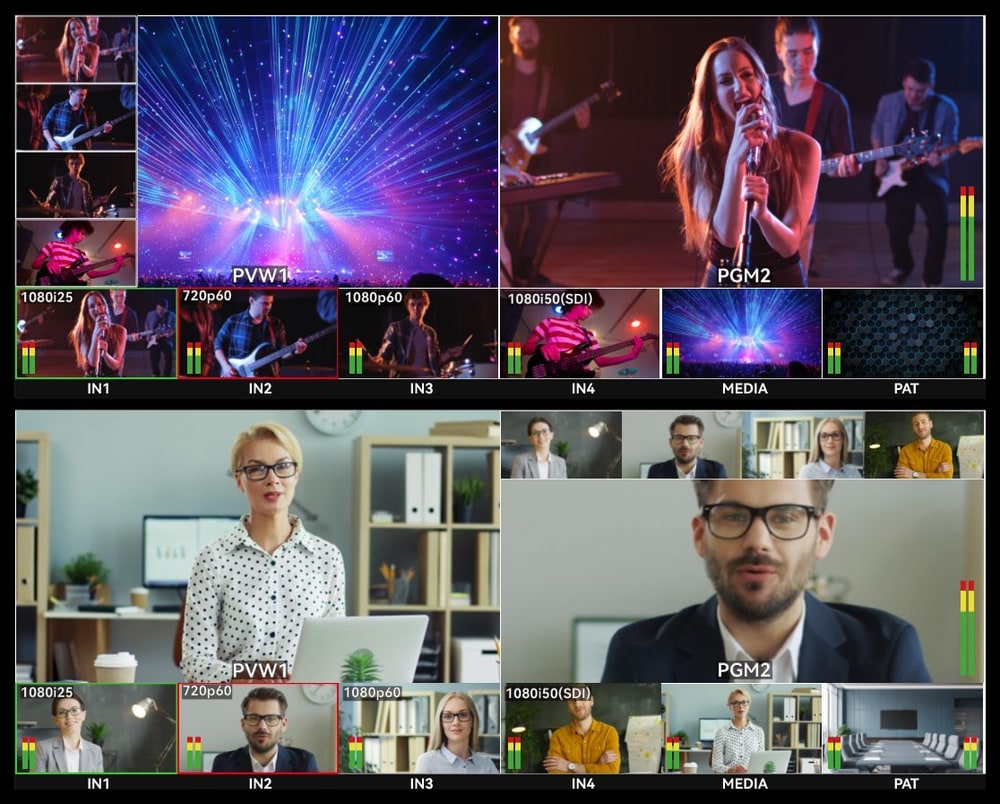

Super Source for meetings and webinars

Super Source mode combines up to four sources at once. Picture-in-picture (PIP) windows are adjusted in real time on the preview (PVW) or program (PGM), and the PIP and POP layouts can be customised – for education, corporate meetings and webinars with several speakers.

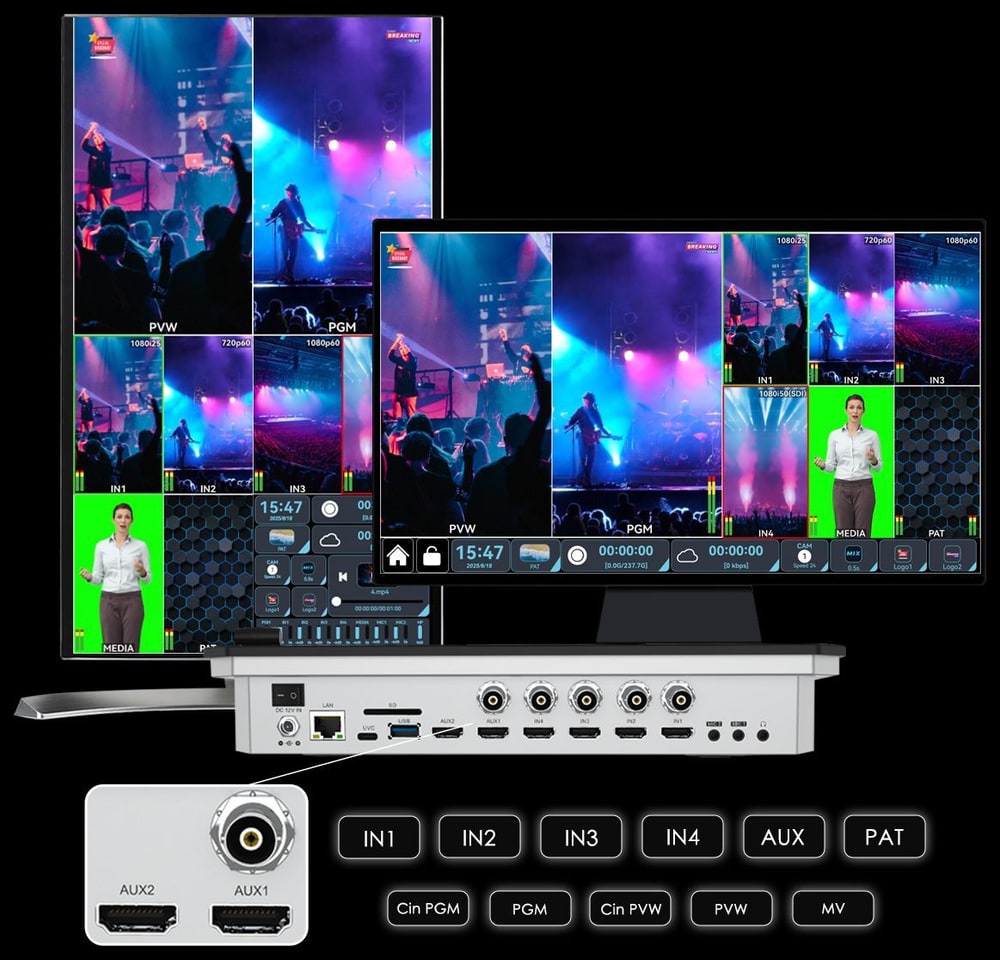

PGM, PVW and AUX outputs, portrait or landscape

The switcher has independent program (PGM) and preview (PVW) outputs and offers automatic input mixing. Preview and stream switch between 16:9 landscape for YouTube and portrait for TikTok. The SDI output and two HDMI AUX outputs can be assigned freely – individual inputs, multiview, clean program without graphics, preview or a quad view. It suits studio monitoring and multi-screen setups.

Multimedia channel as a fifth source

Besides the hardware inputs, Touch-S has a software multimedia channel: network streams via URL, NDI sources (with the optional NDI|HX licence), USB webcams and devices such as the DJI Pocket 3. Videos and images play straight from an SD card, SSD or USB drive.

Network control and mobile tally

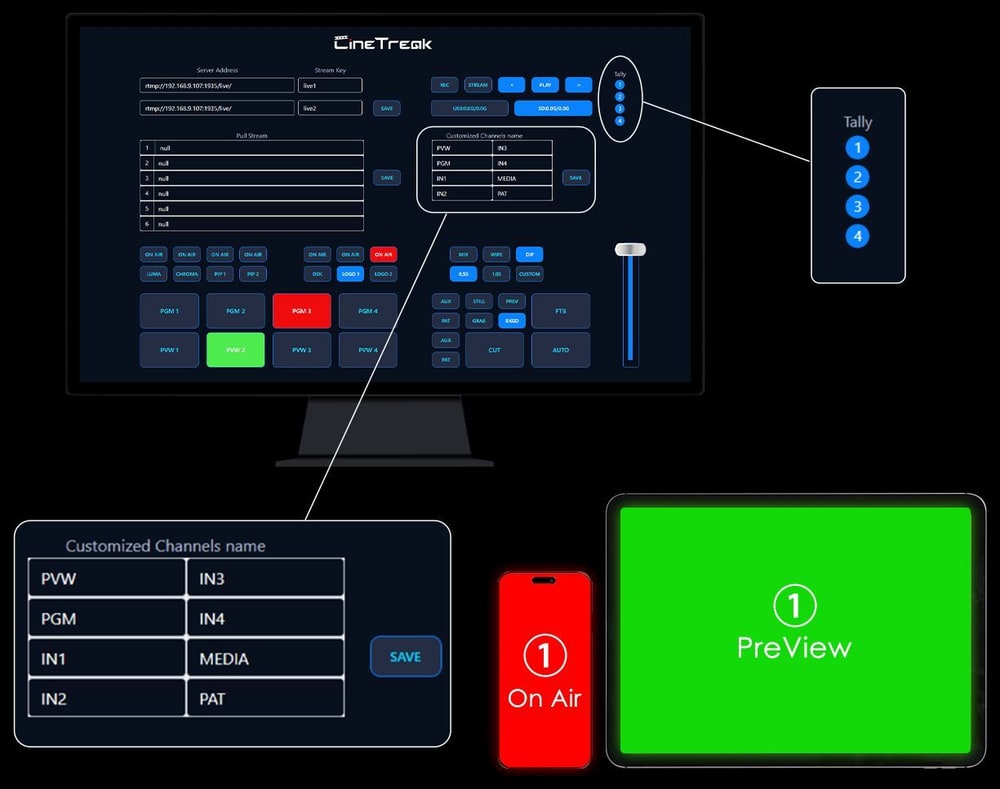

Every switcher function can be operated over the local network from a phone, iPad or computer through the web interface. Inputs take custom names, and the CineTreak companion control software turns a phone or tablet into a temporary tally light with three modes: On Air, Standby and Preview – no dedicated tally hardware needed.
