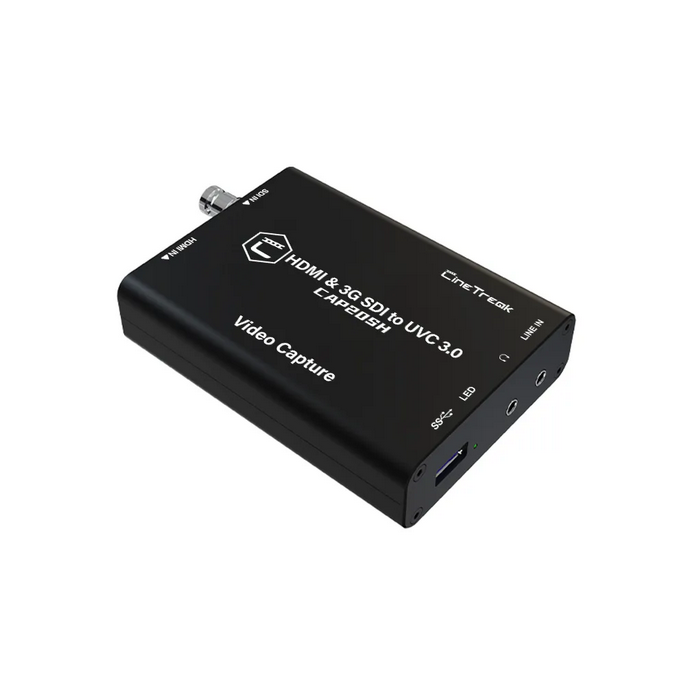

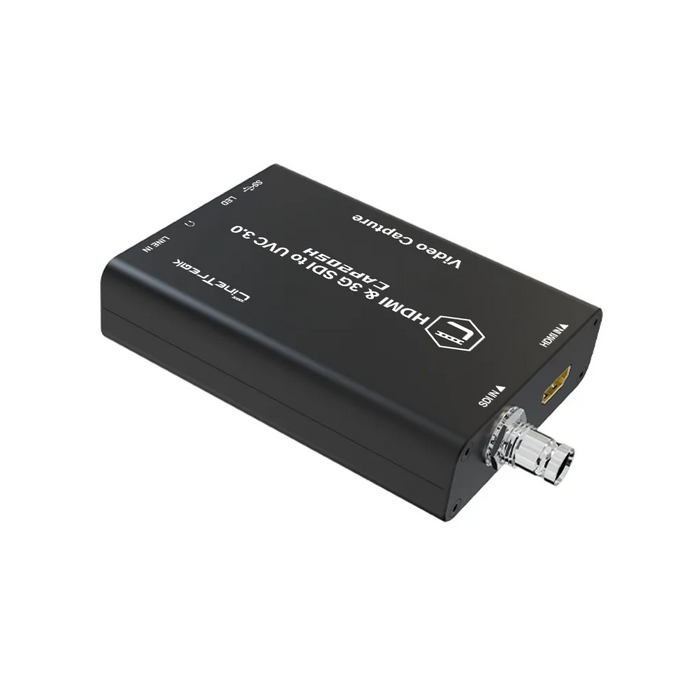

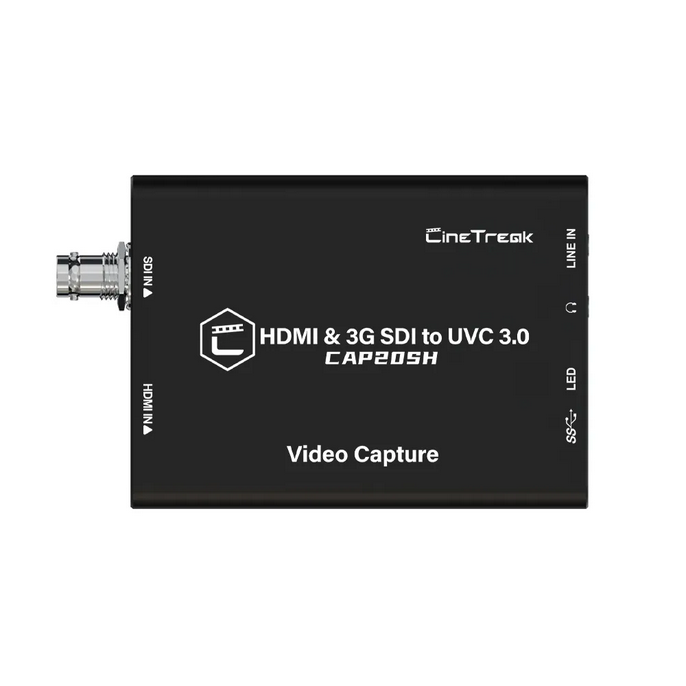

The CineTreak CAP20SH is a versatile SDI/HDMI to USB 3.1 video capture device that delivers uncompressed Full HD capture with multi-source support, advanced transition effects, chroma keying, and 3D LUT output for professional streaming and content creation.
The CineTreak CAP20SH is a versatile SDI/HDMI to USB 3.1 video capture device that delivers uncompressed Full HD capture with multi-source support, advanced transition effects, chroma keying, and 3D LUT output for professional streaming and content creation.

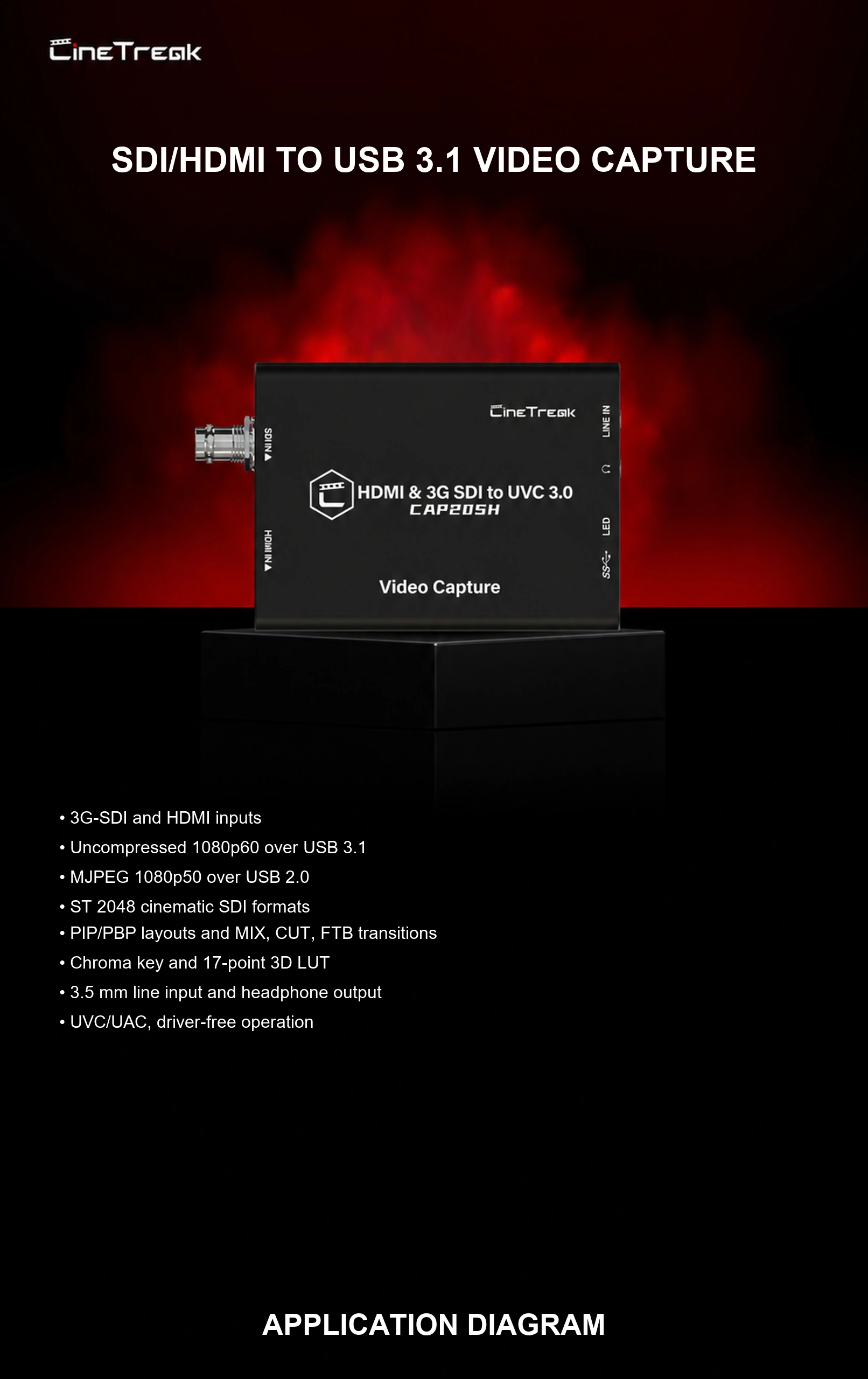

SDI/HDMI TO USB 3.1 VIDEO CAPTURE
The CineTreak CAP20SH combines professional-level performance with plug-and-play simplicity, offering seamless SDI and HDMI to USB 3.1 video capture for live streaming, video conferencing, and production environments. It supports both 3G-SDI (including ST2048 formats) and HDMI inputs up to 2048×1080@60fps, outputting crisp, uncompressed 1080p@60fps over USB 3.1 or MJPEG 1080p@50fps over USB 2.0.

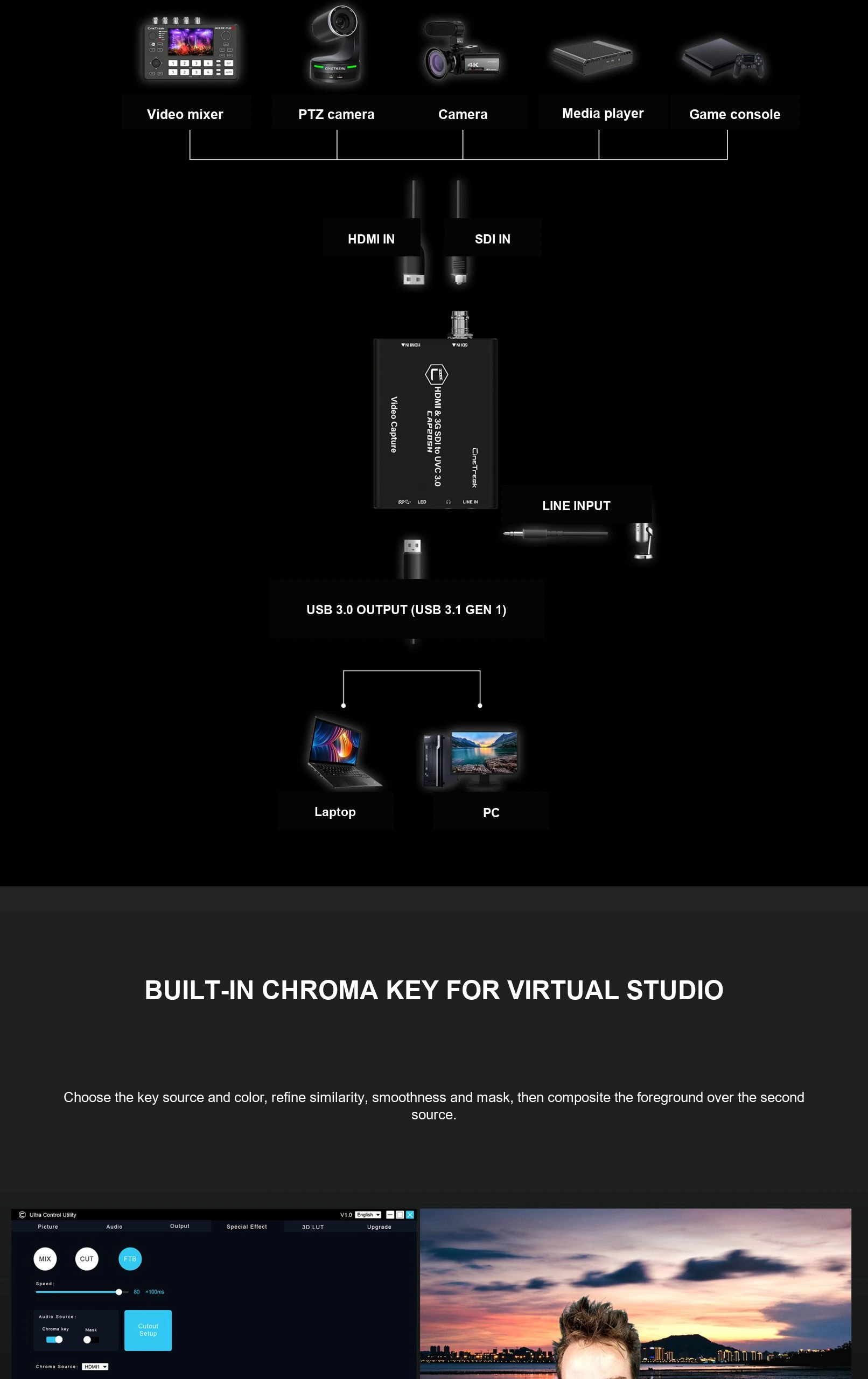

BUILT-IN CHROMA KEY FOR VIRTUAL STUDIO
Designed for flexibility, the CAP20SH supports PIP (Picture-in-Picture) and PBP (Picture-by-Picture) layouts, along with MIX, CUT, and FTB transitions for a broadcast-like production experience. The integrated chroma key feature allows for green-screen and background replacement effects, while 3D LUT support ensures professional-grade color accuracy and real-time color grading.

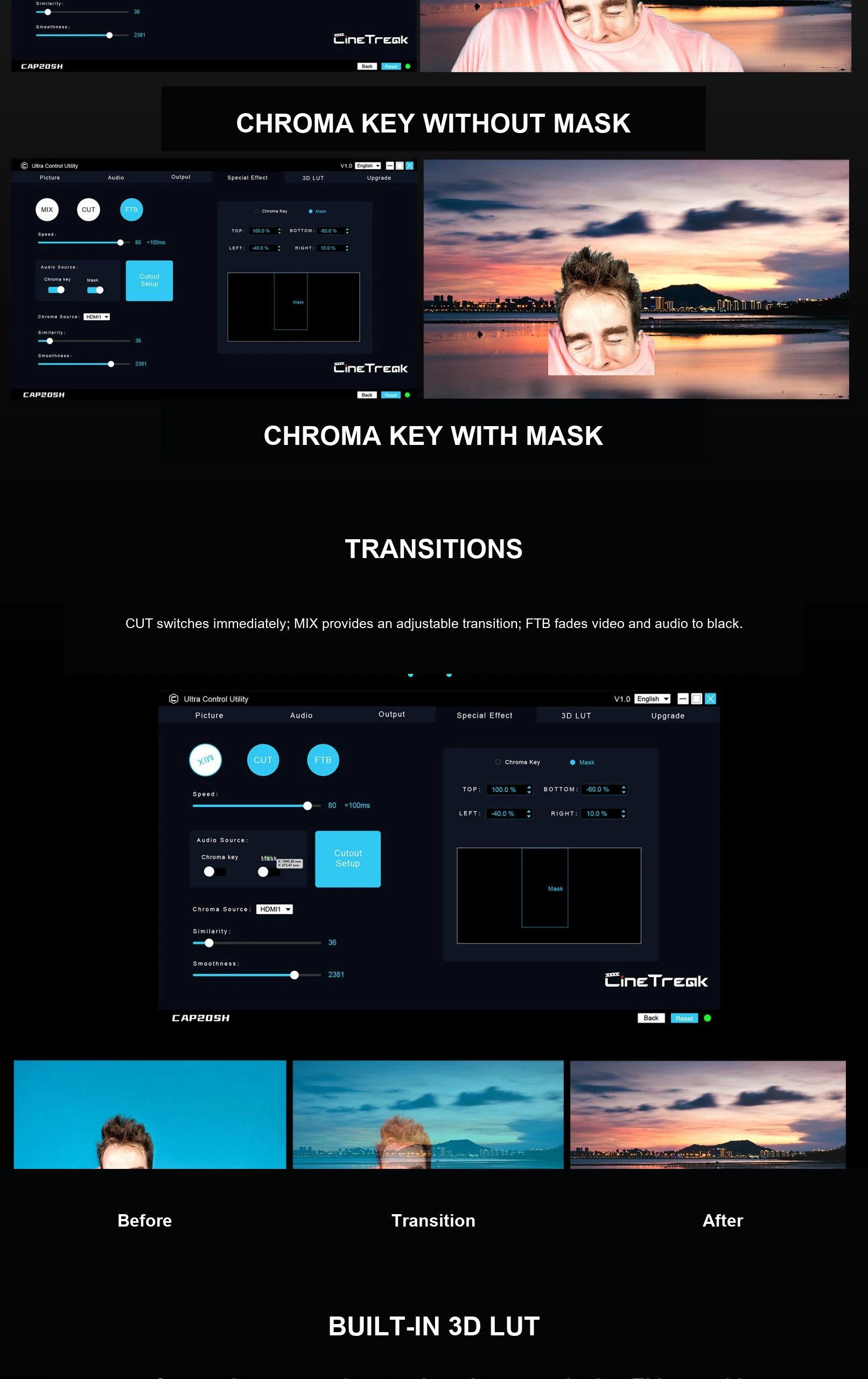

TRANSITIONS
Audio input and monitoring are handled via a 3.5mm mic input and headphone output, and UVC/UAC protocol compatibility ensures it works seamlessly across major operating systems without additional drivers. The Ultra Control Utility enables deep customization, while image flip, USB Type-A power, and LED indicators make this an easy, portable solution for studio or field use.

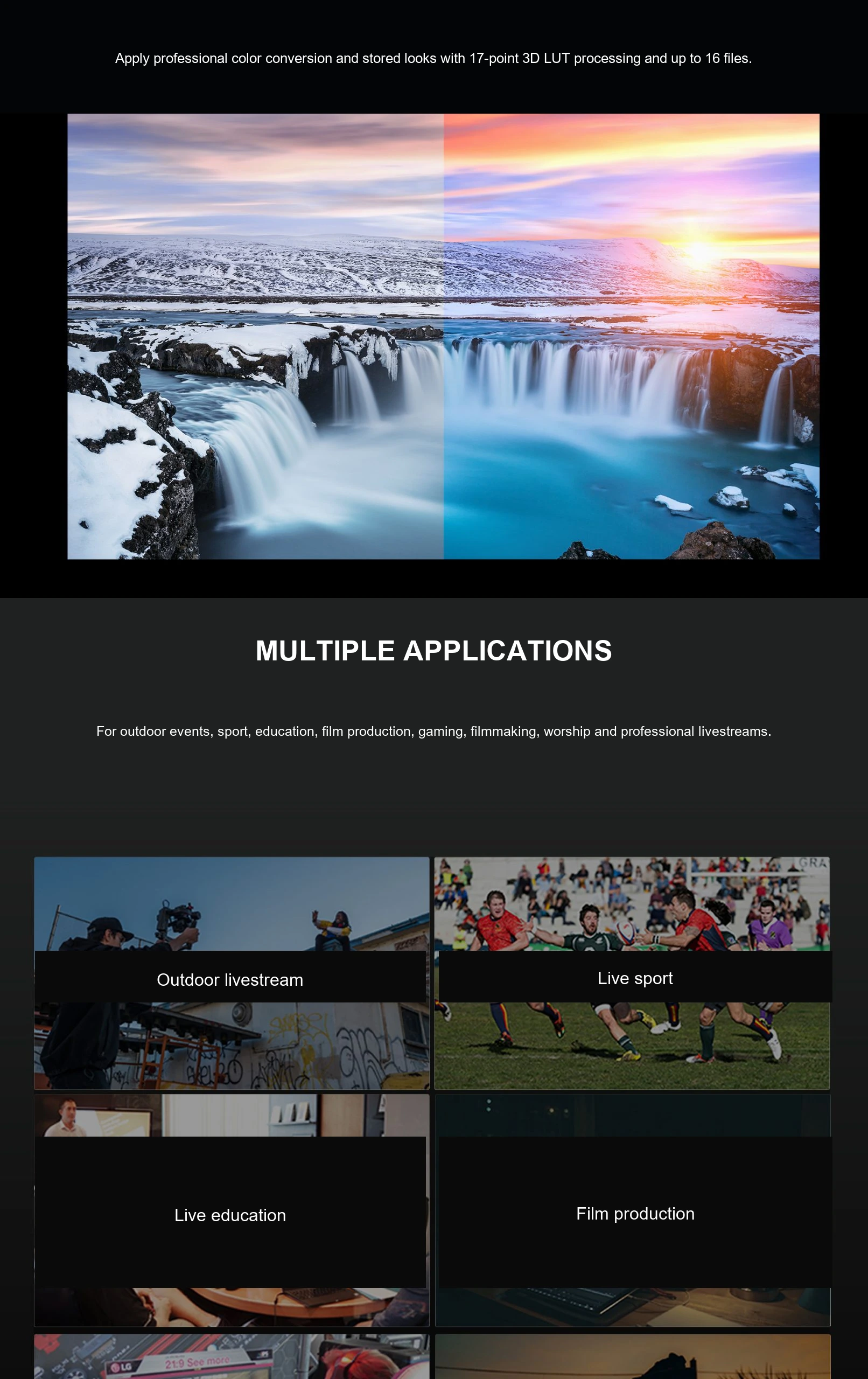

BUILT-IN 3D LUT
SDI and HDMI input support, including cinematic ST2048 formats
USB 3.1 output with uncompressed 1080p@60fps video
MJPEG 1080p@50fps via USB 2.0
PIP/PBP layout options with transition effects (MIX, CUT, FTB)
Chroma keying and 3D LUT output for professional effects
MULTIPLE APPLICATIONS
3.5mm line input and headphone output
UVC/UAC plug-and-play compatibility
Ultra Control Utility for advanced video customization
Image flip feature for flexible camera setups
USB Type-A powered with status LEDs
PACKAGE CONTENT
CineTreak CAP20SH ×1
USB 3.0 Type-A cable ×1

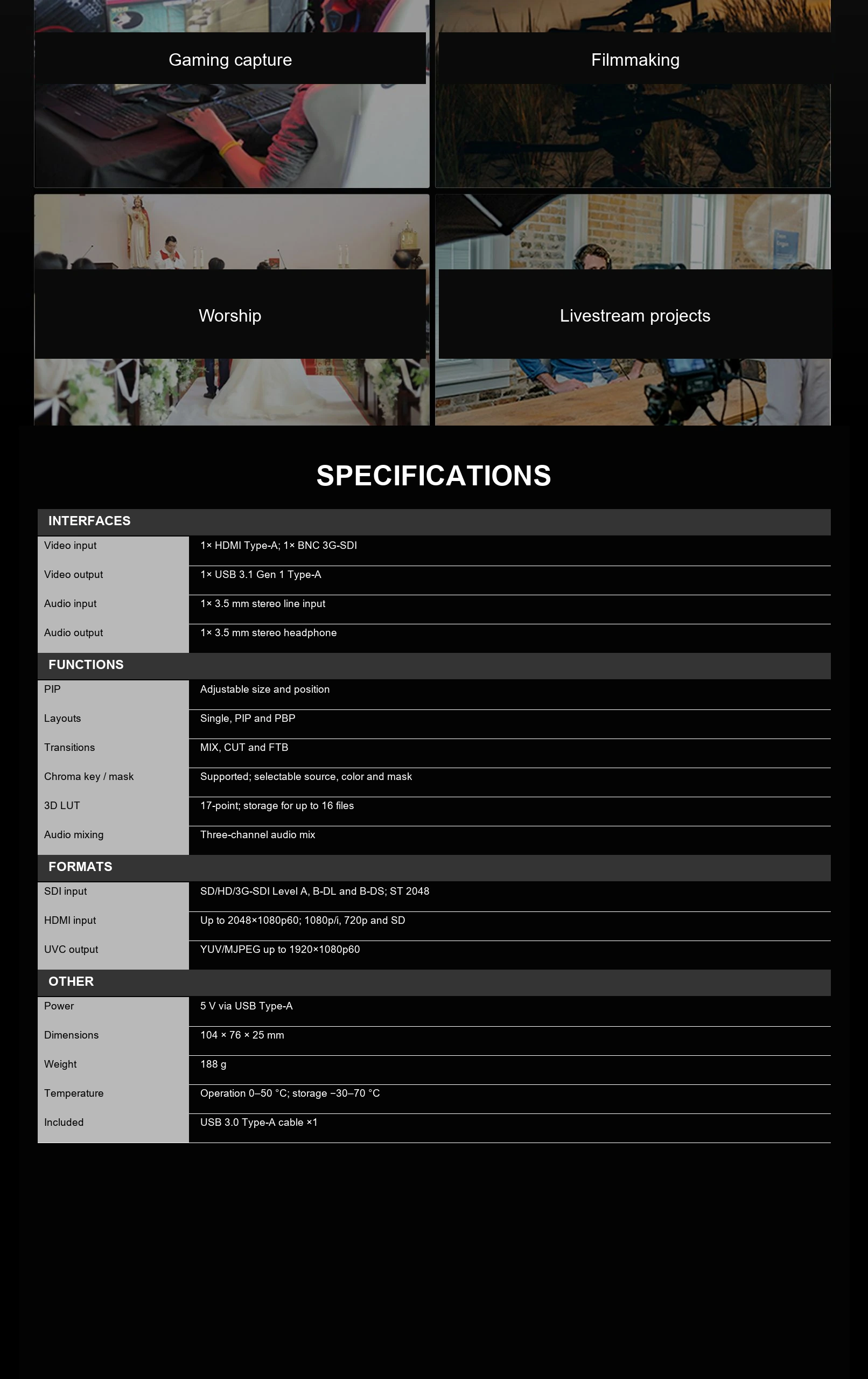

SPECIFICATIONS

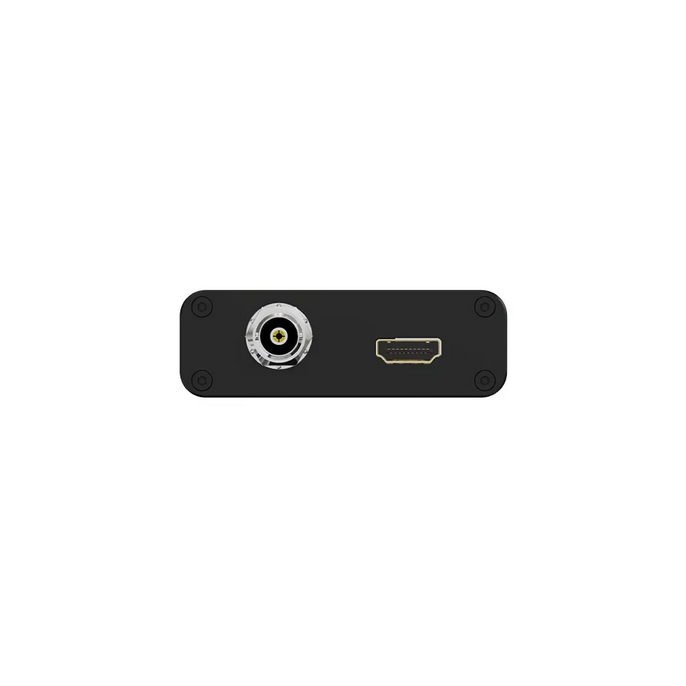

Video input: 1× HDMI Type-A; 1× BNC 3G-SDI

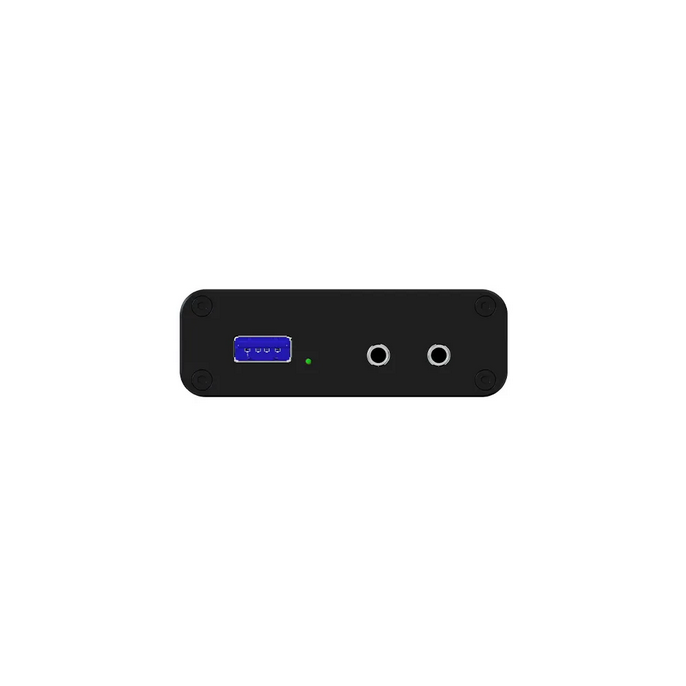

Video output: 1× USB 3.1 Gen 1 Type-A
Audio input: 1× 3.5 mm stereo line input
Audio output: 1× 3.5 mm stereo headphone
PIP: Adjustable size and position
Layouts: Single, PIP and PBP
Transitions: MIX, CUT and FTB
Chroma key / mask: Supported; selectable source, color and mask
3D LUT: 17-point; storage for up to 16 files
Audio mixing: Three-channel audio mix
SDI input: SD/HD/3G-SDI Level A, B-DL and B-DS; ST 2048
HDMI input: Up to 2048×1080p60; 1080p/i, 720p and SD
