The CineTreak CAP20D is a professional-grade dual HDMI to USB 3.0 video capture device offering flexible layout options, real-time switching features, 3D LUT support, and chroma keying. Ideal for dynamic live streaming, teaching, and content creation.

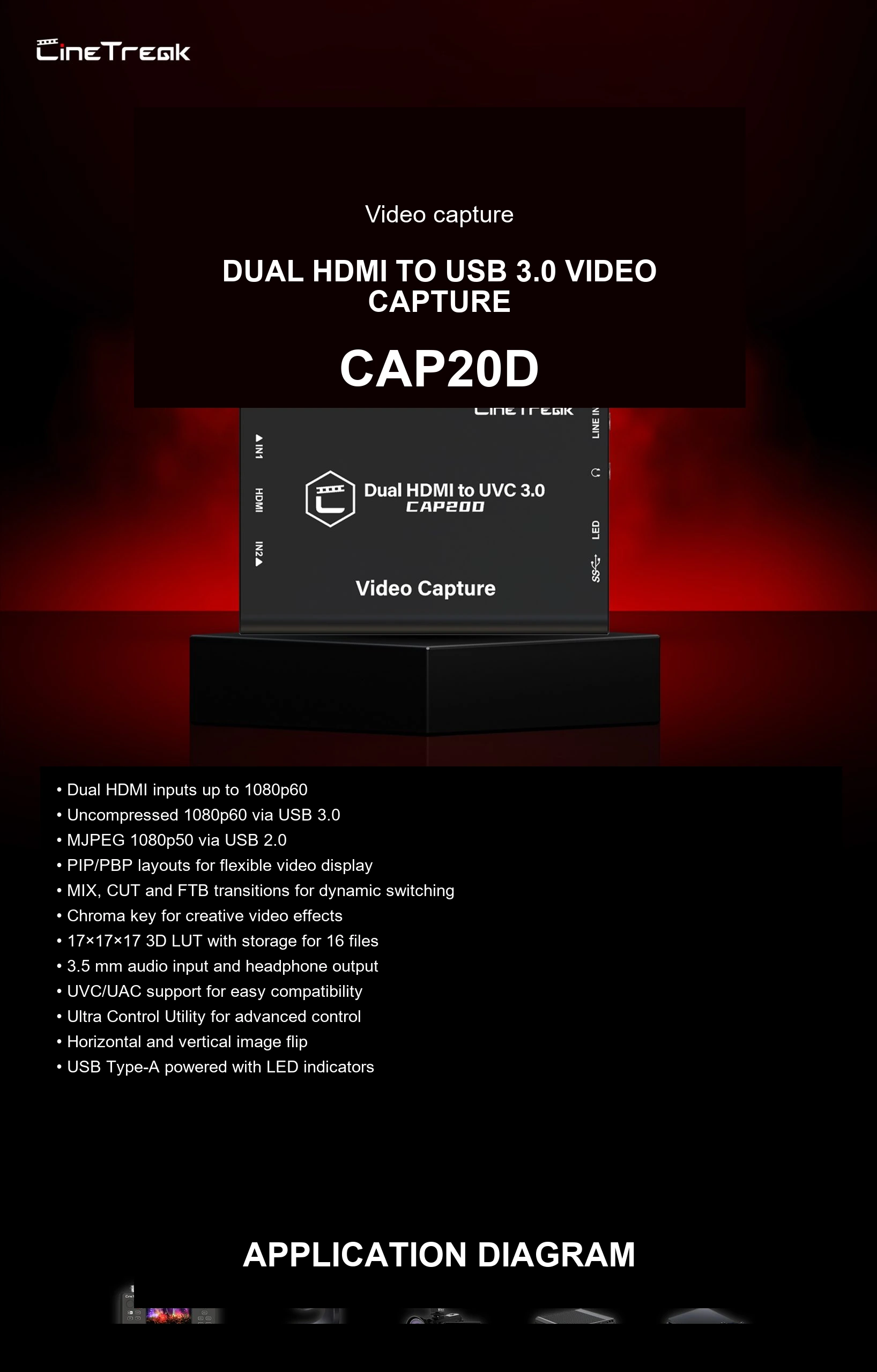

Two HDMI sources in one USB feed
The CineTreak CAP20D elevates your streaming and video capture setup with dual HDMI inputs, allowing real-time uncompressed 1080p@60fps video capture via USB 3.0 or MJPEG 1080p@50fps on USB 2.0. Designed for professionals, this versatile device features PIP (Picture-in-Picture) and PBP (Picture-by-Picture) layouts, as well as MIX, CUT, and FTB transitions for seamless, broadcast-style switching.
Integrated 3.5mm audio input and headphone output allow direct audio integration and monitoring, ideal for live commentary or interviews. With UVC/UAC support, the CAP20D ensures broad compatibility without additional drivers, and its USB Type-A power and LED indicators make it both portable and easy to use.

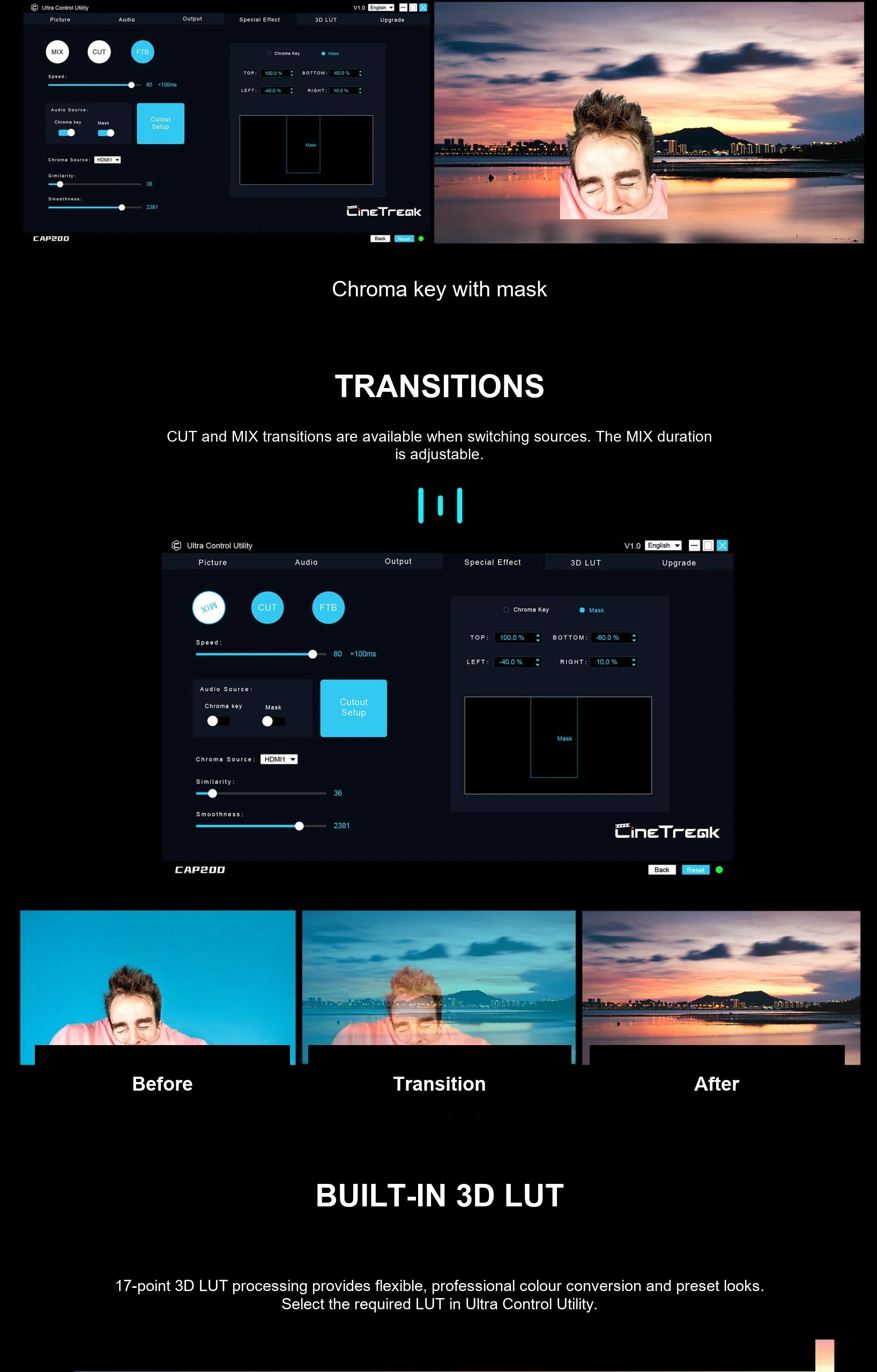

Its built-in chroma key function enables creative virtual backgrounds and overlays, while 3D LUT support ensures precise color grading for high-end production quality. The Ultra Control Utility provides access to advanced settings, including image flip for flexible camera placements.
From live streaming to production
CAP20D suits streaming, education, sport, film production, gaming, worship and professional studio workflows.
Key Features:
Dual HDMI inputs with up to 1080p@60fps capture
USB 3.0 for uncompressed 1080p@60fps output
USB 2.0 support with MJPEG 1080p@50fps
PIP/PBP display layouts with MIX, CUT, FTB transitions
Chroma keying and 3D LUT output support
3.5mm audio input and headphone monitoring
Image flip functionality for custom setups
UVC/UAC compatibility for plug-and-play operation
USB Type-A powered with LED indicators
Ultra Control Utility software for advanced settings

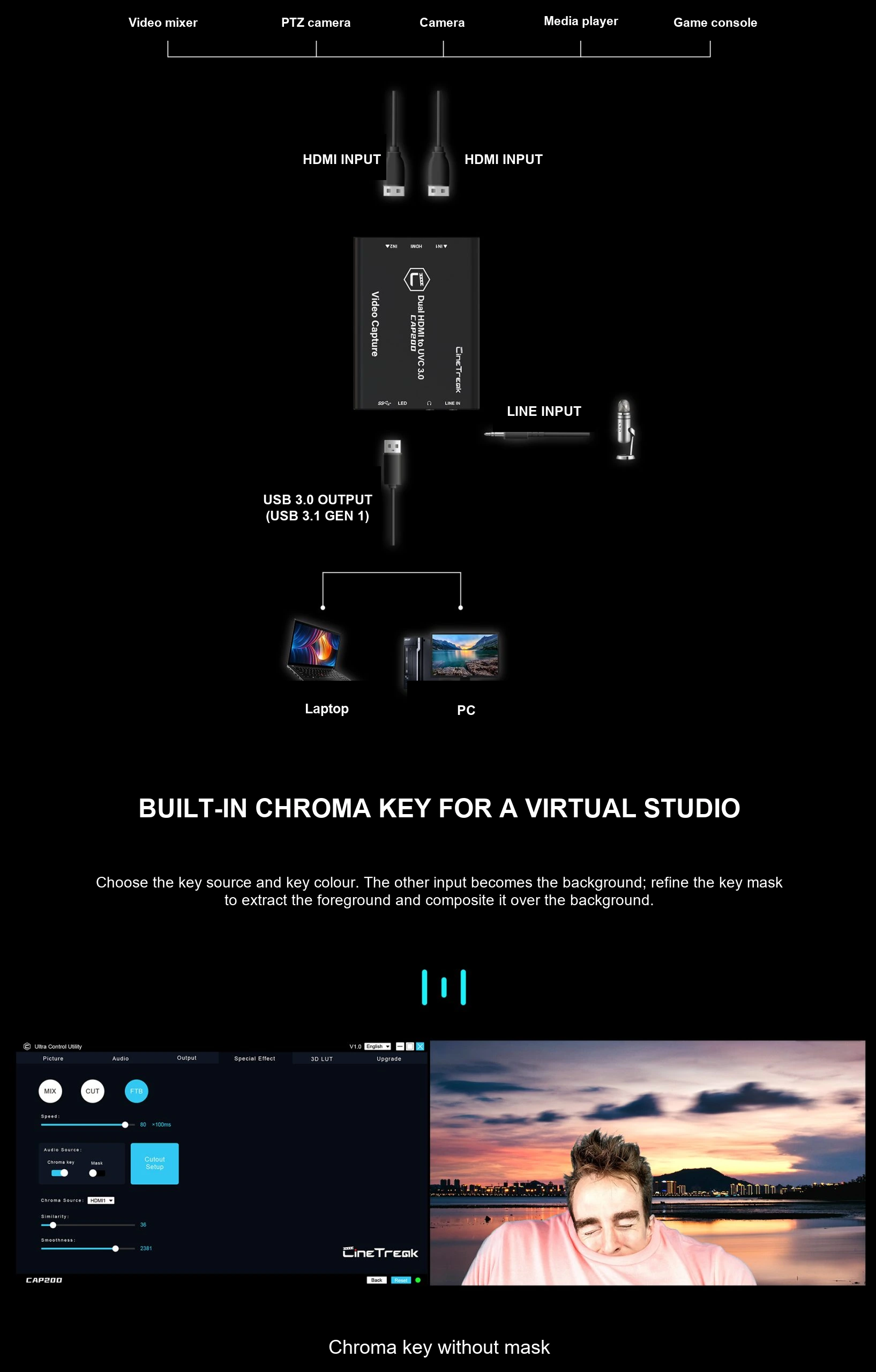

Exact interfaces and formats

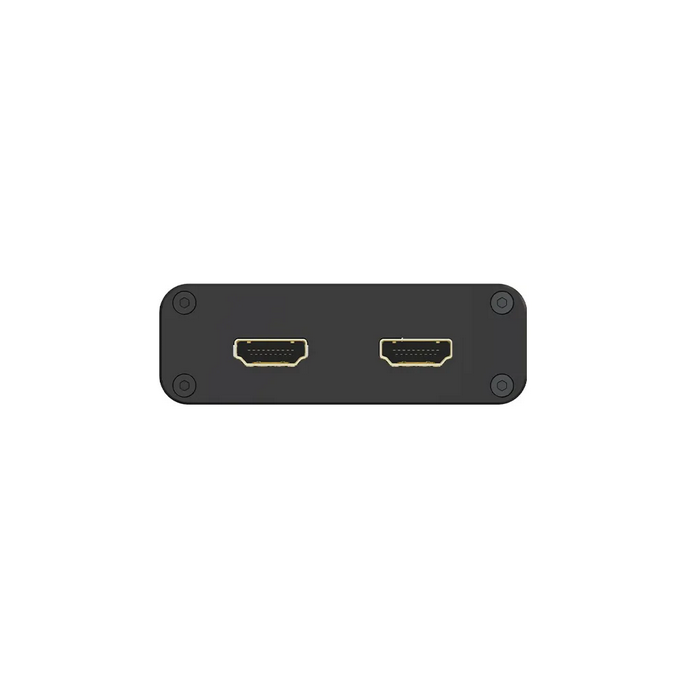

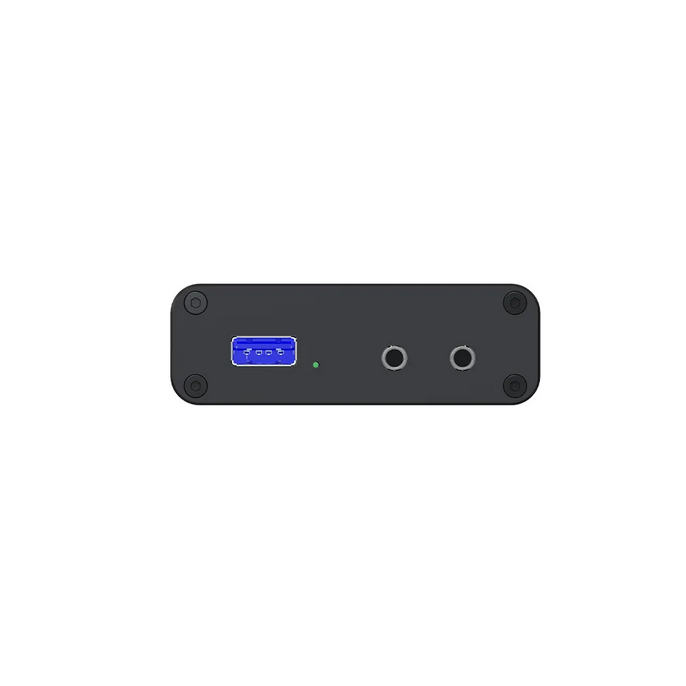

Two HDMI Type-A inputs are joined by a line audio input, headphone output and USB 3.1 Gen 1 output. The unit works as a UVC/UAC source without a dedicated driver.
PACKAGE CONTENT
CineTreak CAP20D ×1
USB 3.0 Type-A to Type-A cable ×1

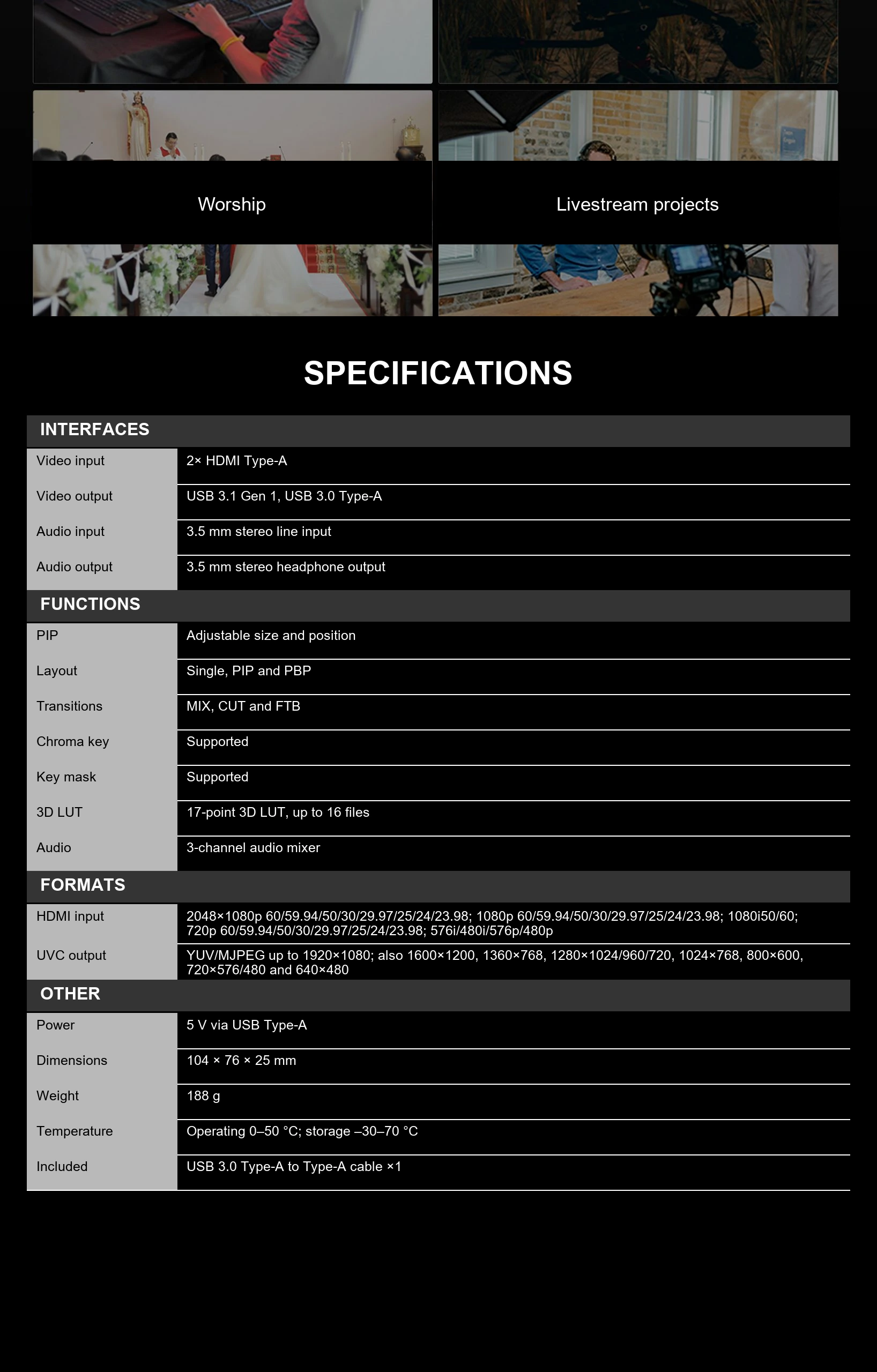

SPECIFICATIONS
Video inputs: 2× HDMI Type-A
Computer output: USB 3.1 Gen 1 / USB 3.0 Type-A
Audio input: 3.5 mm stereo line input
Audio output: 3.5 mm stereo headphone output
Layouts: Single, PIP and PBP
Transitions: MIX, CUT and FTB
Chroma key: Supported, including adjustable key mask
3D LUT: 17-point 3D LUT; up to 16 stored files
Audio mixer: 3 channels
Power: 5 V via USB Type-A
Dimensions: 104 × 76 × 25 mm
Weight: 188 g
Temperature: Operating 0–50 °C; storage –30–70 °C
