CineTreak Stream 1S

Name: CineTreak Stream 1S
Brand: CineTreak
SKU: Stream 1S
Price: 439 EUR
Availability: OutOfStock

SKU: Stream 1S

CineTreak Stream 1S is a compact professional video switcher for multicamera production, streaming, education, corporate events and worship. It provides four 3G-SDI inputs, AUX, program and auxiliary outputs, USB/UVC, recording and instant playback, dual RTMP/RTMPS streaming and control of up to four PTZ cameras via VISCA over IP. Chroma/luma…

More information

439 € with VAT 362.81 € without VAT

Price history

Availability

on request

SKU:
Stream 1S

Price history

Top accessories for CineTreak Stream 1S

CineTreak CT-PT12

The CineTreak CT-PT12 is a professional PTZ camera delivering Full HD 1080p60 video,

619 €

on request

CineTreak CT-PT20 NDI

CineTreak CT-PT20 NDI is a professional Full HD PTZ camera for live events, education,

729 €

on request

CineTreak CT-PT12 NDI

The CineTreak CT-PT12 NDI is a professional auto-tracking PTZ camera with 12x optical

729 €

on request

CineTreak CT-PT20

CineTreak CT-PT20 is a professional Full HD PTZ camera for live events, education,

619 €

on request

CineTreak CT-PT25K 3G NDI

Free transport

The CineTreak CT-PT25K 3G NDI is a professional 4K PTZ camera with AI human tracking

1 979 €

on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

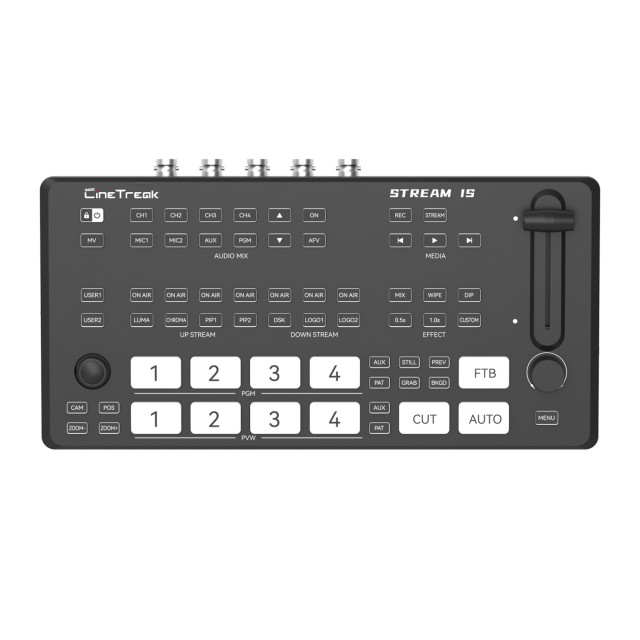

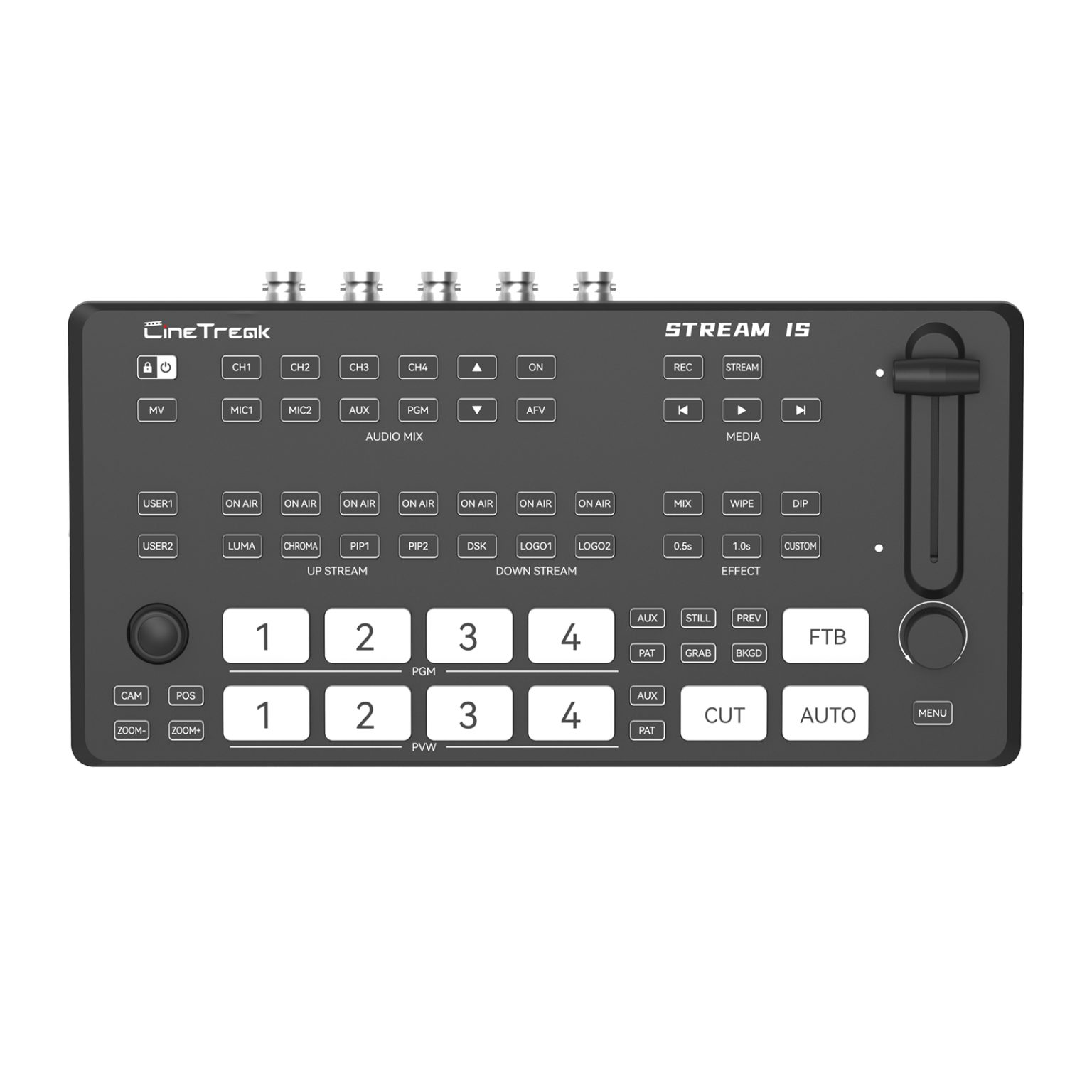

CineTreak Stream 1S is a compact professional video switcher for multicamera production, streaming, education, corporate events and worship. It provides four 3G-SDI inputs, AUX, program and auxiliary outputs, USB/UVC, recording and instant playback, dual RTMP/RTMPS streaming and control of up to four PTZ cameras via VISCA over IP. Chroma/luma key, PIP/POP, DSK, logos and both 16:9 and 9:16 modes expand live-production options without a built-in monitor.

Video switcher · 4× 3G-SDI · dual RTMP

Five live sources, direct streaming and PTZ control

CineTreak Stream 1S combines four professional SDI inputs with an AUX source, media recording and playback, network streaming and control of up to four PTZ cameras.

4× 3G-SDIDual RTMPPIP / POPPTZ VISCA

4× 3G-SDILocking BNC connectivity for cameras in venues, studios and live events.

Two RTMP destinationsThe built-in encoder can stream to two network destinations simultaneously without a separate computer.

Five live channelsFour cameras are joined by AUX; media can come from an SD card, USB storage or an online stream.

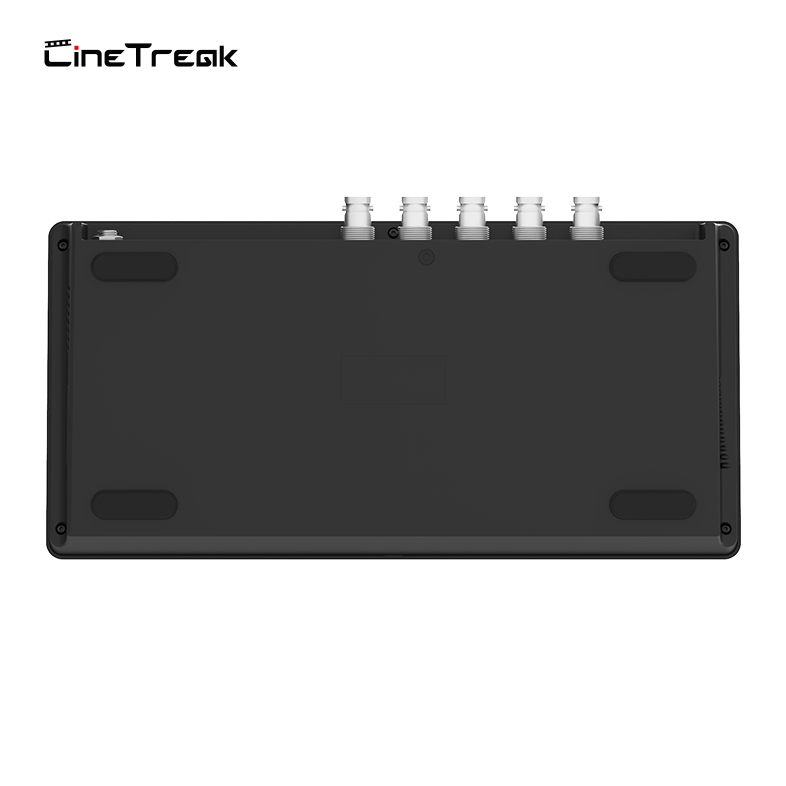

SDI / AUX / LAN

SDI, HDMI AUX and networking on one desk

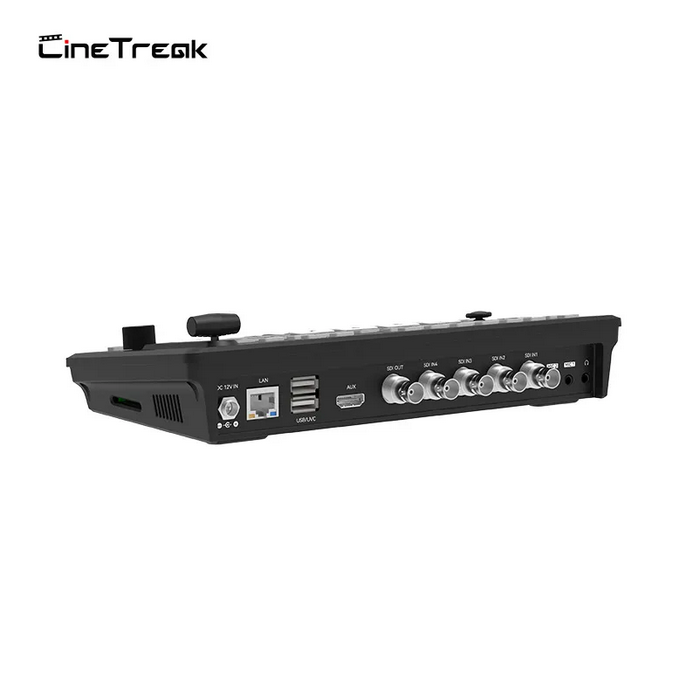

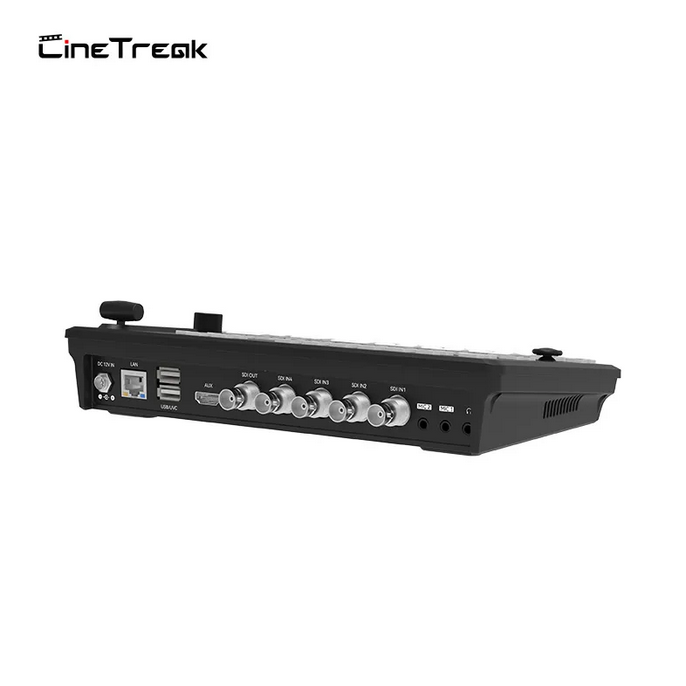

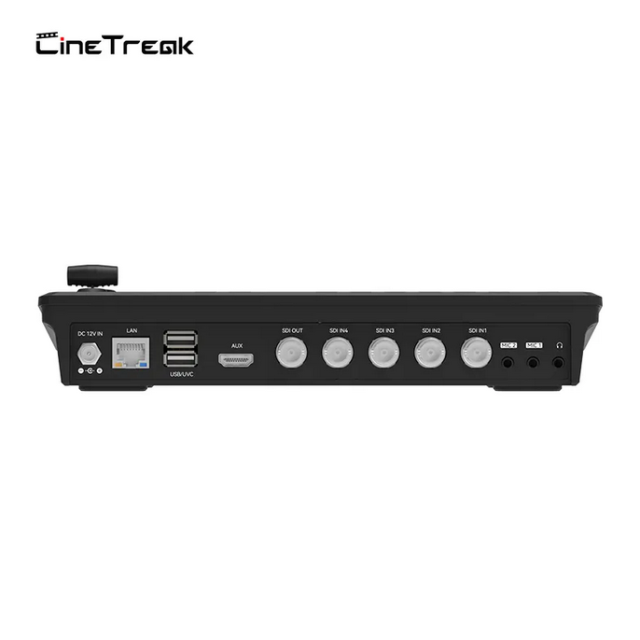

The rear panel combines four 3G-SDI inputs, SDI PGM and HDMI AUX, LAN, two 3.5mm audio inputs, a headphone output, USB/UVC, media USB and an SD slot. The unit has no built-in display and uses an external multiview.

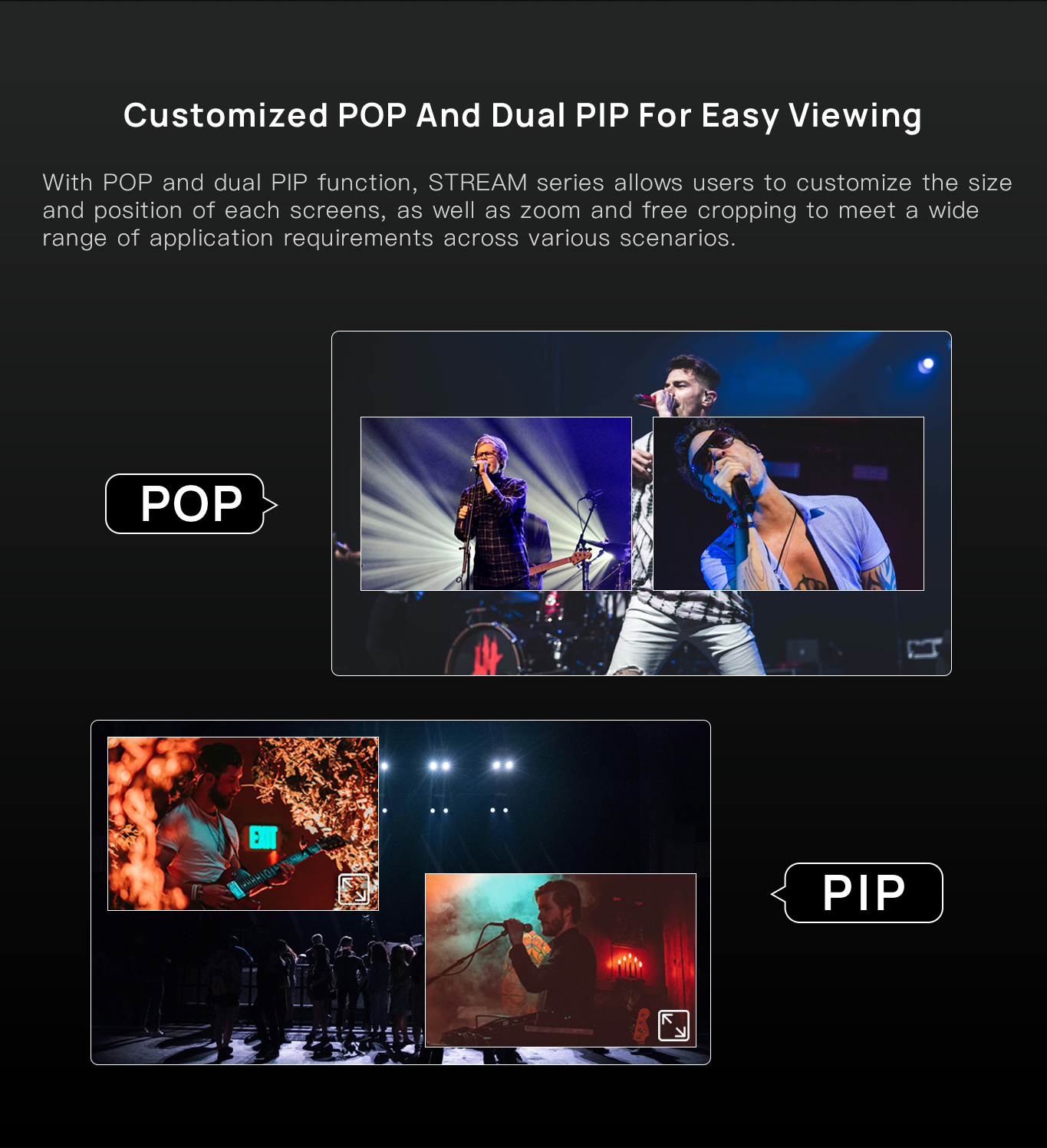

PIP / POP

Freely configurable PIP and POP

Two picture-in-picture feeds can be resized, positioned, cropped and zoomed. Chroma key, luma key, DSK and two logos expand the program to as many as eight layers.

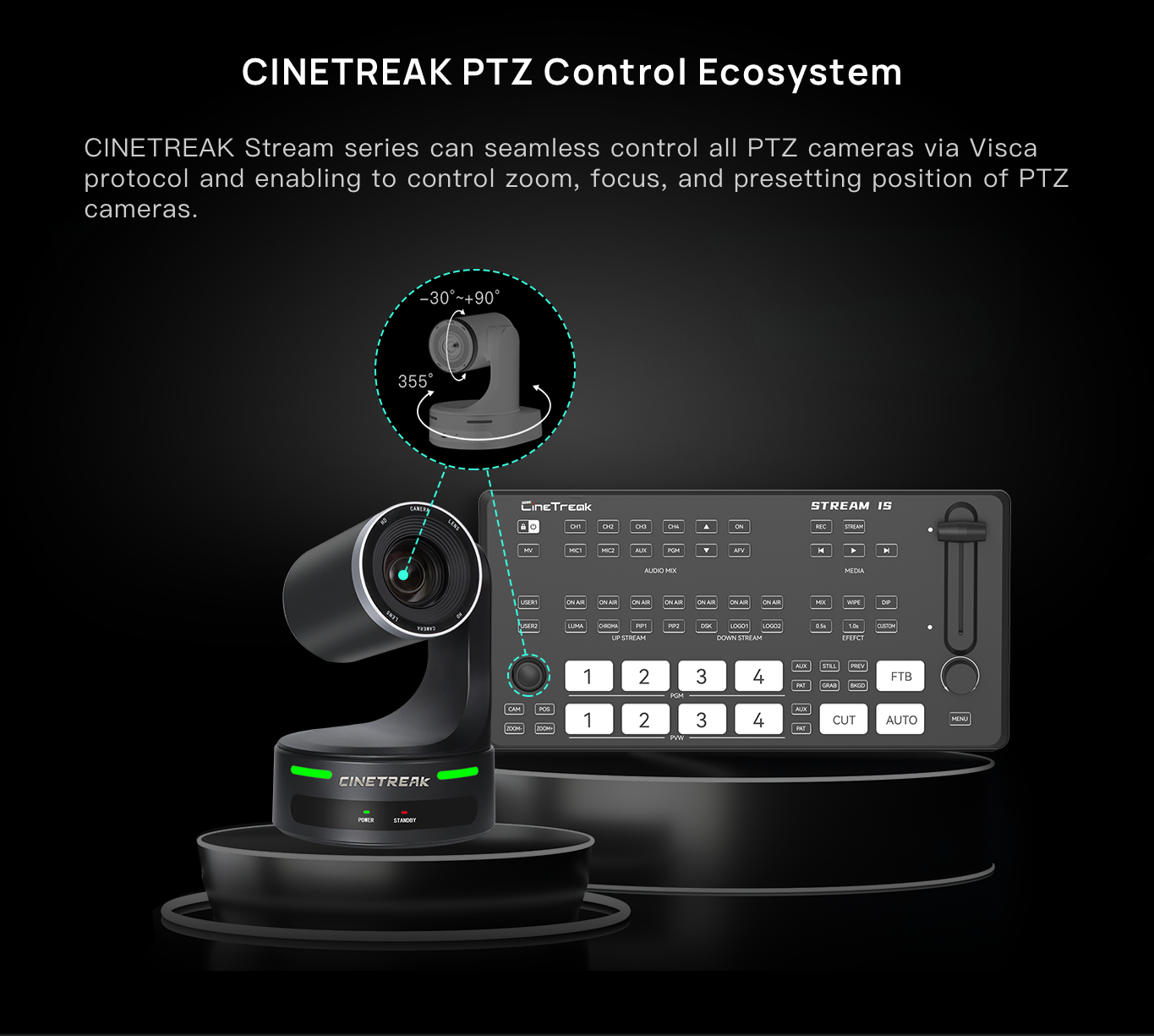

VISCA over IP

Control PTZ cameras from the switcher

VISCA over IP controls up to four compatible PTZ cameras, including movement, zoom, focus and presets. The wireless web interface also supports operation from a computer, phone or tablet.

Recording, playback and formats for current platforms

The program can be recorded to an SD card or USB media and played back immediately. The switcher supports standard 16:9 and vertical 9:16 production with T-bar, CUT, AUTO, MIX, DIP, WIPE, STILL, MUTE and FTB.

For mobile production, studios, education and worship

The compact 244mm-wide body combines switching, audio, keying, graphics, recording, streaming and PTZ control. The SDI version suits long cable runs and professional camera systems.

PACKAGE CONTENT

CineTreak Stream 1S ×1
12V / 2A power adapter ×1
USB 3.0 A-to-A cable ×1

SPECIFICATIONS

Video inputs: 4× 3G-SDI (BNC)
AUX input: 1× HDMI AUX / external or media source
Video outputs: 1× 3G-SDI PGM, 1× HDMI AUX, UVC/IP
USB/UVC: USB 3.1 UVC up to YUY2 1080p60; separate USB media/storage port
Audio inputs / output: 2× 3.5mm stereo mic/line / 1× 3.5mm stereo monitoring
Network and control: 1× RJ45 LAN; web control from PC, phone or tablet
PTZ control: VISCA over IP; up to 4 cameras
Streaming: H.264; dual RTMP/RTMPS destinations
Recording and playback: SD card or USB storage; instant playback
Picture modes: 16:9 landscape and 9:16 portrait
Transitions: T-bar, CUT, AUTO, WIPE, MIX, DIP, preview, STILL, MUTE, FTB
Keys and layers: 1× luma, 1× chroma, dual PIP, POP, DSK, 2× logo; up to 8 PGM layers
Maximum input: 3G-SDI up to 1080p60
Maximum PGM: 1080p60/59.94/50/30/29.97/25/24/23.98; 1080i50/60
Maximum UVC: YUY2 up to 1080p60
Colour space: RGB / YUV
Power: 7–24V DC; supplied adapter 12V / 2A
Consumption: <12W
Dimensions: 244 × 128 × 50mm
Weight: 608g
NDI: optional licence

WE RECOMMEND

The CineTreak Stream 1S is a professional SDI production switcher with integrated PTZ camera control and support for dual RTMP streaming. To make the most of its features, compatible PTZ cameras with SDI/HDMI interfaces and signal converters are essential for flexible video signal distribution and conversion.

PTZ Cameras - Cameras fully compatible with the control protocols and video inputs of the Stream 1S production switcher.

Video Converters and Interfaces - Accessories for converting SDI/HDMI signals and integrating USB sources into the production workflow.

Parameters

Manufacturer:	CineTreak
Category:	Video switchers

Main parameters

Video input	4× 3G-SDI
Number of inputs	5
Switcher inputs	HDMI · SDI
Streaming service types	RTMP
Switcher inputs	NDI volitelně
Switcher Outputs	HDMI · SDI · USB · NDI volitelně
Internal Recording	Yes
Resolution	HD
Features	Record · DSK · AUX · Chroma Key · Ovládání PTZ kamer · Streamování přes Ethernet · Zvukový mix · Přehrávač médií · Multiviewer
Control panel	Yes
