CineTreak Stream SH
SKU: Stream SH
The CineTreak Stream SH is a compact hybrid video production system with two HDMI inputs and two 3G-SDI inputs, PGM and AUX outputs, USB 3.0 UVC, direct RTMP streaming, recording, and control of up to four PTZ cameras. The HDMI inputs support up to 4K, the system outputs in HD up to 1080p60, and an optional NDI license expands network integration…
409 € with VAT
338.02 € without VAT
Availability
on request
Top accessories for CineTreak Stream SH
CineTreak CT-PT12
The CineTreak CT-PT12 is a professional PTZ camera delivering Full HD 1080p60 video,
619 €
on request
CineTreak CT-PT20 NDI
CineTreak CT-PT20 NDI is a professional Full HD PTZ camera for live events, education,
729 €
on request
CineTreak CT-PT12 NDI
The CineTreak CT-PT12 NDI is a professional auto-tracking PTZ camera with 12x optical
729 €
on request
CineTreak CT-PT20
CineTreak CT-PT20 is a professional Full HD PTZ camera for live events, education,
619 €
on request
CineTreak CT-PT20H
The CineTreak CT-PT20H is a versatile 4K PTZ camera with AI human tracking, featuring
509 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The CineTreak Stream SH is a compact hybrid video production system with two HDMI inputs and two 3G-SDI inputs, PGM and AUX outputs, USB 3.0 UVC, direct RTMP streaming, recording, and control of up to four PTZ cameras. The HDMI inputs support up to 4K, the system outputs in HD up to 1080p60, and an optional NDI license expands network integration capabilities.
Hybrid Production Without Compromise
CineTreak Stream SH: HDMI and SDI in One Compact Production Unit
The Stream SH combines two HDMI inputs and two 3G-SDI inputs, allowing it to support modern cameras, computers, and professional SDI equipment in a single portable system. The HDMI inputs accept signals up to 4K, while the internal processing and outputs operate in HD up to 1080p60.
Control via the physical panel is complemented by a network interface for a PC, phone, or tablet. The output can be routed simultaneously to PGM and AUX, sent to a computer via USB 3.0, or streamed directly over Ethernet.
2× HDMI + 2×SDI Hybrid Four-Input Production Console
PGM +AUX Two independently routed outputs
USB 3.0 UVC Uncompressed 1080p video for a computer
DualRTMP Simultaneous broadcasting to two platforms

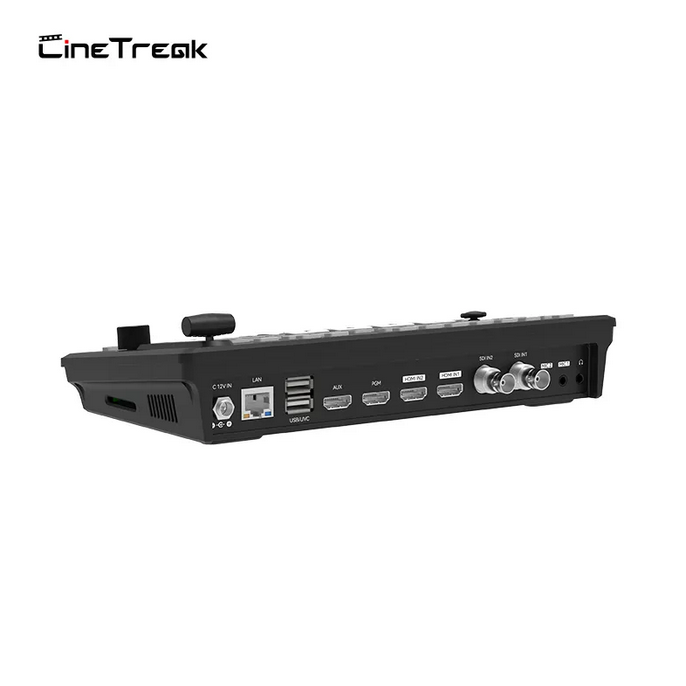

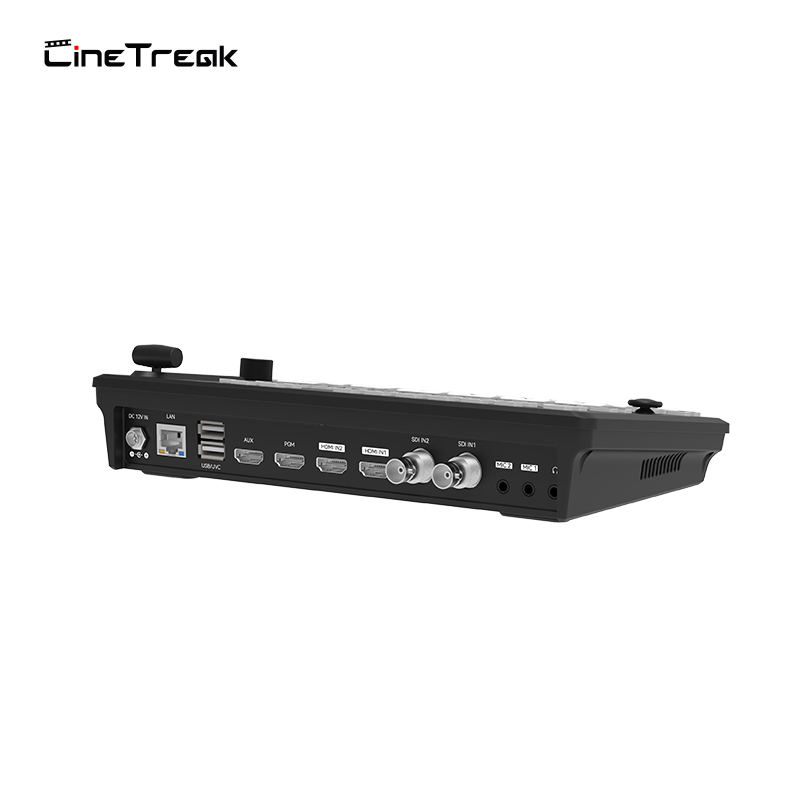

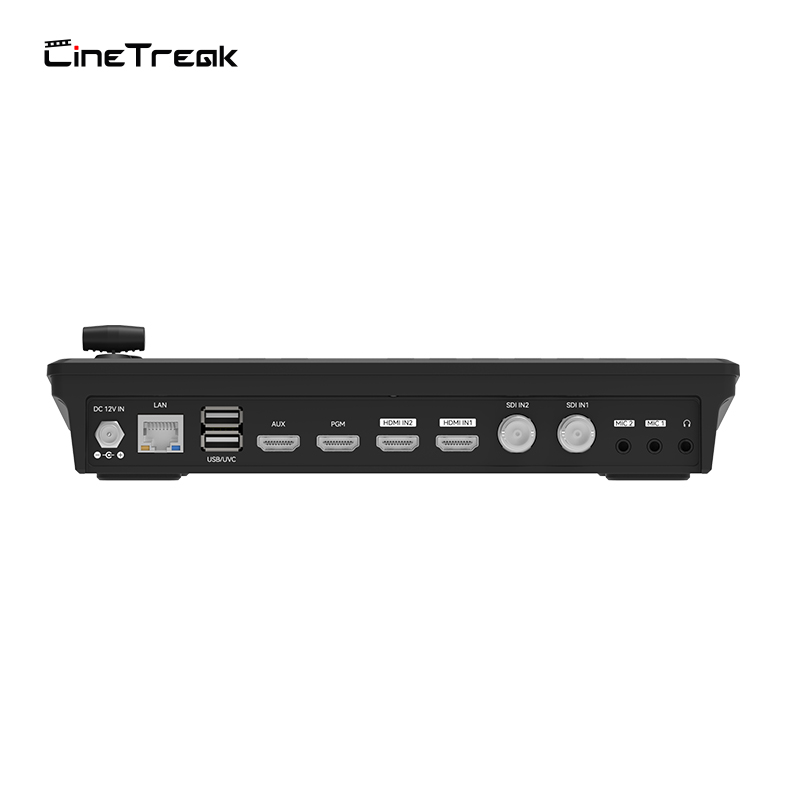

Connectivity
HDMI, SDI, and network simultaneously
Two HDMI inputs and two 3G-SDI inputs can be combined in a single scene. Separate PGM and AUX outputs simplify control of projection, preview, or a second distribution loop. USB 3.0 provides UVC video for OBS, Zoom, Teams, and other applications.
- HDMI 1–2 support up to 4K60
- PGM and AUX via HDMI
- Optional NDI license for network sources and output
- Two microphone/line-level inputs and a headphone output

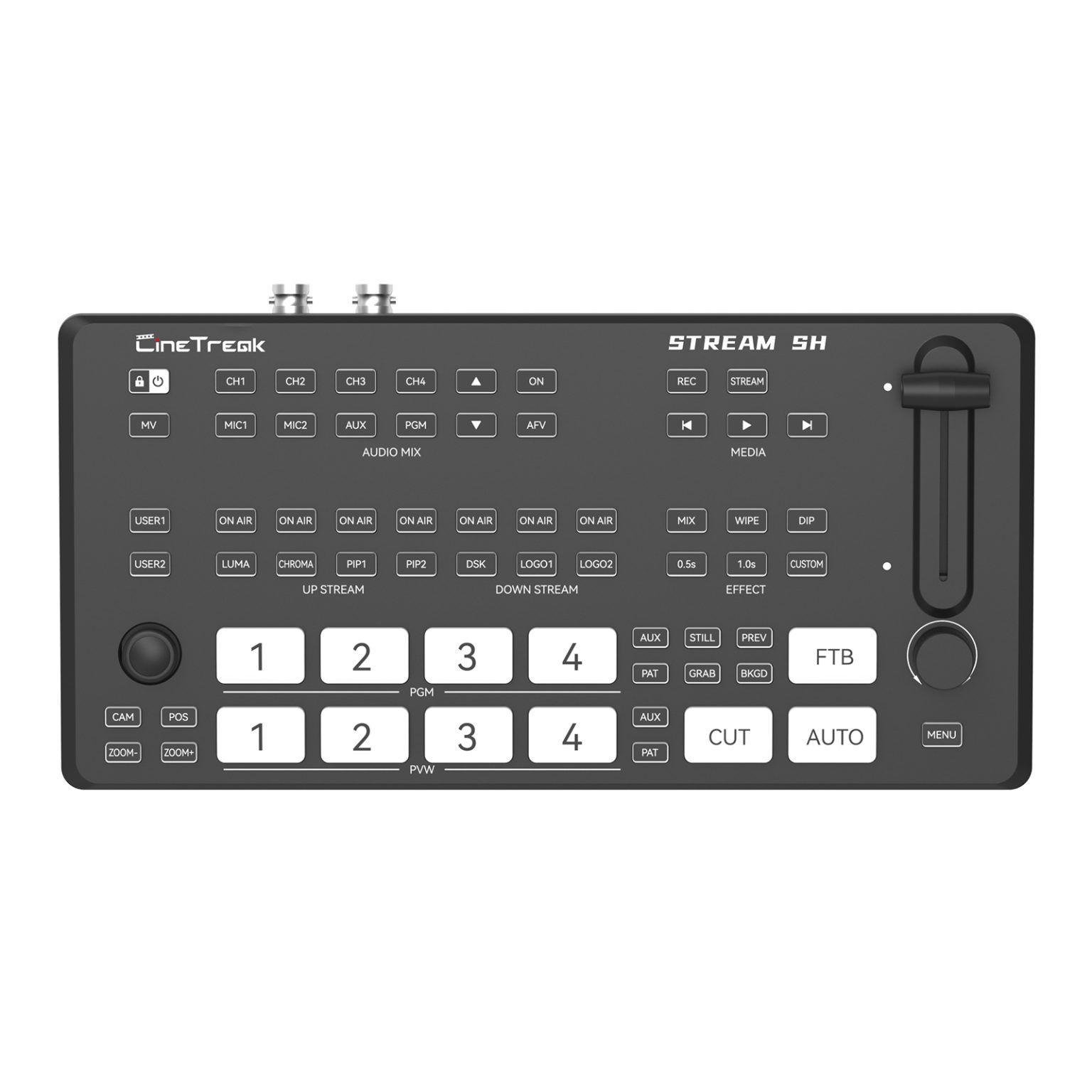

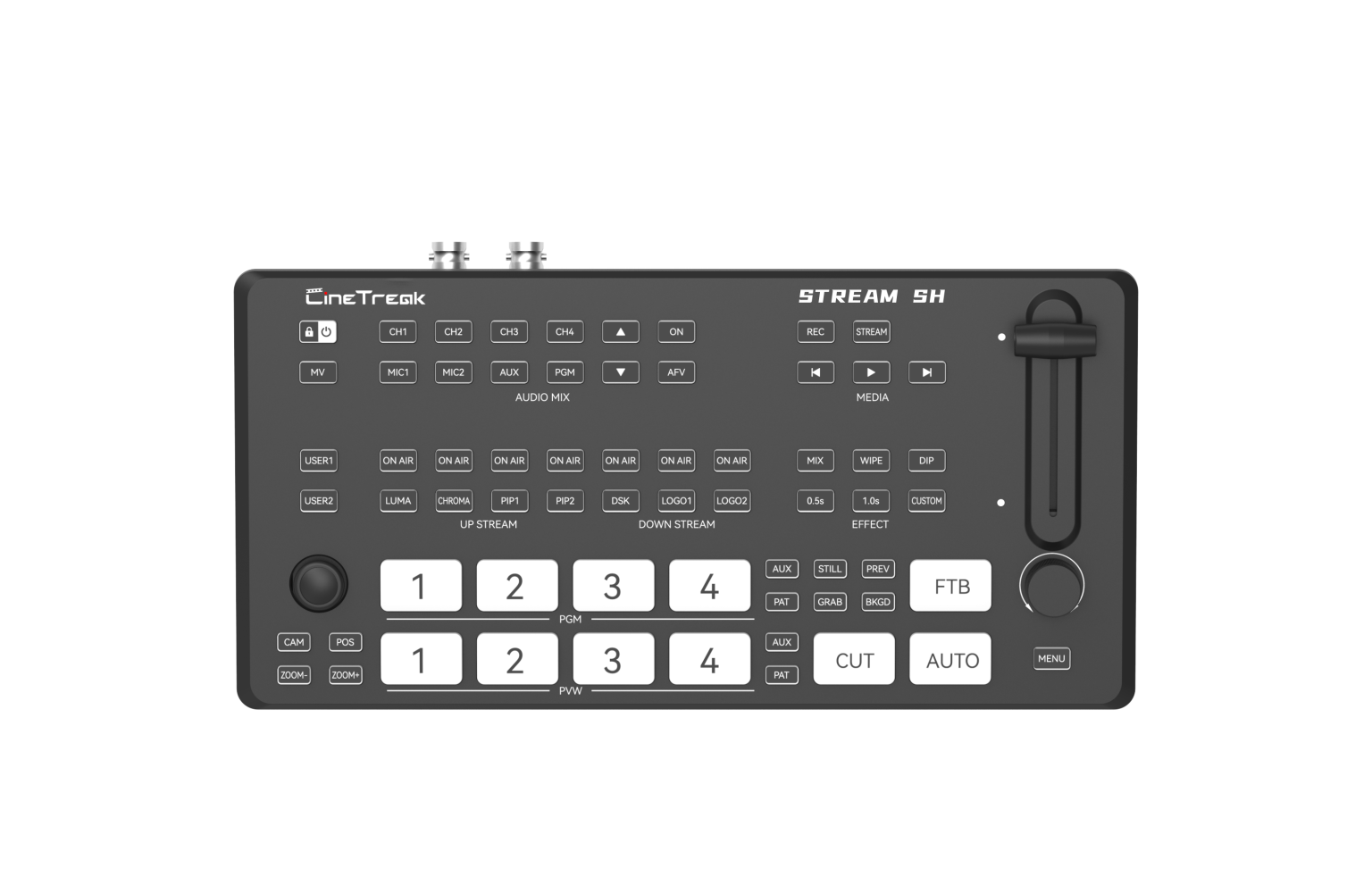

Direct Control
Quick operation without unnecessary steps
Physical buttons and controls provide instant access to switching, keying, transitions, audio, and PTZ positions. Up to four compatible PTZ cameras can be controlled via VISCA; wireless web control allows tasks to be distributed among multiple crew members.
PIP/POP, chroma and luma key, DSK, logos, still images, and multiple layers are available. The built-in multiview displays source previews, PGM, and audio status on a connected monitor.

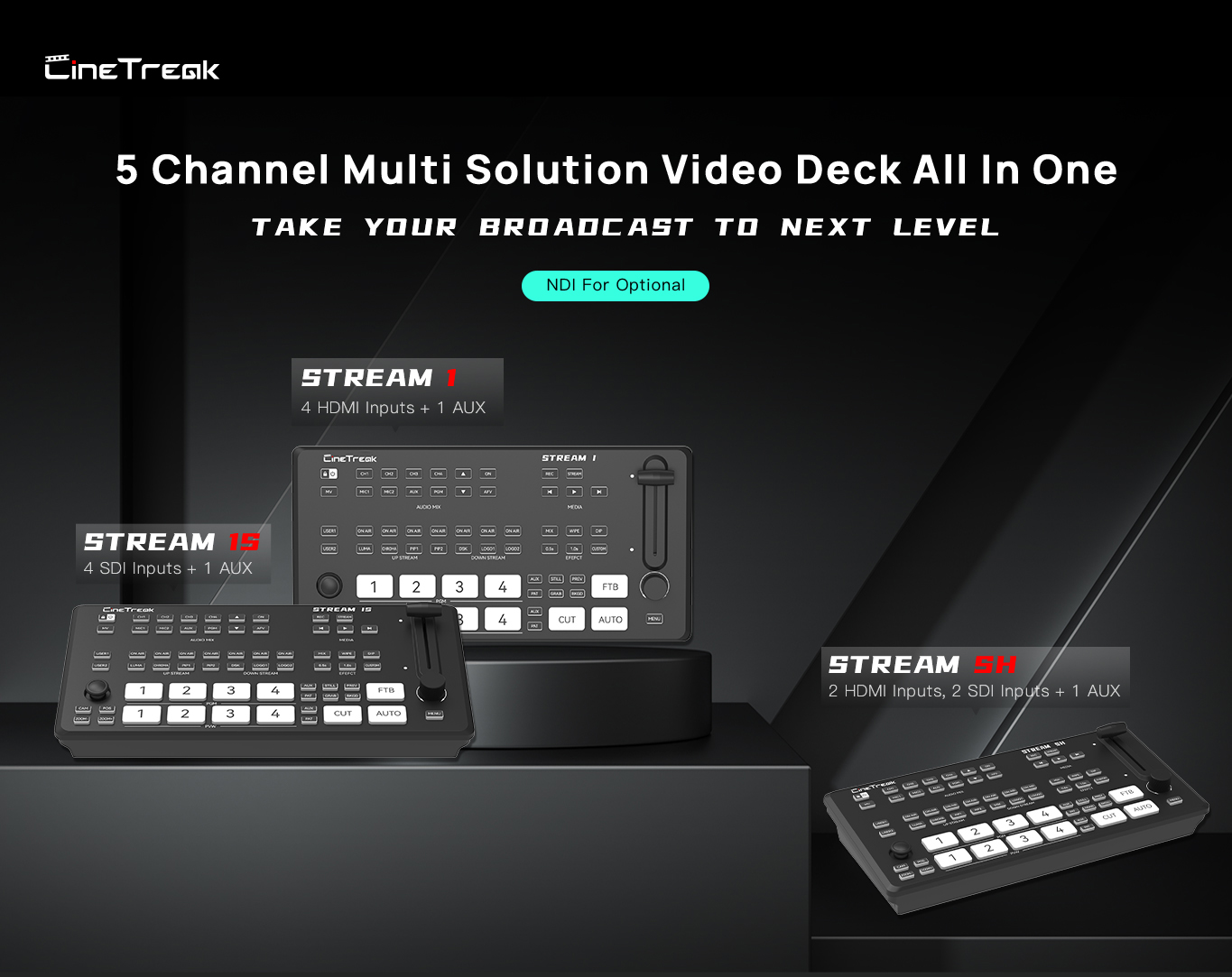

Stream Series
Three configurations for different signal paths
The Stream SH is a hybrid model with two HDMI and two SDI inputs. Below is the manufacturer’s side-by-side comparison with the Stream 1 and Stream 1S models; all share five live channels, including AUX, and can utilize an optional NDI license.
Recording and Distribution
From production to broadcast in a single device
H.264 hardware encoding supports simultaneous media recording and playback as well as dual RTMP streaming. Productions can be prepared in 16:9 or 9:16 aspect ratios for both traditional and mobile platforms.
Recording to an SD card or USB storage is complemented by instant playback of clips. Internal media sources expand the four physical inputs with backgrounds, still images, and downstream graphics.
PACKAGE CONTENT
Package Contents
- CineTreak Stream SH
- 12 V / 2 A power adapter
- USB 3.0 A–A cable
- Downloadable user manual
SPECIFICATIONS
Technical Specifications
| Video Inputs | 2× HDMI, 2× 3G-SDI |
|---|---|
| HDMI Inputs | HDMI 1–2 up to 4K60 |
| Outputs | HDMI PGM, HDMI AUX, USB 3.0 UVC |
| Output format | up to 1080p60 |
| USB video | UVC, YUY2, up to 1080p60 |
| Optional network license | NDI |
| Streaming | H.264, dual RTMP |
|---|---|
| PTZ | VISCA, up to 4 cameras |
| Audio | 2× 3.5mm mic/line, 1× headphones |
| Recording | SD card or USB storage |
| Power | 7–24 V DC, power consumption < 12 W |
| Dimensions / Weight | 244 × 128 × 50 mm / 608 g |
WE RECOMMEND
The CineTreak Stream SH is a powerful hybrid production switcher that combines HDMI and SDI interfaces with support for PTZ camera control, making it the ideal hub for multi-camera productions. To fully realize its potential, it is recommended to pair it with compatible PTZ cameras and specialized signal converters for flexible video distribution and recording.
PTZ Cameras - These cameras are fully compatible with the Stream SH’s HDMI/SDI inputs and support remote control of pan, tilt, and zoom.
- CineTreak CT-PT20 NDI
- CineTreak CT-PT20
- CineTreak CT-PT12
- CineTreak CT-PT12 NDI
- CineTreak CT-PT25K 3G NDI
- CineTreak CT-PT25K 12G
- CineTreak CT-PT25K 3G
- CineTreak CT-PT20H
- CineTreak CT-PT25K 12G NDI
Converters and Capture Devices - Devices for signal conversion and digitization of output from the control room for further processing or streaming via USB.
Parameters
| Manufacturer: | CineTreak |
| Category: | Video switchers |
Main parameters
| Video input | 2× HDMI + 2× 3G-SDI |
| Number of inputs | 5 |
| Switcher inputs | HDMI · SDI |
| Streaming service types | RTMP |
| Switcher inputs | NDI volitelně |
| Switcher Outputs | HDMI · USB · NDI volitelně |
| Internal Recording | Yes |
| Scaler on inputs | Yes |
| Resolution | HD |
| Features | Record · DSK · AUX · Chroma Key · Ovládání PTZ kamer · Streamování přes Ethernet · Zvukový mix · Přehrávač médií · Multiviewer |
| Control panel | Yes |
