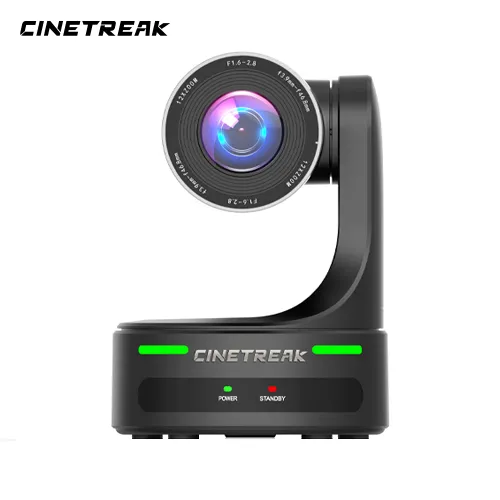

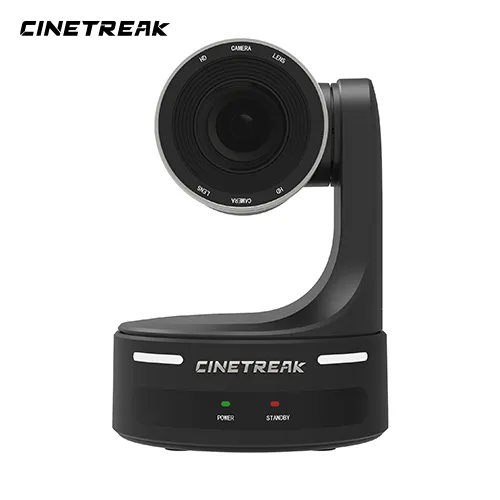

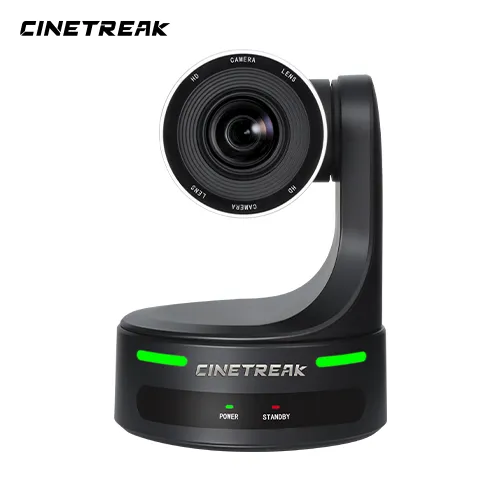

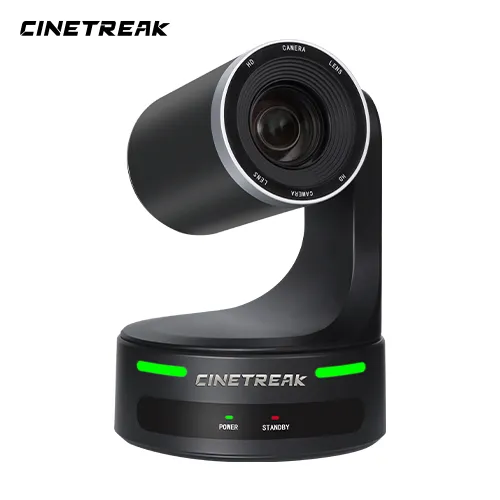

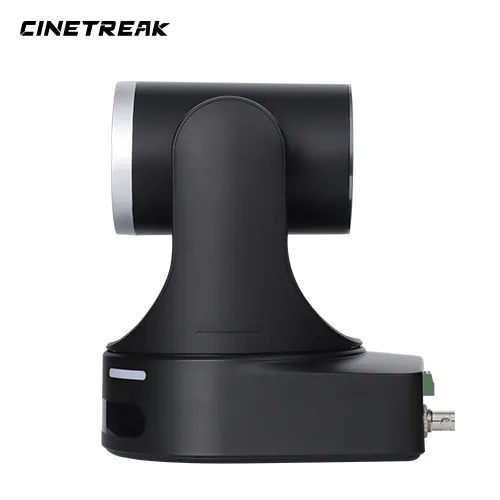

CineTreak CT-PT20

CineTreak CT-PT20 is a professional Full HD PTZ camera for live events, education, worship, conferencing and video production. It provides 1080p60 video, 20x optical and 16x digital zoom, automatic AI tracking and up to 200 presets. HDMI, 3G-SDI, USB 3.0 and RTMP/RTMPS, RTSP, ONVIF and SRT network streaming are complemented by serial and IP control, 3.5mm audio and 12V DC or PoE power.

Full HD PTZ · 3G-SDI · IP

Smooth 1080p60, 20x zoom and automatic tracking

The CineTreak CT-PT20 combines a 1/2.8-inch Sony CMOS sensor, long optical zoom and a quiet PTZ mechanism for education, conferencing, worship, live broadcasting and remote production.

Full HD 1080p6020× optical zoomAI tracking

Reach the far end of the venue

20x optical and 16x digital zoom cover both wide establishing shots and distant details. The 5.2–104mm lens provides an approximately 58.7° to 3.2° horizontal field of view, automatic or manual focus and 0.5-lux minimum illumination.

Full HD 1080p60Smooth video over HDMI, 3G-SDI, USB 3.0 and the network interface.

200 presetsPrepared compositions can be recalled quickly from a controller or over IP.

Flexible installation12V DC or PoE power, tripod support and optional wall or ceiling mounting.

AI tracking

Advanced AI human tracking

The camera recognizes and automatically follows a presenter, speaker or performer. It keeps the subject framed without continuous operator input and simplifies solo or automated production.

IP control

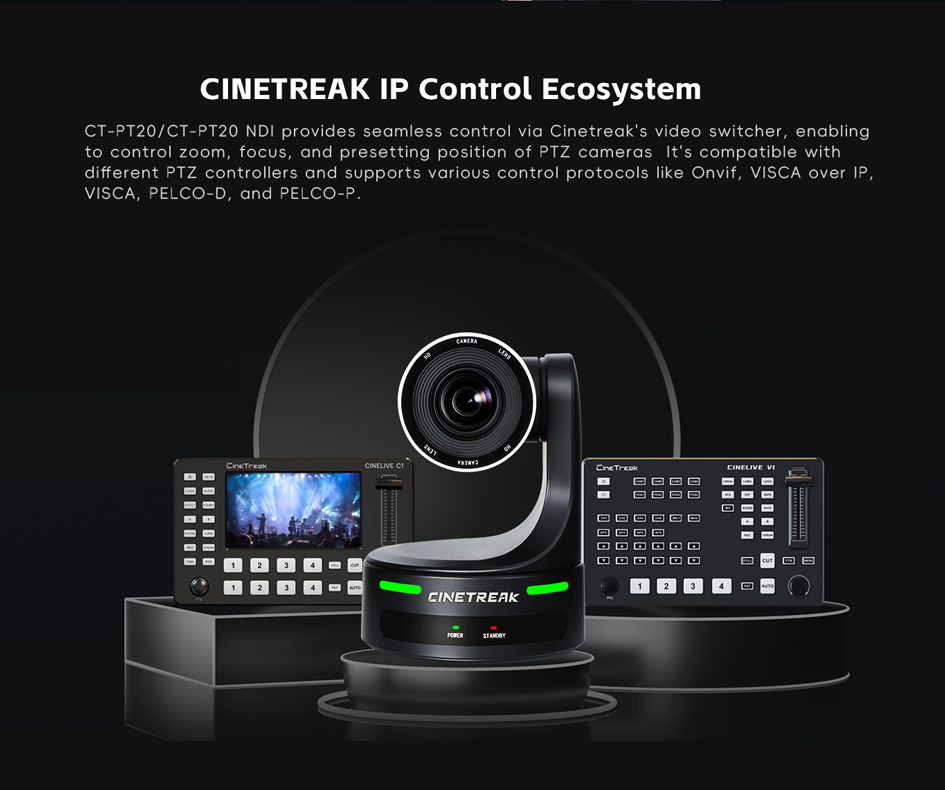

Part of the CineTreak IP control ecosystem

Zoom, focus and presets can be controlled from compatible video switchers and PTZ controllers. VISCA, VISCA over IP, ONVIF, Pelco-D/P, RS-232 and RS-422/485 are supported.

1080p60

Clear Full HD images at 60 fps

The 1/2.8-inch Sony sensor, progressive scanning, 2D/3D noise reduction and a signal-to-noise ratio of at least 55 dB help retain color and detail in challenging light.

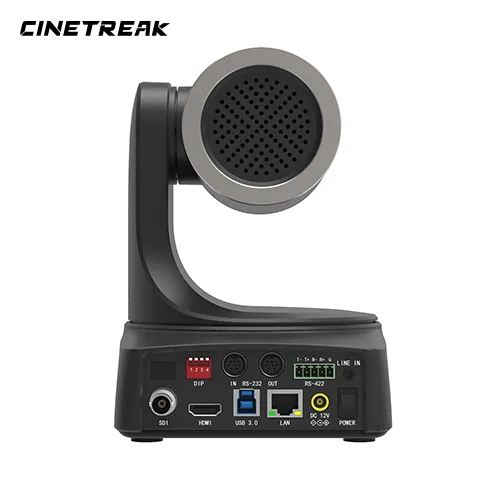

Video, network, audio and serial control

HDMI 1.4, 3G-SDI, USB 3.0 Type-B and RJ45 support traditional and IP production. H.264, H.265 and MJPEG complement RTMP/RTMPS, RTSP, ONVIF and SRT.

For education, conferencing, studios and worship

Automatic tracking, simultaneous outputs and remote control let one camera serve local switching, USB conferencing, recording and network distribution.
