The CineTreak CN20S is a professional SDI/HDMI video converter with 12-bit color depth, 3D LUT support, and cinematic format compatibility. Ideal for filmmakers and broadcasters, it enables precise color grading and adaptive signal conversion with plug-and-play simplicity.
The CineTreak CN20S is a professional SDI/HDMI video converter with 12-bit color depth, 3D LUT support, and cinematic format compatibility. Ideal for filmmakers and broadcasters, it enables precise color grading and adaptive signal conversion with plug-and-play simplicity.

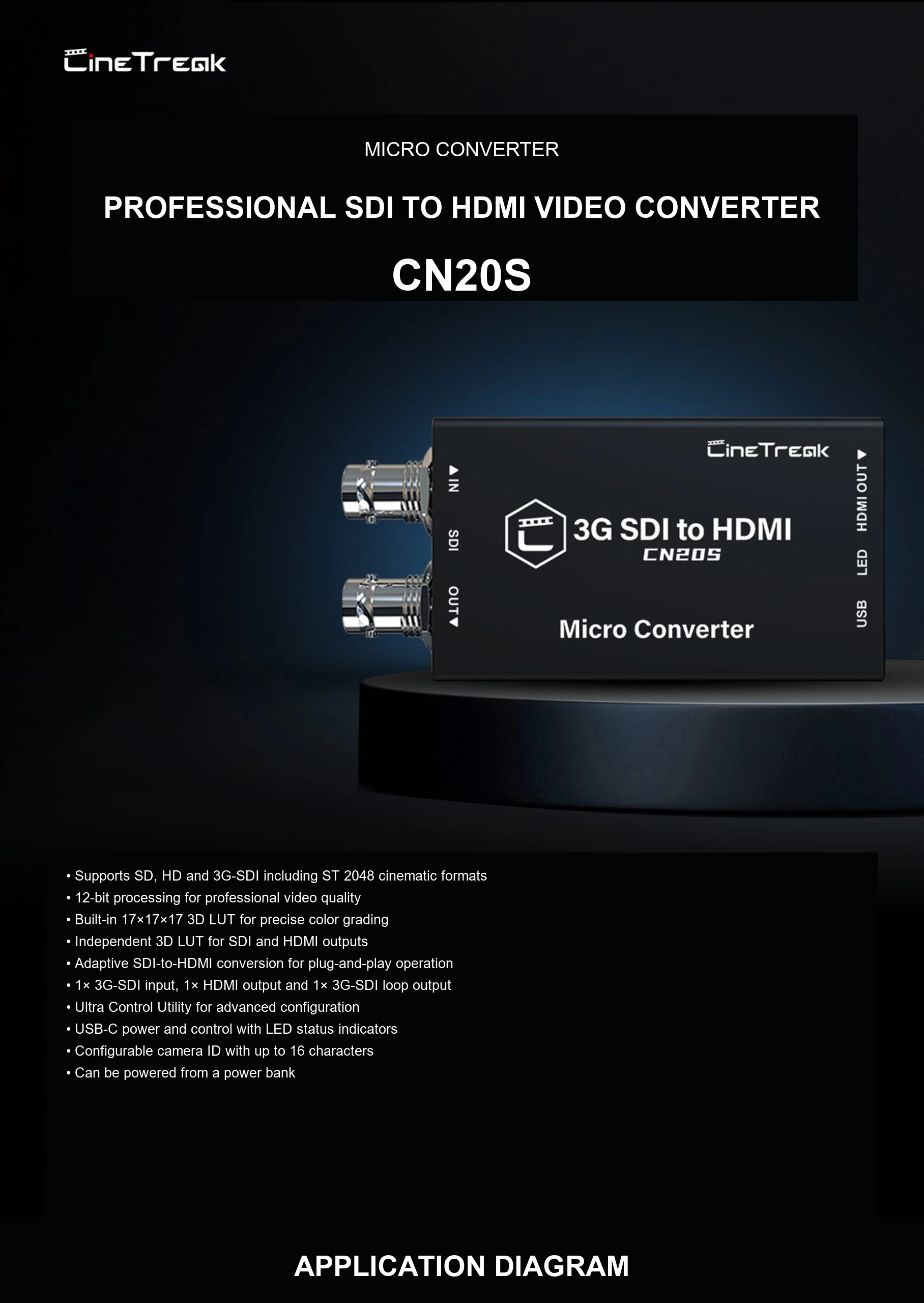

PROFESSIONAL SDI TO HDMI CONVERTER
The CineTreak CN20S is a high-performance SDI/HDMI video converter tailored for professional video production environments. Supporting SD, HD, 3G-SDI, and ST2048 cinematic formats, it delivers uncompromising video fidelity with a 12-bit color depth for rich, true-to-life imagery.

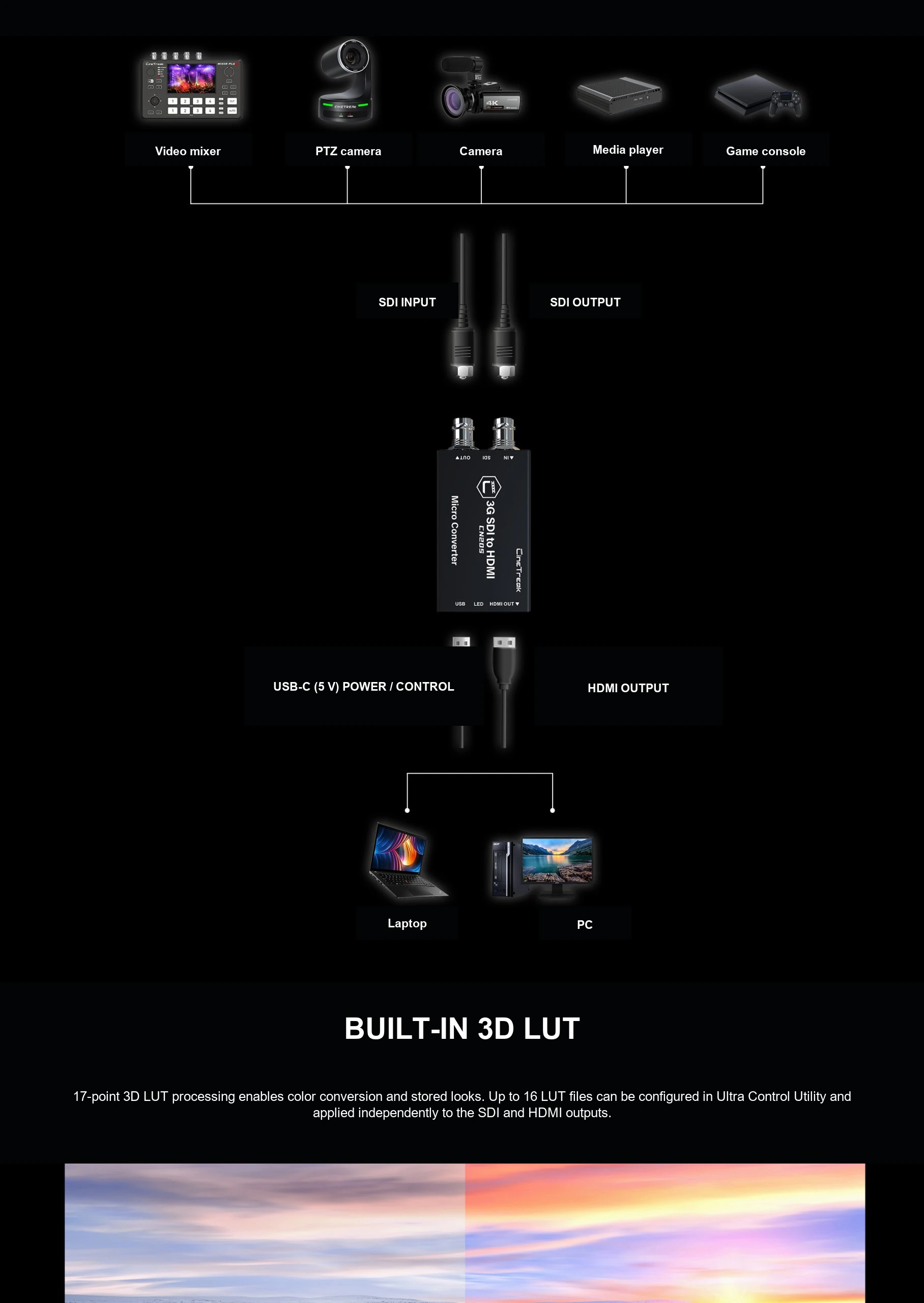

APPLICATION DIAGRAM
Connectivity includes 1x 3G-SDI input, 1x HDMI output, and 1x 3G-SDI output, making it versatile for bridging between broadcast and cinematic equipment. The Ultra Control Utility software provides advanced configuration options, including camera device name customization for seamless integration.
MULTIPLE APPLICATIONS
Powered via USB-C (compatible with power banks), and equipped with LED status indicators, the CN20S is built for portable, professional use on set or in the field.

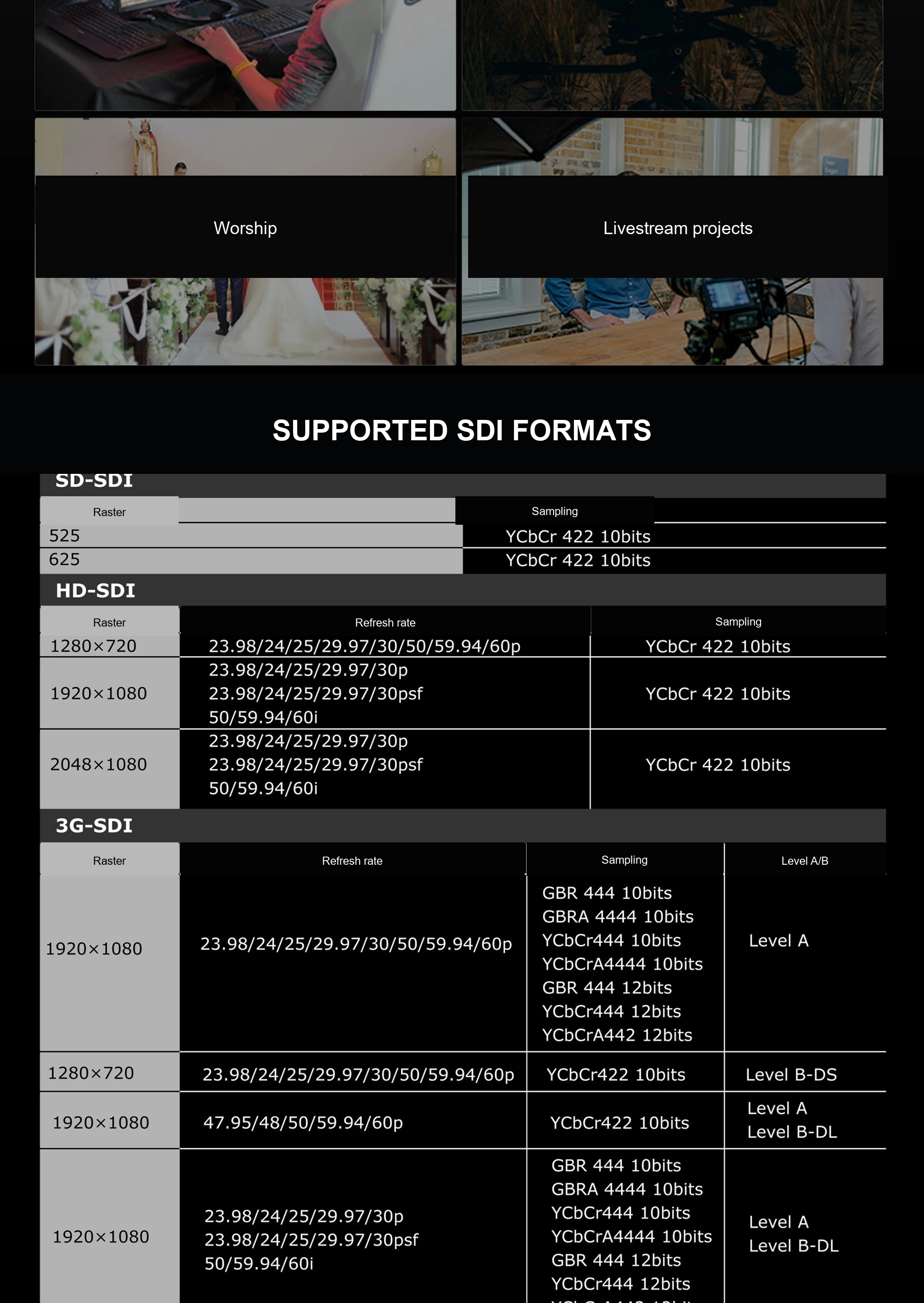

SUPPORTED SDI FORMATS
Equipped with a built-in 17x17x17 3D LUT, the CN20S enables precise color grading and ensures consistent visual output across different devices. Both SDI and HDMI outputs can utilize independent 3D LUTs, offering granular control for color workflows. The converter’s adaptive conversion technology allows for plug-and-play operation, minimizing setup time in demanding production settings.
Professional SDI/HDMI converter with 12-bit color depth
Supports SD, HD, 3G-SDI, and ST2048 cinematic video formats
Built-in 17x17x17 3D LUT for precise and professional color grading
Independent 3D LUTs for SDI and HDMI outputs

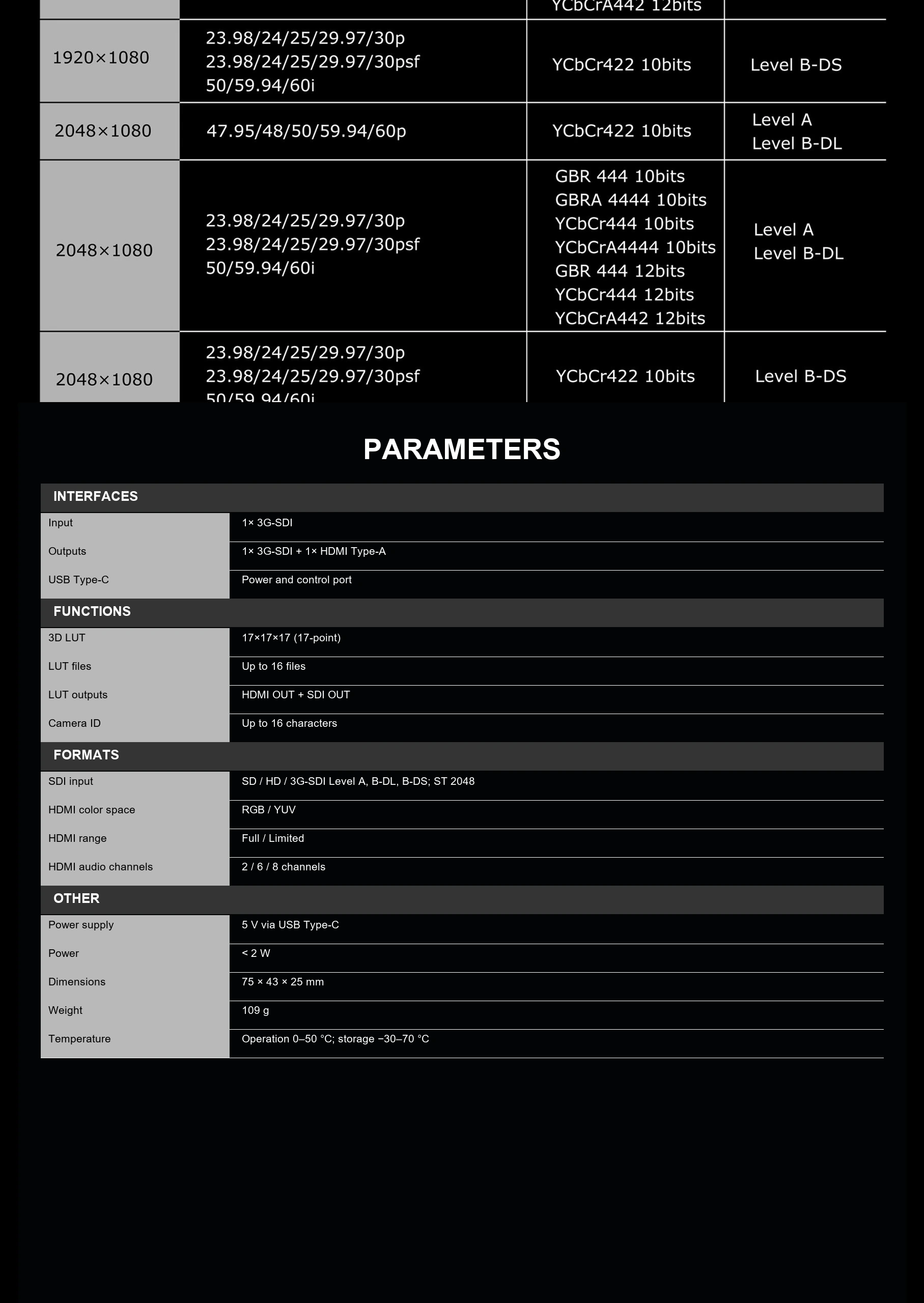

PARAMETERS
Adaptive plug-and-play video signal conversion
1x 3G-SDI input, 1x HDMI output, 1x 3G-SDI output
Ultra Control Utility for advanced settings and camera name customization
USB-C power input with LED status indicators
Compatible with portable power banks for field use
PACKAGE CONTENT
CineTreak CN20S ×1
SPECIFICATIONS
Video input: 1× BNC 3G-SDI
Video outputs: 1× BNC 3G-SDI loop; 1× HDMI Type-A
USB-C: 5 V power and control
3D LUT: 17×17×17 (17-point)
LUT files: Up to 16 files
LUT outputs: Independent on SDI and HDMI
Camera ID: Up to 16 characters
SDI formats: SD/HD/3G-SDI Level A, B-DL, B-DS; ST 2048
HDMI color space: RGB / YUV
HDMI range: Full / Limited
HDMI audio: 2 / 6 / 8 channels
Power supply: 5 V via USB Type-C
Power consumption: < 2 W
Dimensions: 75 × 43 × 25 mm
Weight: 109 g
Temperature: Operation 0–50 °C; storage −30–70 °C
WE RECOMMEND
The CineTreak CN20S is a versatile bidirectional converter between SDI and HDMI interfaces, serving as a key component for integrating various video devices into professional production workflows. To fully leverage its potential for signal conversion, it is ideal to pair it with PTZ cameras as video sources and production control rooms for final processing and streaming.
PTZ Cameras and Signal Sources - These cameras provide SDI or HDMI output, which the CN20S converter transforms for further processing.
