CineTreak CT-PT12 NDI

The CineTreak CT-PT12 NDI is a professional auto-tracking PTZ camera with 12x optical zoom and multi-protocol streaming support. It captures Full HD 1080p60 video and offers versatile connectivity, making it ideal for live events, education, broadcasting, and remote productions.

The CineTreak CT-PT12 NDI is a high-performance Full HD PTZ (pan-tilt-zoom) camera equipped with a 1/2.8" CMOS sensor, capable of capturing up to 1080p60 video. It features 12x optical and 16x digital zoom, ensuring sharp and detailed footage even at a distance, along with auto-tracking for seamless subject following without manual operation.

The camera supports multiple output interfaces, including HDMI, 3G-SDI, USB 3.0, and LAN, and is compatible with key streaming protocols such as RTSP, RTMP, ONVIF, and SRT for broad integration in live production environments. NDI support further enables low-latency, high-quality IP video streaming and control.

With H.265/H.264/MJPEG compression, the CT-PT12 ensures efficient bandwidth usage without compromising quality. Additional features include 200 programmable presets, RS-232/RS-485 serial control, and 3.5mm stereo audio input/output for synced audio-video delivery.

Power options include both DC and PoE, and the unit can be mounted on a tripod or optionally installed on walls or ceilings, offering flexible deployment across various scenarios such as conferences, classrooms, worship services, and online broadcasts.

Key Features:

• Full HD 1080p60 video capture
• 1/2.8" CMOS sensor for excellent image clarity
• 12x optical zoom & 16x digital zoom
• Auto-tracking functionality

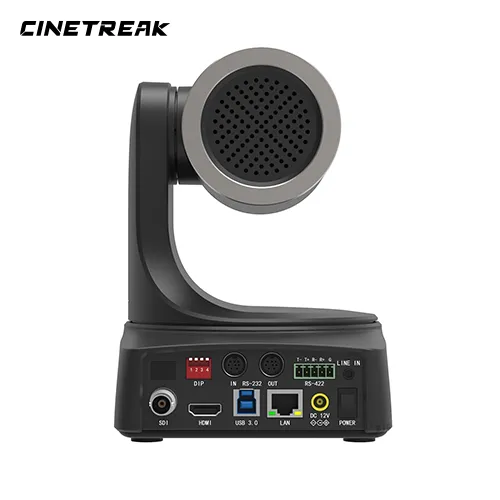

• HDMI, 3G-SDI, USB 3.0, and LAN outputs
• NDI, RTSP, RTMP, ONVIF, SRT streaming protocol support
• 200 programmable camera position presets
• RS-232/RS-485 control for integration into AV systems
• H.265/H.264/MJPEG video compression
• DC and PoE power options
• 3.5mm audio input/output
• Tripod mountable with optional wall/ceiling mounts
