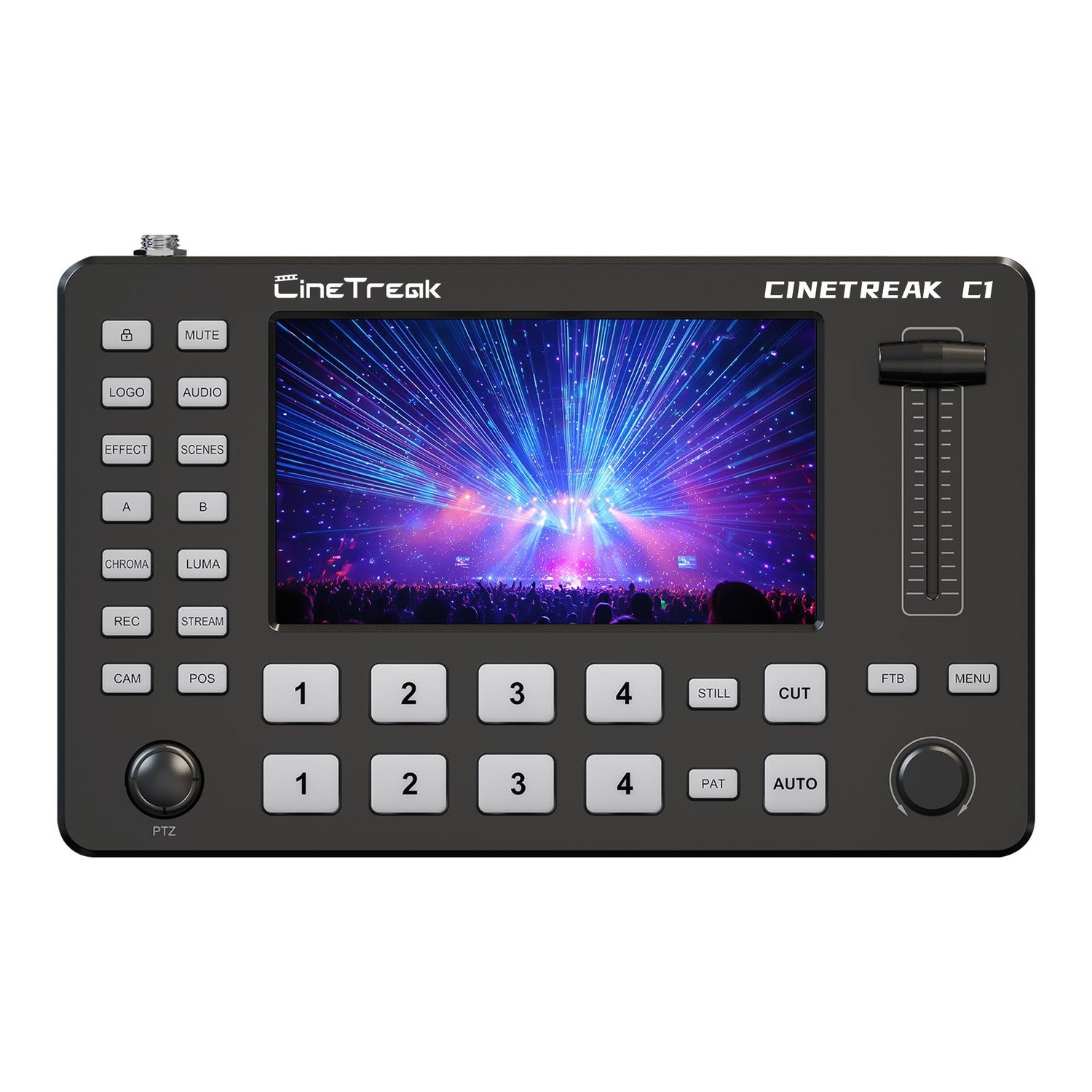

CineTreak Cinelive C1
SKU: Cinelive C1
The CineTreak Cinelive C1 is a compact switcher with a 5.5″ display and four HDMI inputs designed for professional streaming, featuring advanced chroma key, a built-in media library, PTZ camera control and multi-platform RTMP live streaming. It offers two HDMI PGM outputs, a UVC output over USB-C and H.264 recording to a USB drive.
549 € with VAT
453.72 € without VAT
Personal pickup within 90 minutes
Shipment day: 02. 11.
Shipment day: 02. 11.
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for CineTreak Cinelive C1
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Hollyland LARK MAX USB-C to USB-A Cable
Hollyland LARK MAX USB-C to USB-A Cable HL-ATC01 is the original 1 m USB-C to USB-A
11 €
In stock 1 pcs
PremiumCord CAT6 UTP patch cable RJ45-RJ45, 5 m, blue
A category 6 UTP network patch cable with RJ45 connectors at both ends and straight-through
3 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The CineTreak Cinelive C1 is a compact switcher with a 5.5″ display and four HDMI inputs designed for professional streaming, featuring advanced chroma key, a built-in media library, PTZ camera control and multi-platform RTMP live streaming. It offers two HDMI PGM outputs, a UVC output over USB-C and H.264 recording to a USB drive.
Four cameras and a stream from one desk
The Cinelive C1 is the first generation of the Cinelive series – a switcher for solo streamers, small studios and mobile setups that needs neither a computer nor an external monitor to operate.
4× HDMI5.5″ LCD2× HDMI PGMUVC over USB-CRTMPVISCA IP

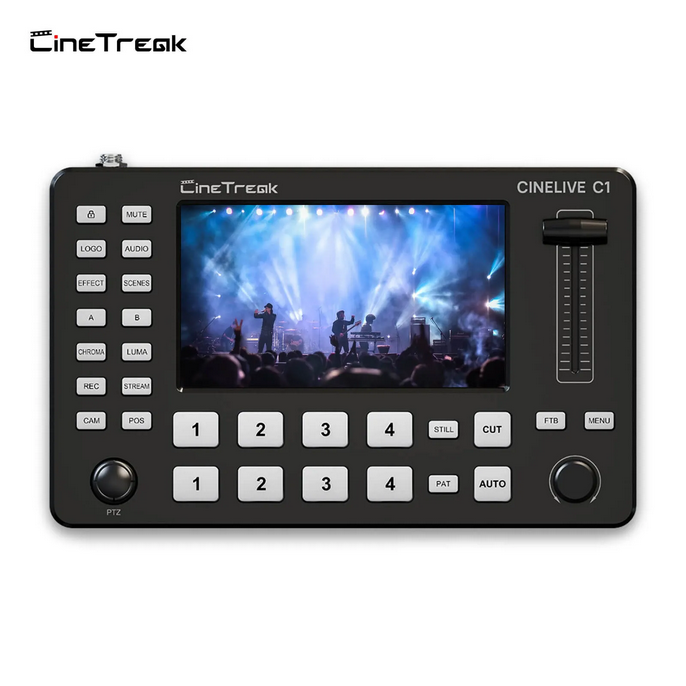

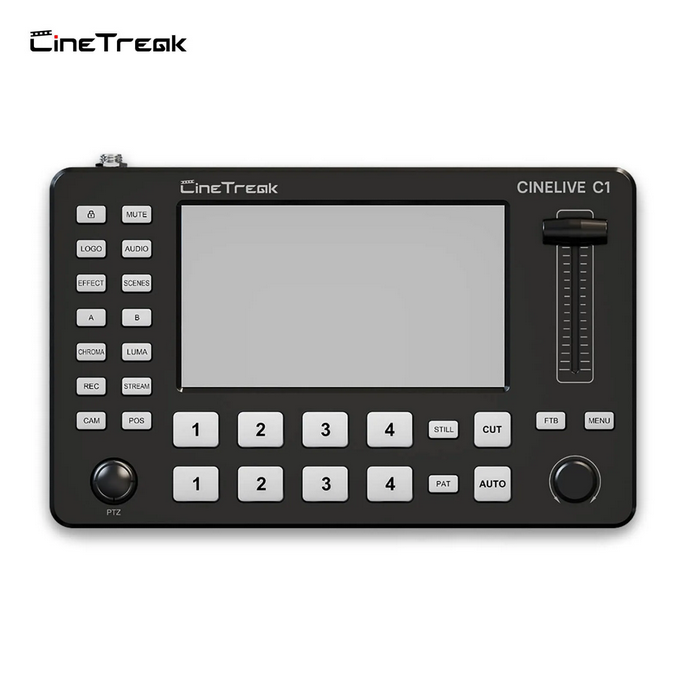

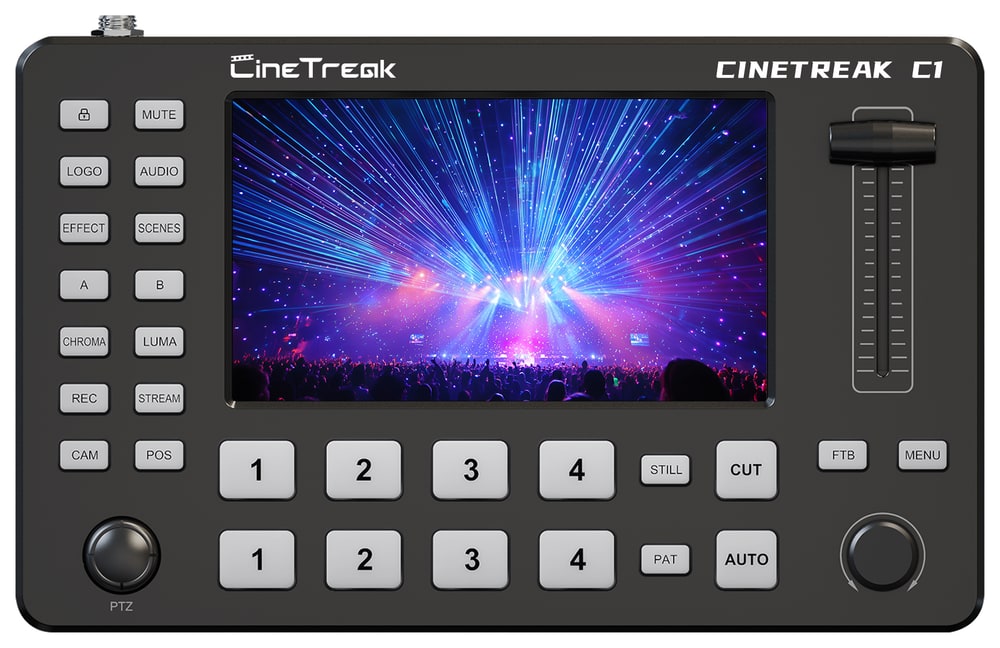

A compact desk for one operator
Physical buttons for preview and programme, a T-Bar and a PTZ rotary knob – one person can run a live broadcast with four cameras.
Two HDMI PGM outputs
The programme goes to two HDMI outputs at once in up to 1080p60.
Webcam over USB-C
The UVC output connects the switcher to a computer without installing a driver.
32 WIPE transitions
Plus MIX, DIP, PATTERN, freeze and FTB – manually with the T-Bar or with the AUTO button.
Formats from SD to 1080p60
The HDMI inputs accept 1080p, 1080i, 720p and 576i/480i, the programme goes out in 1080p or 1080i.

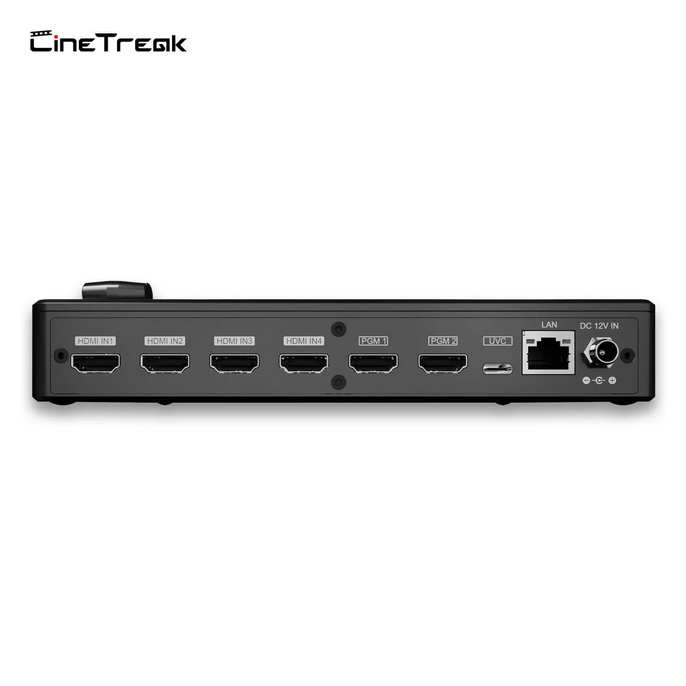

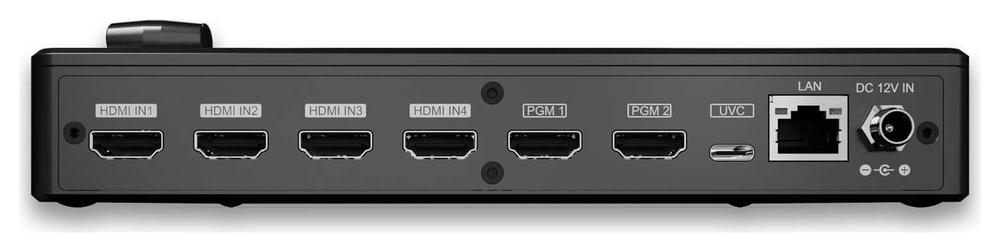

Connectors on the rear
Four type A HDMI inputs, two HDMI PGM outputs, USB-C for the UVC output, RJ45 for the network and a threaded DC 12 V power input that keeps the cable firmly in place.

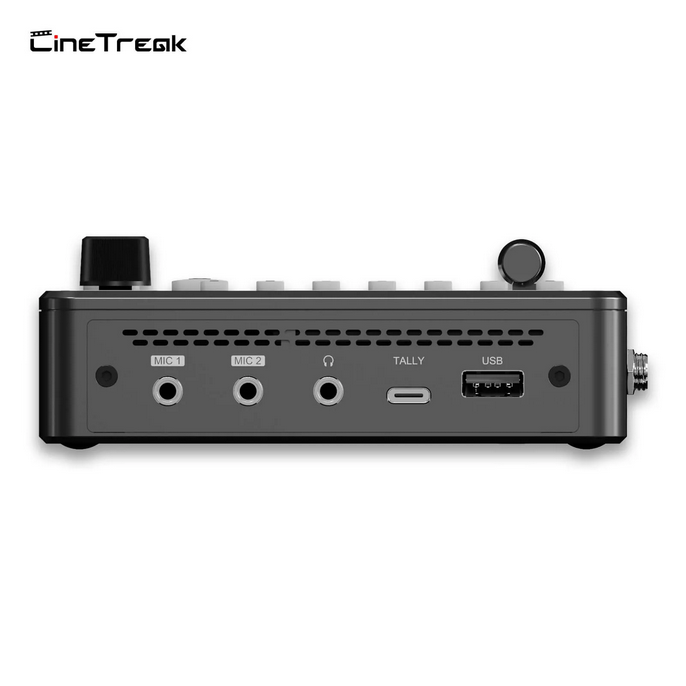

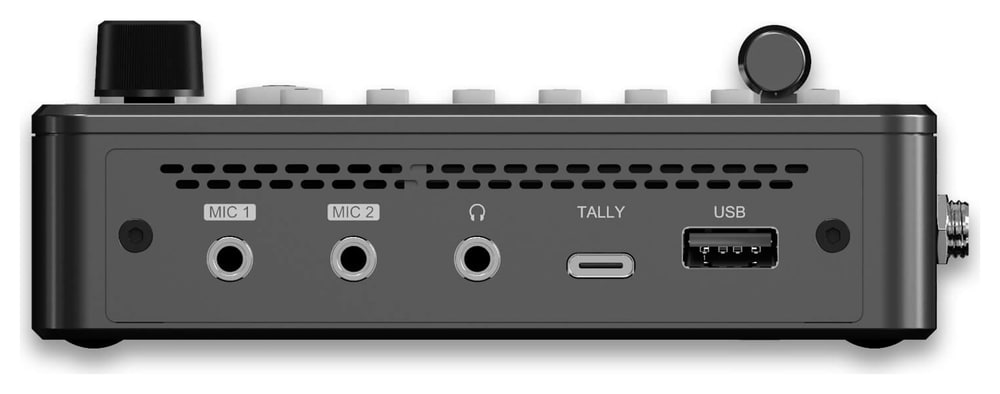

Audio, tally and USB on the side
The side holds two 3.5 mm mic/line inputs, a 3.5 mm headphone output, a tally port for the optional tally box (DB-15) and USB-A for recording, logos, images and firmware updates.
Film-grade chroma key
The keying algorithm retains detail and balances edges, turning a presenter in front of a green screen into a convincing virtual studio. Keying works on several layers at once.

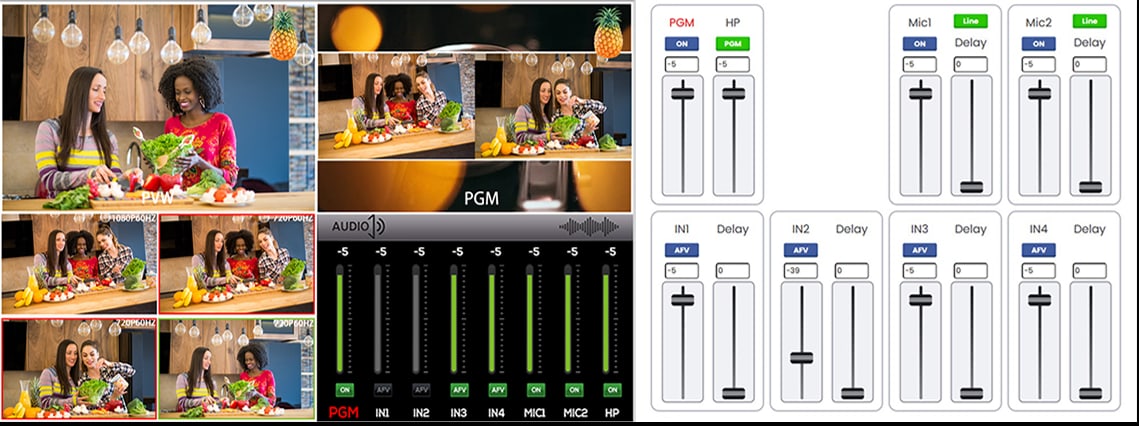

Audio mixing and control
Audio from the four HDMI inputs and two separate 3.5 mm mic/line inputs is mixed right in the switcher. Volume, a 0–5 s delay and AFV can be set for each input separately.

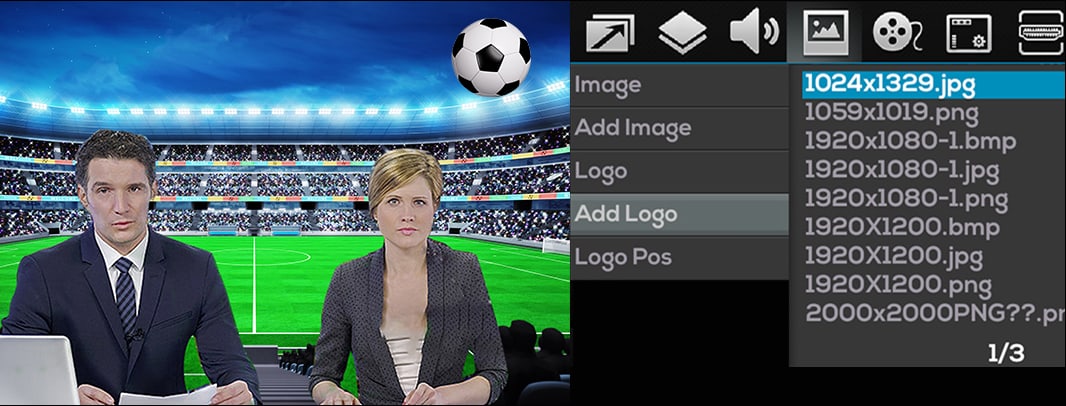

Multiple layers and logos
Load backgrounds and logos with alpha channel from a USB drive. The AB, PIP and POP layers can take any position and size.

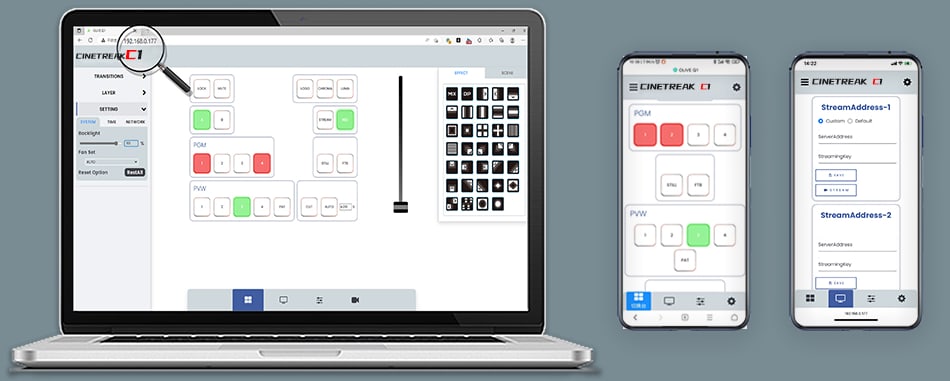

Remote control
Just enter the switcher’s IP address in a web browser on a computer or phone and control switching, layers and stream settings remotely.
PTZ camera control
Via the VISCA IP protocol the switcher controls up to four PTZ cameras – pan, zoom, focus and colour – and stores their positions for quick recall. All it takes is the PTZ button and the rotary knob on the panel.
One-button recording and streaming
The REC button records the programme to a USB drive or SSD, the STREAM button sends it to two addresses at once. Recording and streaming time is shown on the status page of the display.
More information
Compact yet powerful, the CineTreak Cinelive C1 is a switcher with a 5.5-inch LCD display tailored for creators who want high quality in a portable form. With four HDMI inputs, two HDMI PGM outputs and a UVC output (USB-C) for streaming via a computer, it supports multi-camera work for livestreaming, production and event broadcasting.
Professional-grade features such as film-grade chroma key, logo overlay and flexible layer switching make it easy to create broadcast-quality pictures. The built-in media library lets you add videos and images quickly, while the FTB (Fade to Black) and freeze functions ensure clean transitions.
The C1 offers PTZ camera control, local H.264 video recording and multi-destination RTMP streaming, all controllable via a web interface on a computer or mobile device. It is ideal for solo streamers, small studios and mobile setups.
Key features:
- 5.5″ high-precision LCD display
- 4 HDMI inputs for multi-source switching
- 2 HDMI PGM outputs and 1 UVC output (USB-C) for direct streaming
- Film-grade chroma key and logo overlay
- Built-in media library for quick access to content
- Flexible layers with freeze and FTB
- PTZ camera control for dynamic shots
- Local video recording
- RTMP streaming to multiple platforms, started with one button
- Web control from a computer or phone
PACKAGE CONTENT
- CineTreak Cinelive C1
- 12 V / 2 A power adapter with threaded connector
SPECIFICATIONS
- Display: 5.5″ Full HD LCD
- Video inputs: 4× HDMI (type A)
- Video outputs: 2× HDMI PGM, 1× UVC 2.0 (USB-C), RJ45
- Audio inputs: 2× mic/line (3.5 mm stereo)
- Audio output: 1× line (3.5 mm stereo)
- Network: RJ45 – streaming, PTZ control and software control
- USB: video recording, logos, images and firmware updates
- Tally: expansion port for optional tally box (DB-15)
- Transitions: WIPE (32 effects), MIX, DIP, PATTERN, freeze, MUTE, FTB
- Layouts: preset and user-defined
- Layers: AB, PIP and POP
- Keying: chroma key and luma key for each layer, mask for each layer (preset and user-defined)
- Audio: AFV for HDMI, adjustable delay 0–5 s
- PTZ control: VISCA IP protocol
- Media library: up to 100 imported and up to 100 captured images
- Encoding: H.264 encoder
- Logo: alpha channel, max. 960 × 540 px
- HDMI input formats: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i/480i/576p/480p
- PGM output format: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/60
- Colour space: RGB/YUV
- UVC output: max. 1080p60
- Power supply: 7–24 V DC (threaded DC 12 V input)
- Power consumption: 12 W
- Dimensions: 200.5 × 123 × 45 mm
- Weight: 670 g
- Temperature: operating 0 to 50 °C, storage −30 to 70 °C
WE RECOMMEND
The CineTreak Cinelive C1 switches four HDMI sources, records to a USB drive and streams over RTMP. These products go well with it.
Cables – Cables for the inputs and outputs, a network cable for streaming and PTZ control.
Parameters
| Manufacturer: | CineTreak |
| Category: | Video switchers |
Main parameters
| Encoder video input | 4× HDMI |
| Number of inputs | 4 |
| Switcher inputs | HDMI |
| Streaming services | YouTube Live · Facebook Live · RTMP · Twitch |
| Switcher outputs | HDMI · USB |
| Internal recording | Yes |
| Resolution | HD |
| Features | Virtual studio · Streaming · Recording · Chroma Key · Built-in display · PTZ camera control · Streaming via Ethernet · Audio mixing · Multiviewer |
| Control panel | Yes |
