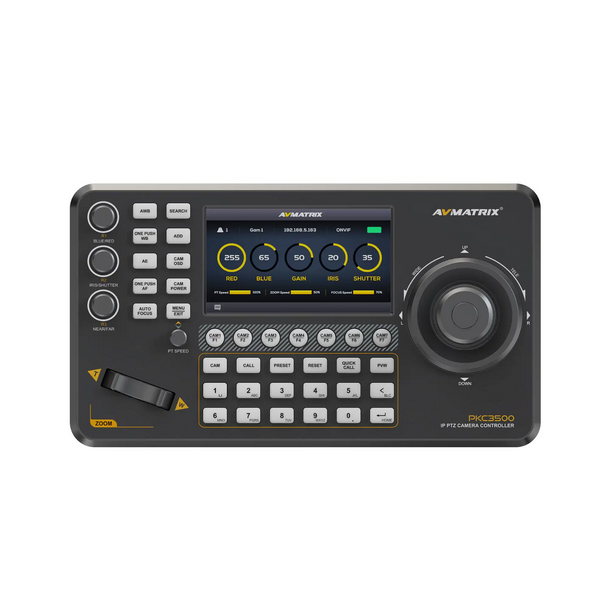

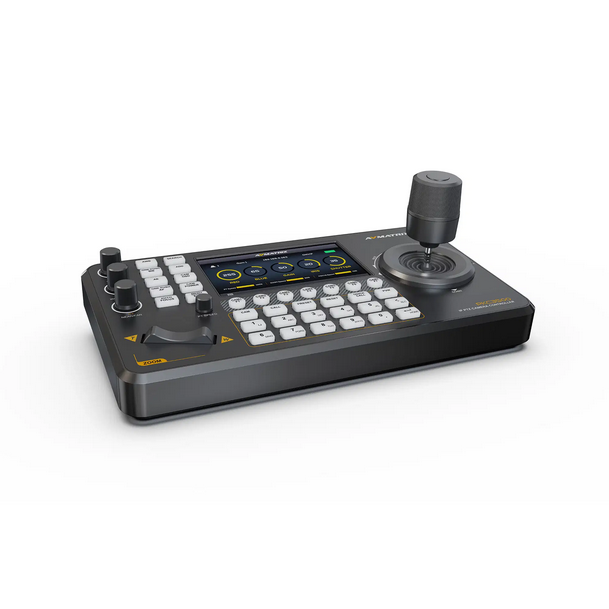

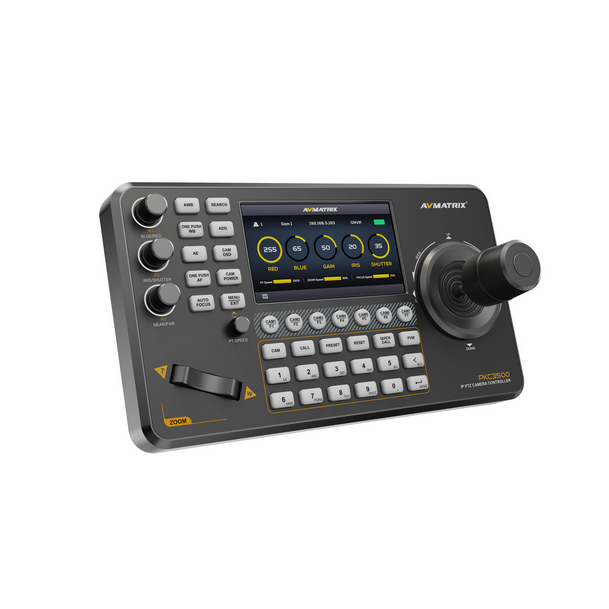

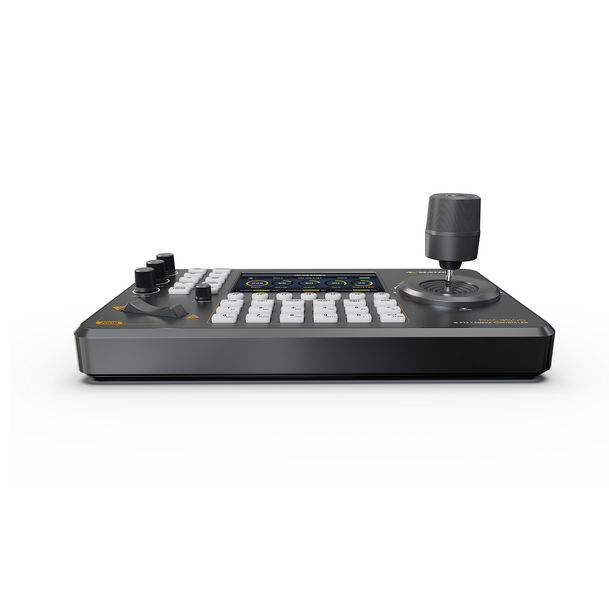

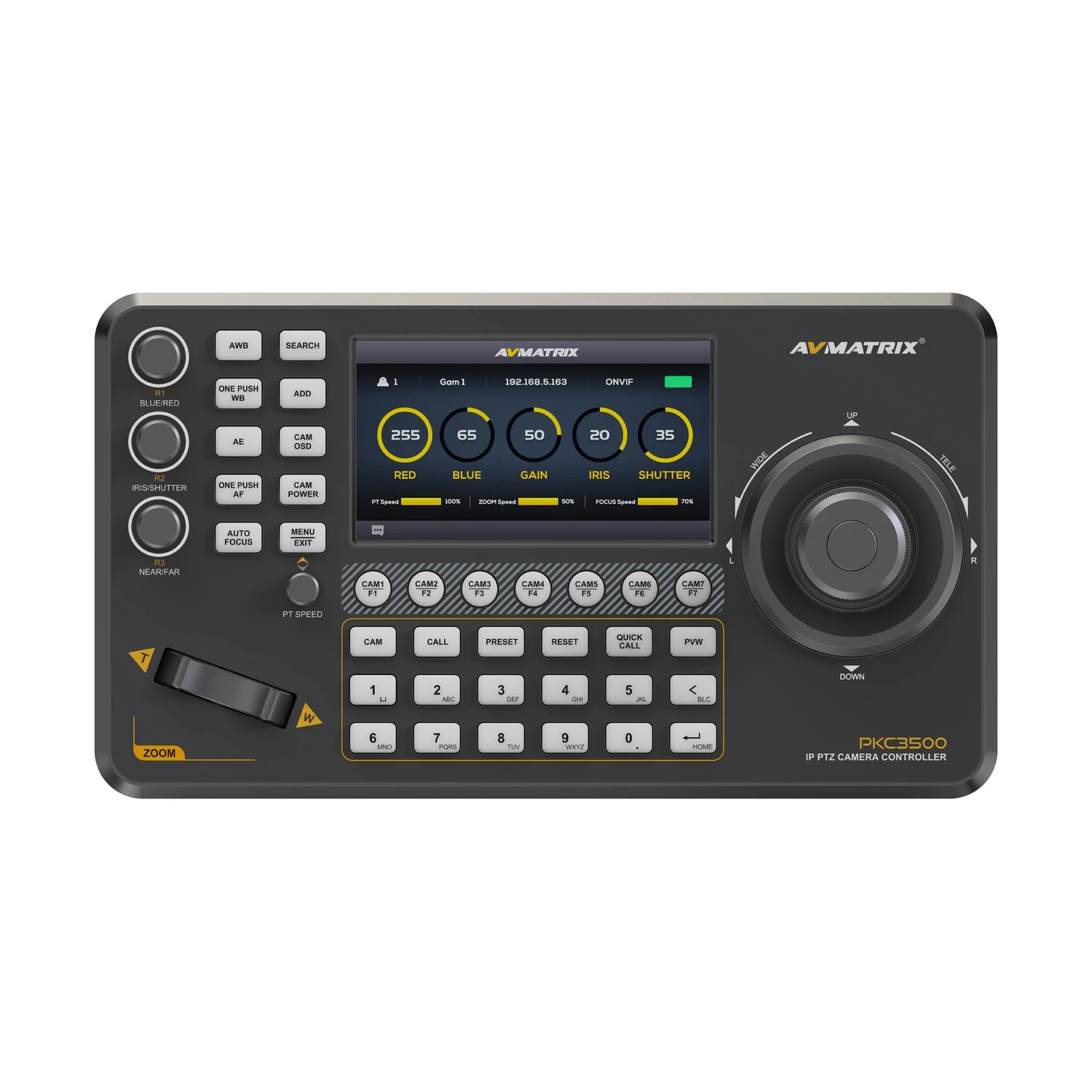

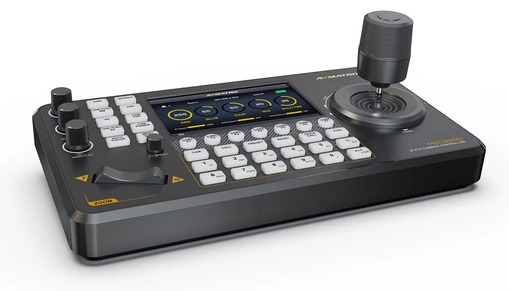

AVMatrix PKC3500

AVMatrix PKC3500 – Mini Professional PTZ Camera Controller: 5″ touchscreen + 4D joystick, real-time video decoding, VISCA/VISCA-over-IP/Pelco/ONVIF control, IP/RS422/RS485/RS232, auto IP assignment, up to 255 cameras, PoE + 12V, track record/playback, 7 assignable keys.

The AVMatrix PKC3500 is a compact yet powerful PTZ controller designed for live production, broadcast, education, and houses of worship. Its bright 5-inch touchscreen displays real-time decoded video from up to 4 cameras simultaneously, while the precision 4D joystick and T-bar deliver smooth, intuitive pan/tilt/zoom/focus control.

Supporting VISCA, VISCA-over-IP, Pelco-P/D, and ONVIF protocols, it seamlessly controls up to 255 IP cameras on the same network with automatic IP discovery for lightning-fast setup. Physical connections include RS-422, RS-485, RS-232, and Ethernet, plus PoE or 12V DC power options.

Seven user-assignable keys provide instant access to presets, exposure, white balance, iris, or custom functions. Record and replay complex camera moves with the built-in tracking function, and synchronize multiple controllers via GPIO. Rugged metal housing and ergonomic layout make the PKC3500 the perfect centerpiece for any multi-camera PTZ workflow.

Key Features

• 5″ Touchscreen + Real-Time Decoding – Monitor up to 4 cameras live on the controller
• 4D Joystick + T-Bar – Precise, responsive control of pan, tilt, zoom, focus
• Multi-Protocol Support – VISCA, VISCA-over-IP, Pelco-P/D, ONVIF

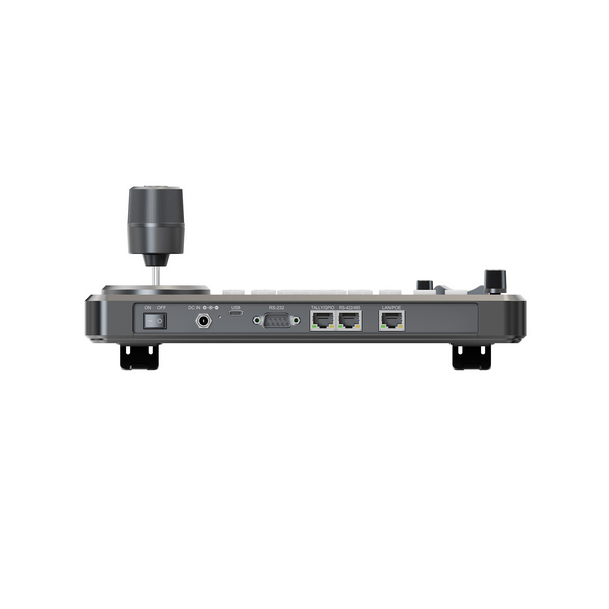

• Connectivity – LAN (IP), RS-422/485/232 serial, PoE + 12V DC
• Auto IP Assignment – Instantly discovers and connects up to 255 cameras
• Track Record & Playback – Save and replay complex camera movements
• 7 Assignable Keys – Instant access to presets, exposure, WB, iris, etc.
• GPIO Sync – Synchronize multiple controllers or trigger external devices
