AVMatrix PTZ Camera EAGLE P20-12G

AVMATRIX EAGLE P20-12G is a professional 4K PTZ camera with 20× optical zoom, HDMI, dual 12G-SDI, USB and IP.

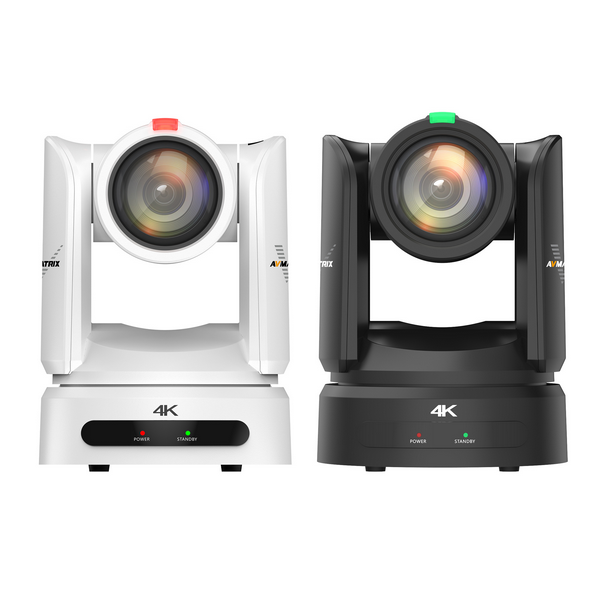

AVMATRIX EAGLE P20-12G is a professional 4K PTZ camera with 20× optical zoom, a 1/1.8-inch CMOS sensor and extensive connectivity for broadcast, live events, studios, conference rooms and education. The black finish suits studios and stages.

4K imaging up to 59.94p

The 8.3 MP sensor delivers UHD video up to 2160p59.94. 20× optical and 12× digital zoom provide accurate framing even over long distances. Minimum illumination of 0.05 lux, 2D/3D noise reduction and manual or automatic image controls help in challenging light.

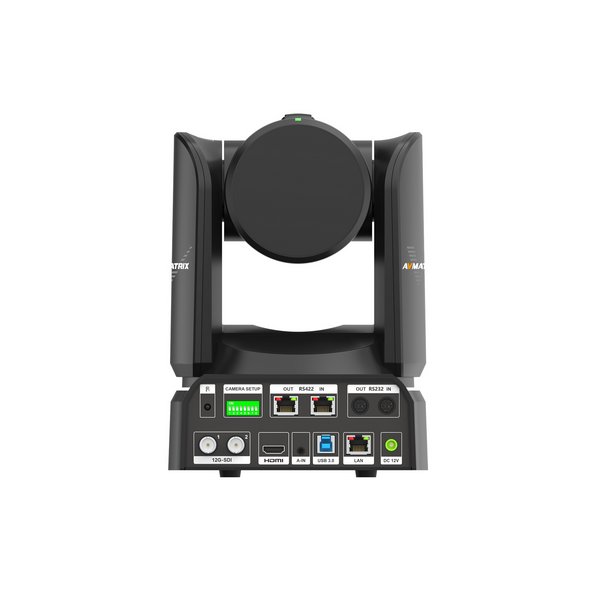

HDMI, dual 12G-SDI, USB and IP

Simultaneous HDMI 2.0, dual 12G-SDI, USB 3.0 and network outputs connect the camera to professional switchers, computers and IP infrastructure.

Smooth and precise PTZ movement

Pan from −175° to +175° and tilt from −30° to +90° operate at up to 100°/s and 80°/s. Up to 255 presets speed up repeated shots and quiet mechanics avoid distracting the production.

Control for every workflow

VISCA, VISCA over IP, ONVIF, Pelco-D/P, RS-232 and RS-422 are supported. The camera can be operated from a compatible joystick, software or an automated control system.

Key features

• 1/1.8-inch 8.3 MP CMOS sensor
• UHD 4K up to 59.94p
• 20× optical and 12× digital zoom
• HDMI 2.0, dual 12G-SDI, USB 3.0, RJ45
• 0.05 lux minimum illumination
• 2D/3D noise reduction
• pan −175° to +175°, tilt −30° to +90°
• up to 255 presets
• VISCA, ONVIF, Pelco-D/P, RS-232/RS-422
