AVMatrix Eagle T10 4K

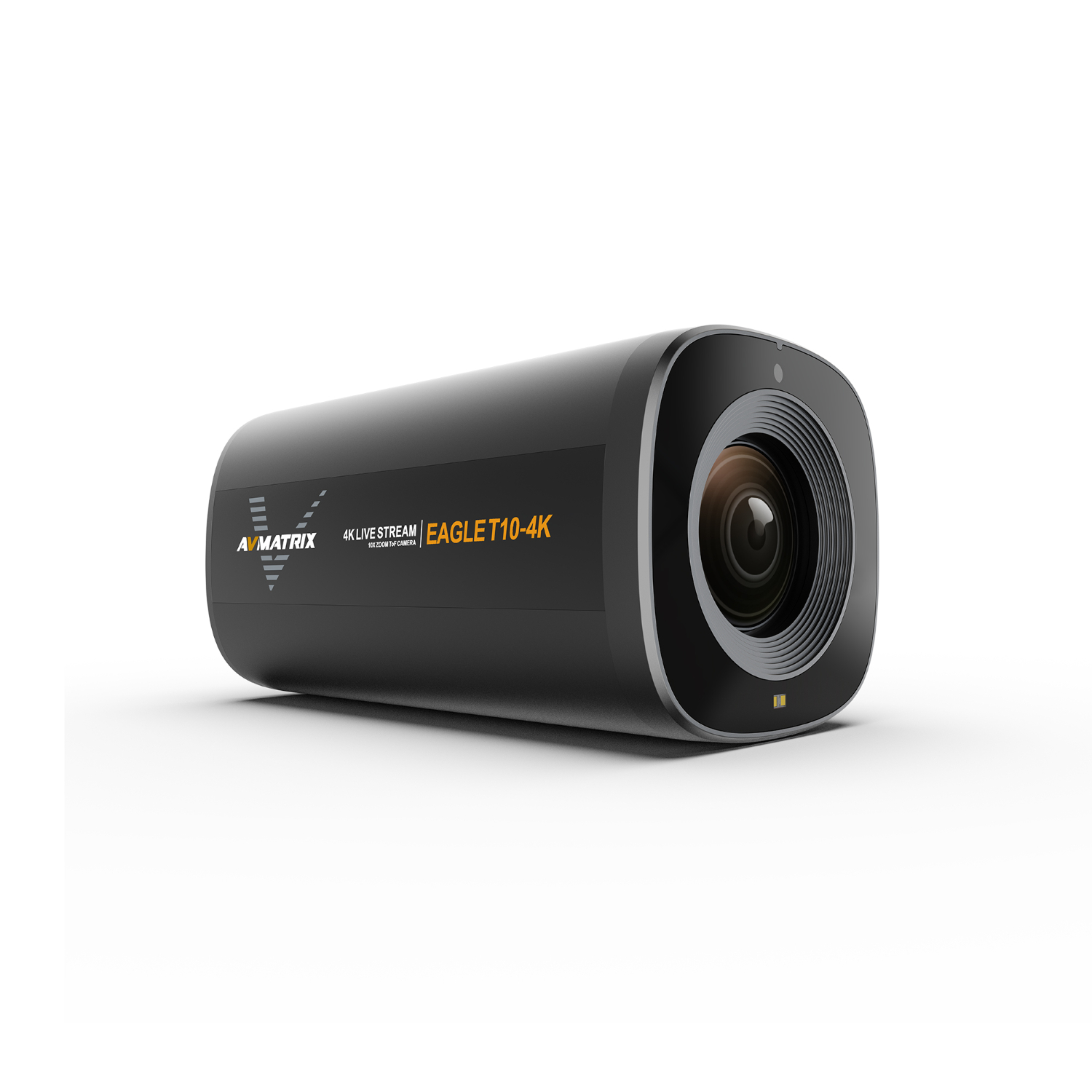

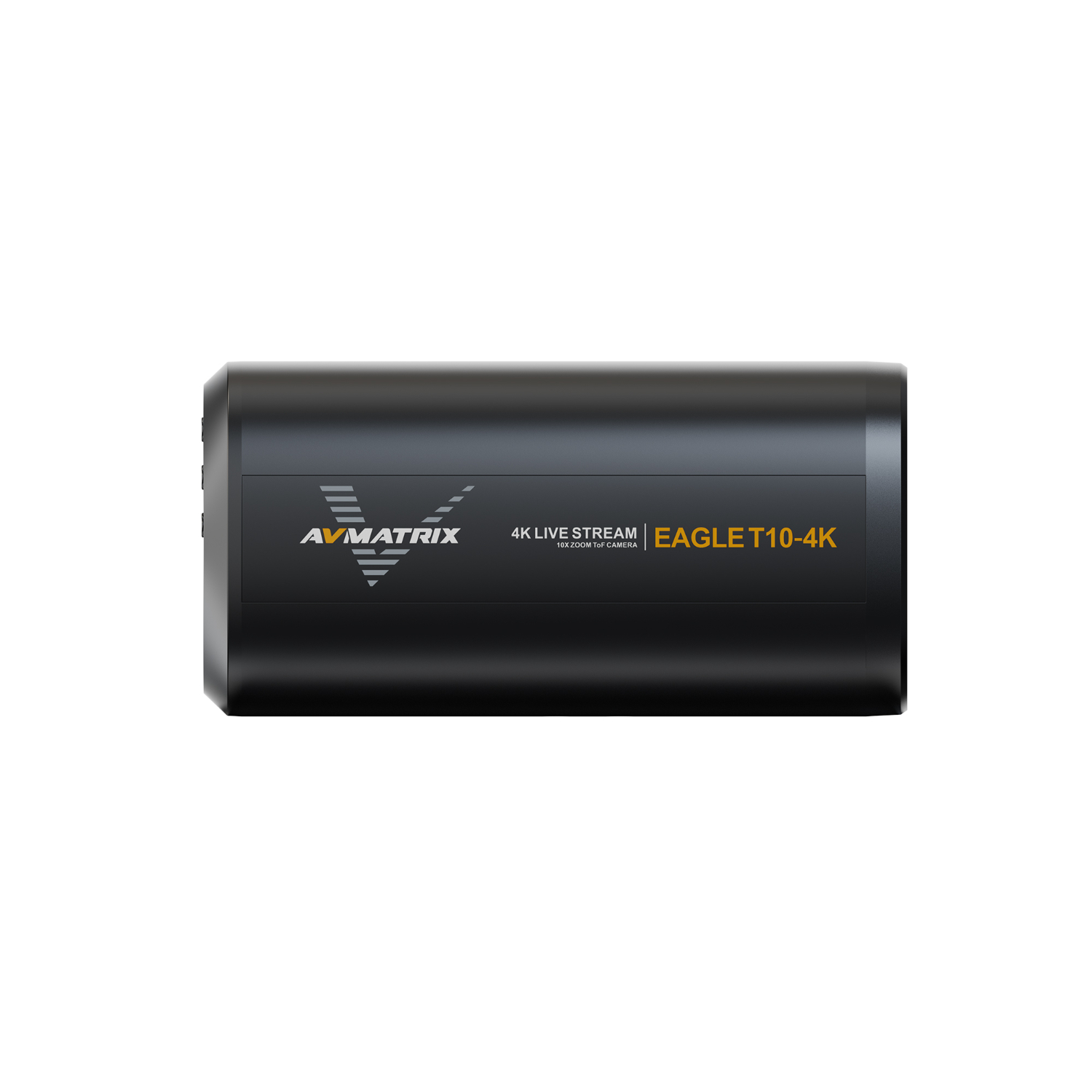

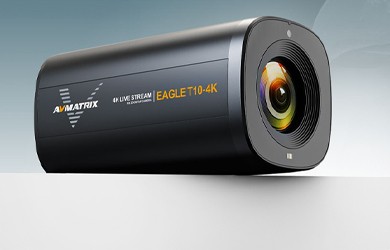

AVMATRIX EAGLE T10-4K is a compact fixed 4K30 camera with 10× optical zoom and simultaneous HDMI and USB-C outputs.

AVMATRIX EAGLE T10-4K is a compact fixed 4K camera with 10× optical zoom, simultaneous HDMI and USB-C outputs and fast autofocus with ToF distance measurement. It is suitable for recording, streaming, lectures, conferences and studio applications.

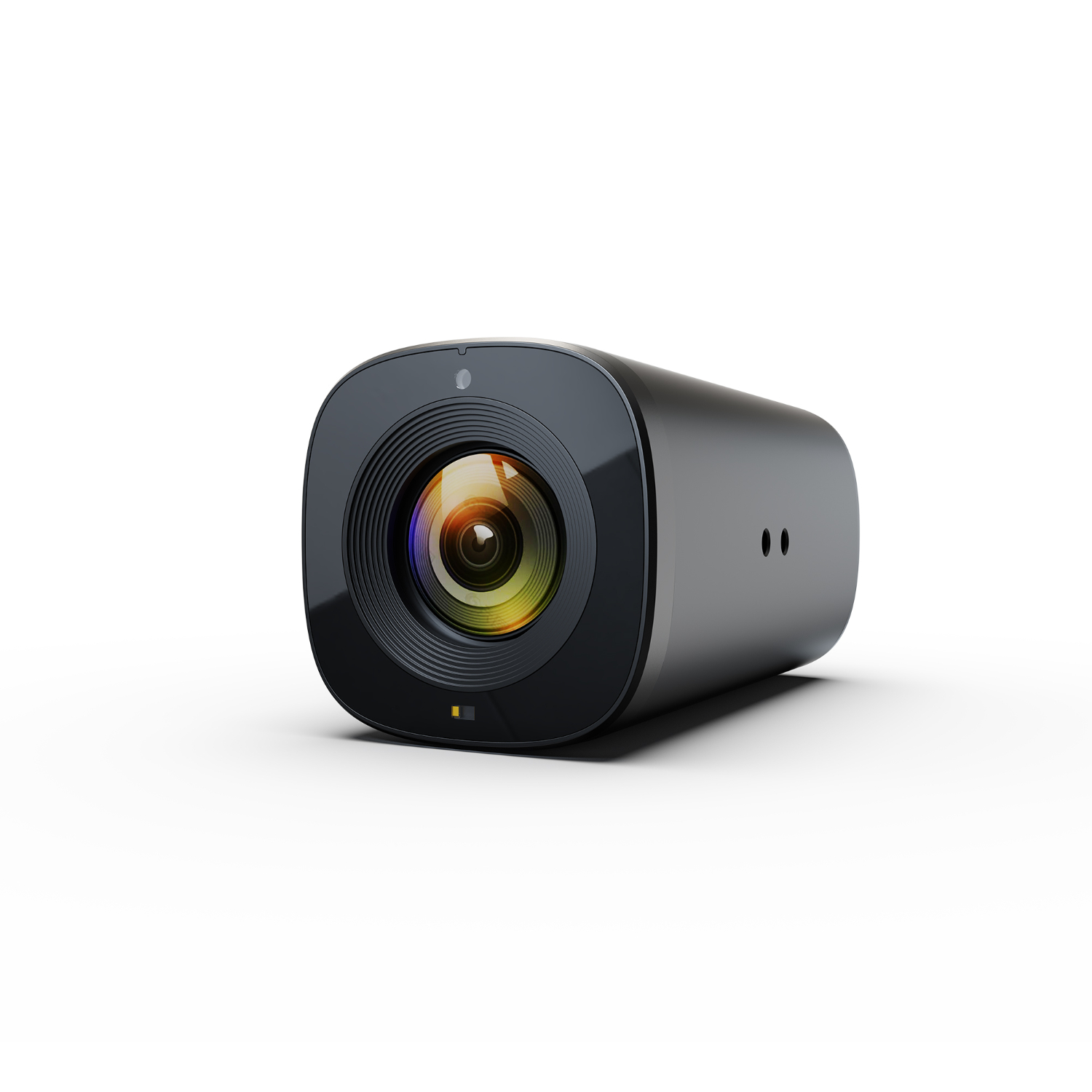

8 MP sensor and 10× optical zoom

The 1/2.8-inch CMOS sensor delivers up to 3840 × 2160 at 30 fps. An integrated wide-angle zoom lens covers different shot sizes without changing optics, while ToF technology accelerates accurate autofocus.

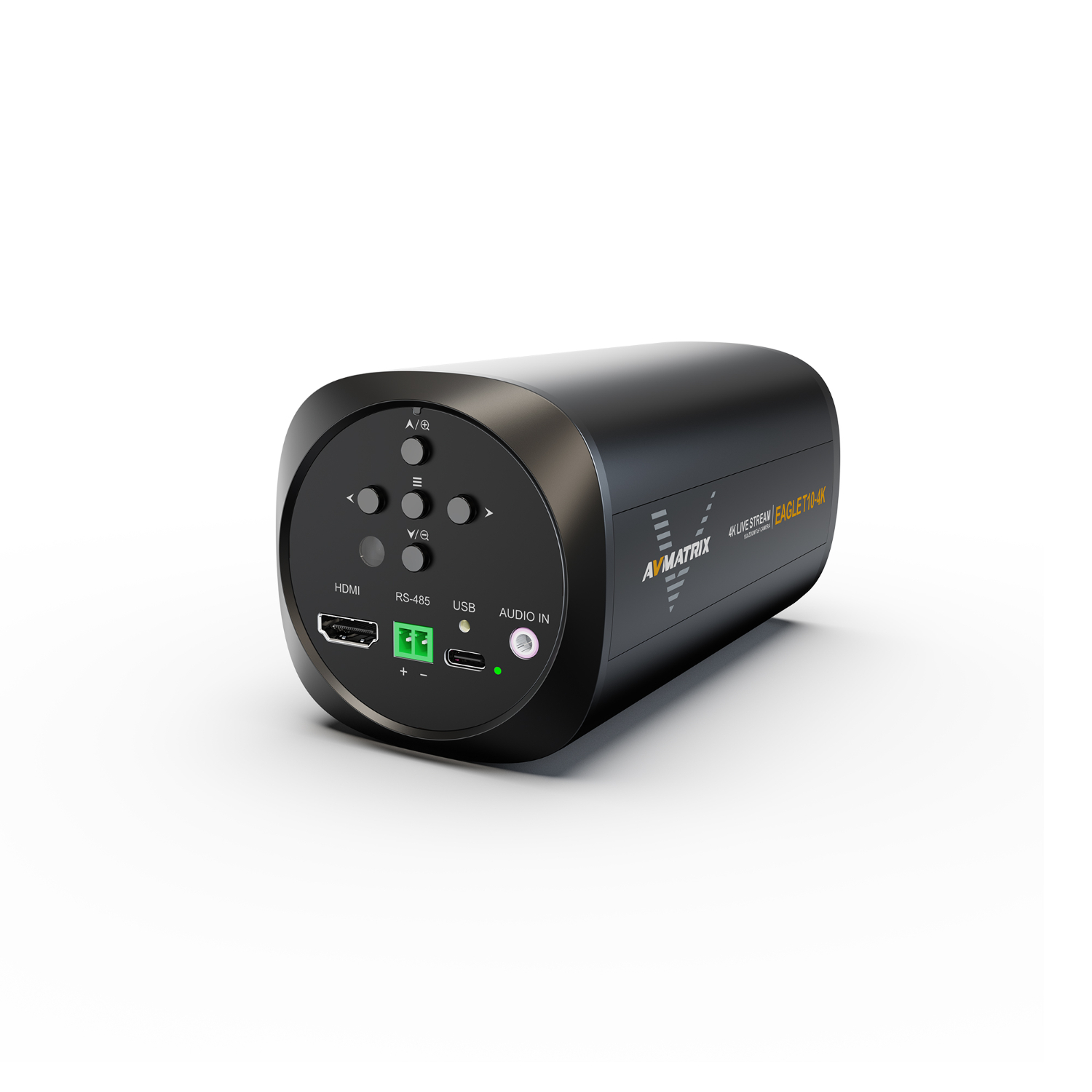

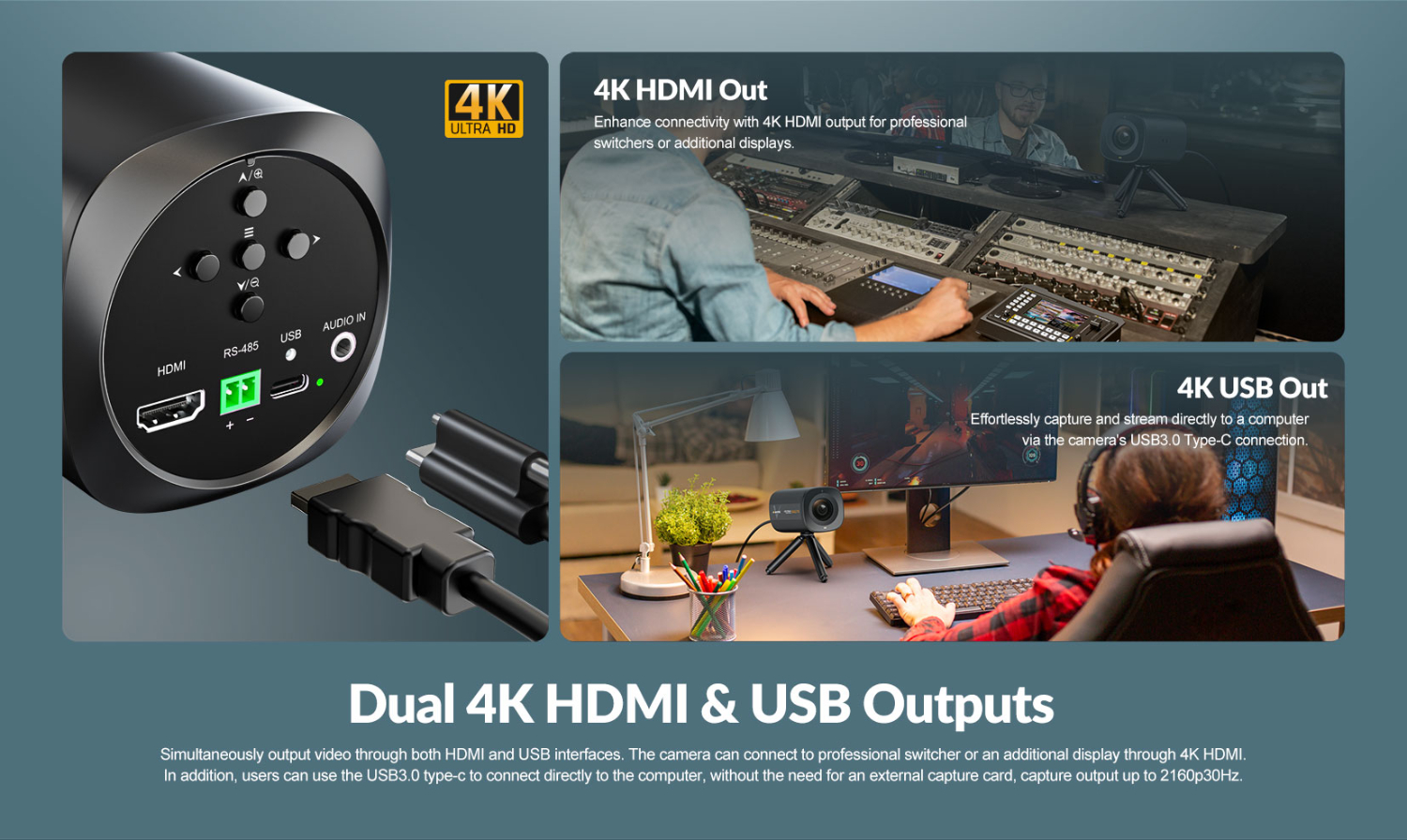

Simultaneous HDMI and USB-C output

HDMI and USB-C can operate simultaneously at up to 4K30. YUY2 and MJPEG are supported and the camera can connect to a monitor, recorder and computer without another capture device.

Image tools and flexible mounting

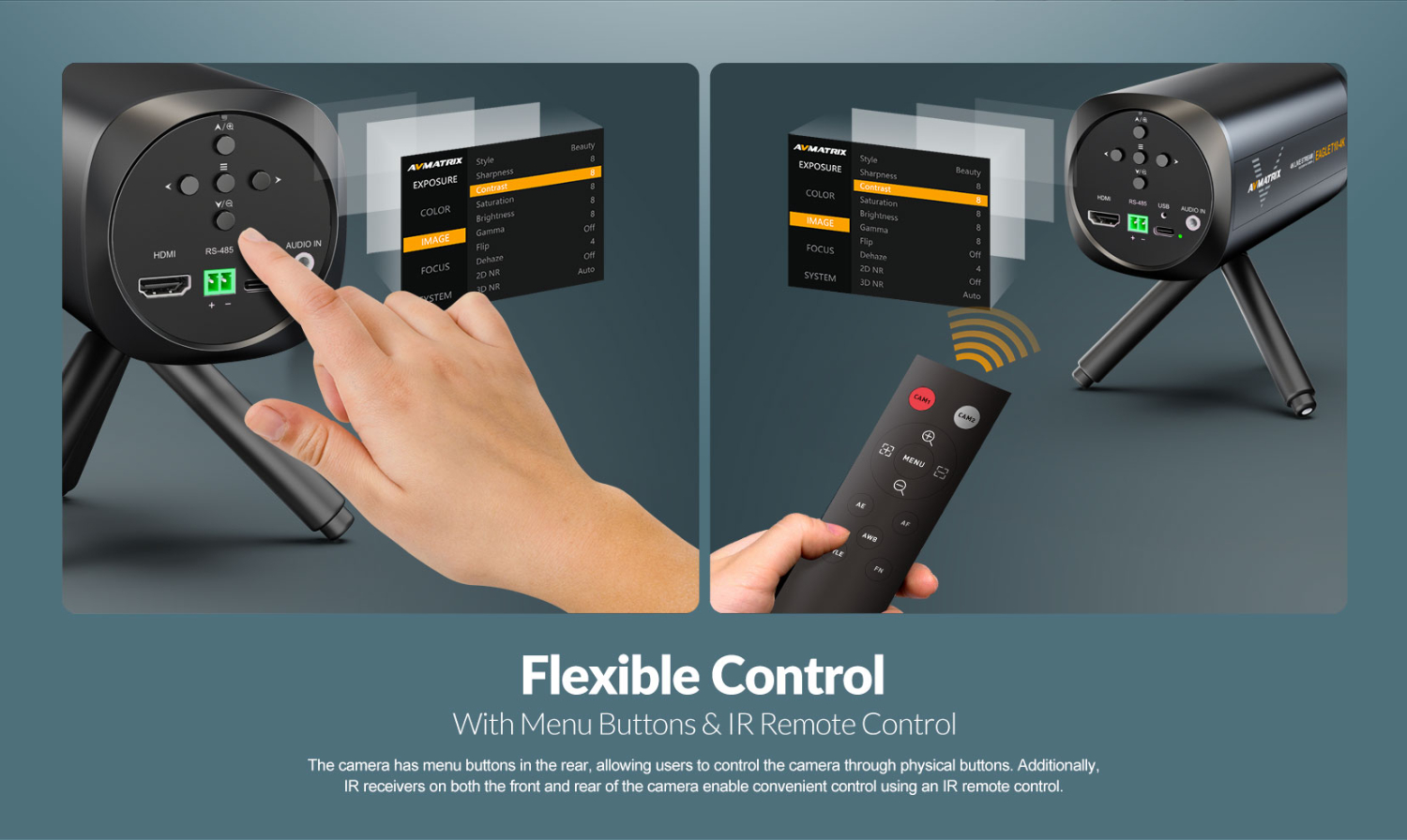

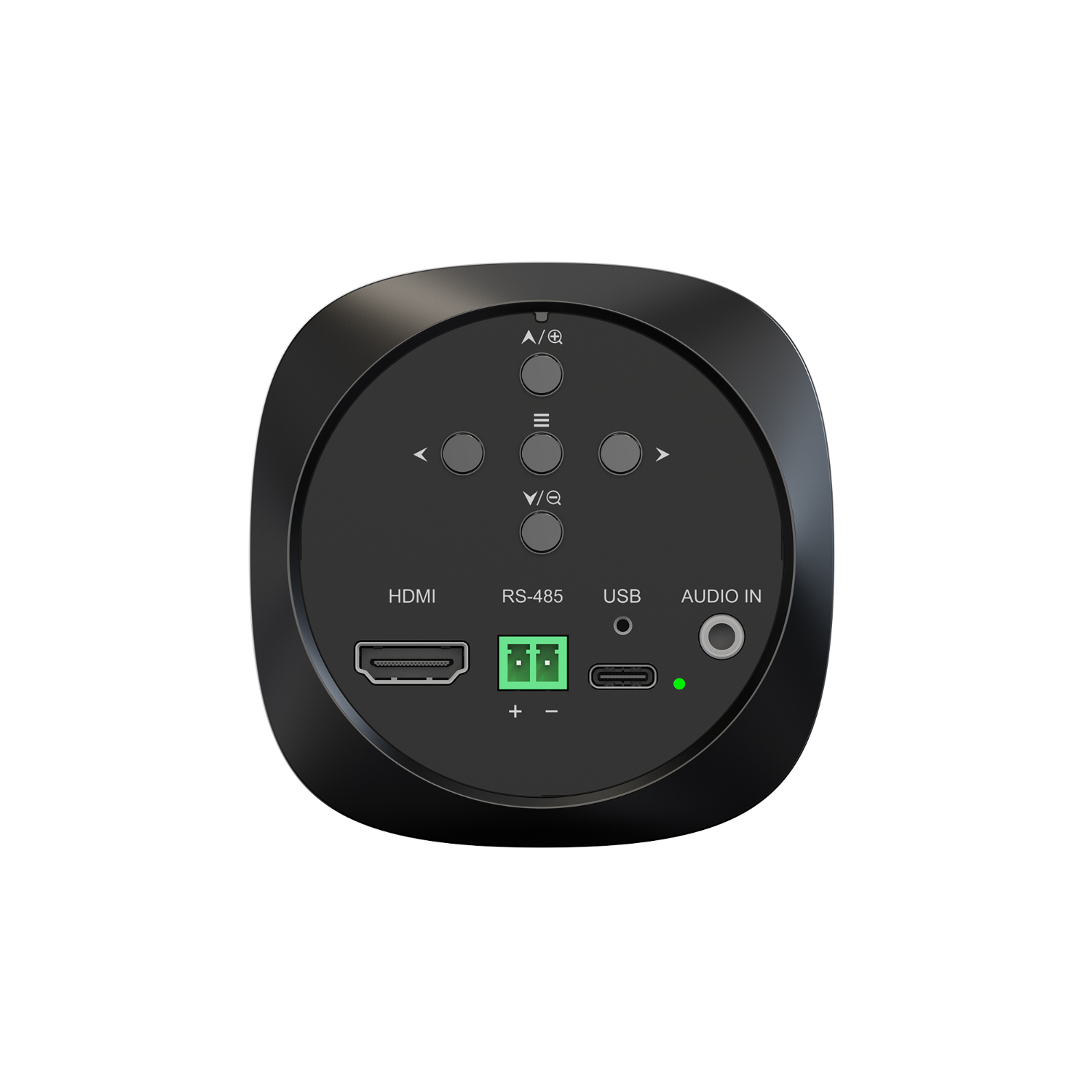

Automatic exposure, focus and white balance, 2D/3D noise reduction, image-style presets, mirroring and flipping support horizontal or vertical installation. Control is available from buttons, the IR remote or RS-485.

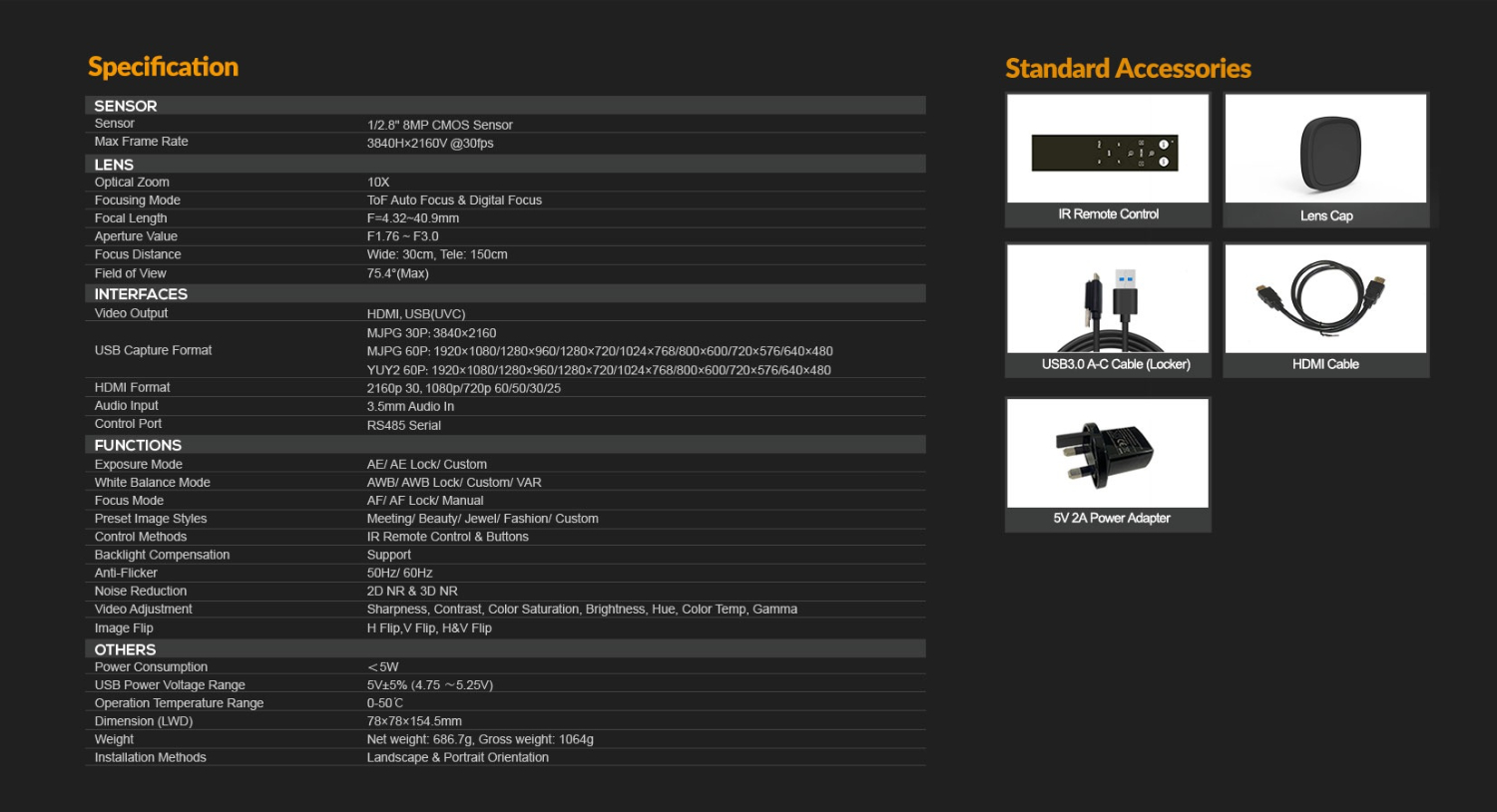

Key features

• 1/2.8-inch 8 MP CMOS
• 4K up to 30 fps
• 10× optical zoom
• ToF autofocus
• simultaneous HDMI and USB-C
• YUY2 and MJPEG

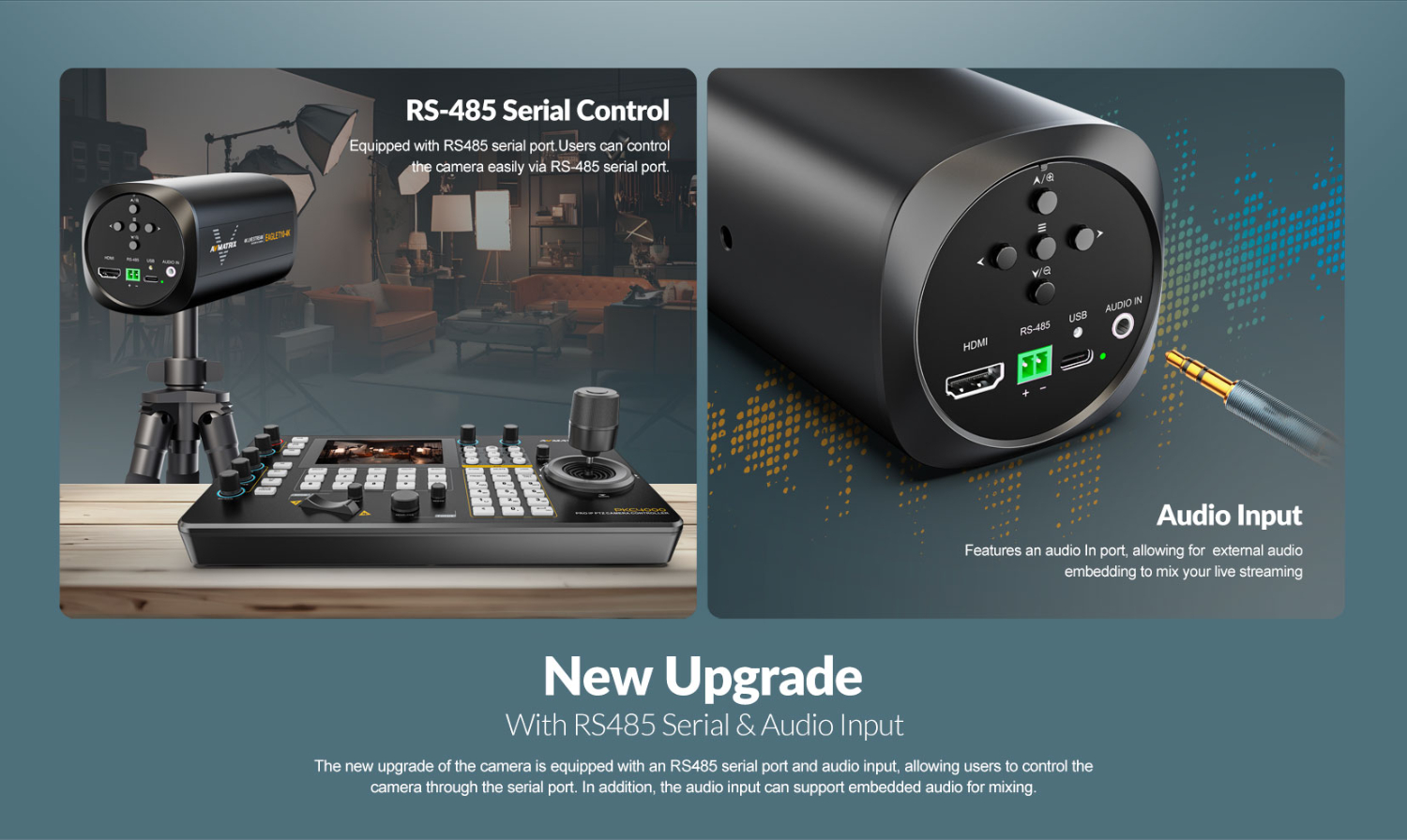

• RS-485 and audio input
• horizontal or vertical installation
• aluminum body for 24/7 operation
