AVMatrix PTZ Camera EAGLE P12A

AVMATRIX EAGLE P12A is an AI auto-tracking PTZ camera with 12× optical zoom, 1080p60, HDMI, SDI, USB and IP.

AVMATRIX EAGLE P12A is an intelligent PTZ camera with 12× optical zoom and AI auto-tracking. It is designed for lectures, conferences, houses of worship, corporate presentations and live productions where it can operate without a dedicated camera operator.

AI tracking with selectable shot size

A deep-learning algorithm detects and smoothly follows a presenter without wearable transmitters. Full-body, waist-up or close-up framing can be selected and the camera maintains a natural composition as the subject moves.

12× optical zoom and clean 1080p60

A 1/2.8-inch CMOS sensor and 12× optical zoom deliver detailed Full HD video up to 1080p60. 16× digital zoom, noise reduction and automatic or manual image controls assist in different lighting conditions.

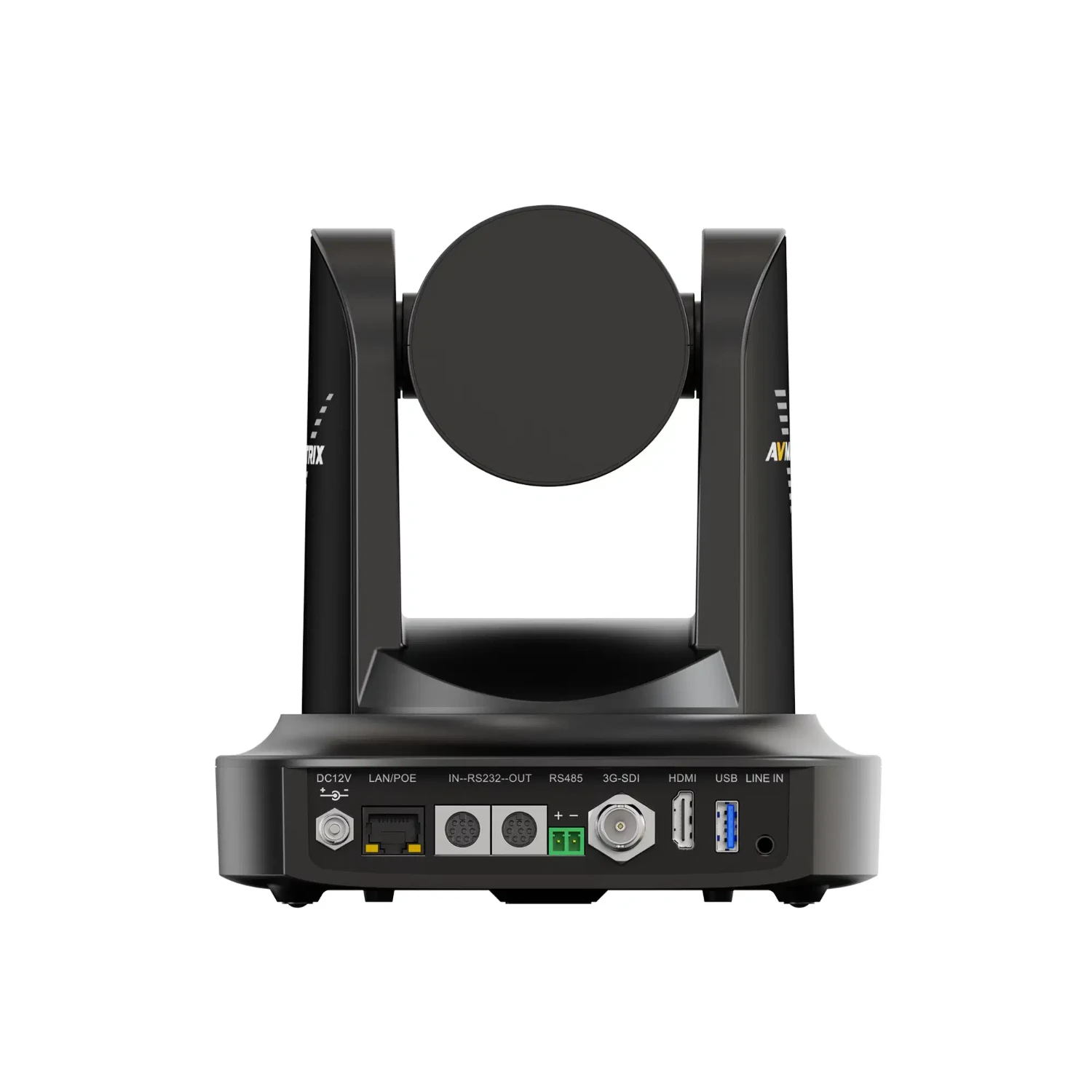

Simultaneous HDMI, 3G-SDI, USB and IP

The camera provides HDMI, 3G-SDI, USB 2.0 UVC/UAC and network streaming over RTSP, RTMP and ONVIF at the same time. A 3.5 mm line input embeds audio into all outputs.

Quiet movement and flexible control

±170° pan, −30° to +90° tilt, up to 255 presets and operation below 35 dB allow discreet use. Control is available through VISCA over IP, ONVIF, Pelco-D/P, the web interface or a compatible joystick.

Single-cable installation with PoE+

PoE+ combines power, control and IP video in one network cable. The camera also supports 12 V DC power and ceiling, wall, desktop or tripod mounting.

Key features

• AI human auto-tracking
• selectable full-body, waist-up or close-up framing
• 12× optical and 16× digital zoom
• Full HD up to 1080p60
• HDMI, 3G-SDI, USB 2.0 and IP
• RTSP, RTMP and ONVIF
• 3.5 mm audio input
• ±170° pan, −30° to +90° tilt
• up to 255 presets
• PoE+ or 12 V DC
