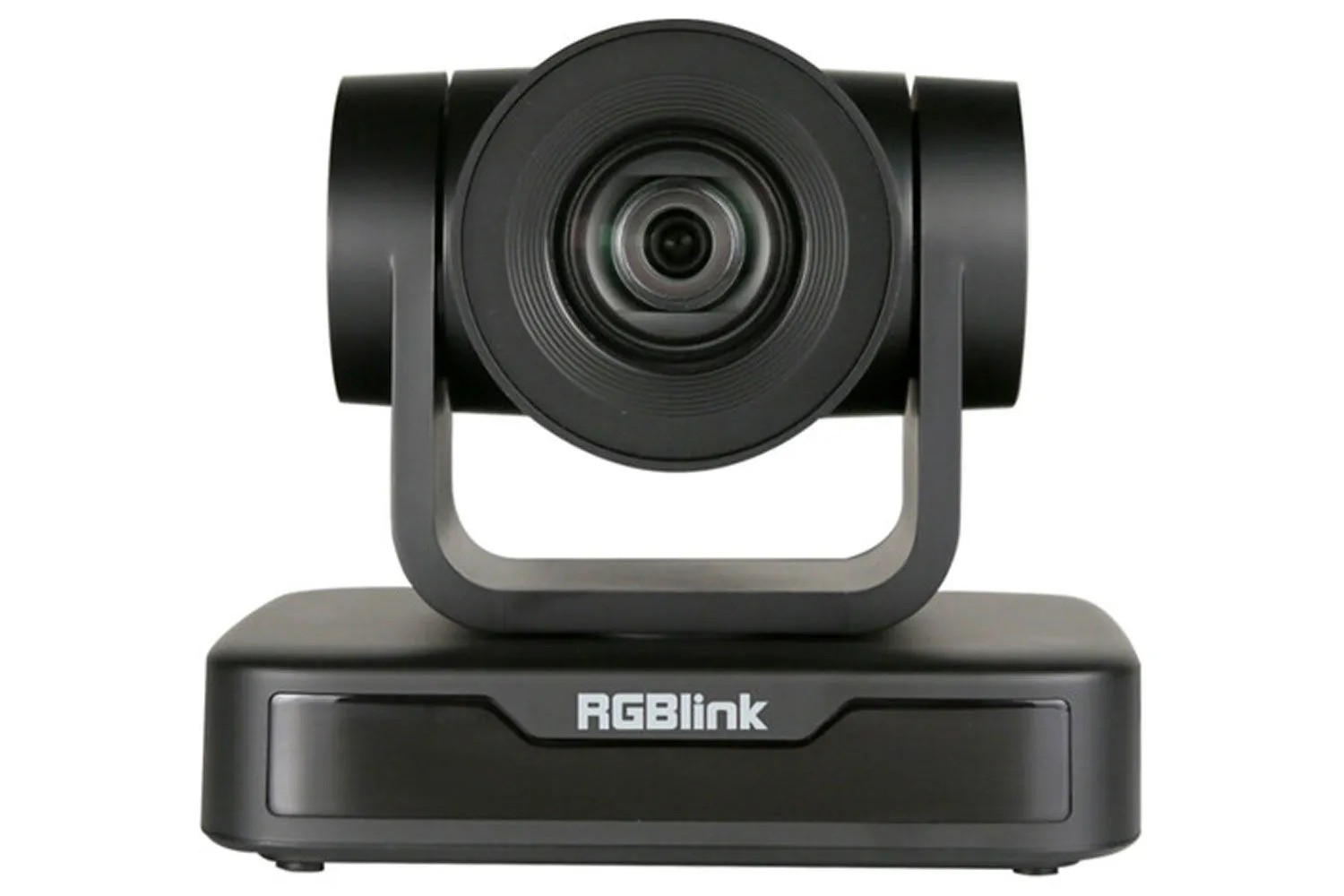

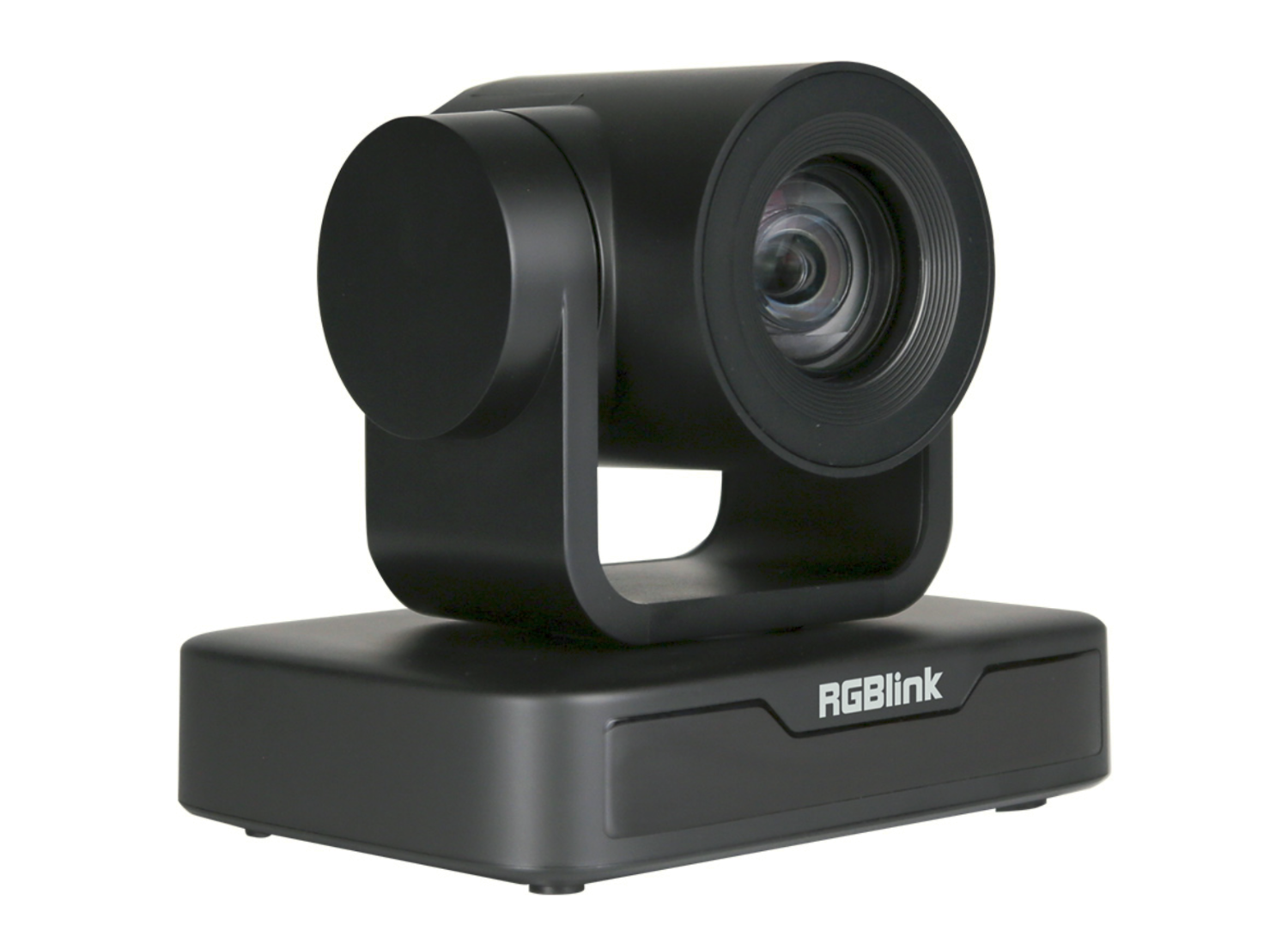

RGBlink RGB10X-USB-BK

The RGBlink RGB10X-USB-BK is a compact 1080p PTZ camera with a 10× optical zoom, auto-focus, low noise imaging, and USB 2.0 connectivity via UVC, delivering smooth video for video conferencing, streaming, and education applications. It stores up to 255 presets, is controlled with VISCA, Pelco-D and Pelco-P and works with Windows, macOS and…

More information

449 € with VAT 371.07 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink RGB10X-USB-BK is a compact 1080p PTZ camera with a 10× optical zoom, auto-focus, low noise imaging, and USB 2.0 connectivity via UVC, delivering smooth video for video conferencing, streaming, and education applications. It stores up to 255 presets, is controlled with VISCA, Pelco-D and Pelco-P and works with Windows, macOS and Linux.

Compact PTZ camera with 10× zoom

The RGBlink RGB10X-USB-BK PTZ camera is engineered for professional-quality video in compact spaces such as conference rooms, classrooms, or streaming setups. Equipped with a 70° wide-angle lens and 10× optical zoom (plus 10× digital zoom), this camera provides both broad coverage and detailed close-ups. Its 1/2.8" HD CMOS sensor and advanced ISP algorithms produce high-resolution, low-noise video with excellent color depth and depth perception.

Compact PTZ camera with 10× zoom
10×
optical zoom
1080p
Full HD
70°
field of view
USB 2.0
UVC to computer
255
presets

Control and connection

The camera supports auto-focus, pan, tilt, and up to 255 presets, ensuring precise positioning and smooth transitions between camera angles. Output is available via USB 2.0 (UVC) for direct connection to computers and video conferencing software, with MJPG, H.264, and H.265 compression for flexible streaming performance. The RGB10X-USB-BK also supports VISCA, Pelco-D, and Pelco-P protocols, making it compatible with a wide range of PTZ control systems. Its low power consumption, compact size, and PoE readiness make it ideal for permanent installations or portable setups.

Control and connection

More information

Key Features:

  • 1080p Full HD video capture at 25/30 fps
  • 10× optical zoom, 10× digital zoom
  • 70° wide-angle lens
  • Advanced ISP processing with low noise, high SNR (>55 dB)
  • Auto-focus and manual focus modes
  • Pan range: −170° to +170°, Tilt: −30° to +90°
  • Up to 255 preset positions
  • USB 2.0 UVC output, plug-and-play
  • Video compression: MJPG, H.264, H.265
  • PTZ control protocols: VISCA, Pelco-D, Pelco-P
  • Operating system compatibility: Windows, macOS, Linux

PACKAGE CONTENT

  • RGBlink RGB10X-USB-BK PTZ Camera
  • Power adapter (DC 12V)
  • User documentation

SPECIFICATIONS

  • Imaging: Sensor: 1/2.8" CMOS; Effective Pixels: 2.07 MP (16:9); Aperture: f/1.85 – f/2.43; Focal Length: 4.34 – 41.66 mm; Field of View: 8.8° – 70°; Digital Zoom: 10×; Minimum Illumination: 0.5 lux (F1.8, AGC ON); SNR: >55 dB; White Balance: Auto / Manual / One Push / 3000–7000K; Focus: Auto / Manual / One Push; Exposure: Auto / Manual; BLC: On / Off; Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve; DNR: 2D & 3D
  • Pan & Tilt: Pan: −170° to +170°; Tilt: −30° to +90°; Pan Speed: 0.1–60°/s; Tilt Speed: 0.1–30°/s; Presets: 255 (10 via remote)
  • Video & Compression: Resolution: 720p / 1080p at 25/30 fps; Compression: MJPG / H.264 / H.265

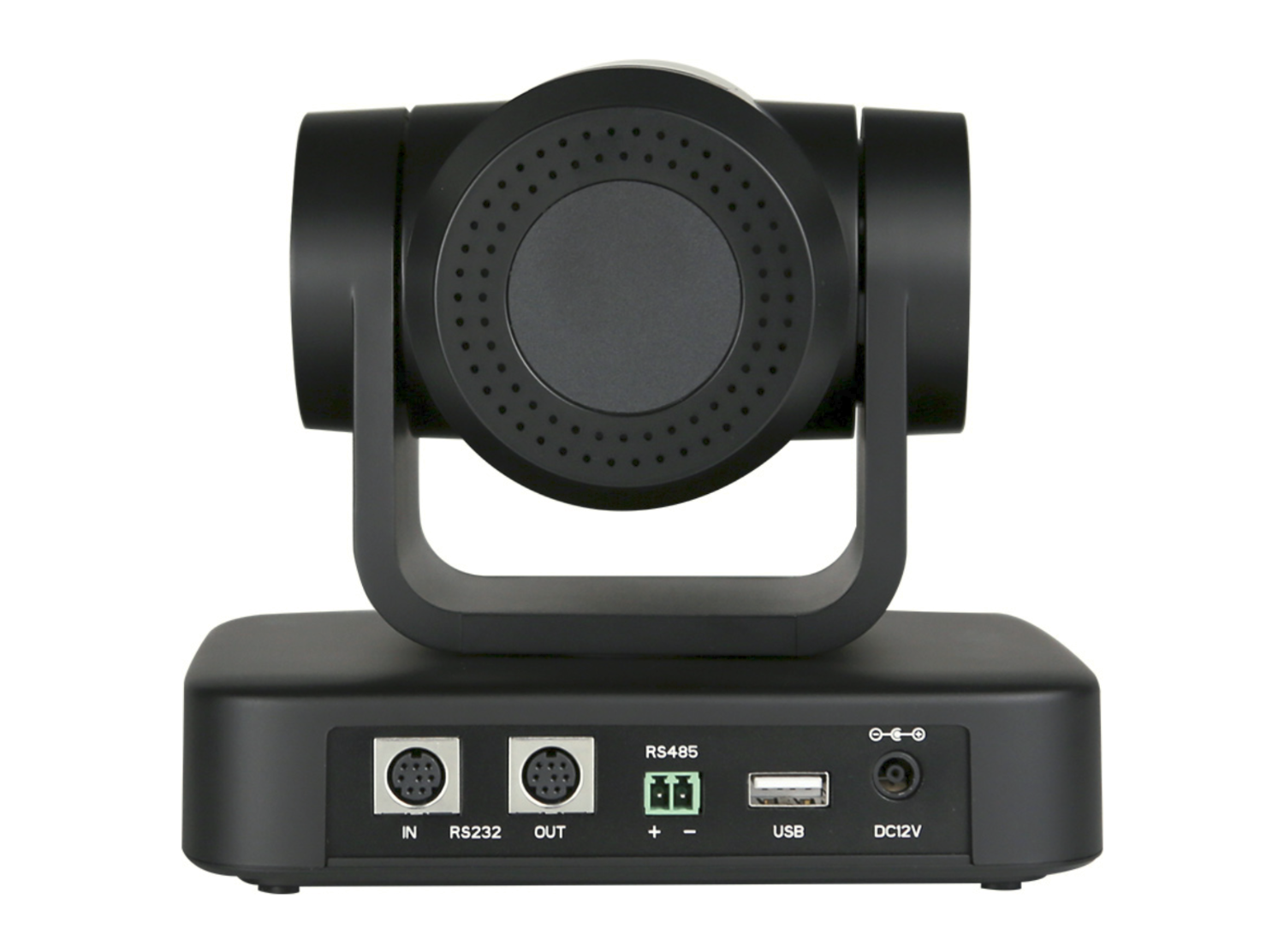

  • Connectivity & Control: USB 2.0 (UVC); RS-232: 2 × DIN 8; RS-485: 1 × 2-pin terminal; PTZ control: VISCA / Pelco-D / Pelco-P
  • Power & Environment: Input: DC 12V / 0.25A; Max Power: 2.5 W; Operating Temp: −10°C – 50°C; Humidity: 20% – 80%
  • Physical: Weight: 1 kg; Dimensions: 156.8 × 112.6 × 139.5 mm

WE RECOMMEND

The RGBlink RGB10X-USB-BK is a compact PTZ camera with a USB 2.0 output (UVC) that is ideal for video conferencing and live streaming. For professional use, it is essential to supplement it with VISCA protocol hardware controllers, mounting brackets, and especially TAO series converters, which enable the conversion of the USB signal for further processing in control rooms.

Control Panels - Hardware controllers enabling precise positioning and zoom control via VISCA and Pelco protocols.

Mounting accessories - Original brackets and mounts for secure installation of PTZ cameras on walls or ceilings.

Converters and monitors - Devices for converting the UVC signal from the camera's USB output to HDMI or for live view and recording.

Streaming control rooms - High-performance control rooms supporting USB/UVC inputs or HDMI inputs after conversion, suitable for multi-camera production.

Wireless Video Transmission - Systems for wireless signal transmission from a camera to a control room or monitor (requires HDMI conversion).

Parameters

Parameters

Manufacturer: RGBlink
Category: PTZ

Main parameters

Camera Sensor size1/2,8"
Resolution1920 × 1080
Zoom10x
Type of bayonetintegrated lens
OutputUSB 2.0 (UVC)
Maximum video resolutionFull HD
Optical zoom10×
Video outputsUSB

Other parameters

Weight1kg
Dimensions156.8x112.6x139.5mm
Digital zoom10×
Number of preset positions255
VersionPTZ
Record formatMJPG / H.264 / H.265
FPS25 / 30 fps
Lens aperture1.9f
Min. focal length4.3mm
Max. focal length41.7mm
Media typeUSB streaming
Other featuresAutofocus
Control protocolPelco-D · Pelco-P · VISCA
