RGBlink mini2022

The RGBlink mini 2022 is a compact and portable live video switcher designed for small to mid-scale productions, offering four HDMI inputs, professional audio mixing, multi-view monitoring, and USB streaming. The mini 2022 is the second generation of the mini series: switch four cameras or computers with the T-bar or buttons and send the program to a monitor and to a computer as a webcam.

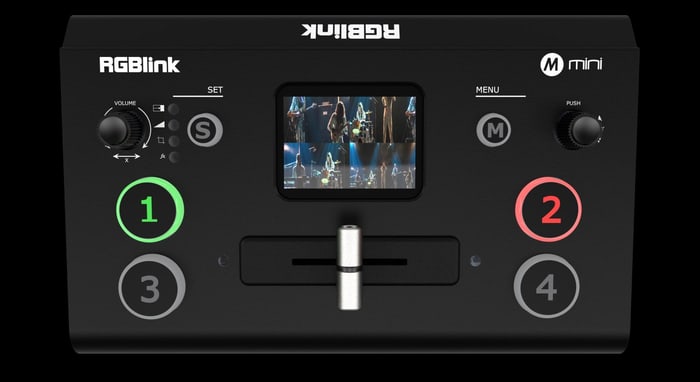

Controls at hand

In the middle of the panel sits a 2.1-inch full-colour IPS screen for source preview and menus. Buttons 1–4 select the inputs, the T-bar runs the transition, the VOLUME knob with the S (SET) button sets volume and shortcuts, and the PUSH knob with the M button navigates the menu.

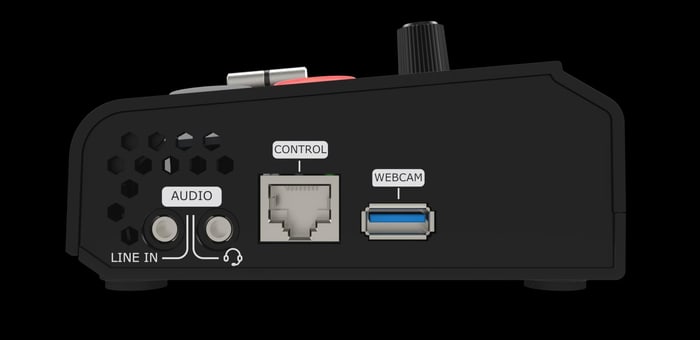

Audio, network and webcam

The side carries a LINE IN input and a headphone output (3.5 mm jack), a CONTROL port (RJ45) for control from a computer or app and a WEBCAM port (USB 3.0). Through it the switcher appears on a computer as a webcam with H.265 encoding, so the program can be used in OBS, Zoom or on YouTube.

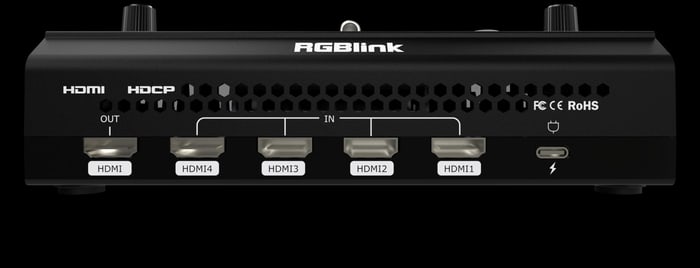

Inputs and power

The rear panel has four HDMI inputs, an HDMI output and a USB-C power port with PD (12 V / 1.5 A, max. 18 W). It runs from a standard USB-C PD adapter.

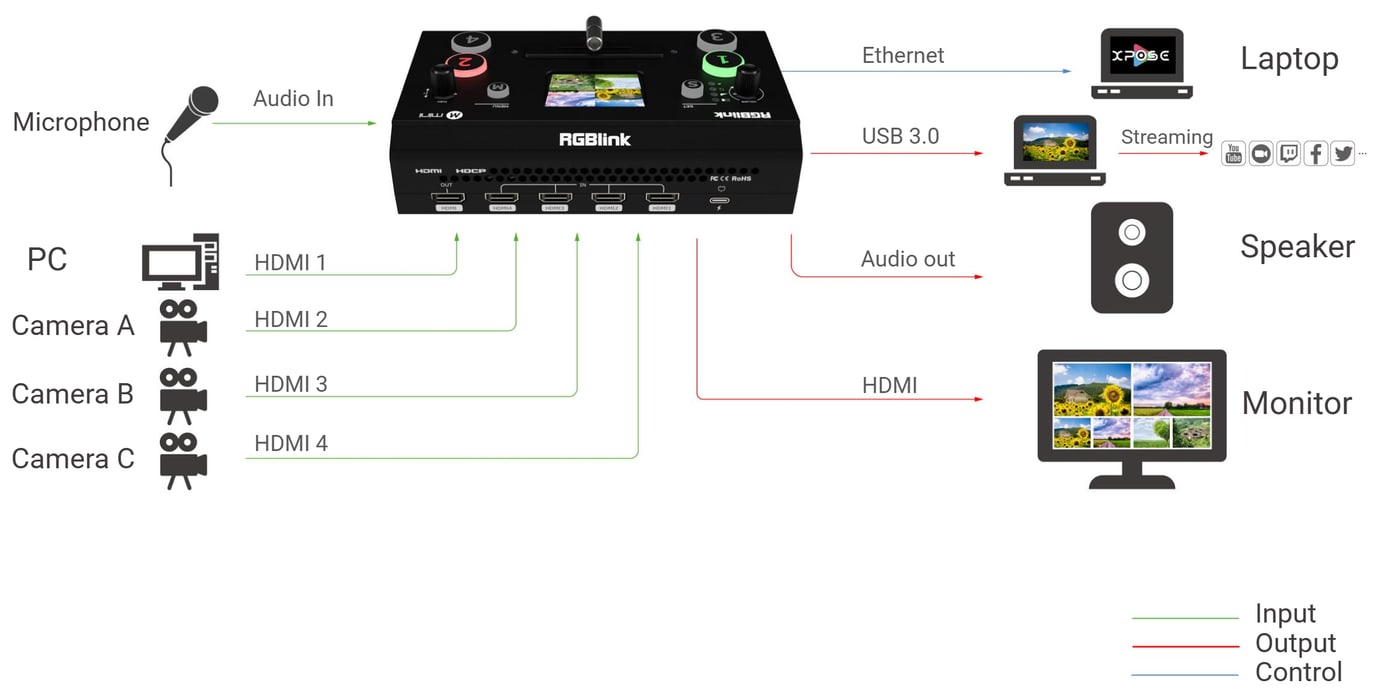

Connection example

A computer and three cameras on HDMI inputs 1–4, a microphone on the audio input, a multiview monitor on the HDMI output, a speaker on the audio output, a laptop streaming over USB 3.0 and control over Ethernet.

More information

With its built-in 2.1-inch full-color screen, T-Bar switching, and support for PIP/PBP layouts, it delivers powerful production capabilities in an easy-to-carry integrated design.

The RGBlink mini 2022 live production switcher combines switching, monitoring, audio mixing, and streaming into a single compact unit. Equipped with four HDMI 1.3 inputs and one HDMI output, it supports a 6-image multiview, allowing operators to quickly toggle between preview and program outputs for confident live switching. The integrated 2.1-inch TFT full-color screen provides real-time signal monitoring and intuitive menu navigation.

Designed for flexibility, the mini 2022 supports MIC and LINE audio inputs with multi-channel audio mixing, ensuring clear and synchronized sound for live events. Video features such as image scaling, cropping, Picture-in-Picture (PIP), Picture-by-Picture (PBP), and logo overlay enhance creative control, while the T-Bar switch and six transition effects enable smooth, professional transitions.

For streaming and control, the mini 2022 includes a USB 3.0 output with H.265 encoding and LAN connectivity, supporting PC software and mobile app control. Optimized heat management ensures stable operation during extended use. Lightweight and portable, the RGBlink mini 2022 is ideal for live streaming, education, worship, corporate events, and content creation on the go.

Key Features:

• 4× HDMI inputs, 1× HDMI output
• 6-image multiview with preview and program switching
• 2.1" TFT full-color built-in screen
• MIC and LINE audio input with multi-channel mixing
• Image scaling and cropping
• PIP and PBP layout support
• T-Bar switching control
• 6 transition effects
• LOGO overlay support
• USB 3.0 streaming with H.265 encoding
• PC and mobile APP control
• Optimized heat dissipation for stable performance
• Integrated, portable design
