RGBlink mini v3

The RGBlink mini v3 is a compact third-generation HDMI video switcher designed for live streaming, recording, and professional content creation. Featuring four HDMI inputs, dual HDMI outputs, a built-in touchscreen, advanced transitions, audio mixing, and optional unlockable features such as streaming and NDI, it delivers powerful performance in a highly portable, all-in-one design.

The third generation of the mini switcher: four HDMI inputs, two HDMI outputs and a touchscreen in a small black desk that can be extended with further features via TAO Cloud.

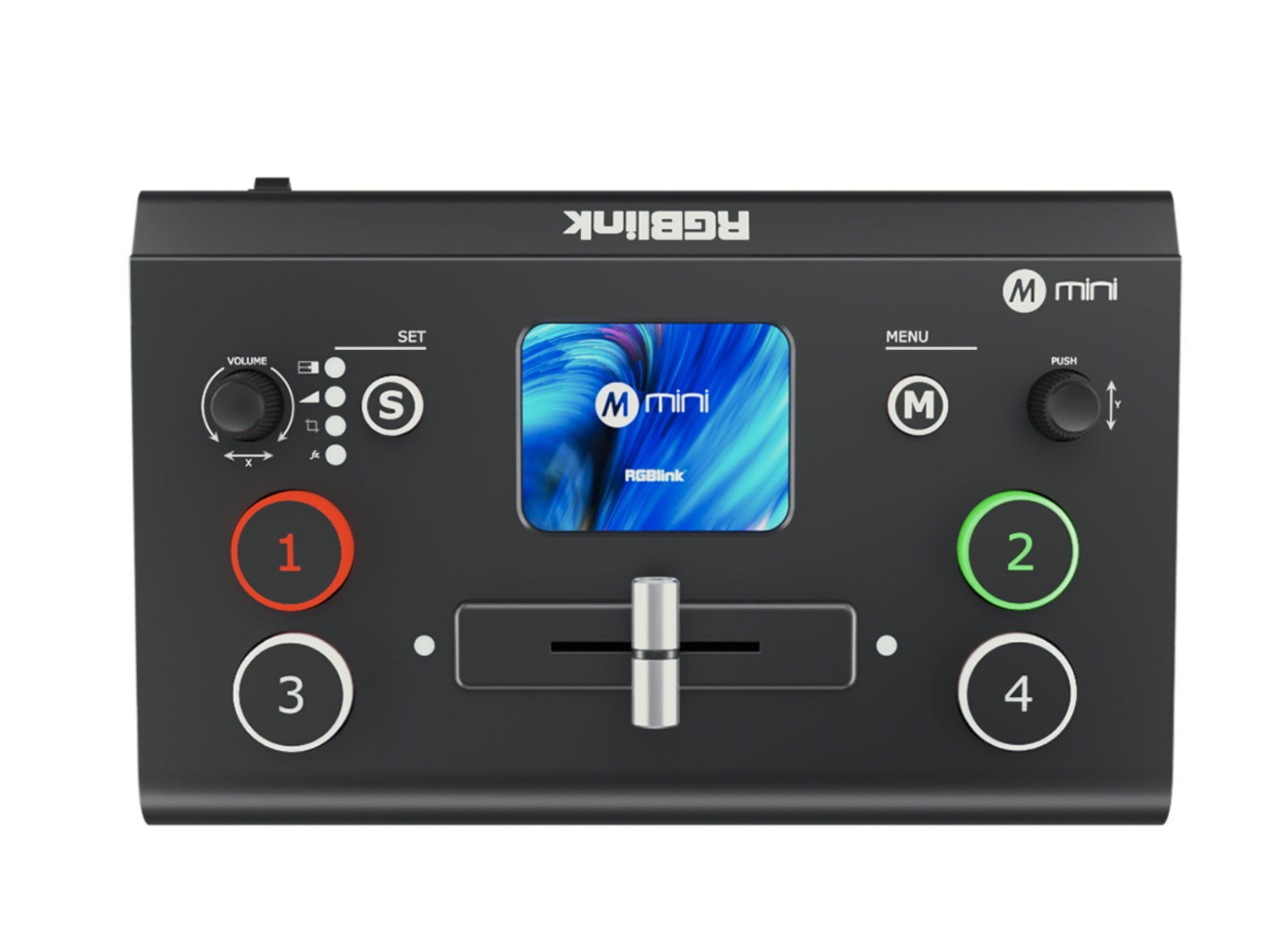

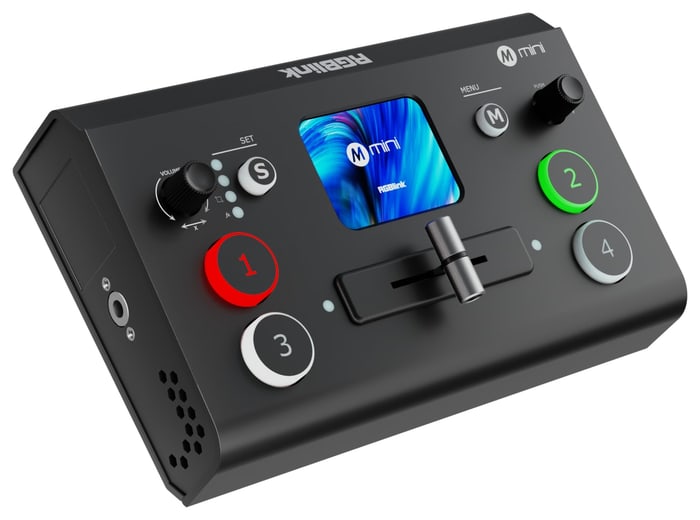

Touchscreen and two knobs

The 2-inch colour TFT touchscreen shows the inputs and an icon-based menu. The X knob controls output volume, layer width and horizontal position as well as camera pan and zoom; the Y knob navigates the menu and controls layer height and vertical position. The S button offers shortcuts for effects, switching mode, picture-in-picture, saved views, recording and streaming.

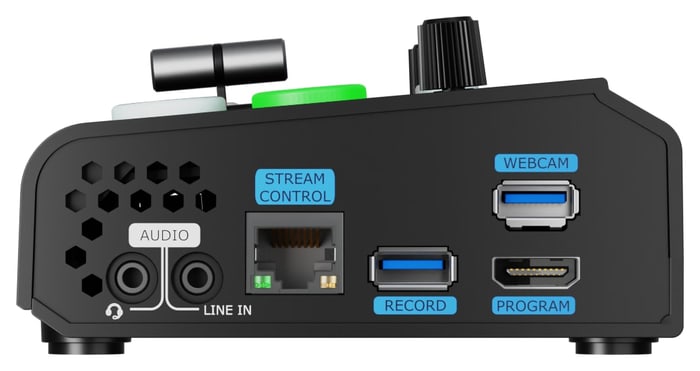

Side ports

The side carries a LINE IN input and a headphone output with microphone (3.5 mm jack), a STREAM CONTROL port (RJ45), a RECORD port (USB 2.0) for recording to a flash drive or SSD, a WEBCAM port (USB 3.0) for connecting to a computer as a webcam and a PROGRAM output (HDMI).

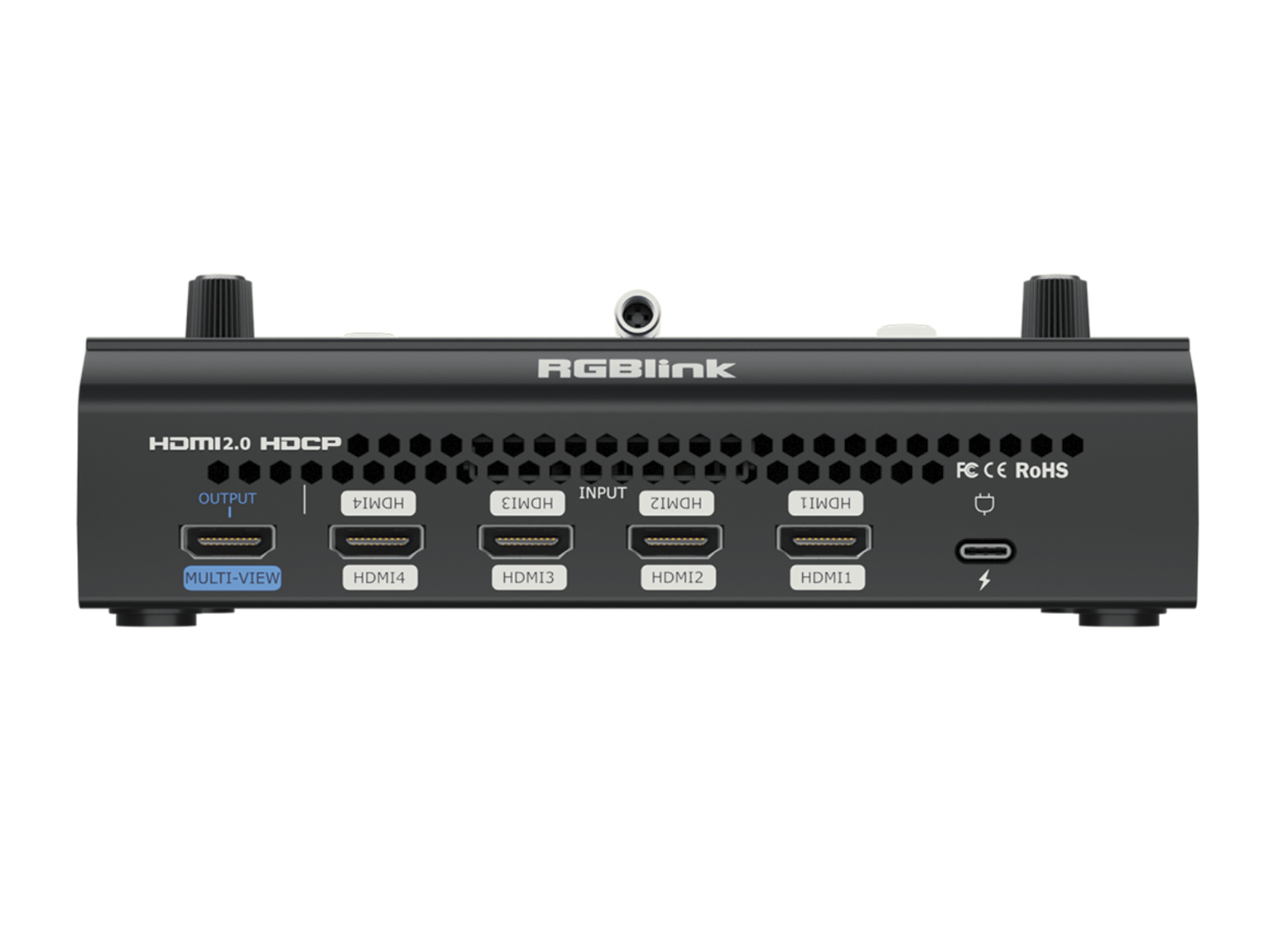

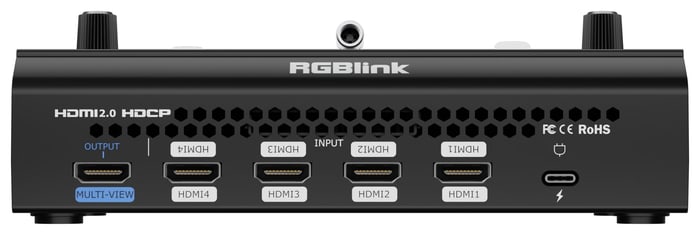

Inputs and multiview

The rear panel carries four HDMI 2.0 inputs (up to 3840 × 2160 at 60 Hz), a MULTI-VIEW output with a preview of up to six windows and a USB-C PD power port (12 V / 2.5 A). The switcher can also run from a PD power bank.

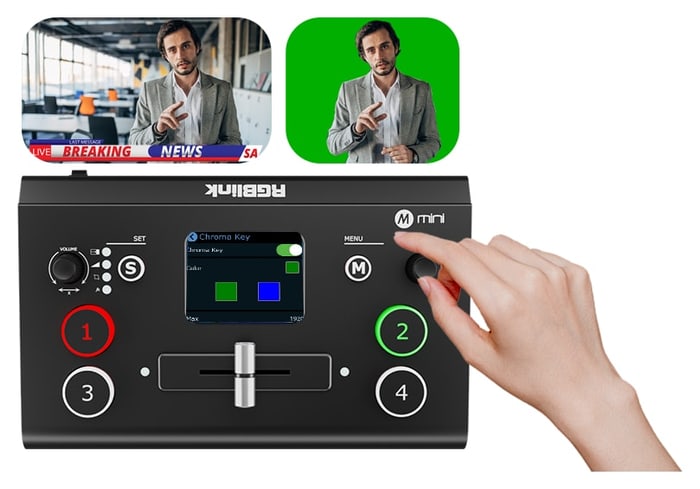

Chroma key

Remove a green or blue background right on the touchscreen: switch keying on and pick the colour with a single tap, with finer settings in the desktop app. The chroma key feature requires a TAO Cloud subscription.

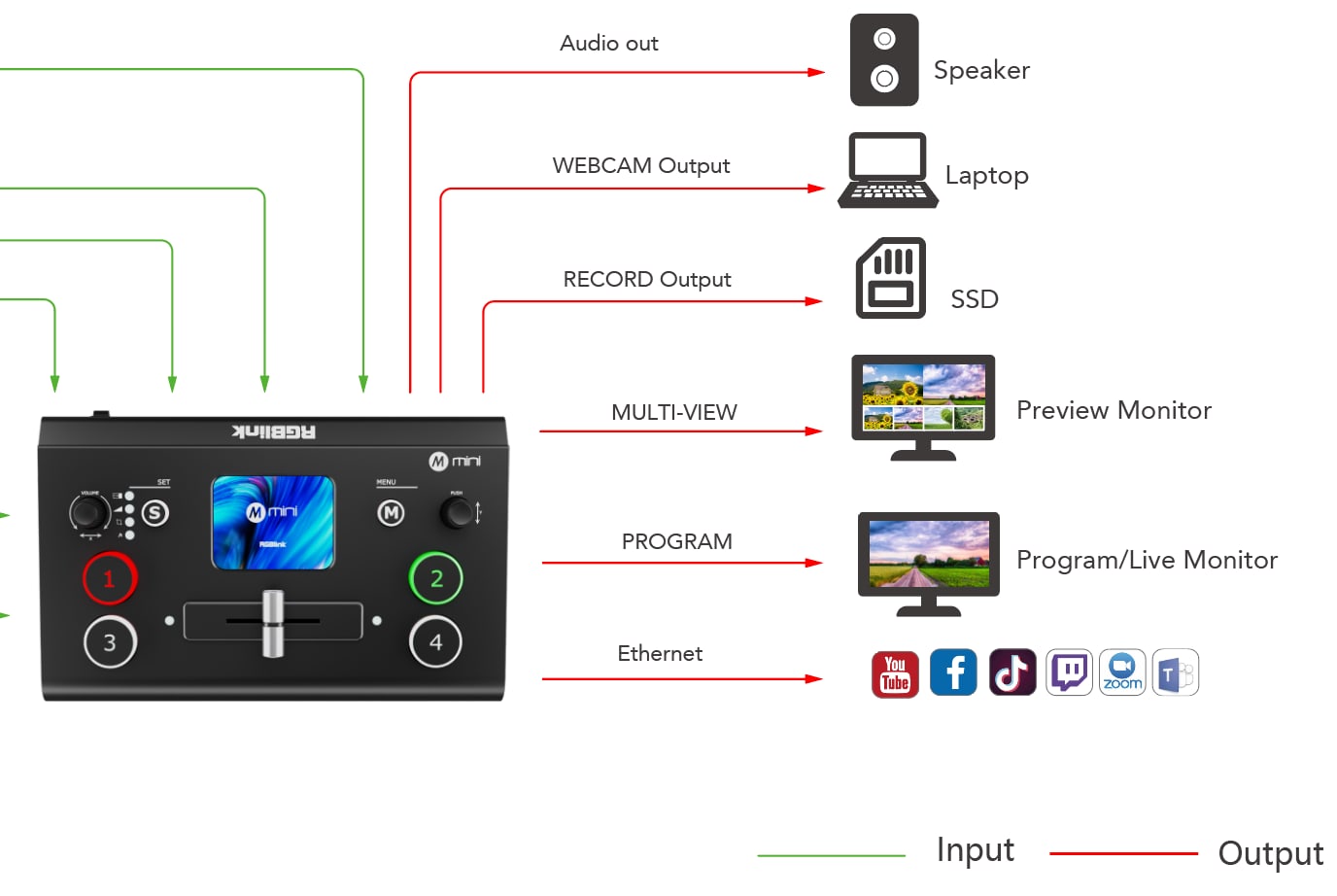

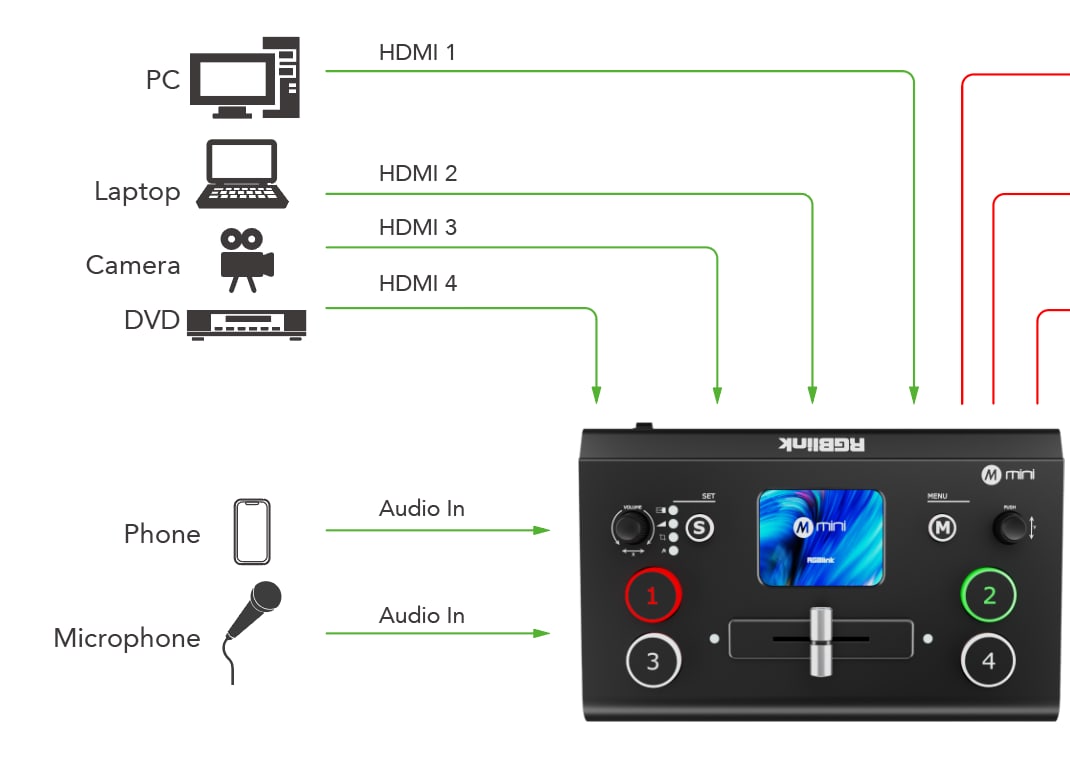

Connection example

A PC, laptop, camera and player on HDMI inputs 1–4, a phone and microphone on the audio input. On the outputs a speaker, a laptop via WEBCAM, an SSD via RECORD, a preview monitor (MULTI-VIEW), a program monitor (PROGRAM) and streaming to platforms over Ethernet.

More information

The RGBlink mini v3 represents a major evolution in compact video switchers, introducing user-customizable functionality for the first time in the streaming industry. Building on the success of its predecessors, the mini v3 maintains its sleek, all-black integrated design while delivering enhanced performance, flexibility, and intuitive control for live production professionals and creators.

The mini v3 is equipped with four HDMI inputs and two HDMI outputs, with output modes configurable as a 6-window multiview preview, program output, or individual input monitoring. A newly upgraded 2-inch full-color TFT touchscreen provides real-time signal monitoring and icon-based menu navigation, enabling fast, intuitive operation without external displays.

Advanced video tools include image scaling and cropping, picture-in-picture (PIP) and picture-by-picture (PBP) layouts, logo overlay, and 15 transition effects controlled via T-bar for seamless CUT and FADE switching. Integrated audio support allows MIC and LINE inputs with multi-channel audio mixing, making it suitable for professional live productions.

The mini v3 supports USB 2.0 recording to external storage in exFAT or FAT32 formats and is designed for 24/7 stable operation with an air-cooling system. Through optional feature activation via subscription or lifetime license, users can unlock capabilities such as USB-A recording, UVC audio-video capture, TAO Cloud live streaming, and NDI encoding/decoding. With web app control, open API support, and easy portability, the RGBlink mini v3 is a future-ready switcher tailored to evolving production needs.

Key Features:

• 4 × HDMI inputs, 2 × HDMI outputs
• HDMI output configurable as multiview preview, program, or individual inputs
• 2-inch full-color TFT touchscreen with icon-based UI
• Web app control and open API for remote integration
• Image scaling, cropping, PIP and PBP layouts
• T-bar seamless transitions (CUT, FADE)
• 15 professional transition effects
• Logo overlay support
• MIC and LINE audio inputs with multi-channel mixing
• USB 2.0 recording to external storage
• Air cooling design for 24/7 operation
• Optional feature unlocks: UVC capture, TAO Cloud streaming, NDI
• Compact, integrated, and portable design
