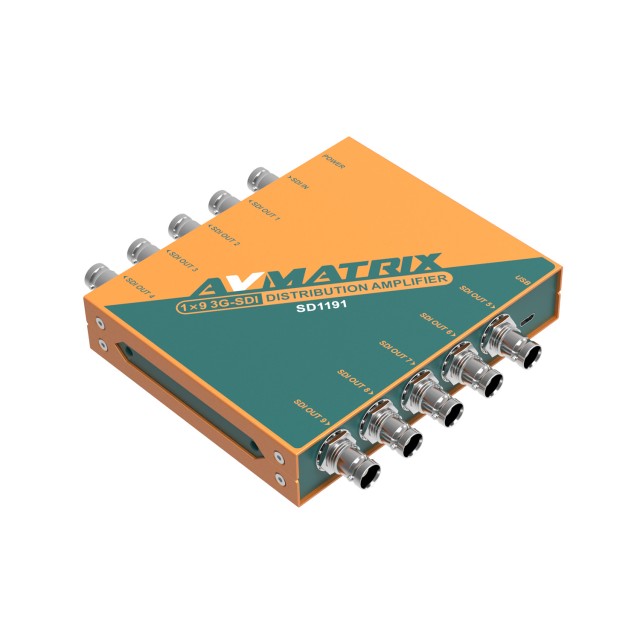

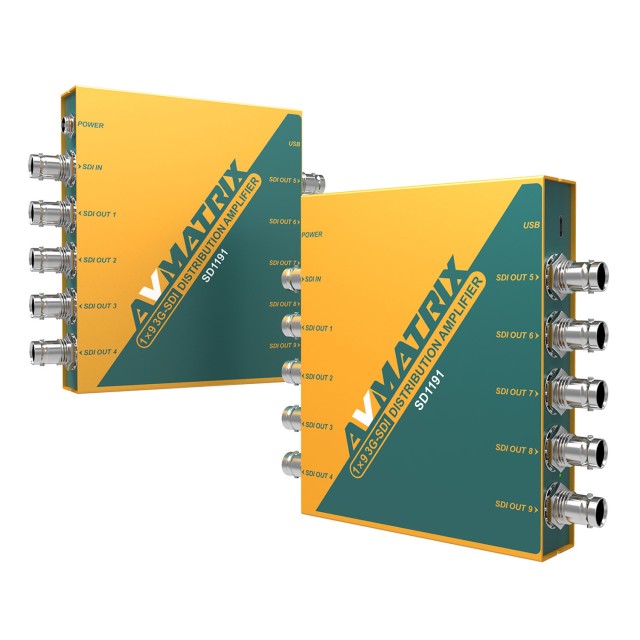

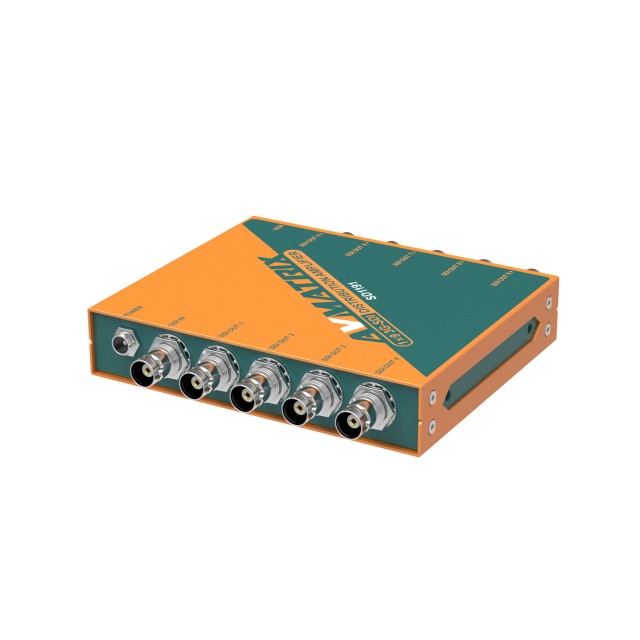

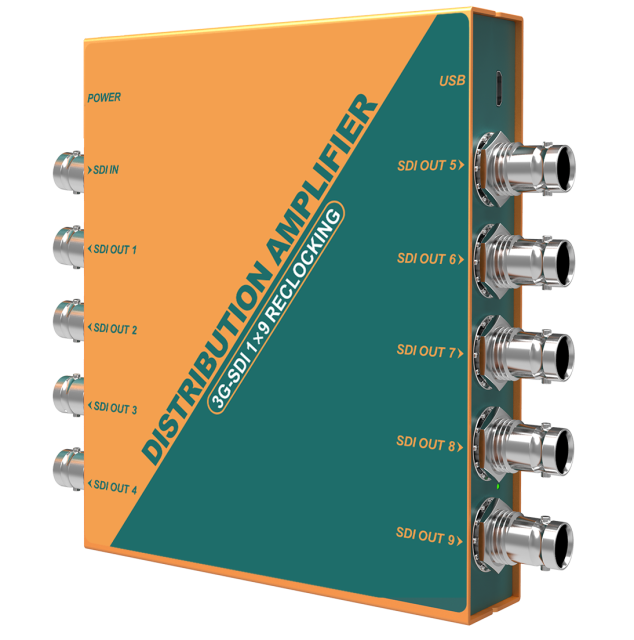

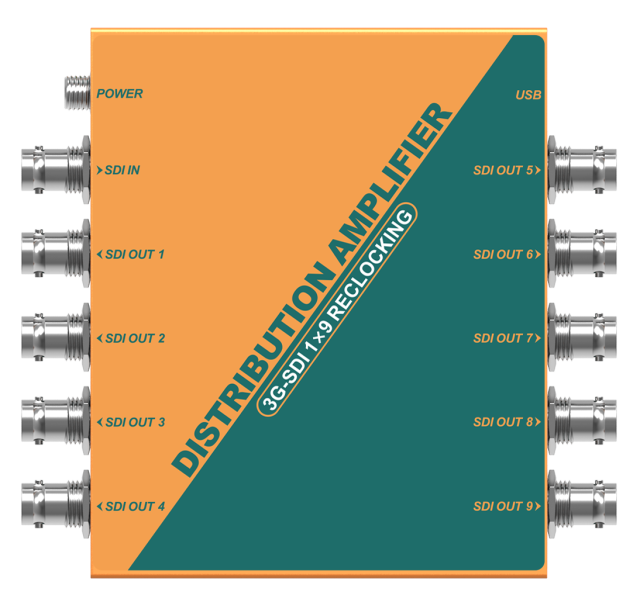

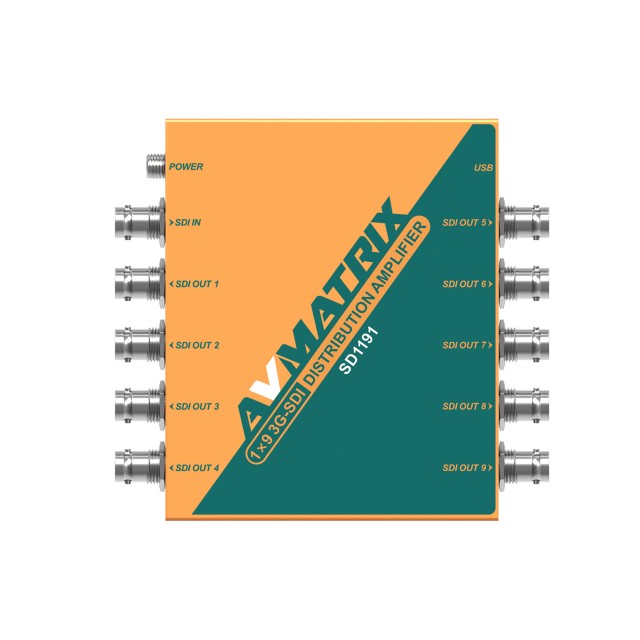

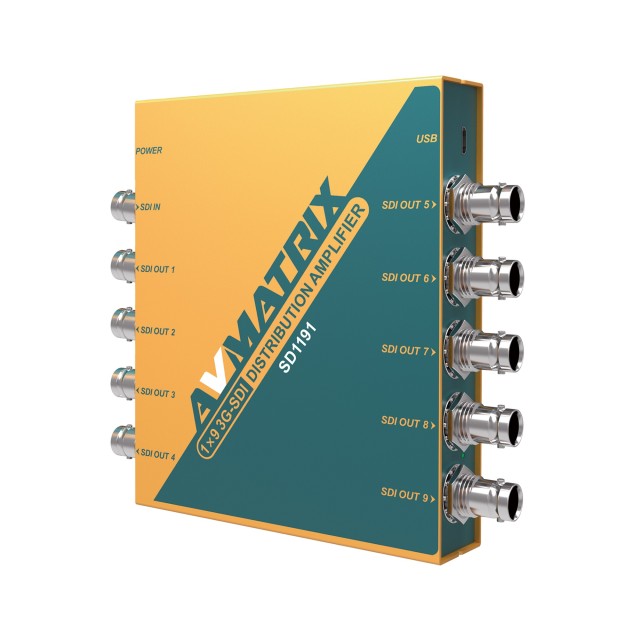

AVMATRIX SD1191 1×9 SDI Reclocking Distribution Amplifier

AVMATRIX SD1191 is a 1×9 distribution amplifier for SD/HD/3G-SDI and ASI. It automatically detects the format, equalises cable loss, reclocks the signal and provides nine simultaneous outputs for larger studio and installation systems.

AVMATRIX SD1191 is a 1×9 distribution amplifier for SD/HD/3G-SDI and ASI. It automatically detects the format, equalises cable loss, reclocks the signal and provides nine simultaneous outputs for larger studio and installation systems.

Key features

• 1× SD/HD/3G-SDI or ASI input
• 9× SDI/ASI outputs
• Automatic input format detection

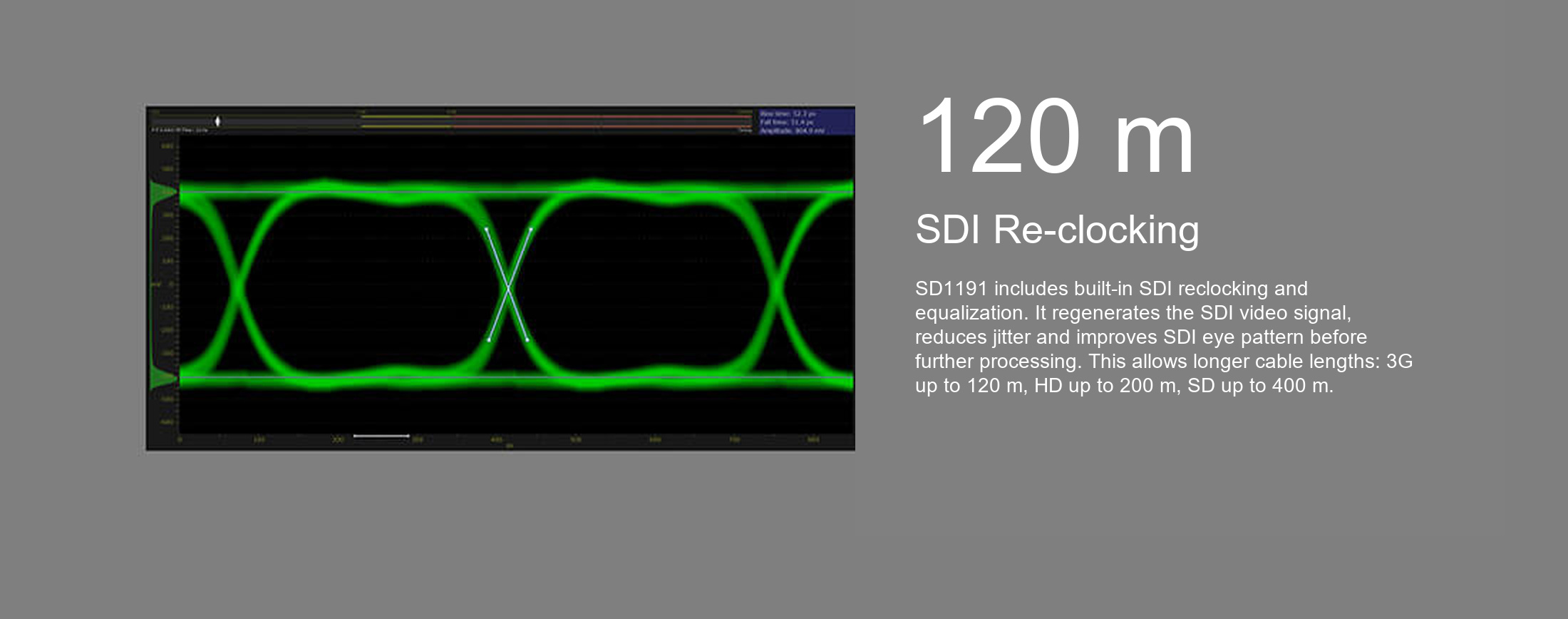

• Cable equalisation and reclocking
• Cable reach up to 400m for SD, 200m for HD and 120m for 3G-SDI
• ASI compatibility on the input and all outputs

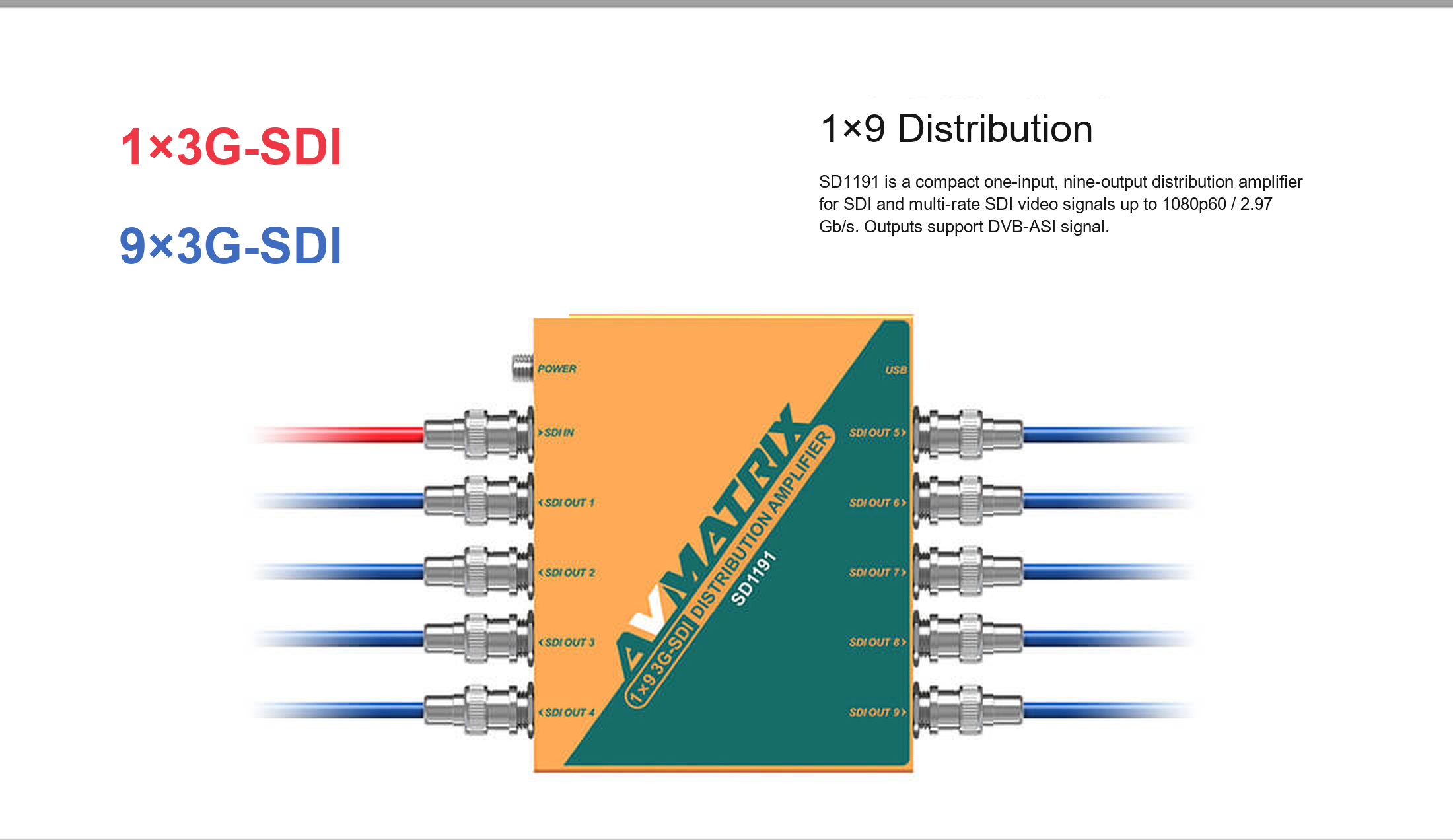

Distribution to nine destinations

Nine active outputs allow one source to feed a larger number of monitors, recorders and other SDI devices. Automatic equalisation and reclocking help maintain stable transmission over longer cable runs.

ASI support

The input and all outputs are ASI compatible, allowing the unit to serve in digital broadcast distribution chains as well.
