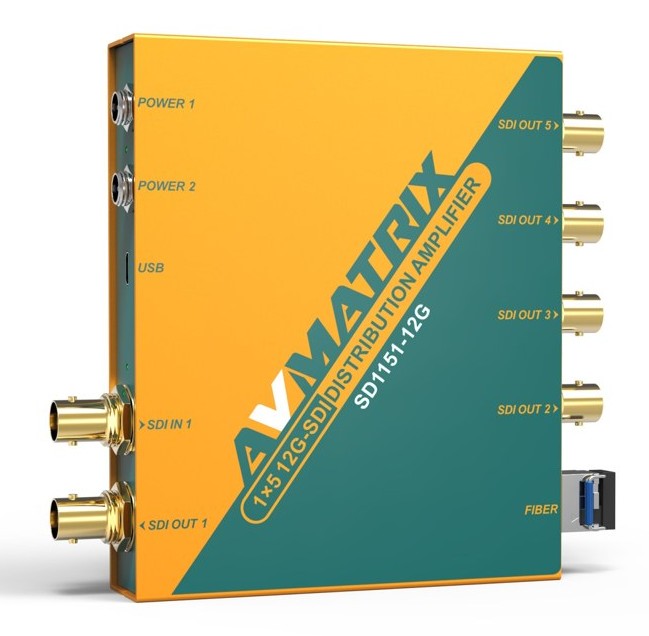

AVMATRIX SD1151-12G 1×5 12G-SDI Reclocking Distribution Amplifier

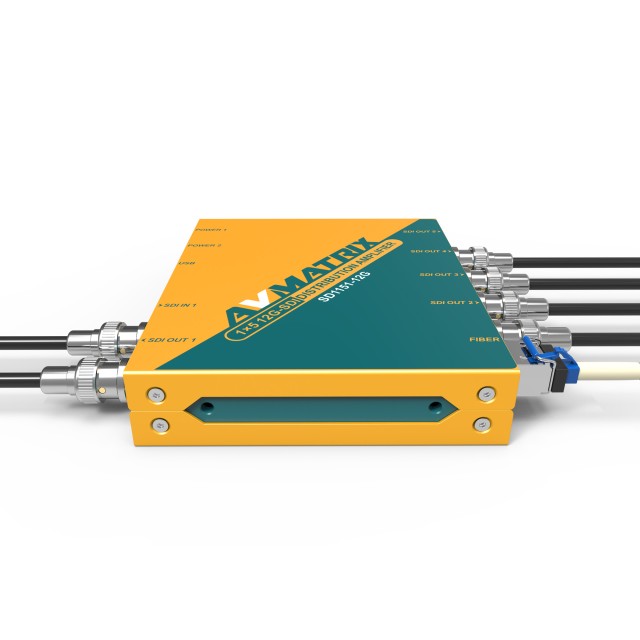

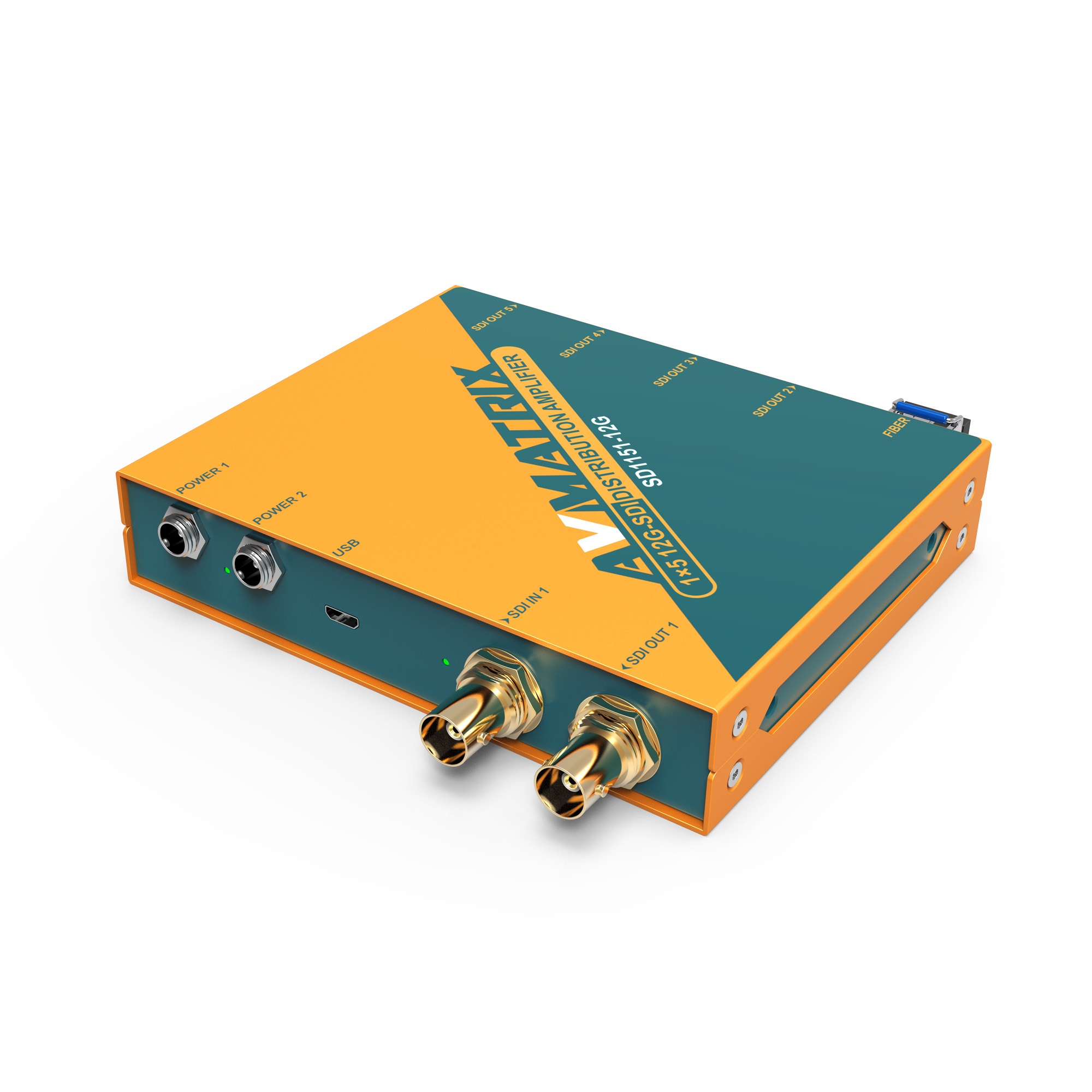

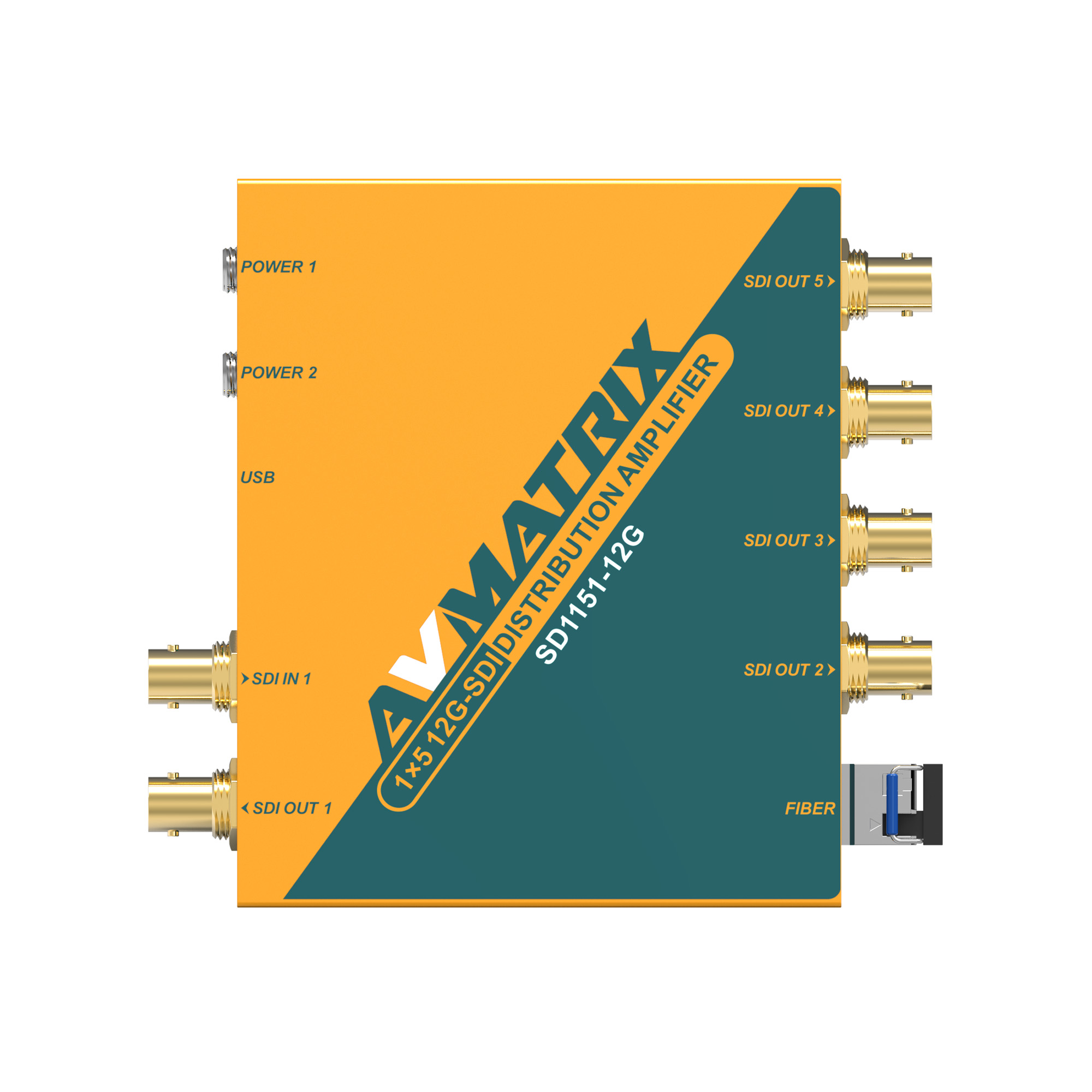

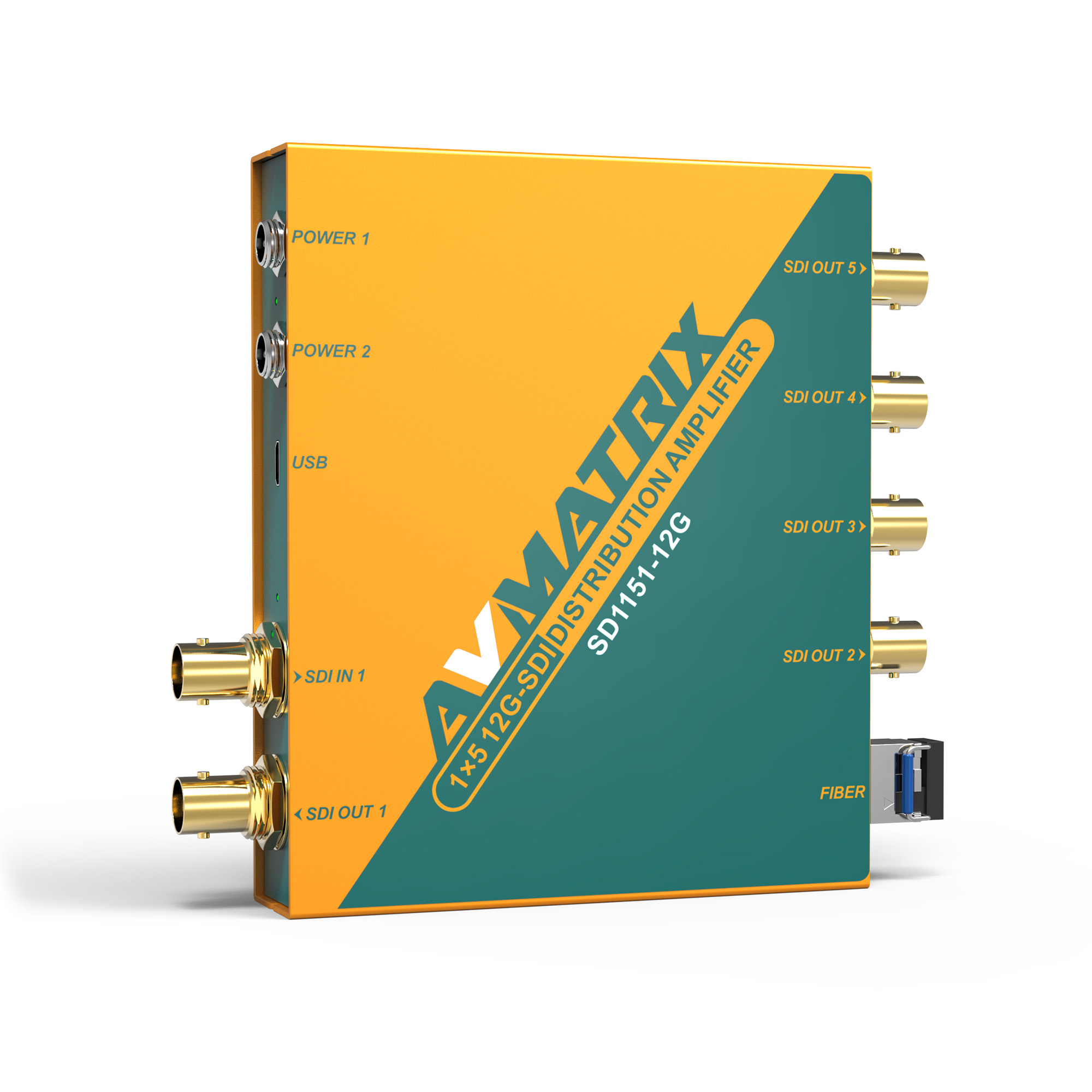

SD1151-12G is a professional 1×5 distribution amplifier for 12G-SDI. It automatically equalises and reclocks one input signal and distributes it to five independent SDI outputs, with an optional SFP optical output also available.

SD1151-12G is a professional 1×5 distribution amplifier for 12G-SDI. It automatically equalises and reclocks one input signal and distributes it to five independent SDI outputs, with an optional SFP optical output also available.

Key features

• 12G/6G/3G/HD/SD-SDI multi-rate processing

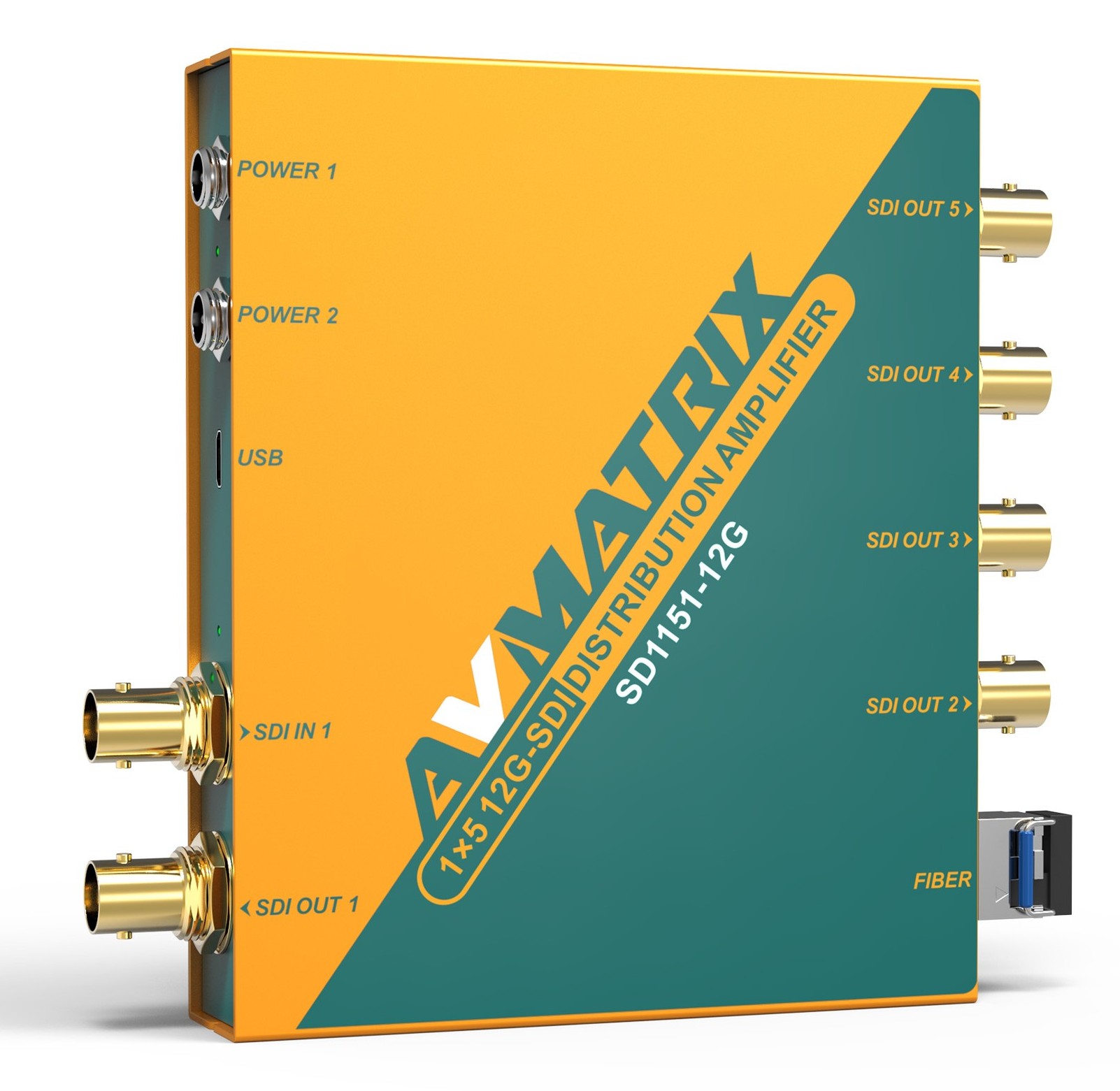

• 5 buffered and reclocked SDI outputs
• 1× optional SFP optical output
• DVB-ASI support
• Automatic cable equalisation and signal retiming
• Passes ancillary data and embedded audio
• LED indicators for power and signal lock
• Threaded locking power connector
• Detachable bracket for wall mounting

Reliable UHD signal distribution

Reclocking and automatic cable equalisation restore the timing and shape of the incoming signal before distribution. This makes SD1151-12G well suited to broadcast chains, studios, control rooms and fixed installations where one 12G-SDI source must reliably feed several devices.

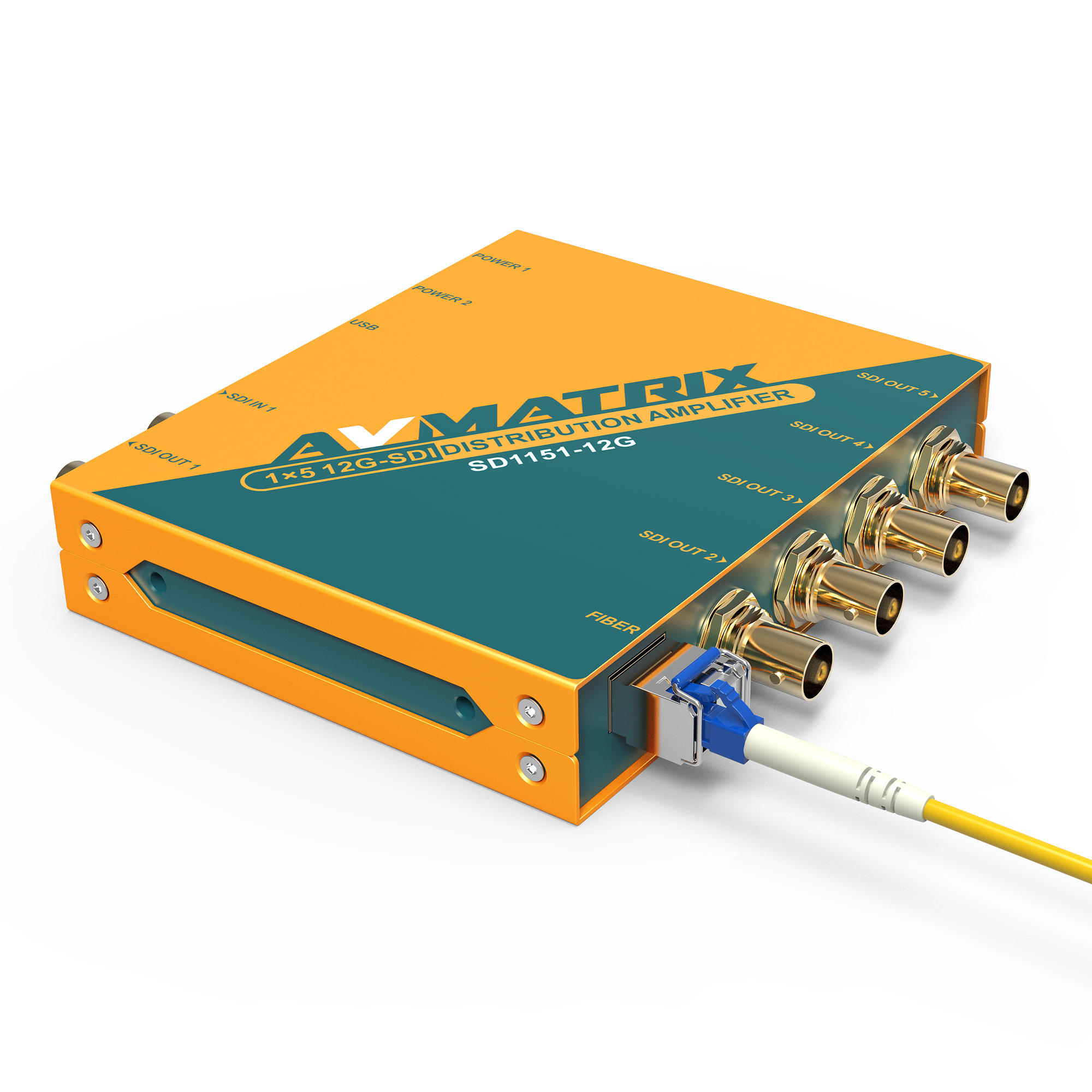

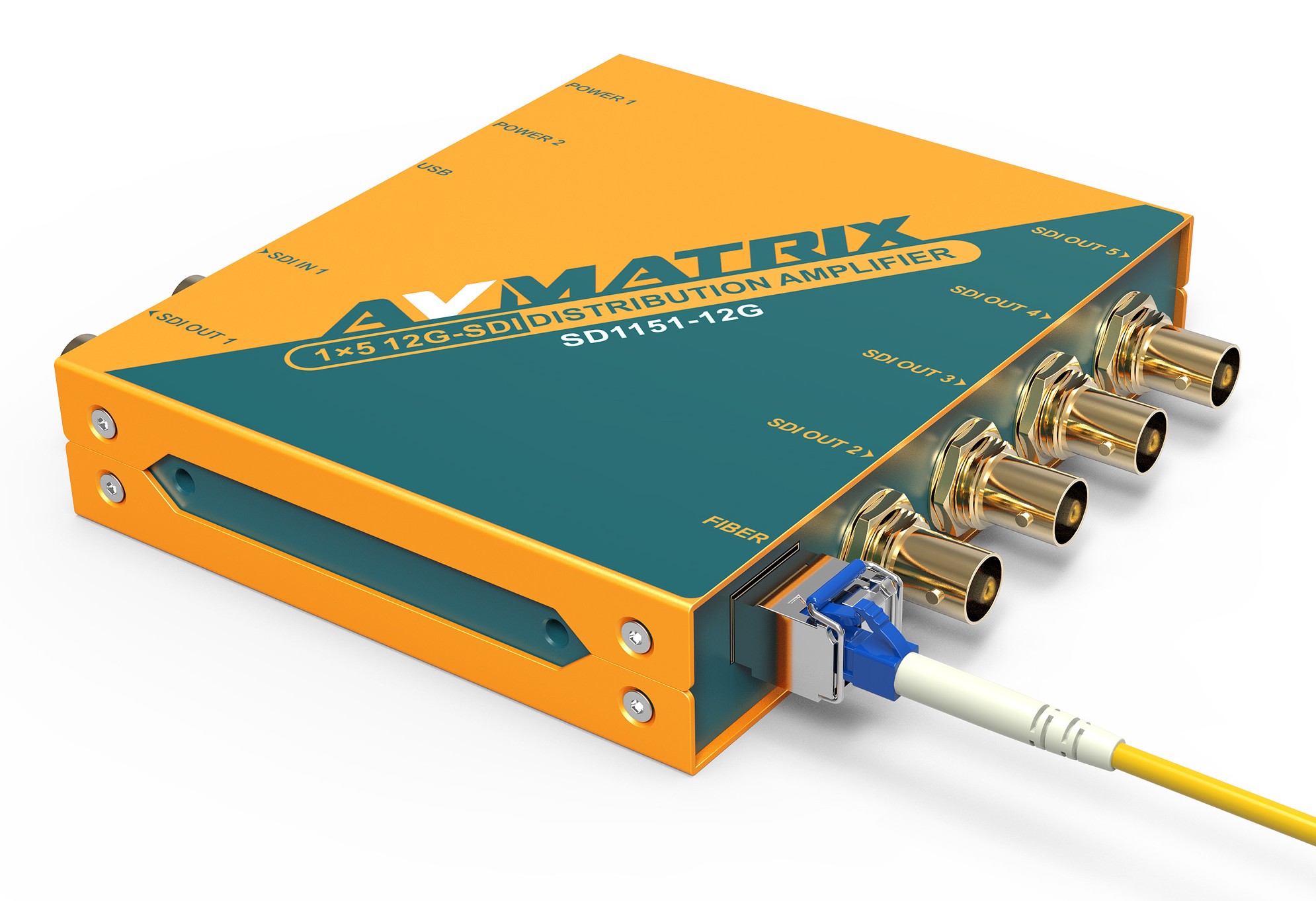

SDI with optional optical connectivity

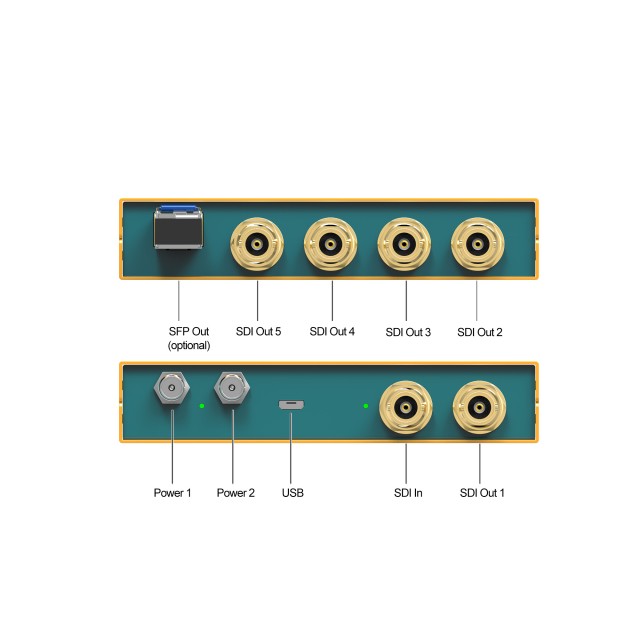

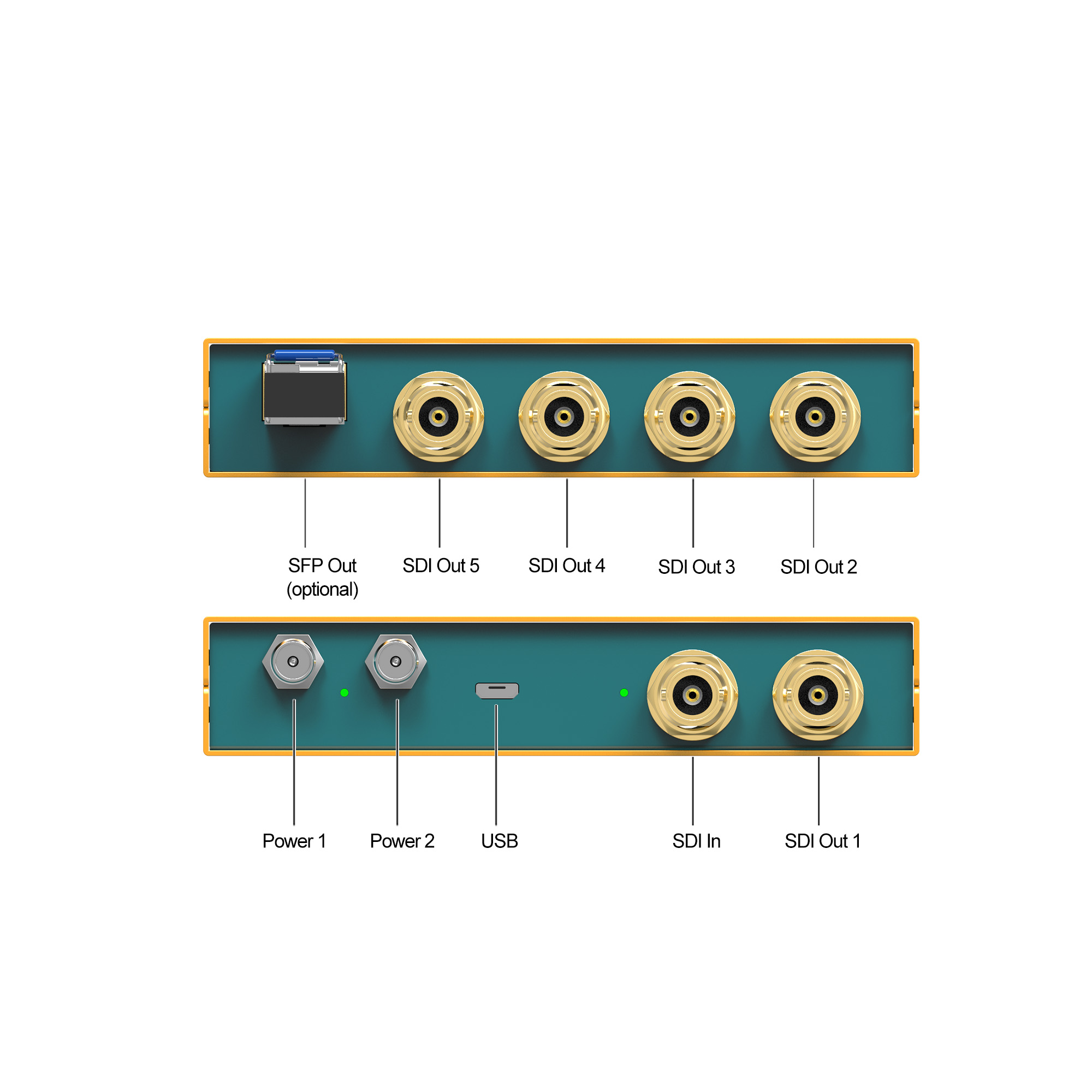

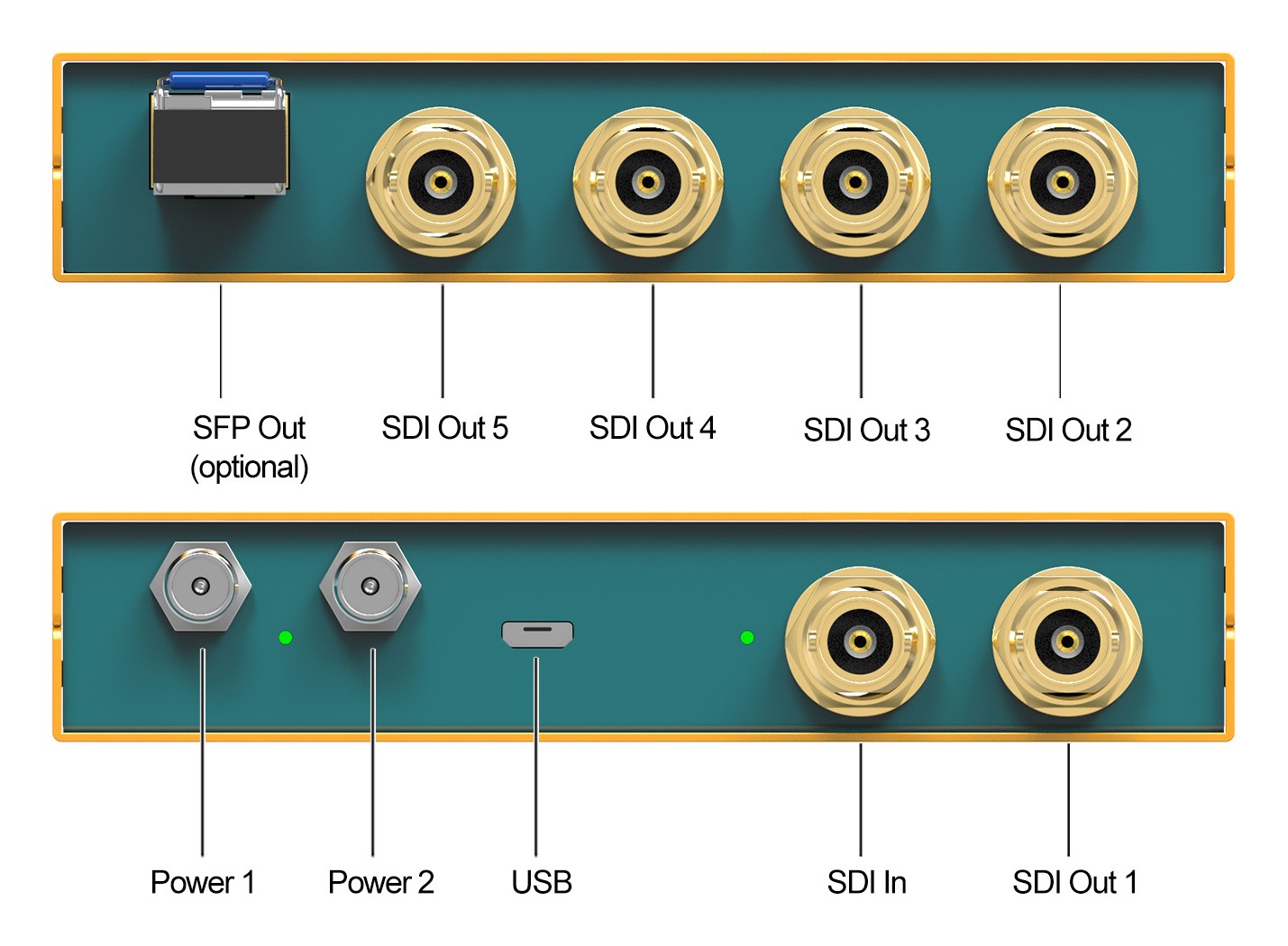

Five BNC outputs carry video, embedded audio and ancillary data. An optional SFP module adds an optical path, while front-panel LEDs provide quick confirmation of power and signal lock.
