AVMatrix PM1250 12.5" 4K monitor with 3D LUTS and HDR

AVMATRIX PM1250 is a portable 12.5-inch 4K production monitor with HDR, 3D LUT, quad-view, HDMI/SDI/DVI/VGA inputs and V-Mount battery support.

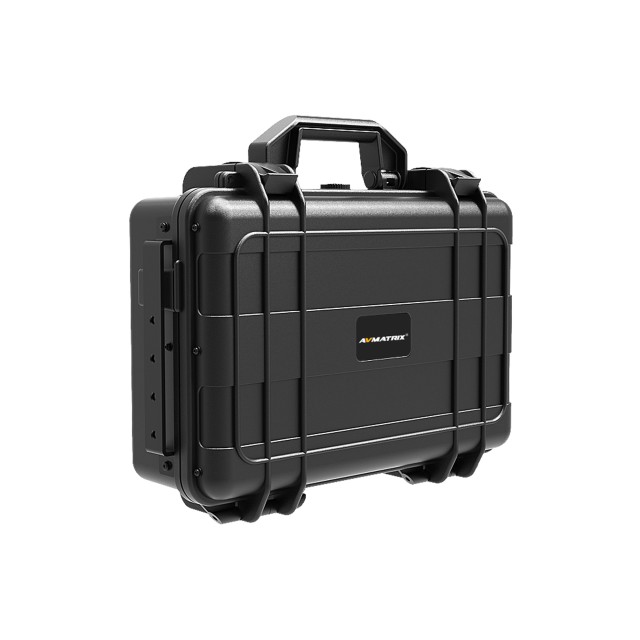

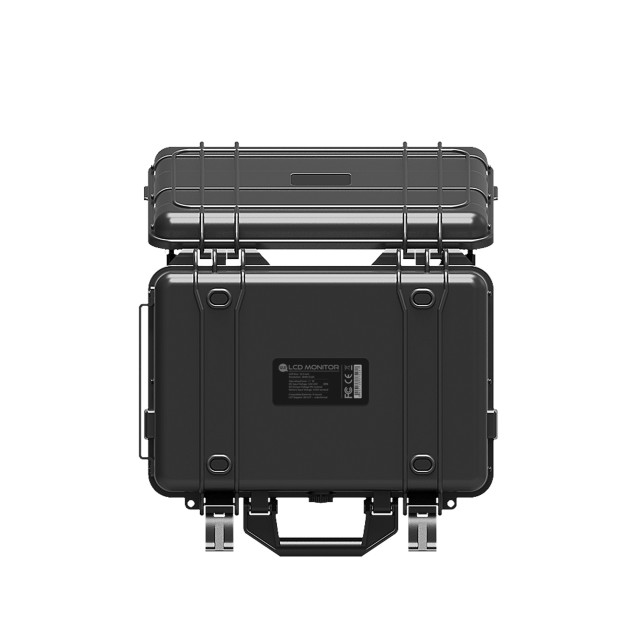

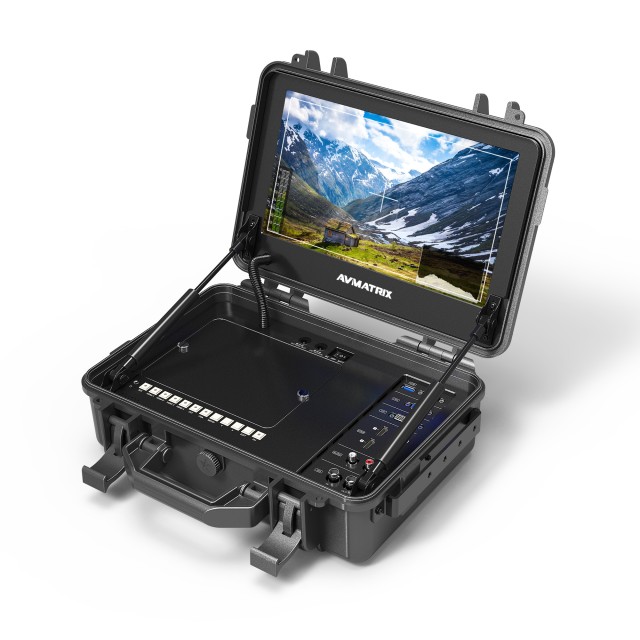

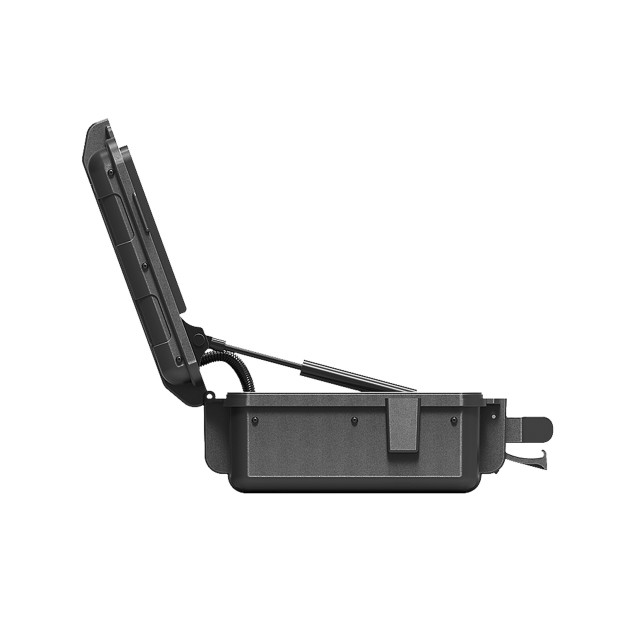

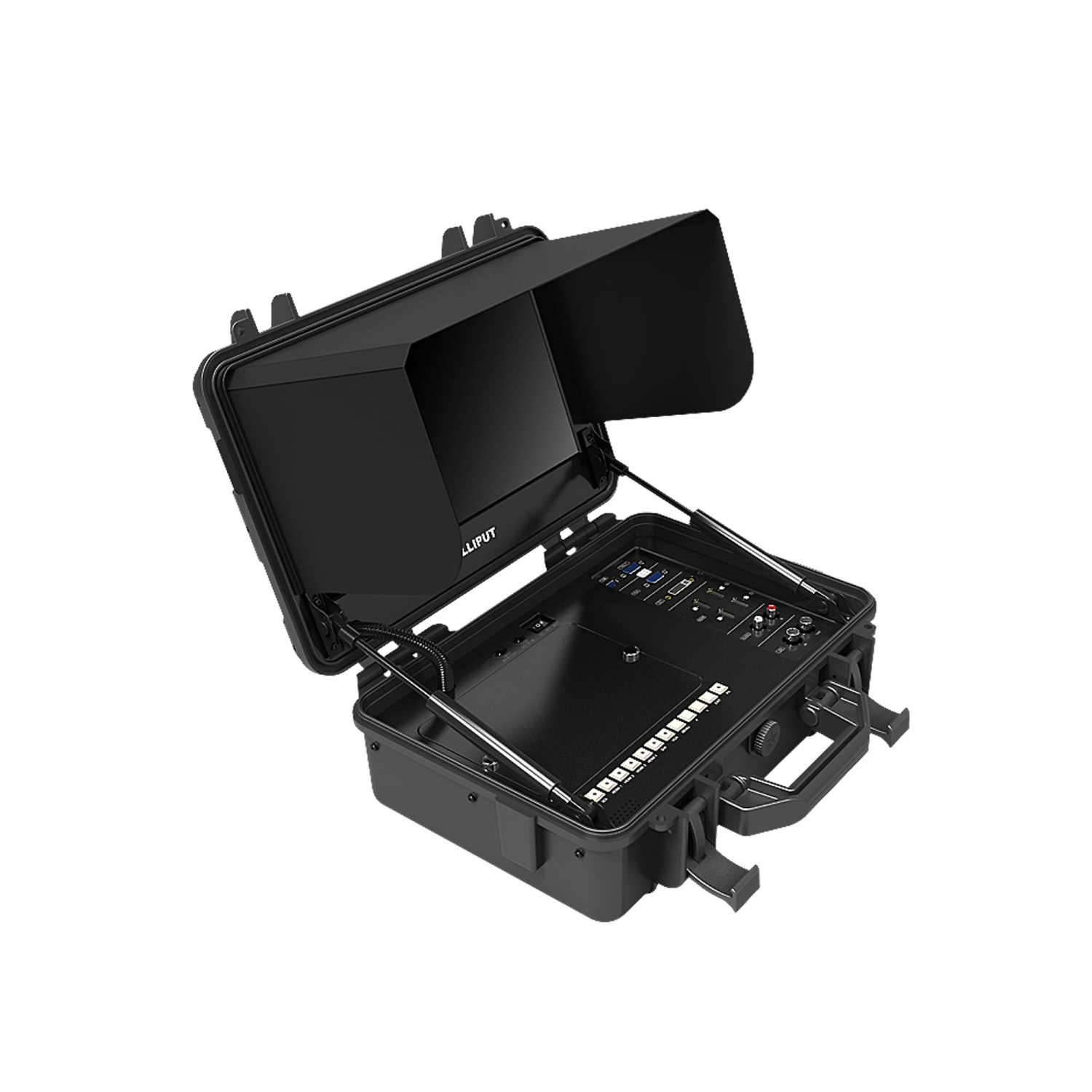

AVMATRIX PM1250 is a portable 12.5-inch production monitor with a native 3840 × 2160 panel, extensive connectivity and professional image evaluation tools. Its integrated flight case protects the display in transit and enables rapid deployment in studios and on location.

True 4K panel and professional inputs

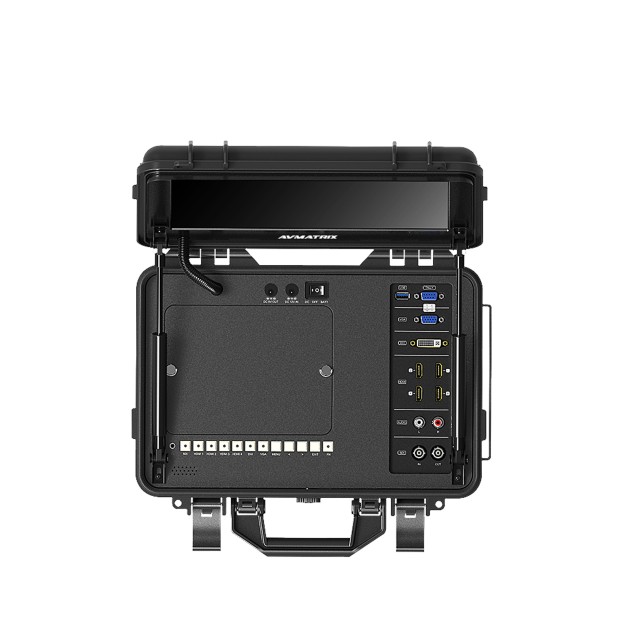

Two HDMI 2.0 inputs accept signals up to 4K60, while two additional HDMI 1.4b inputs expand multi-view capabilities. Broadcast connectivity includes 3G/HD/SD-SDI, plus DVI and VGA. An SDI loop output simplifies connection to downstream equipment.

HDR, 3D LUT and accurate image evaluation

The monitor supports HDR10 and custom 3D LUTs. Peaking, false color, histogram and other exposure and focus tools speed up image evaluation on set and in the control room.

Quad-view and picture-in-picture

Multiple sources can be monitored in quad-view or PIP mode, making PM1250 suitable for multicamera production, quality-control stations and portable switcher systems.

Ready for field operation

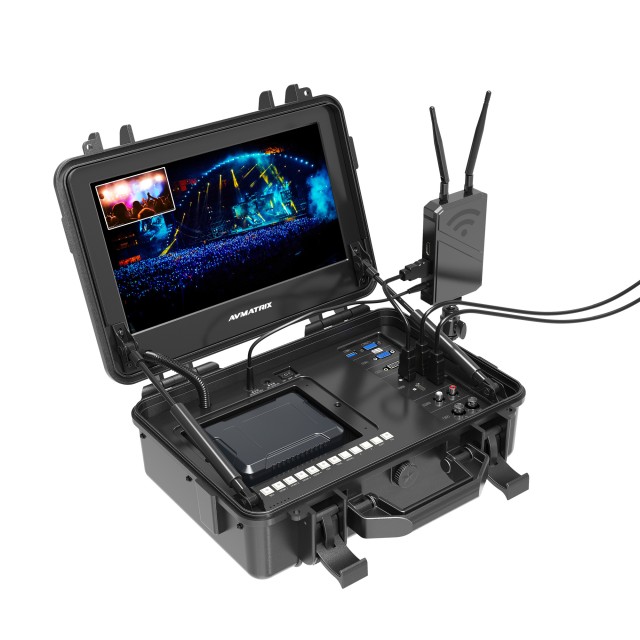

The case-style design weighs approximately 3.98 kg. V-Mount battery support enables operation away from mains power, and an optional SDI/HDMI wireless transmitter can be added for wireless monitoring.

Key features

• 12.5-inch 3840 × 2160 LCD panel
• 2× HDMI 2.0 with 4K60 support, 2× HDMI 1.4b
• 3G/HD/SD-SDI input and loop output
• DVI and VGA inputs
• HDR10 and 3D LUT support
• peaking, false color, histogram and other tools
• quad-view and PIP
• case-style design and V-Mount battery support
