Tilta Khronos iPhone 15 Pro Basic Kit - Titanium White with battery

The Khronos Basic Kit is an aluminium cage for the iPhone 15 Pro with an LED panel and a Focus PD handle with its own battery. The case is fastened to the phone with four screws and accessories snap into locking clamps with electrical contacts, so power runs through the whole cage. The kit is machined for the iPhone 15 Pro — it does not fit the iPhone 15 Pro Max.

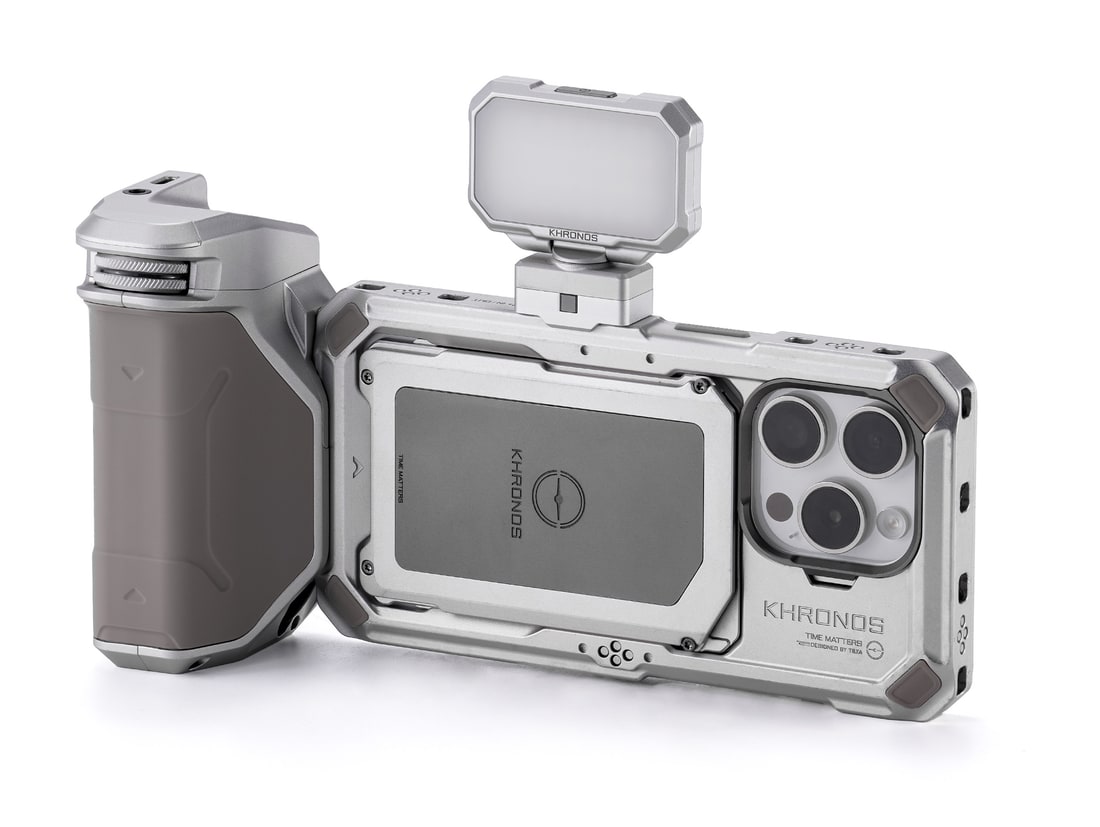

A filmmaking cage around the phone

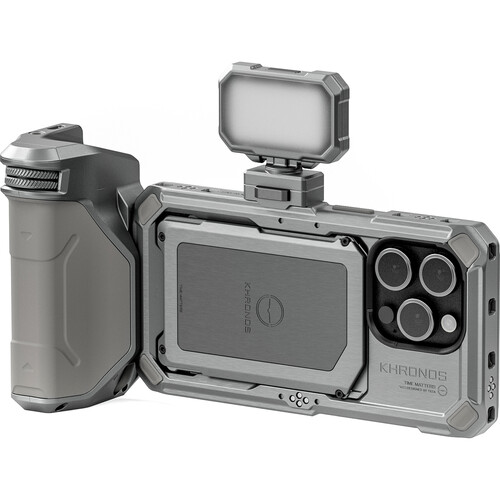

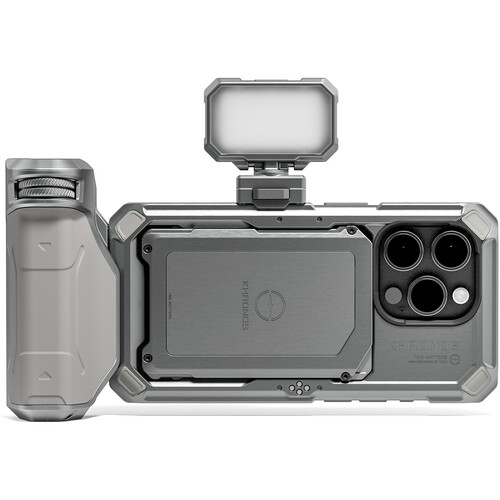

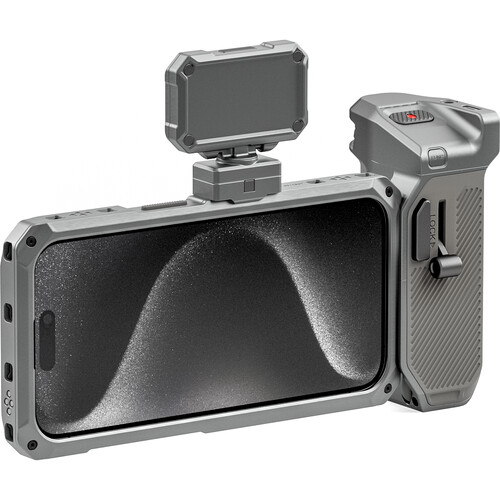

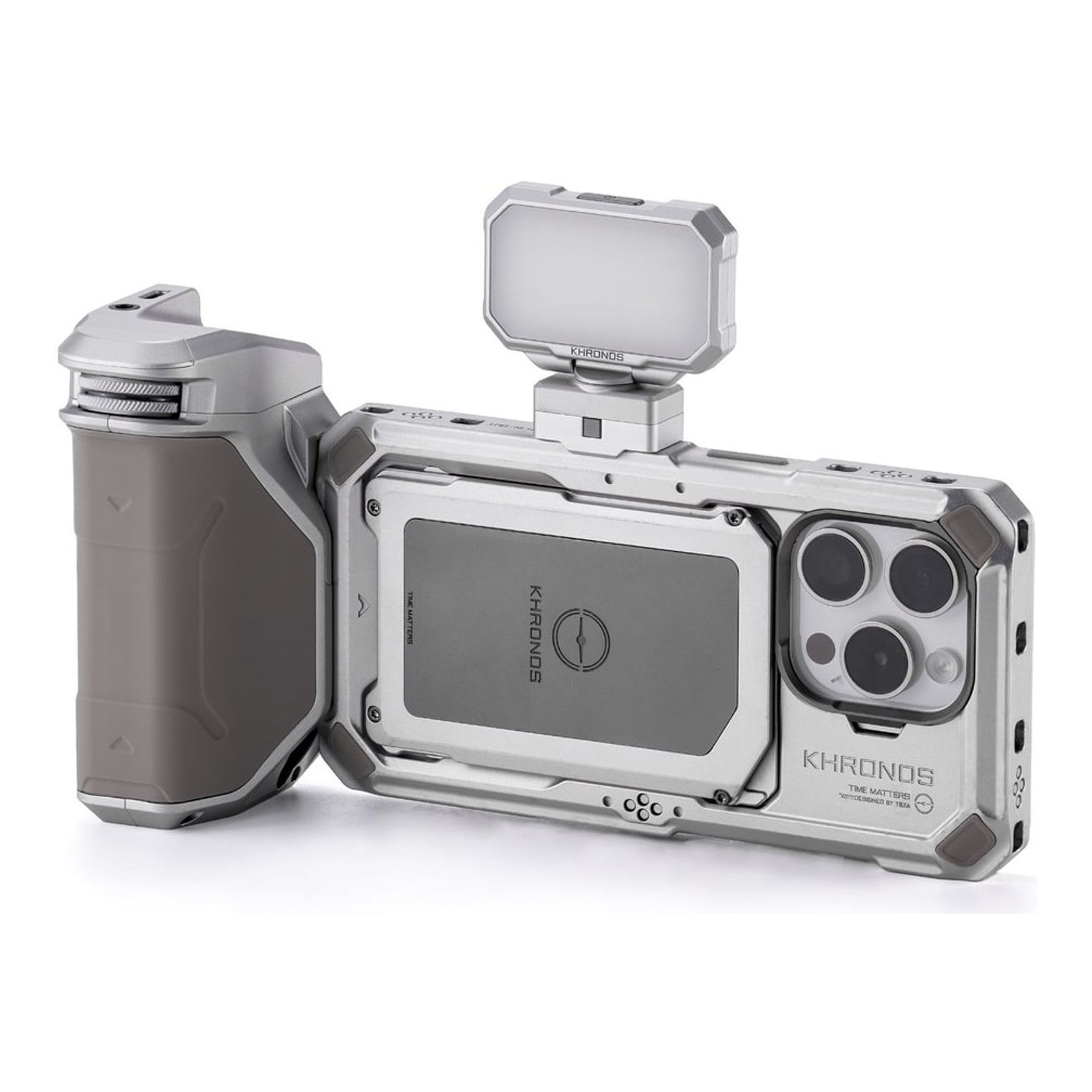

The aluminium cage wraps around the iPhone 15 Pro and holds it with four screws. The Focus PD handle with its own battery snaps into the side clamp, the LED panel goes on top. The handle controls focus and zoom over Bluetooth with a front dial and has a record button, so you never have to let go while filming.

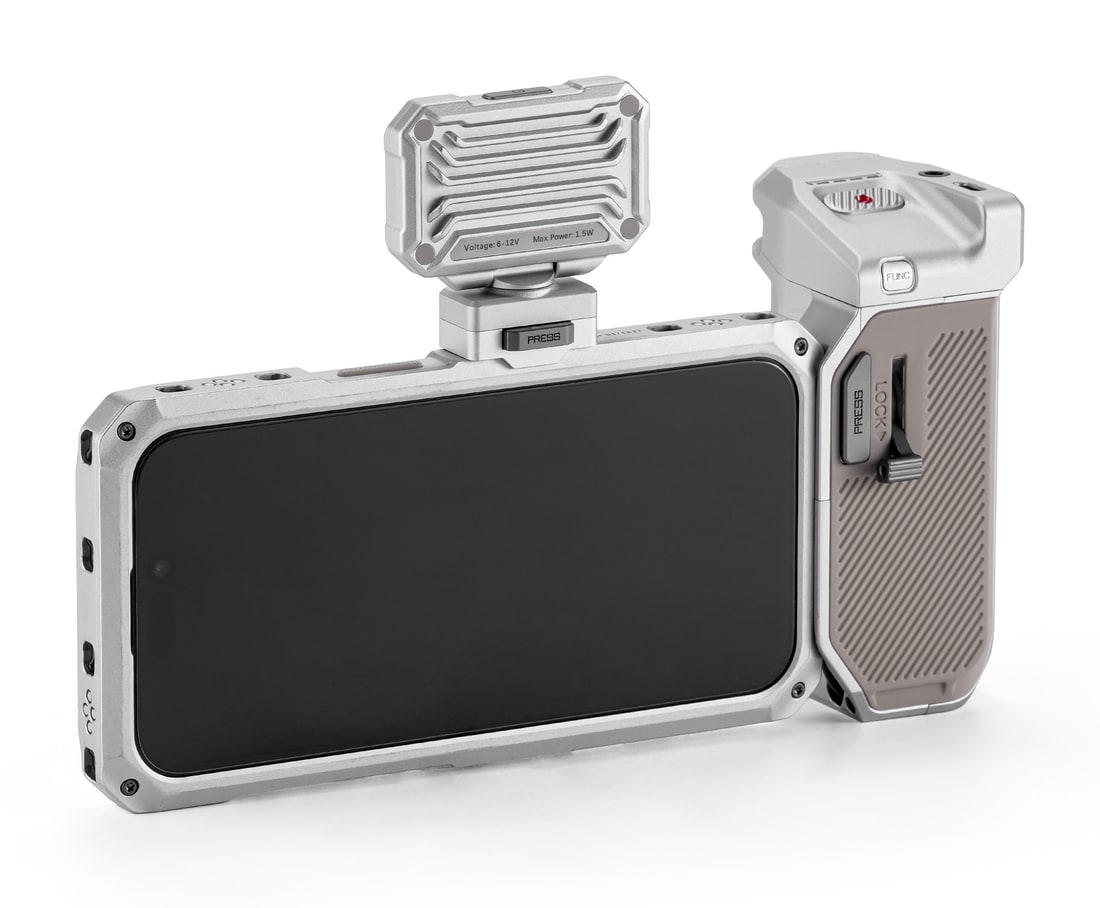

Machined for the iPhone 15 Pro

The case is made for one model only. Its outer dimensions are 156.6 × 80.6 × 14 mm and the case alone weighs 69.5 g. The cut-outs line up with the buttons, the camera module and the USB-C port, which stays accessible. It does not fit the iPhone 15 Pro Max or older iPhones — Tilta makes a separate case for the iPhone 15 Pro Max (TK-IP15-PMFC-TW).

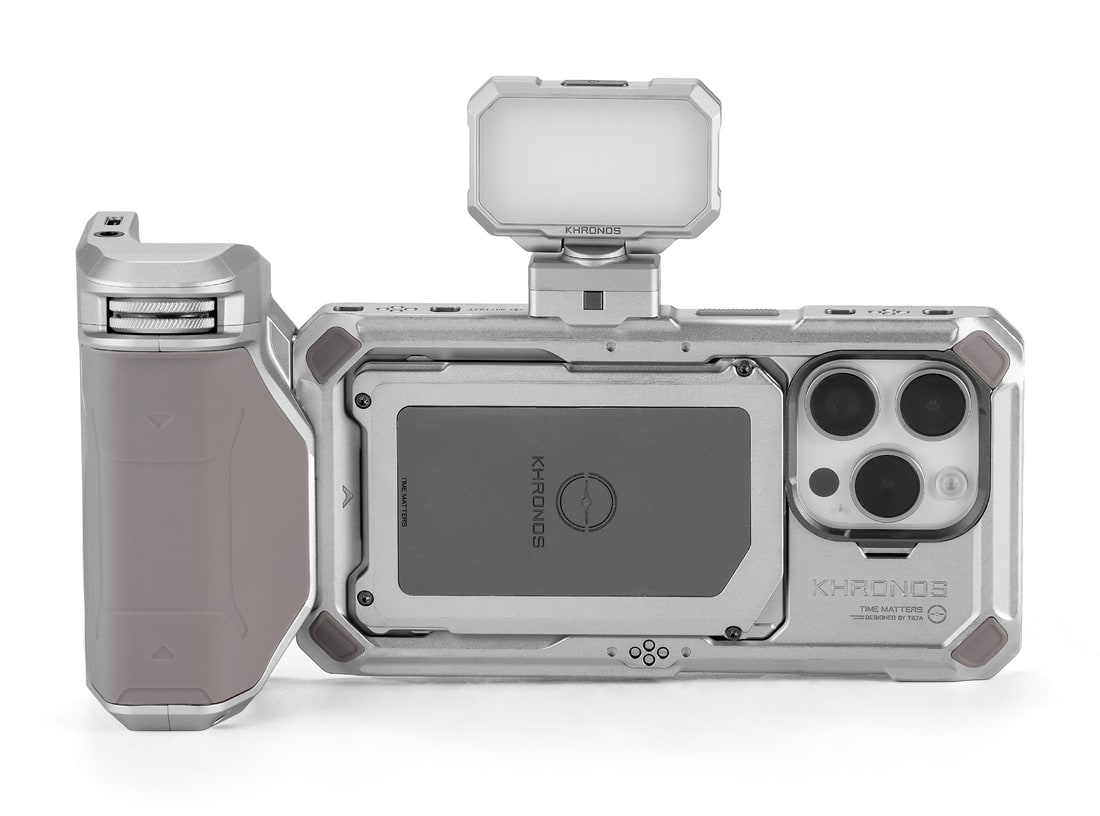

Locking clamp and pass-through power

Accessories are not screwed on: press the release button, slide the pins into the clamp and let go. The cage has several mounting points around its edge, so a handle, a light or a hub moves in seconds. The clamps carry electrical contacts, so power from the battery in the Focus PD handle travels through the cage to the LED panel or the cooling module and no part needs its own supply.

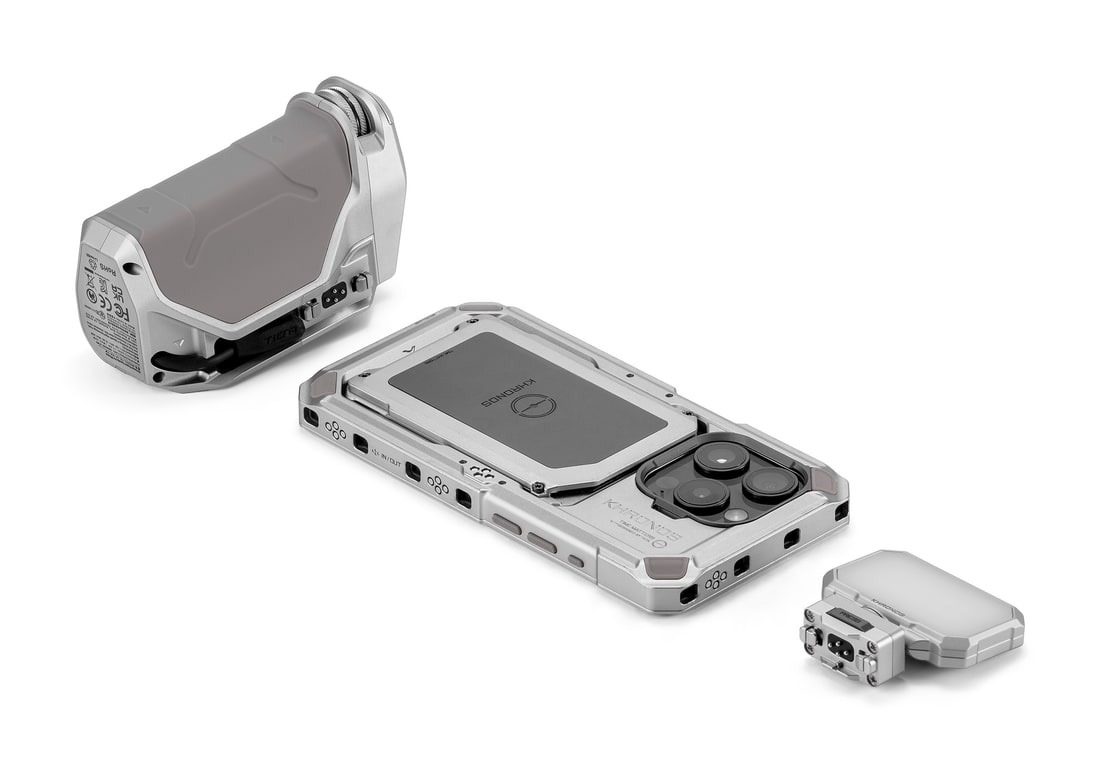

What is in the kit

The box holds the case for the iPhone 15 Pro, the Focus PD handle with a built-in battery (charged over USB-C) and the Mini LED Panel (Daylight) with three brightness levels.

Four equipment levels

Khronos for the iPhone 15 Pro comes in four kits. The case is the same in all of them; only what is packed with it differs.

• Lightweight Kit — case and two adjustable handles (TK-IP15-PA-SG, TK-IP15-PA-TW)
• Basic Kit — case, LED panel and Focus PD handle with battery (TK-IP15-PB-SG, TK-IP15-PB-TW)
• Advanced Kit — case, cooling module, Focus PD handle, filter tray and two ND filters (TK-IP15-PC-SG, TK-IP15-PC-TW)
• Ultimate Kit — everything in the Advanced Kit plus the LED panel, USB-C hub, 38 mm Arca-Swiss adapter, wooden handle, SSD holder and the Black Mist 1/4 and White Mist 1/4 filters (TK-IP15-PD-SG)

This page is the Basic Kit for the iPhone 15 Pro in Titanium White.

Mounting interfaces

A cold shoe, a NATO rail, an adjustable handle with 1/4″-20 threads and a 38 mm Arca-Swiss adapter all snap into the cage clamps; Tilta sells them separately. The Arca-Swiss adapter fits tripod heads with an Arca clamp as well as the DJI RS 2, RS 3 and RS 3 Pro gimbals.

Note

Connecting external audio to the Focus PD handle requires a 3.5 mm TRS to 3.5 mm TRRS cable. It is not included.
