RGBlink MSP 304

The RGBlink MSP 304 is a compact HDMI to SDI video converter that supports resolutions up to 1080p with embedded audio. Compatible with all SD/HD/3G-SDI and SMPTE standards, the MSP 304 provides reliable HDCP-compliant conversion in a mini form factor, making it ideal for professional AV, broadcast, and live production applications where space is limited.

The MSP 304 turns the picture from an HDMI computer, camera or player into an SDI signal for the broadcast chain, carrying the embedded audio along.

HDMI input

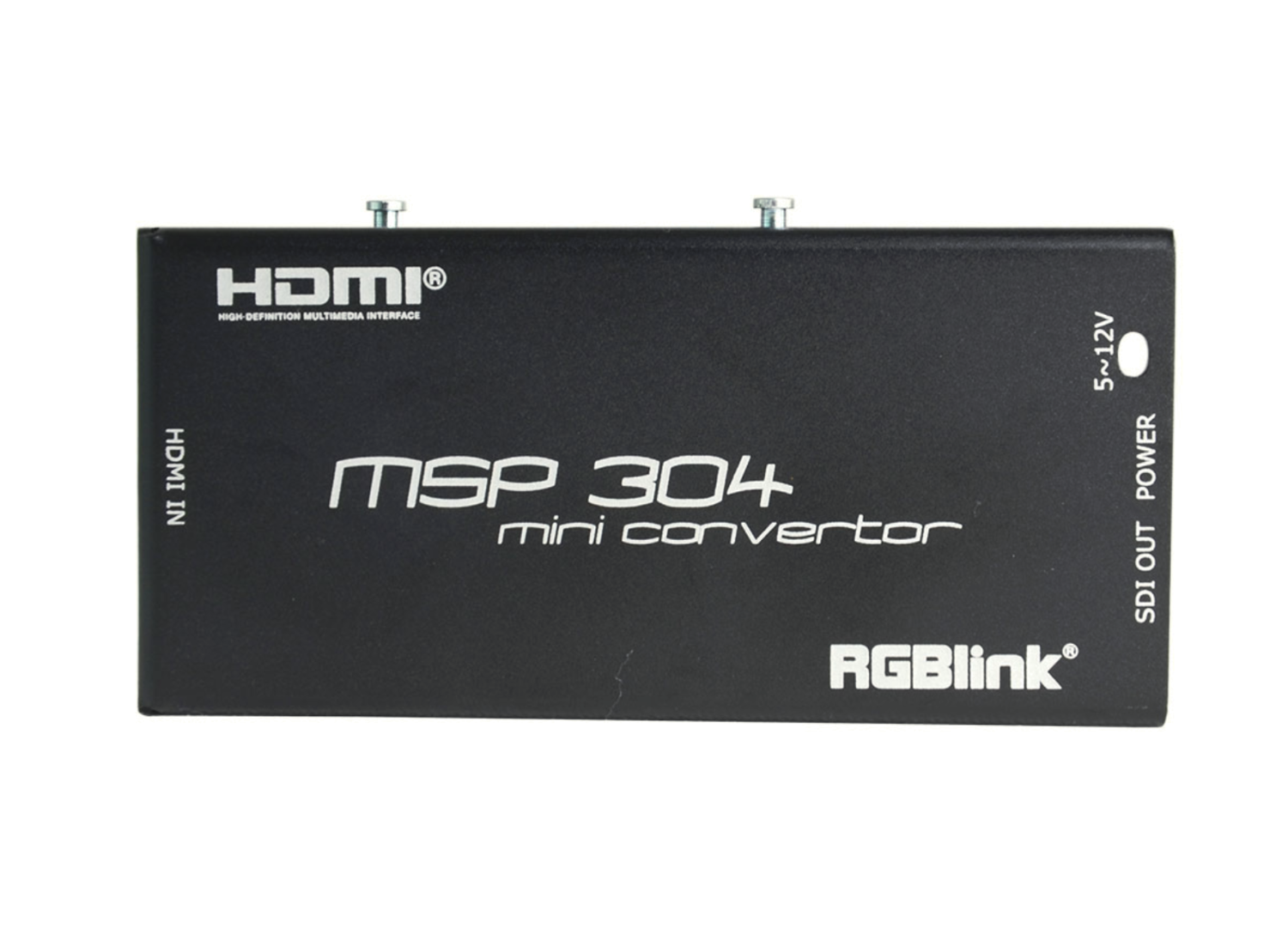

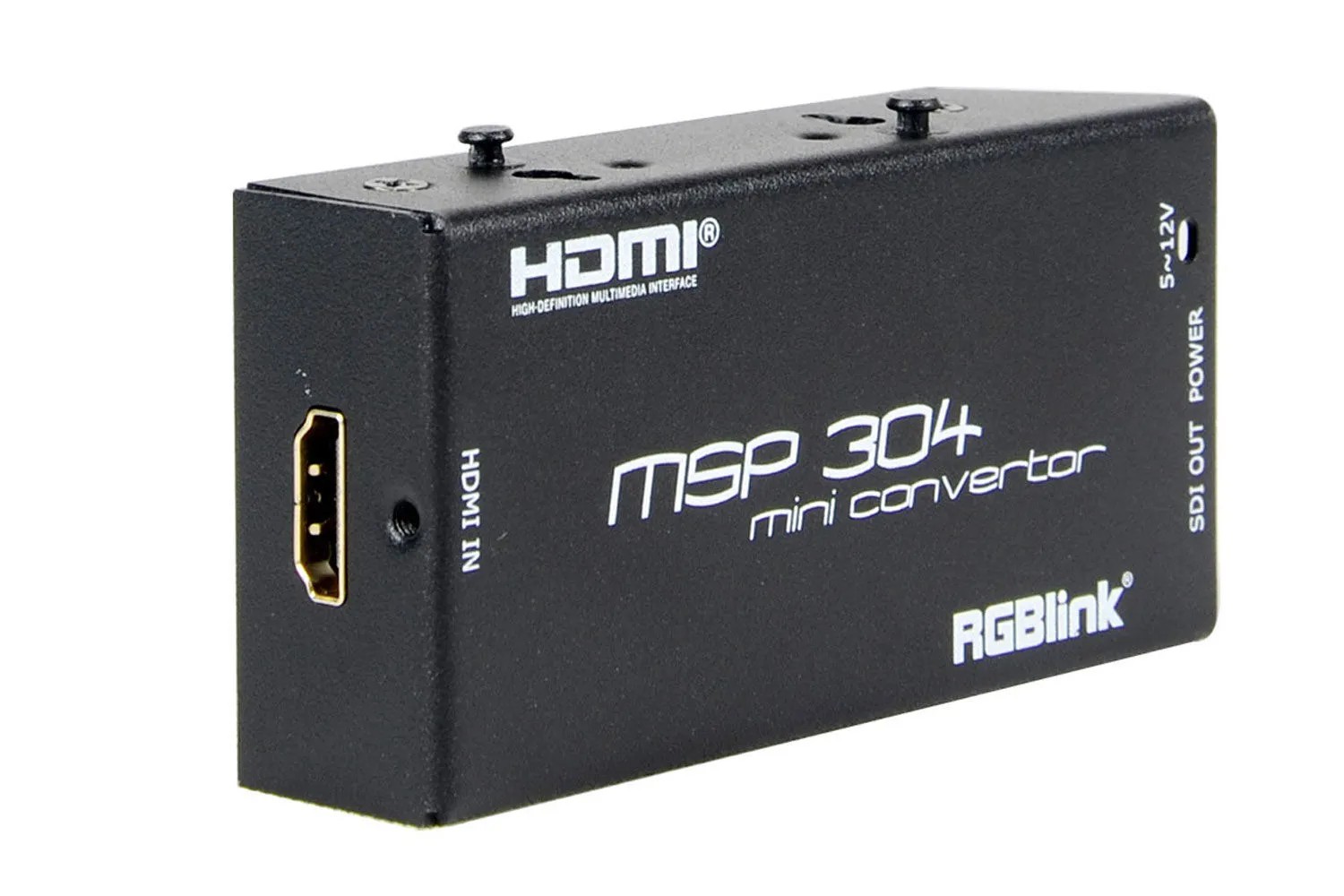

The front carries the HDMI IN connector for sources up to 1080p60, including HDCP-protected content. The body measures 98 × 47 × 24 mm and weighs 0.15 kg; screws on top hold the optional mounting ears for a rack or a wall.

SDI output and power

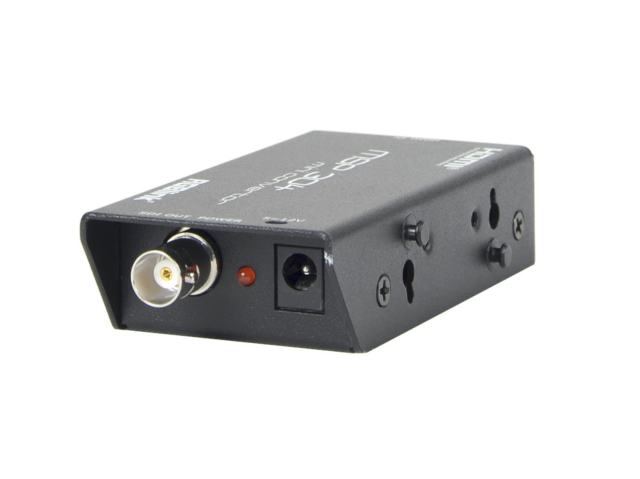

The opposite end has the SDI OUT output on a BNC connector (3G/HD/SD-SDI) and the POWER socket for 5–12 V DC.

More information

The RGBlink MSP 304 is a mini HDMI to SDI converter designed for professional AV, broadcast, and video production workflows. It supports a single HDMI input with resolutions from 720×480 up to 1920×1080p, and converts signals to a 3G/HD/SD-SDI output while maintaining embedded audio. The unit supports all standard SMPTE signals and HDCP, ensuring compatibility with a wide range of HDMI sources and SDI displays.

Compact and lightweight, the MSP 304 is ideal for desktop, rack, or field deployment. An optional pair of mounting ears allows for installation in an MSP rack system. With plug-and-play operation and support for a wide range of input resolutions, this converter is a cost-effective solution for video conferencing, signal extension, broadcast monitoring, and small-scale production environments.

Key Features:

• HDMI to SDI conversion with embedded audio
• Supports 3G/HD/SD-SDI output
• Compatible with all SMPTE standards
• Supports HDMI resolutions up to 1080p
• HDCP-compliant
• Mini form factor with optional rack mounting ears
• Plug-and-play operation
