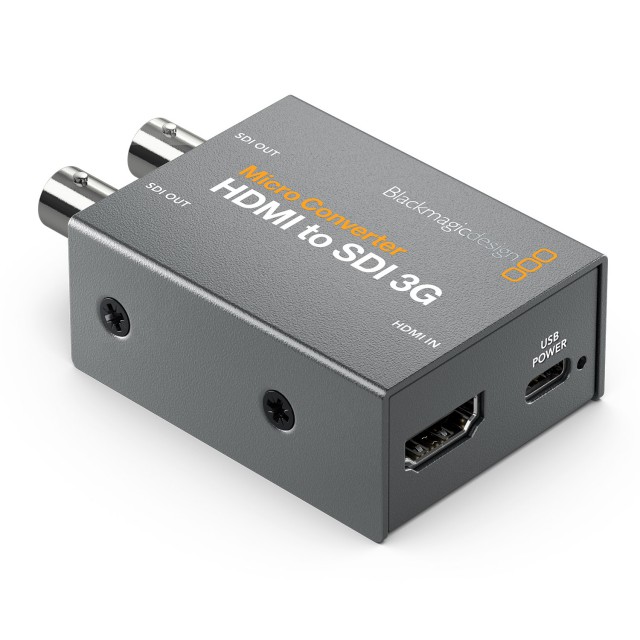

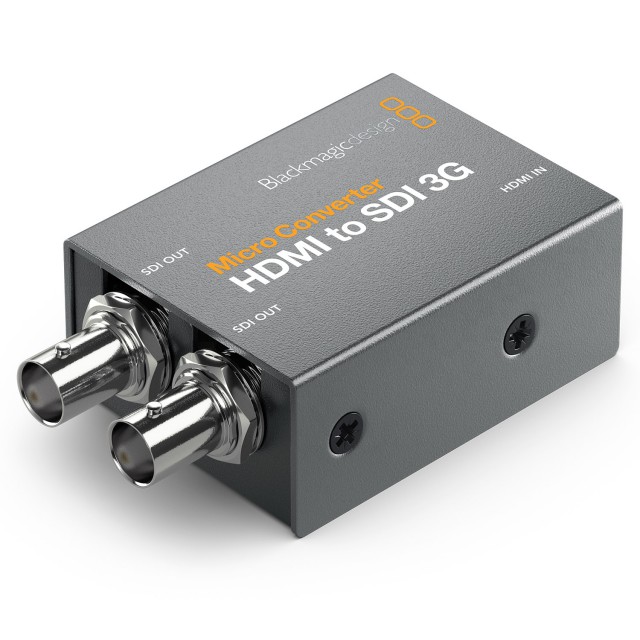

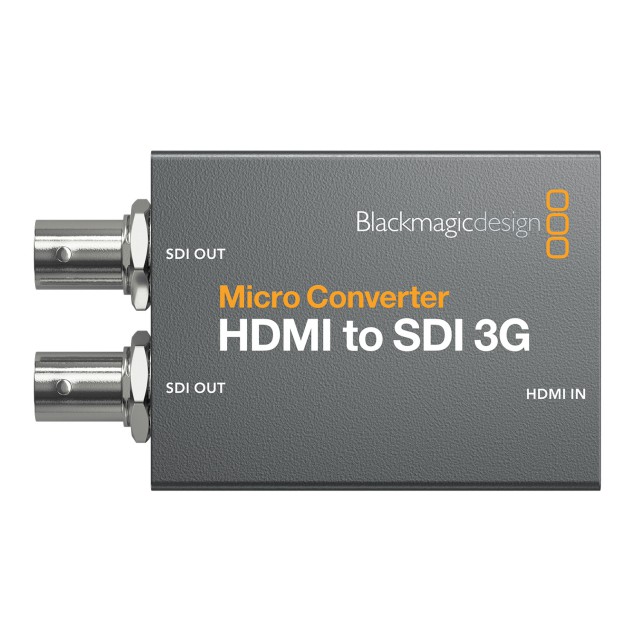

Blackmagic Design Micro Converter HDMI to SDI 3G wPSU

Name: Blackmagic Design Micro Converter HDMI to SDI 3G wPSU (vč. zdroje)
Brand: Blackmagic Design
SKU: CONVCMIC/HS03G/WPSU
Price: 85 EUR
Availability: InStock

SKU: CONVCMIC/HS03G/WPSU

Connect HDMI cameras or computers to professional SDI infrastructure with two synchronized 3G-SDI outputs in a compact metal converter.

More information

85 € with VAT 70.25 € without VAT

Price history

Personal pickup within 90 minutes
Shipment day: Today

In stock 4 pcs
Praha 4 pcs, Budapest 1 pcs

SKU:
CONVCMIC/HS03G/WPSU

Price history

Top accessories for Blackmagic Design Micro Converter HDMI to SDI 3G wPSU

INFINITEC HDMI TO HDMI ultra thin flixible 4K cable, 50cm

Top product

Ultra-thin and flexible HDMI cables for the needs of all creative professionals.

23 €

In stock > 5 pcs

INFINITEC HDMI TO HDMI ultra thin flixible 4K cable, 80cm

4K / UHD

Infinitec ultra tenký a flexibilný 4K HDMI v 2,0 kábel pre kreatívnych profesionálov.

23 €

In stock > 5 pcs

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 2 m

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare

23 €

on request

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Connect HDMI cameras or computers to professional SDI infrastructure with two synchronized 3G-SDI outputs in a compact metal converter.

HDMI TO 3G-SDI, TWICE

Connect HDMI cameras or computers to professional SDI infrastructure with two synchronized 3G-SDI outputs in a compact metal converter.

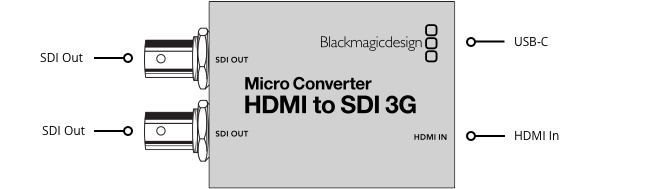

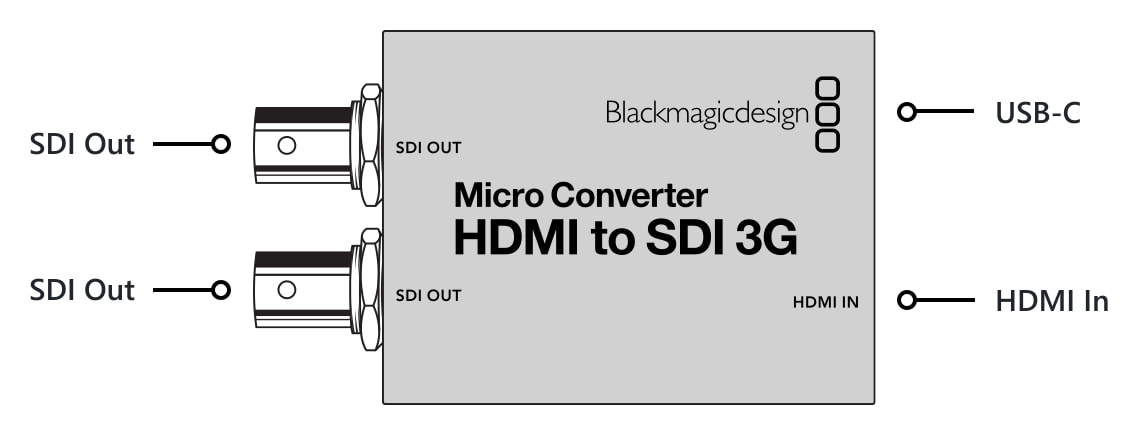

HDMI INPUT2× 3G-SDIUP TO 1080p60USB-C POWER

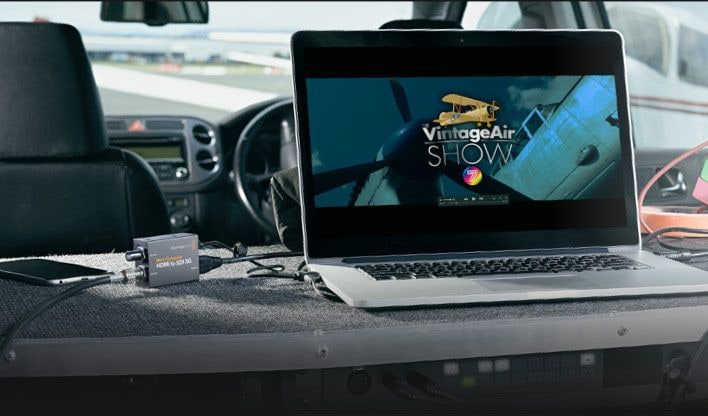

Two synchronized SDI outputs

Both 3G-SDI outputs automatically follow the HDMI input, so one compact converter can feed two professional destinations at once. Output Level A or Level B is selectable in Blackmagic Converters Setup.

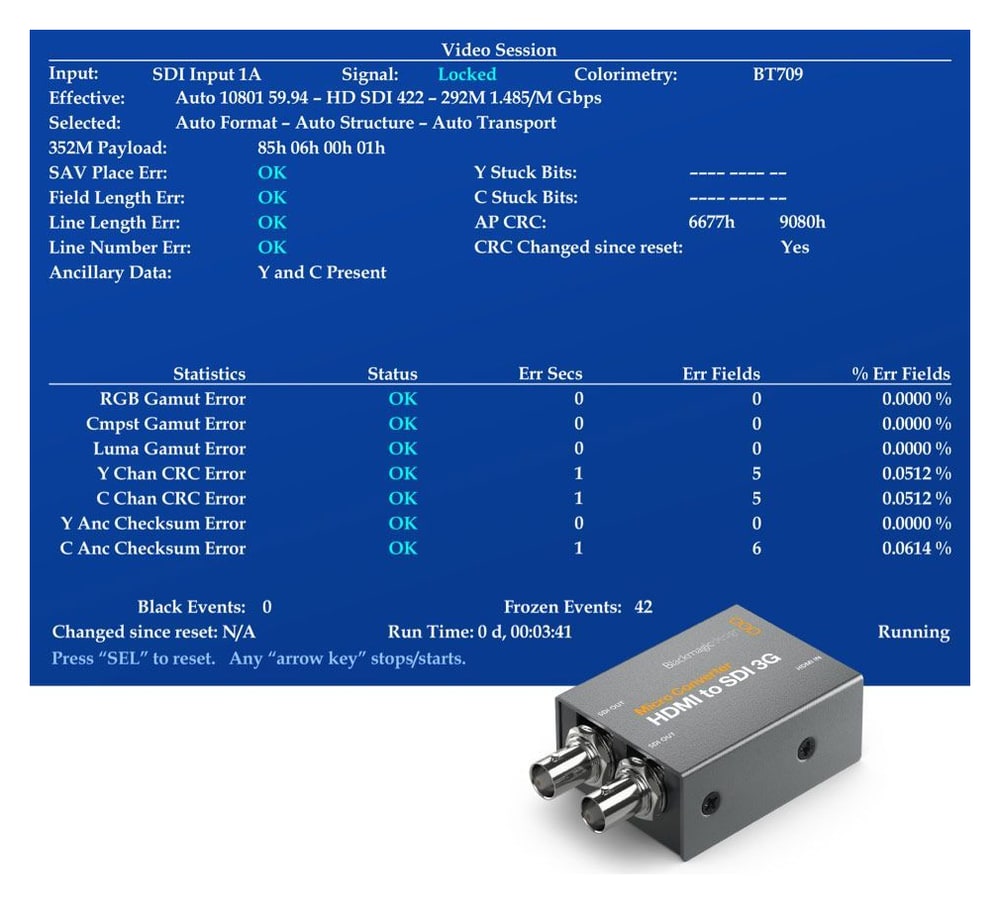

Broadcast formats without compromises

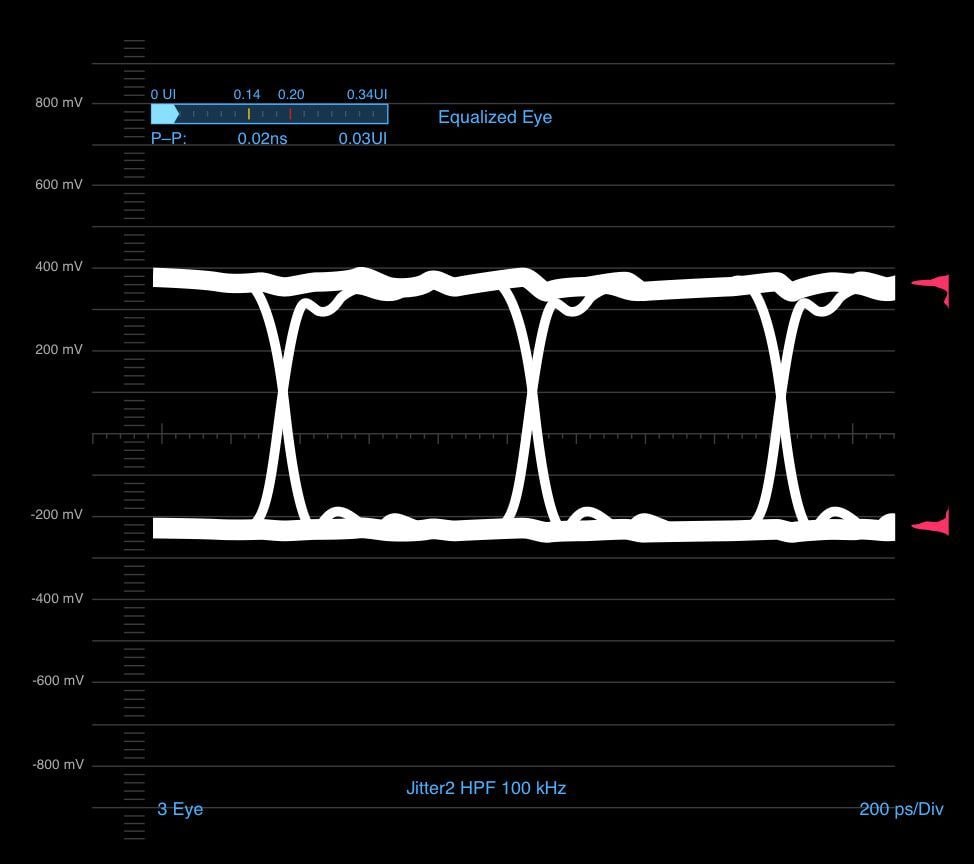

Automatic SD and HD detection covers NTSC, PAL, 720p, 1080i and 1080p formats, including film rates such as 1080p24, 1080p47.95 and 1080p48. Integrated reclocking stabilizes the SDI outputs.

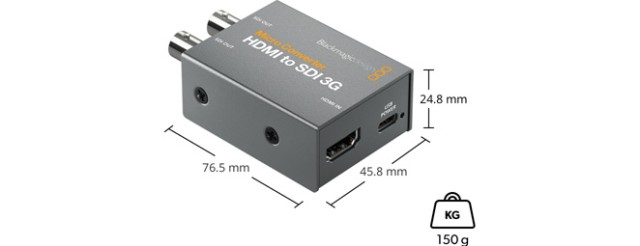

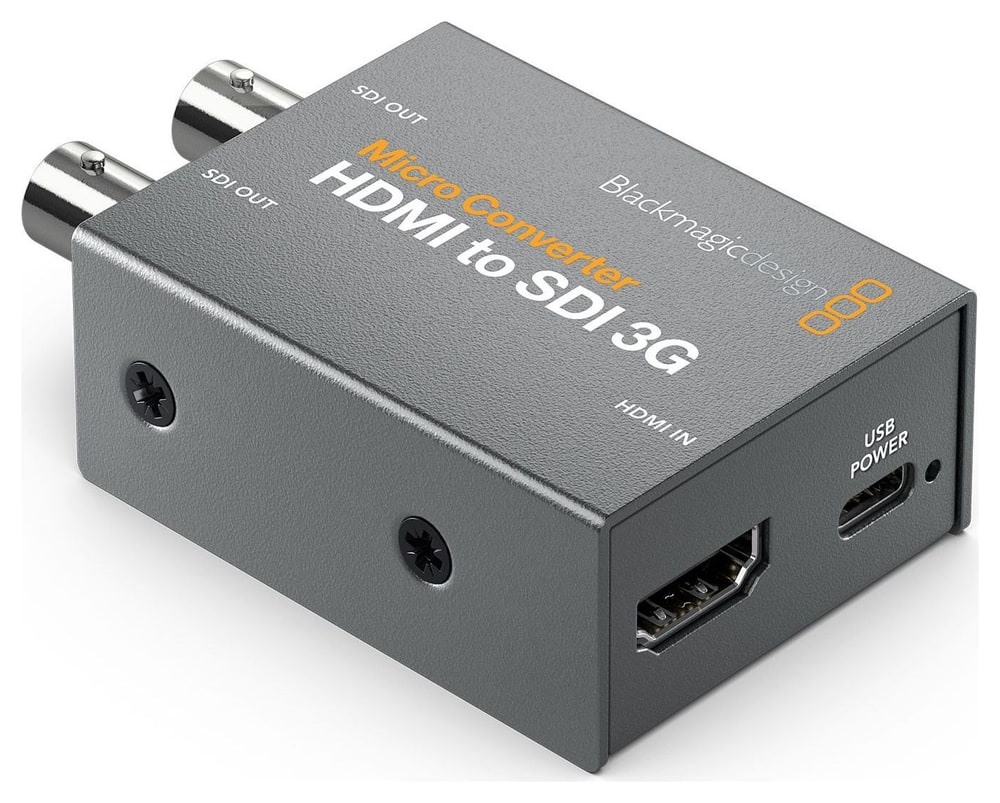

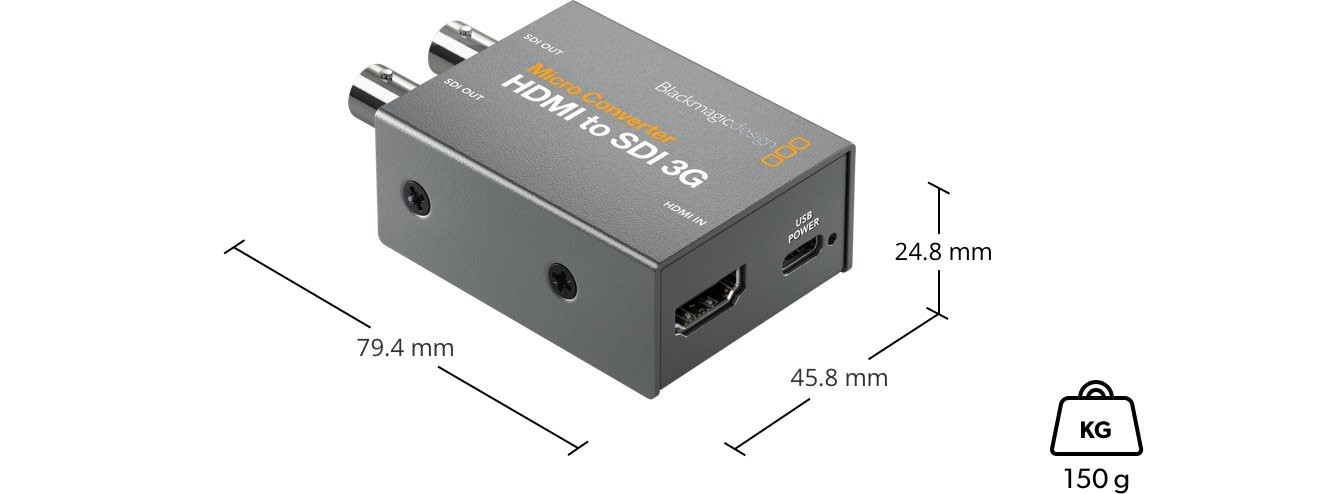

Compact, rugged and easy to power

The durable metal body fits directly into camera, presentation and live-production rigs. USB-C provides power, configuration and firmware updates from a computer or a suitable 5 V source.

HDMI cameras

Bring an HDMI camera into professional SDI production.

Computers and playback

Convert presentations, graphics and playback outputs to SDI.

Long cable runs

Use robust BNC cabling for longer signal paths.

Live production

Feed switchers, recorders and monitors simultaneously.

PACKAGE CONTENT

Micro Converter HDMI to SDI 3G

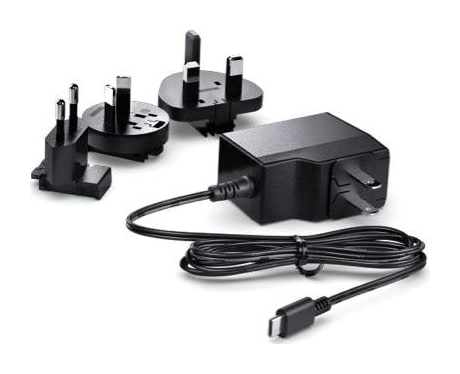

+5 V universal power supply with international socket adapters

SPECIFICATIONS

HDMI video input: 1 × HDMI Type A
SDI video outputs: 2 × SD/HD/3G-SDI; automatically match the HDMI input
Multi-rate support: Automatic detection of SD or HD
Reclocking: Yes
Supported formats: NTSC, PAL, 720p, 1080i and 1080p up to 60 fps
SDI compliance: SMPTE 259M, 292M, 296M, 424M and 425M
SDI color precision: 4:2:2 YUV
3G-SDI level: Level A or Level B selectable in the setup utility
Updates, configuration and power: USB Type-C
Power consumption: 2 W
Operating voltage: 4.4 to 5.25 V DC
Operating temperature: 0 to 40 °C
Warranty: 3-year limited manufacturer warranty

WE RECOMMEND

The Blackmagic Design Micro Converter HDMI to SDI 3G is a compact professional converter that allows you to integrate HDMI devices, such as Pocket Cinema cameras, into professional SDI workflows. It is ideal for connecting consumer electronics to production suites, editing systems, and other broadcast equipment while maintaining high image quality and supporting 3D LUTs.

Cameras with HDMI Output - These cameras serve as the primary source of the HDMI signal for conversion to the professional SDI interface.

Video capture cards and interfaces - Devices capable of receiving a converted SDI signal for recording, monitoring, or broadcasting.

Production and Signal Processing - Video production systems that can utilize a converter to distribute HDMI output to an SDI infrastructure.

Blackmagic Design ATEM Mini Pro

Software and Control Panels - Tools for post-processing and color correction of video captured via Blackmagic converters.

Cables and Connectivity - Accessories for connecting SDI components within a video chain.

Blackmagic Design Cable (DIN 1.0/2.3 to BNC Female, 20 cm)

Parameters

Manufacturer:	Blackmagic Design
Category:	Signal converters

Main parameters

Source	HDMI
Target	3G SDI
