Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 2 m

SKU: I-33UW-M/M-BLK-2

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare L-3.3CUHWS coaxial cable is terminated with two straight 75-ohm Canare BCP-D33UHW BNC connectors and is designed for UHD/4K signal transmission in accordance with SMPTE ST 2082-1.

More information

23 € with VAT 19.01 € without VAT
Add to Compare Price history
Availability
on request
SKU:
I-33UW-M/M-BLK-2
Add to Compare Price history

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 1 m

In stock 2 pcs20 €without VAT 16.53 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 3 m

27 €without VAT 22.31 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 5 m

34 €without VAT 28.1 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 7.5 m

44 €without VAT 36.36 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 10 m

53 €without VAT 43.8 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 15 m

72 €without VAT 59.5 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 20 m

90 €without VAT 74.38 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 25 m

109 €without VAT 90.08 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 30 m

128 €without VAT 105.79 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 35 m

146 €without VAT 120.66 €

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 40 m

165 €without VAT 136.36 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare L-3.3CUHWS coaxial cable is terminated with two straight 75-ohm Canare BCP-D33UHW BNC connectors and is designed for UHD/4K signal transmission in accordance with SMPTE ST 2082-1.

Reliable 12G-SDI for location and studio work

The L-3.3CUHWS construction combines a stranded centre conductor, highly foamed PE insulation and a high-density double-braided shield. The result is a flexible cable suited to repeated connection and mobile production rigs.

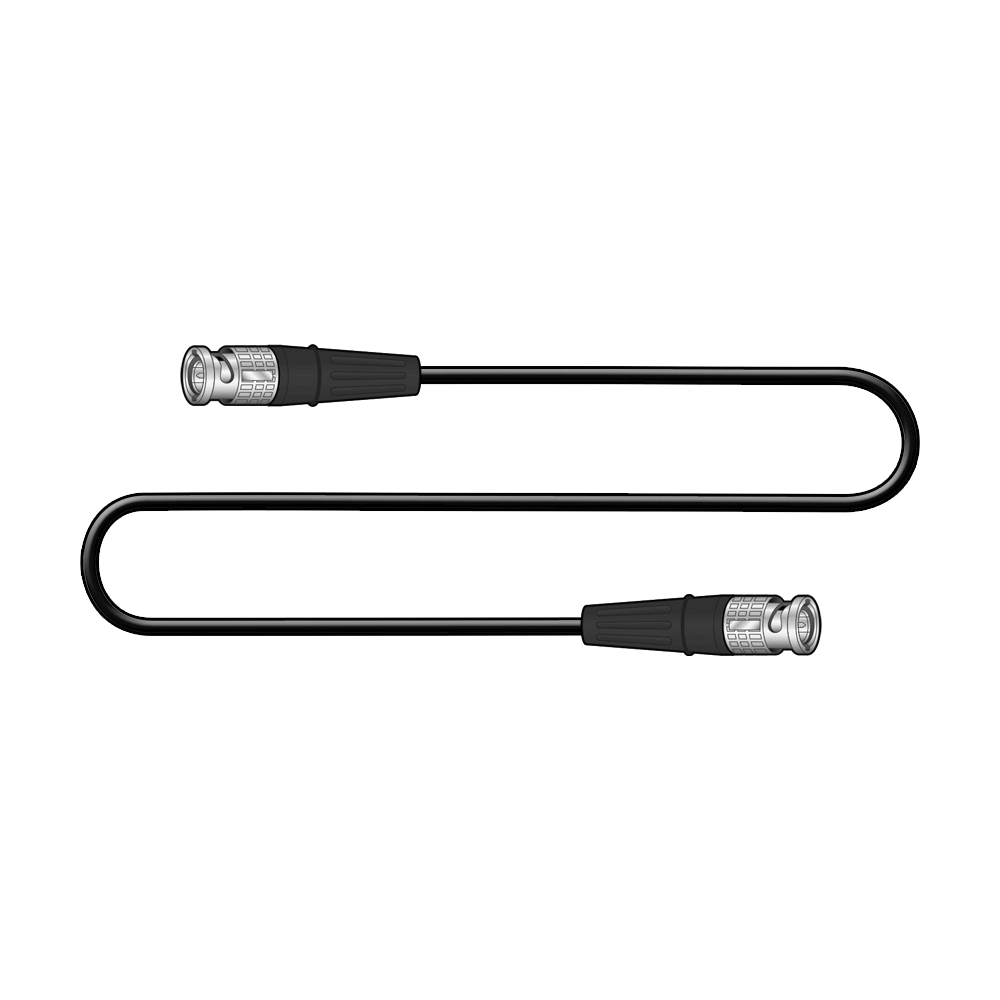

Infinitek L-3.3CUHWS 12G-SDI BNC–BNC 2 m
12G-SDI / UHDTransmission compliant with SMPTE ST 2082-1 over a single 75-ohm coaxial cable.
Mobile constructionFlexible, low-loss design with a high-density double-braided shield.
Ready-made 2 m assemblyTwo straight crimped BCP-D33UHW male BNC connectors.

PACKAGE CONTENT

Package contents1× Infinitek L-3.3CUHWS 12G-SDI BNC–BNC cable, 2 m

SPECIFICATIONS

Technical specifications
Length2 m
CableCanare L-3.3CUHWS
Connectors2× Canare BCP-D33UHW, male BNC
ConnectionMale BNC – male BNC
Impedance75 ohms
Standard12G-SDI, SMPTE ST 2082-1
Nominal outer diameter5.8 mm
Centre conductorAWG 22, 7/0.26 mm; 0.78 mm overall diameter
InsulationHighly foamed PE, 3.30 mm diameter
ShieldingDouble braid, 92% + 92% coverage
Capacitance57 pF/m
Centre-conductor resistance5.0 ohms/100 m
Outer-conductor resistance0.9 ohms/100 m
ColourBlack
Parameters

Parameters

Manufacturer: Infinitek
Category: SDI cables

Main parameters

Cable typeSDI · 12G-SDI
Length2m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter5.8mm
ColourBlack
Connector shapeDirect
Impedance75 Ohm
KonektoryBNC
Délka kabelu2m
Standard SDI12G-SDI

Other parameters

Other4K/UHD
