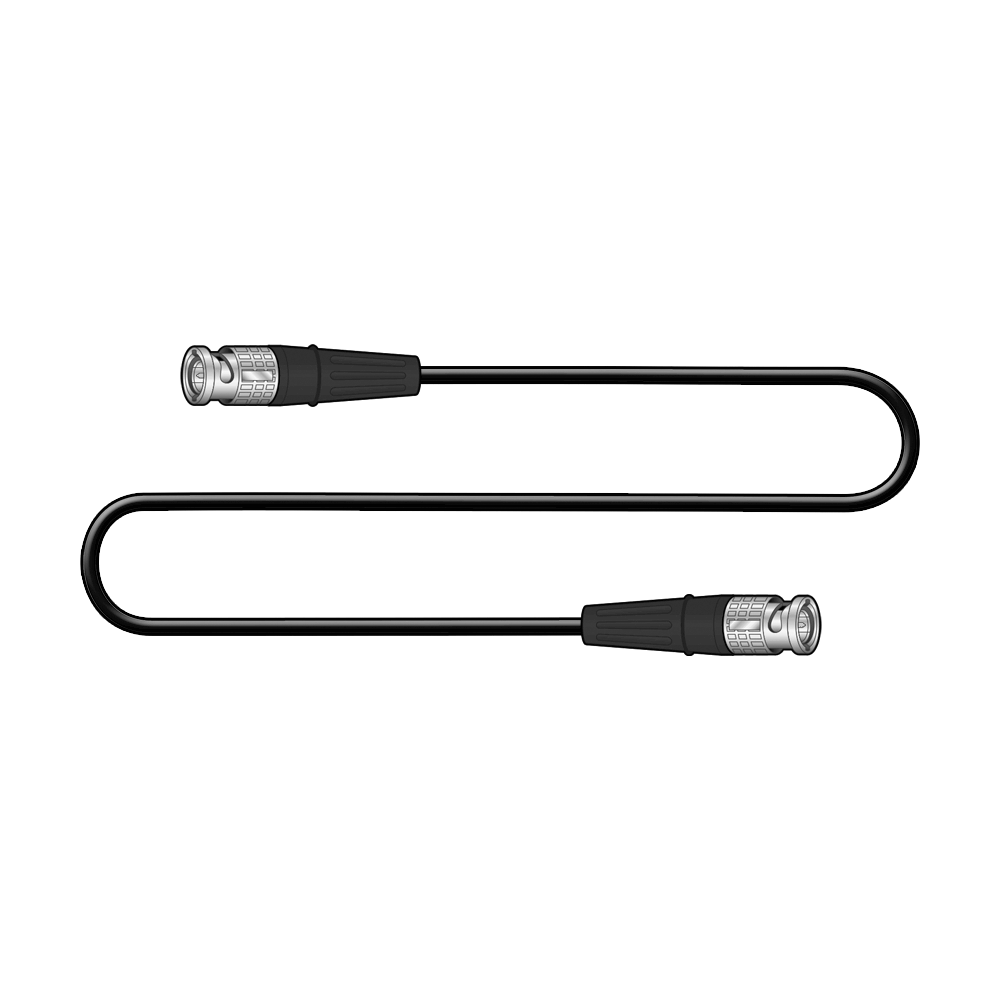

Infinitek L-3.3CUHWS Flexibilný 12G-SDI kábel, BNC-BNC 20m

Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance to repeated bending. The cable has a stranded center conductor and double braided "High-density" shielding with high density and thick foam insulation.

The cable has a stranded center conductor and double braided high-density shielding with thick foam insulation. Both ends feature Canare BCP-D33UHW crimp BNC (M) connectors and optional Canare CB04 color caps.

Canare L-3.3CUHWS cable specifications:

• Standard lengths: 100/200
• Sheath diameter (total diameter) in mm:5.8
• Cable weight in kg/100m:4.8
• Central conductor - diameter and number of strands in mm:7/26
• Total diameter of central conductor in mm:0.78
• Foam dielectric - diameter in mm:3.3
• Resistance of central conductor in Ω/100m:5.0
• Outer conductor resistance in Ω/100m: 0.9
• Temperature range: -30°C ~ +60°C
• Static capacitance in pF/m:57
• Attenuation in dB/100m: 98.7 / 6GHz

Maximum transmission distance depending on video format
