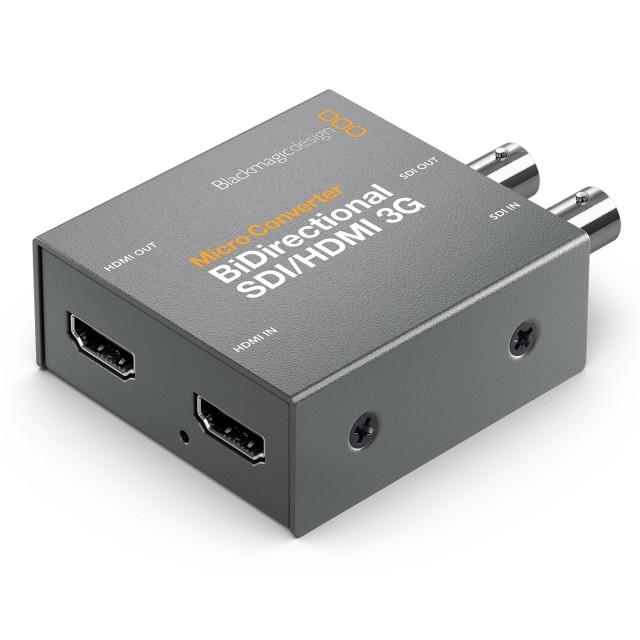

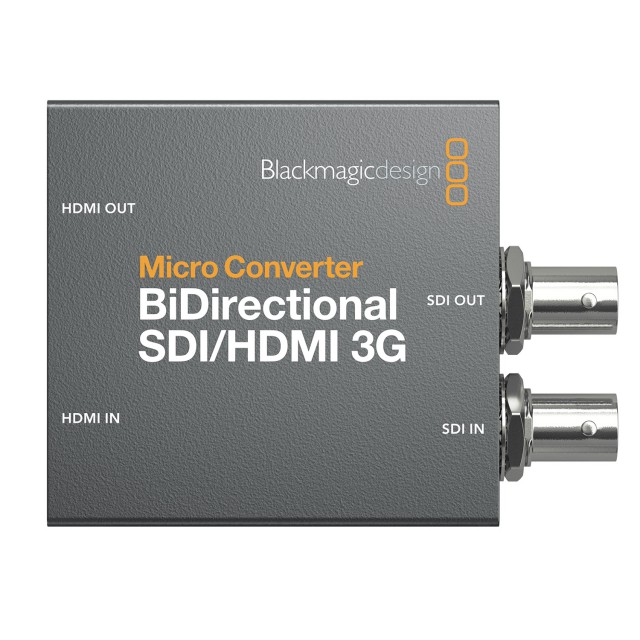

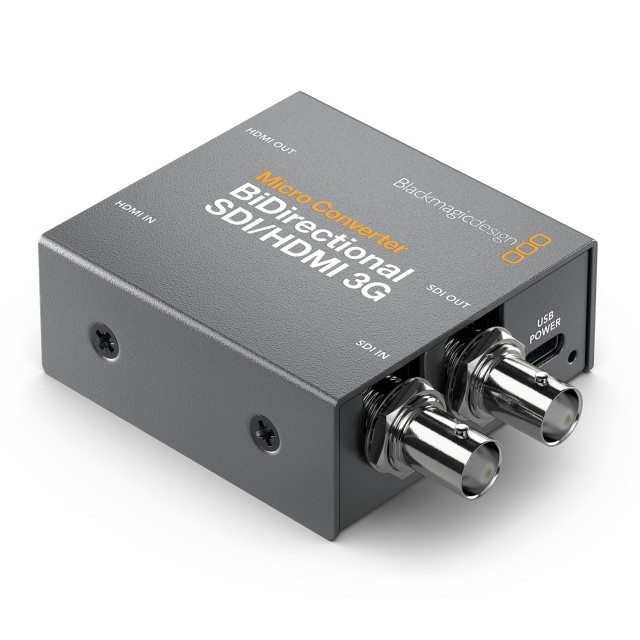

Blackmagic Design Micro Converter SDI/HDMI 3G BiDirectional (without PSU)

Name: Blackmagic Design Micro Converter SDI/HDMI 3G BiDirectional (bez zdroje)
Brand: Blackmagic Design
SKU: CONVBDC/SDI/HDMI03G
Price: 74 EUR
Availability: InStock

SKU: CONVBDC/SDI/HDMI03G

Convert SDI to HDMI and HDMI to SDI at the same time, preserve camera control and tally, and bridge cameras, switchers and monitors in one compact unit.

More information

74 € with VAT 61.16 € without VAT

Price history

Personal pickup within 90 minutes
Shipment day: Today

In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs

SKU:
CONVBDC/SDI/HDMI03G

Price history

Top accessories for Blackmagic Design Micro Converter SDI/HDMI 3G BiDirectional (without PSU)

Infinitek HDMI TO HDMI ultra thin flixible 4K cable, 50cm

Top product

Ultra-thin and flexible HDMI cables for the needs of all creative professionals.

23 €

In stock > 5 pcs

Blackmagic Design ATEM Mini Pro

Top product

ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted

352 €

To be sent 2 pcs

Blackmagic Design Micro Converter Power Supply

LAST PIECE

An optional Micro Converters AC Power Supply that supports 110 to 240V AC and comes

31 €

In stock 1 pcs

Infinitek HDMI TO HDMI ultra thin flixible 4K cable, 80cm

4K / UHD

Infinitec ultra tenký a flexibilný 4K HDMI v 2,0 kábel pre kreatívnych profesionálov.

23 €

In stock > 5 pcs

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 2 m

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare

23 €

on request

Blackmagic Design ATEM SDI

-5 %

Promotion: -5%

ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI

361.14 €

381.15 €

To be sent 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Convert SDI to HDMI and HDMI to SDI at the same time, preserve camera control and tally, and bridge cameras, switchers and monitors in one compact unit.

SDI AND HDMI IN BOTH DIRECTIONS

Convert SDI to HDMI and HDMI to SDI at the same time, preserve camera control and tally, and bridge cameras, switchers and monitors in one compact unit.

Micro Converter BiDirectional SDI/HDMI 3G

SDI ↔ HDMISIMULTANEOUSCAMERA CONTROLUSB-C POWER

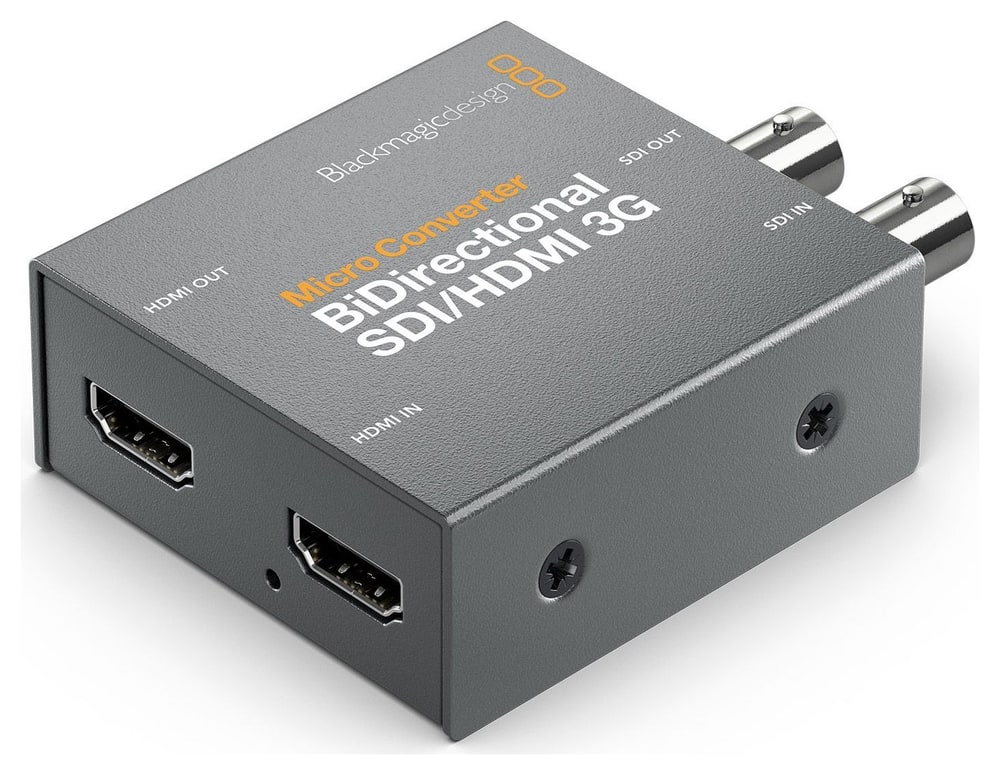

Two conversions at the same time

The SDI and HDMI paths operate simultaneously, even with different input formats. With only one input connected, both outputs act as loop outputs for convenient signal distribution.

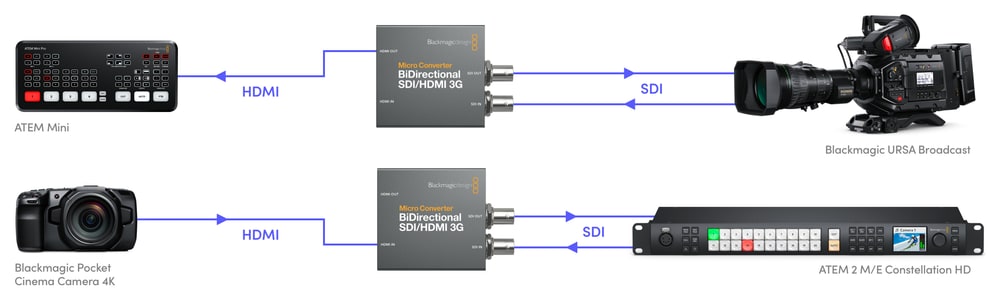

Camera control and tally stay connected

Bidirectional protocol conversion carries Blackmagic Camera Control and tally between HDMI cameras and SDI switchers, or between SDI cameras and HDMI ATEM switchers.

A compact bridge for production

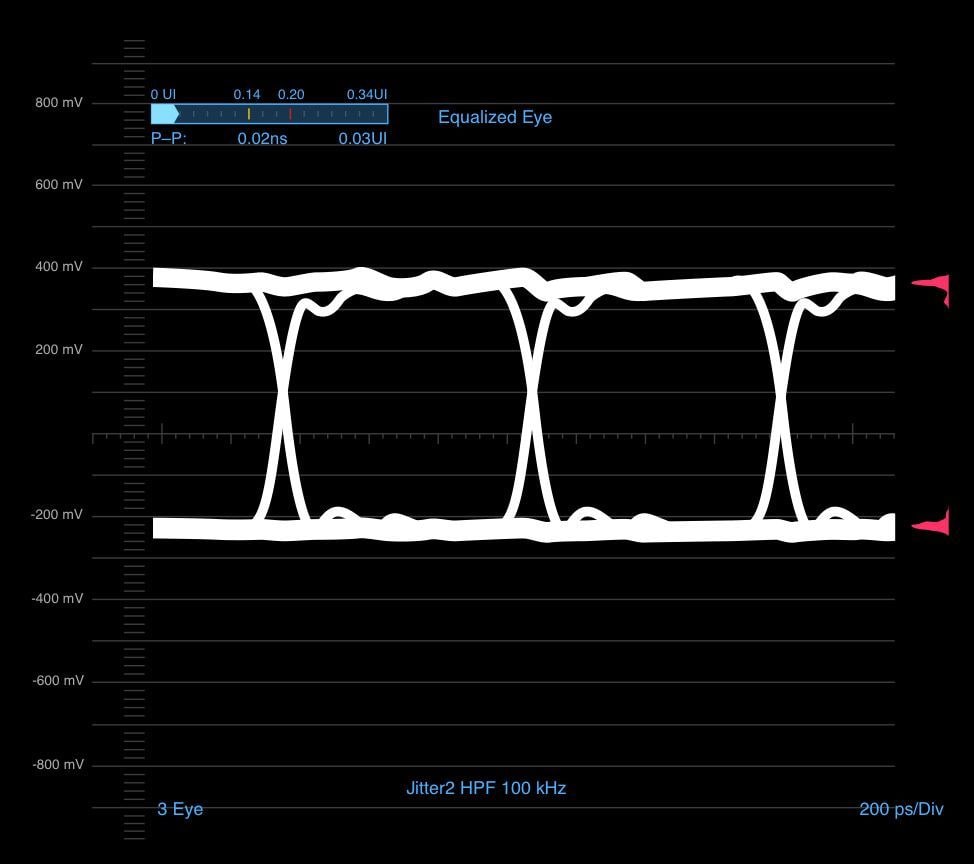

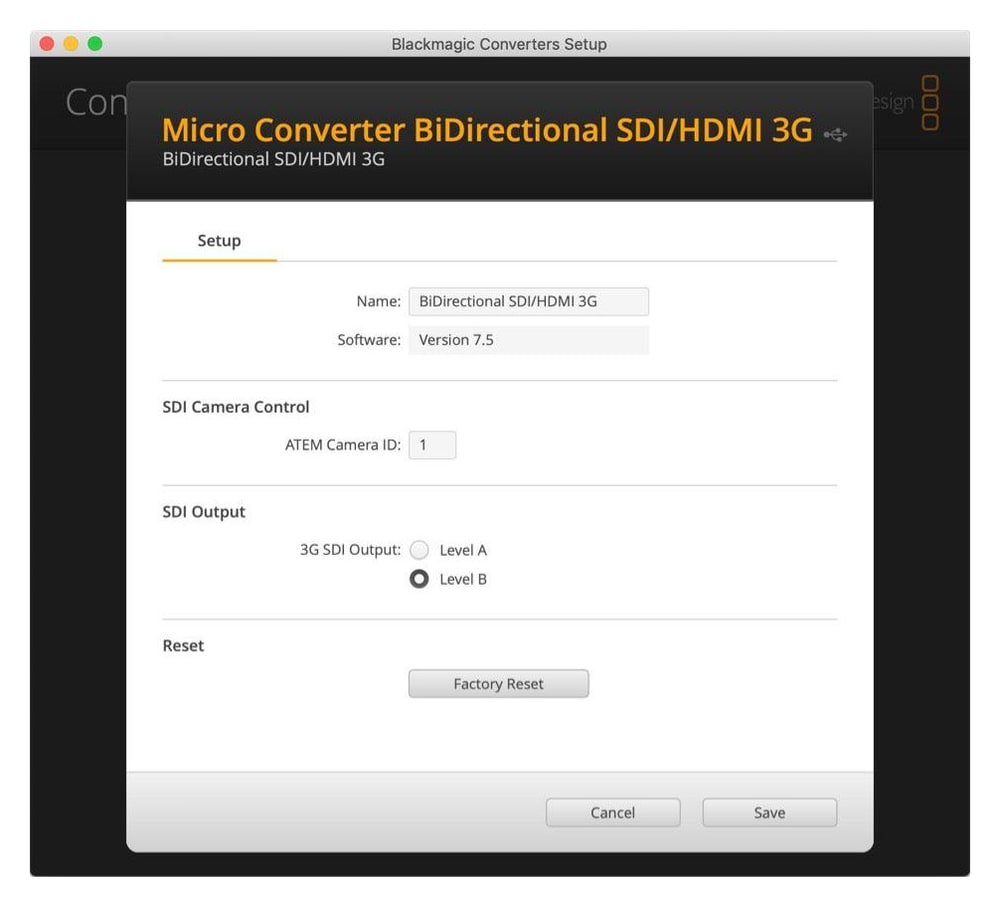

Automatic SD and HD detection, reclocking and a rugged metal body make the converter a practical link for cameras, switchers and monitors. USB-C handles power, setup and firmware updates.

HDMI camera to SDI switcher

Keep compatible camera control and tally across the conversion.

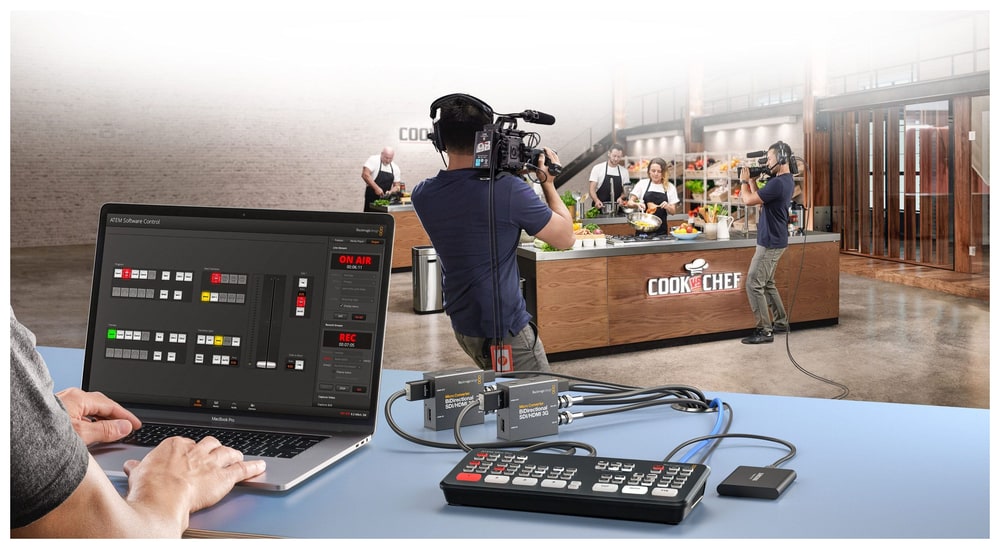

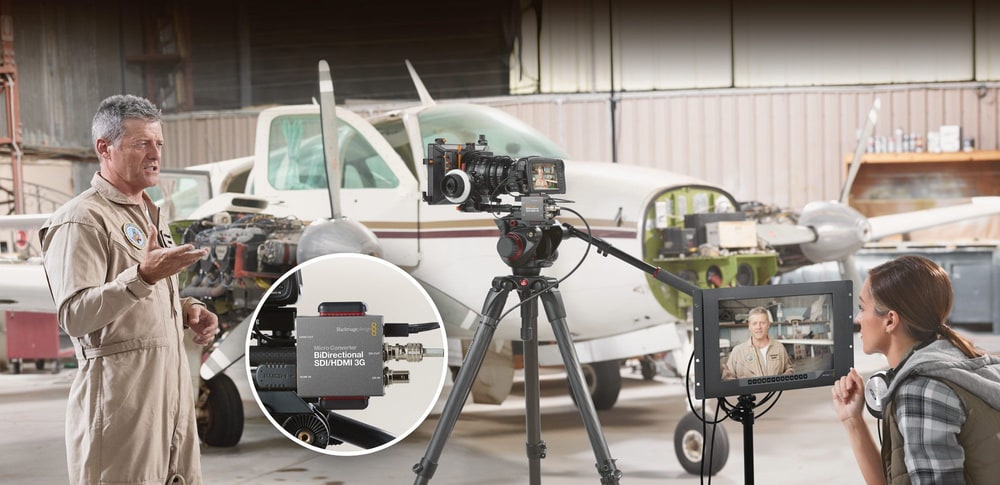

SDI camera to HDMI switcher

Bridge an SDI camera into an ATEM Mini workflow.

Dual signal paths

Convert HDMI→SDI and SDI→HDMI simultaneously.

Loop distribution

With one input, feed both HDMI and SDI destinations.

PACKAGE CONTENT

Micro Converter BiDirectional SDI/HDMI 3G

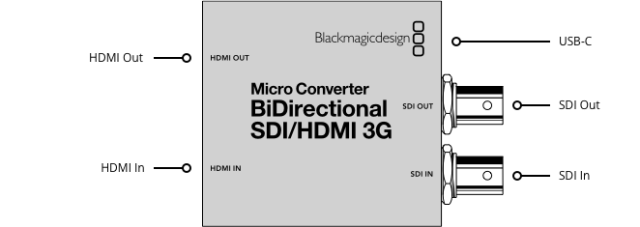

SPECIFICATIONS

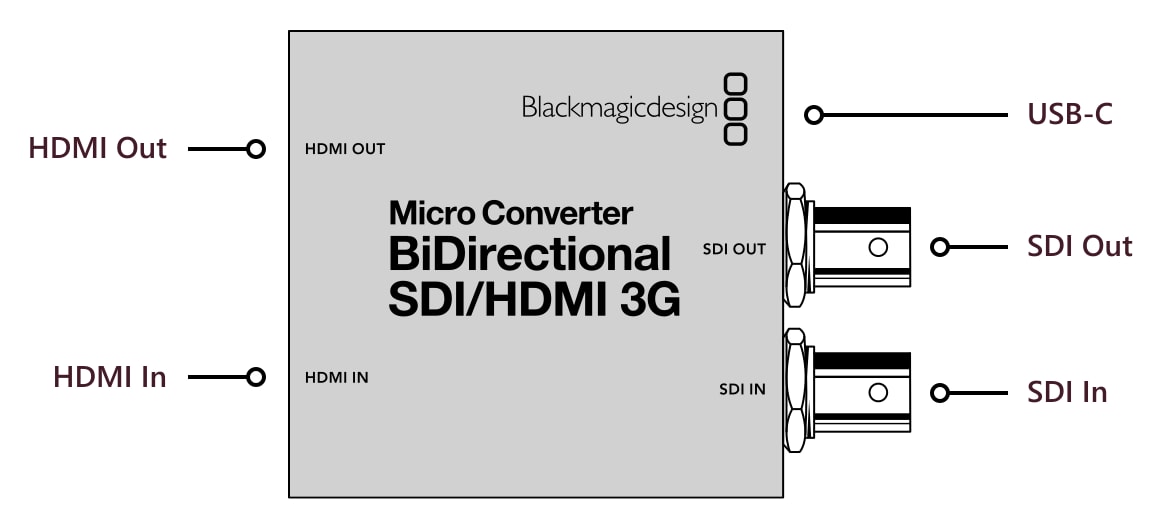

SDI video input: 1 × SD/HD/3G-SDI
SDI video output: 1 × output; automatically matches the HDMI input
HDMI video input: 1 × HDMI Type A
HDMI video output: 1 × HDMI Type A
Multi-rate support: Automatic detection of SD or HD
Reclocking: Yes
Supported formats: NTSC, PAL, 720p, 1080i and 1080p up to 60 fps
SDI compliance: SMPTE 259M, 292M, 296M, 424M and 425M
Color precision: 4:2:2 YUV
Camera control: Blackmagic Camera Control and tally in both directions
Updates, configuration and power: USB Type-C
Power consumption: 2.5 W
Operating voltage: 4.4 to 5.25 V DC
Operating temperature: 0 to 40 °C
Warranty: 3-year limited manufacturer warranty

WE RECOMMEND

The Blackmagic Design Micro Converter SDI/HDMI 3G BiDirectional is a highly flexible converter that enables simultaneous conversion between SDI and HDMI in both directions. To fully utilize its potential, including support for 3D LUTs and remote camera control, it is recommended to pair it with compatible cameras, production consoles, and professional interconnect components.

Cameras and Signal Sources - Professional cameras with HDMI or SDI outputs that can be integrated into various production workflows using the converter.

Video Production and Recording Interfaces - Signal processing and distribution devices that use a converter to convert between HDMI and SDI standards.

Software and Cabling - Essential accessories for creating 3D LUT corrections and physically connecting SDI components.
