RGBlink mini-edge-4S

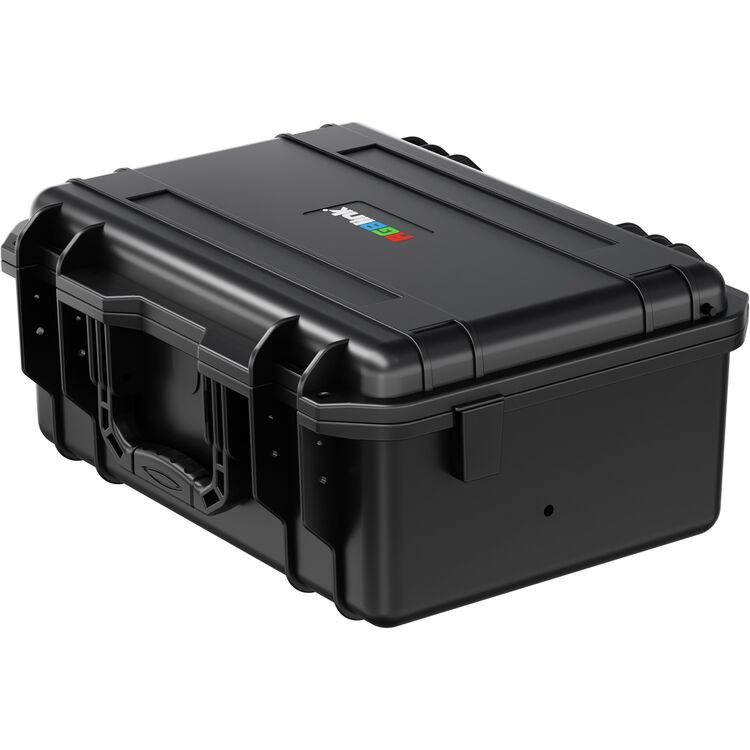

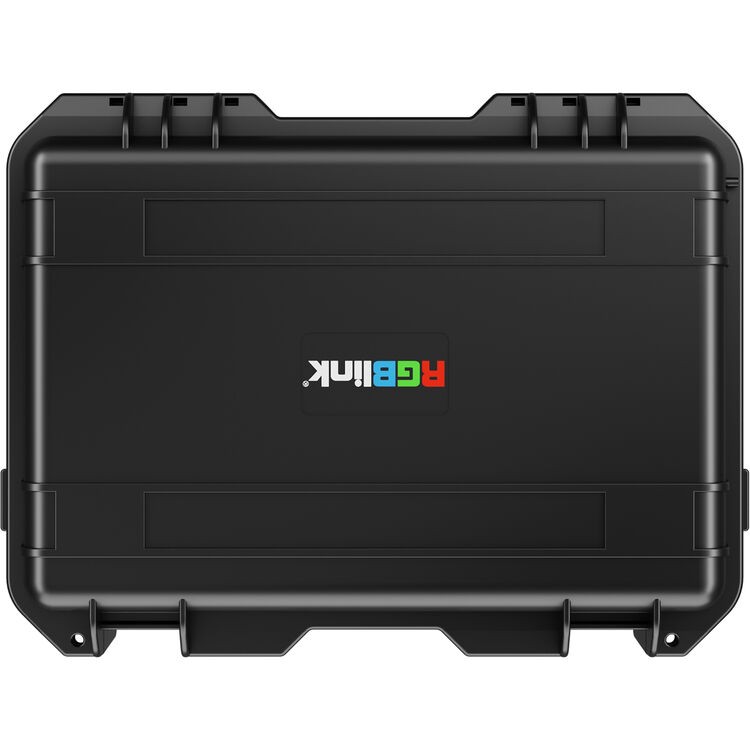

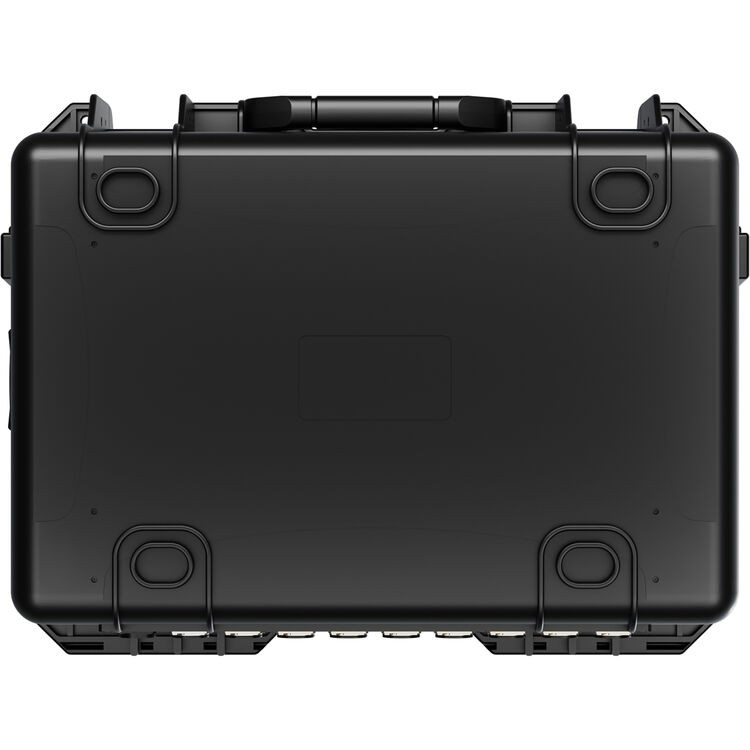

The RGBlink mini-edge-4S is a rugged, portable field video switcher housed in a durable flight case with a built-in 14" IPS TFT monitor, designed for professional live production, streaming, and recording. The side of the case carries four 3G-SDI inputs, four HDMI inputs, LAN and an HDMI program output.

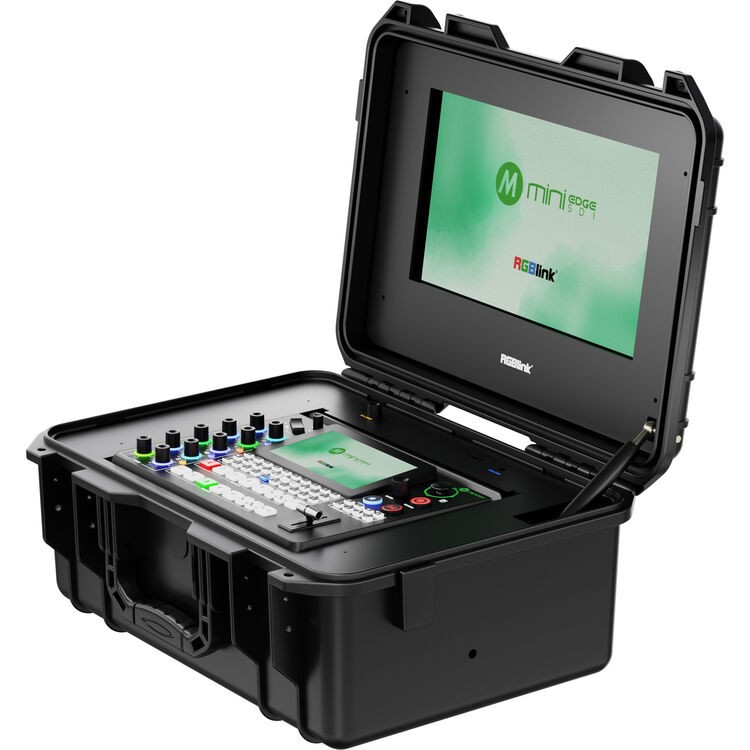

The mini-edge-4S case is a ready-to-go mobile control room: open the lid and the 14-inch monitor and the mini-edge SDI switcher are in front of you, with cables connecting to the panel on the side of the case.

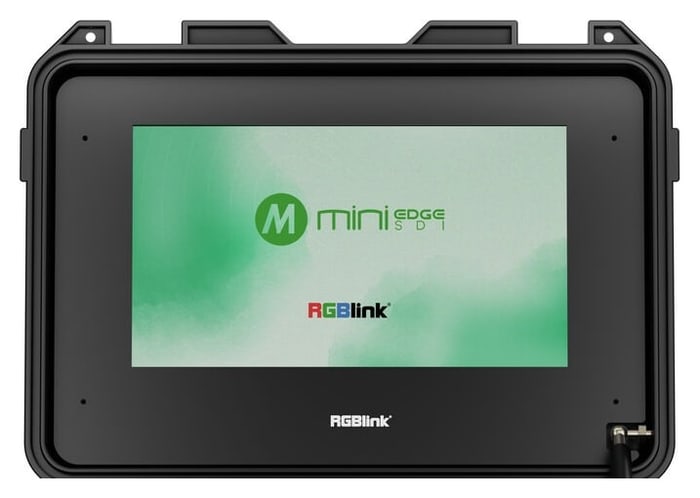

14-inch monitor in the lid

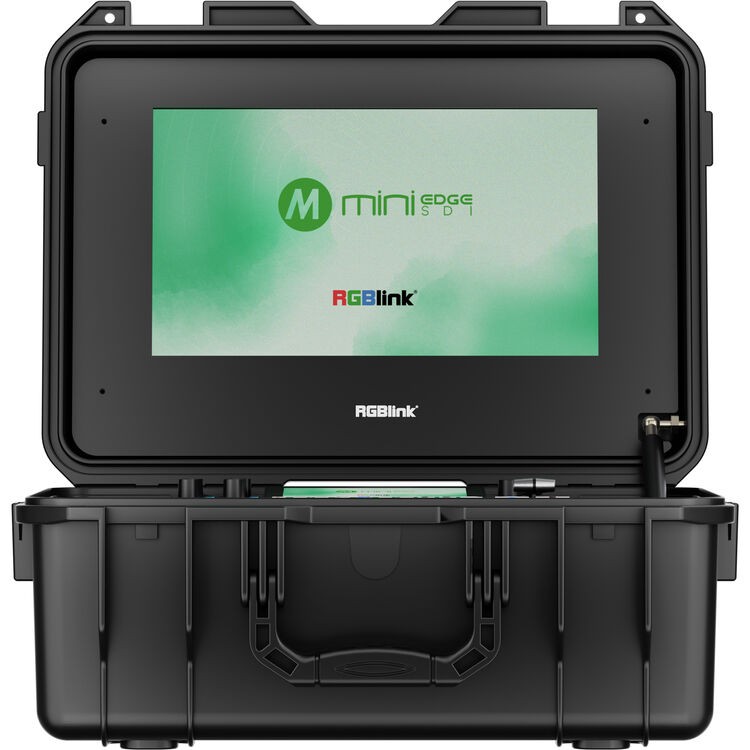

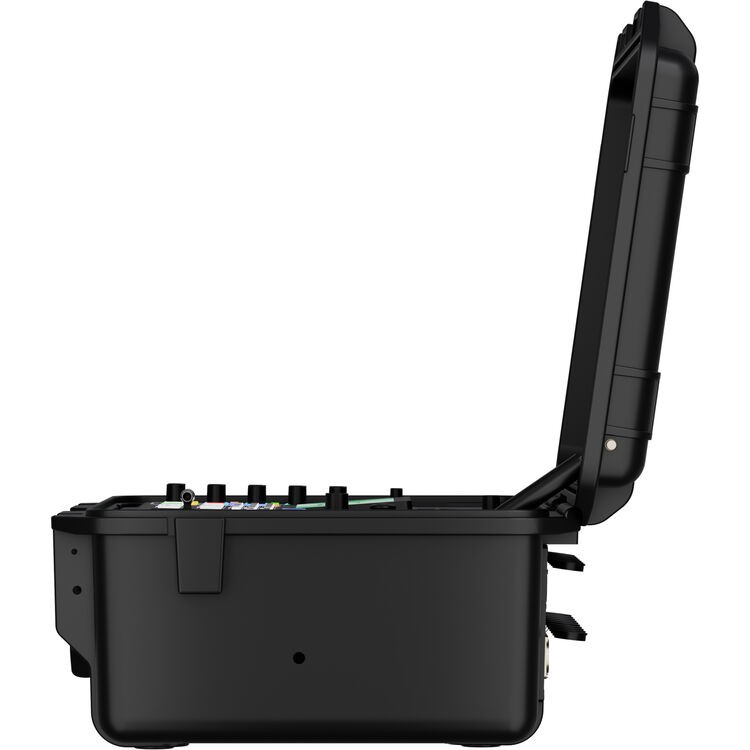

The lid of the case houses a 14-inch IPS monitor with 1920 × 1080 resolution and 220 cd/m² brightness. It shows the switcher multiview – preview, program and the individual inputs – so no external screen is needed. A hydraulic strut holds the lid open.

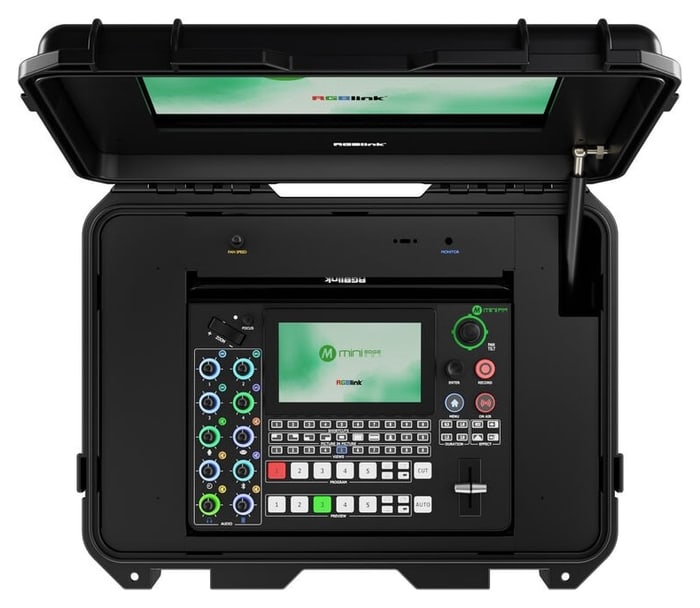

A mini-edge SDI switcher inside

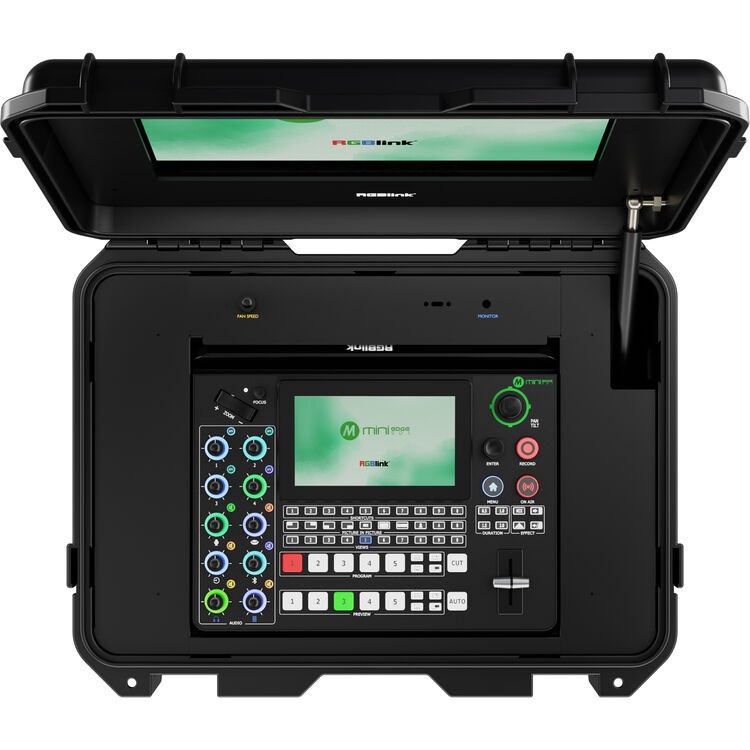

At the heart of the case is the RGBlink mini-edge SDI switcher with four HDMI inputs, four 3G-SDI inputs, a UVC camera input and NDI | HX2. Its panel carries the program and preview button rows, a T-bar, a joystick for PTZ camera control via VISCA or NDI and the audio mix knobs. Recording goes to MP4 on a USB drive, streaming over the network or RGBlink TAO Cloud.

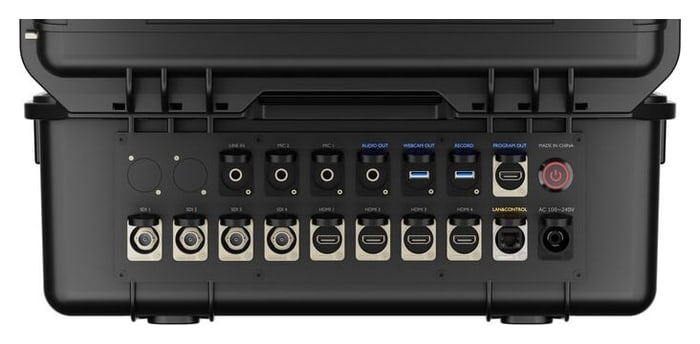

Connectors on the side of the case

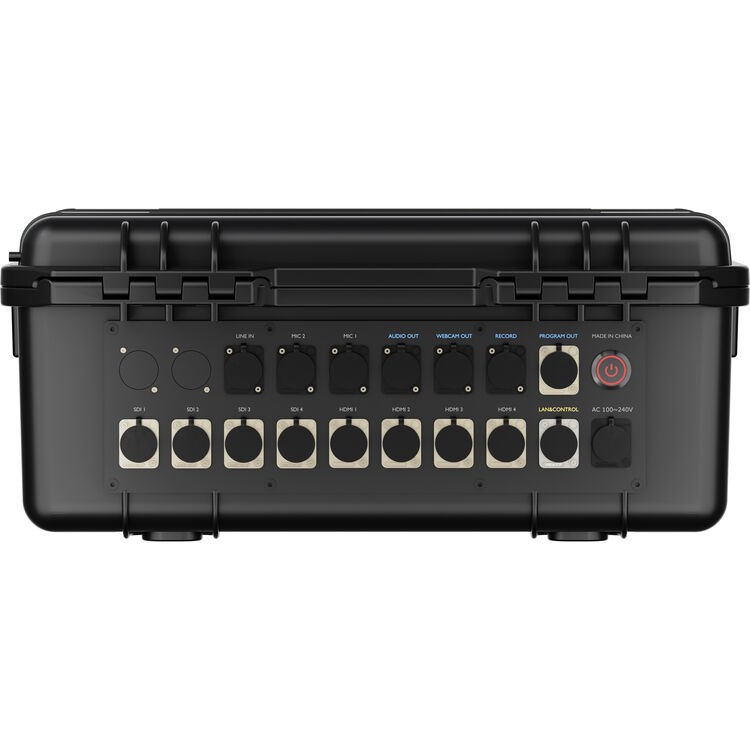

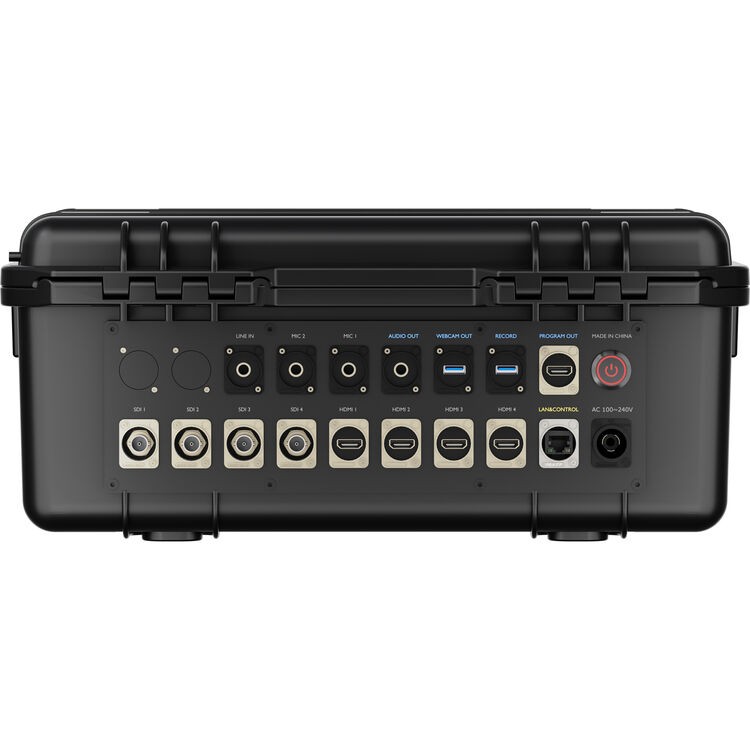

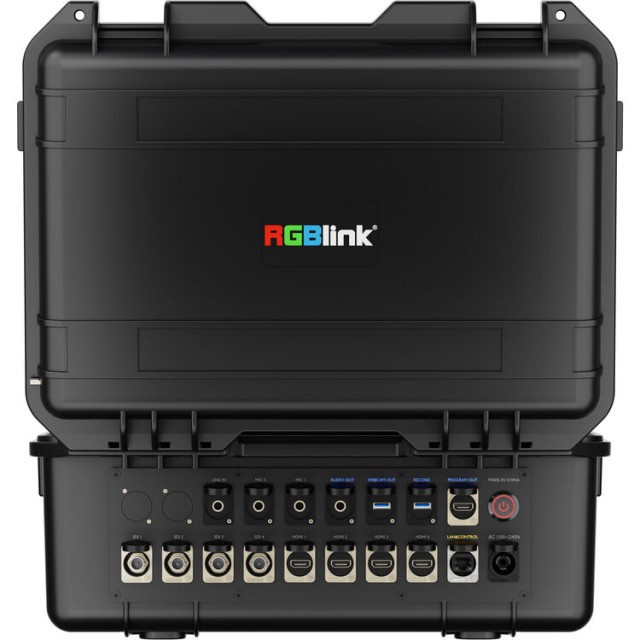

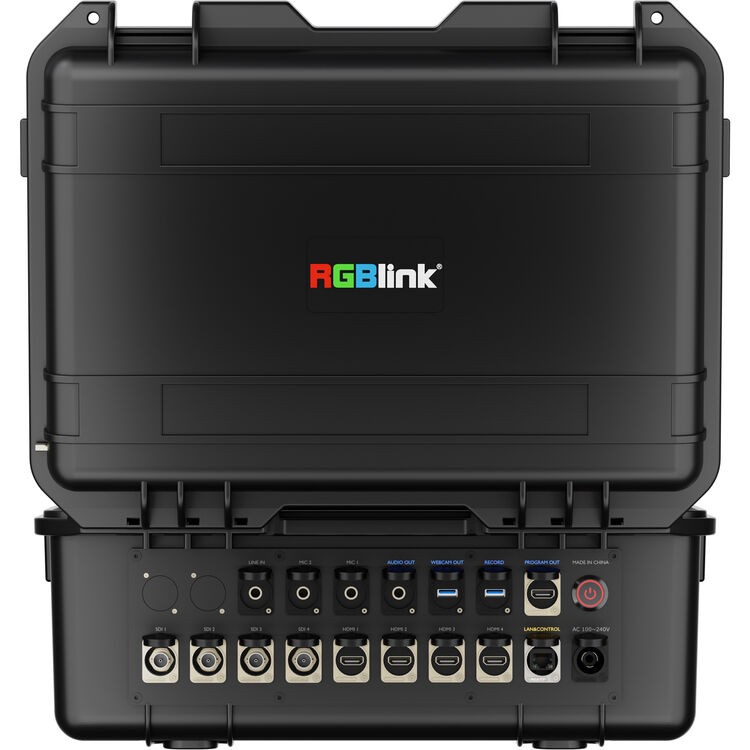

All connections are brought out to a panel with rugged connectors: four 3G-SDI inputs (BNC), four HDMI inputs, LAN, an HDMI program output, USB ports for webcam and recording, MIC 1 and LINE IN inputs, an audio output and IP65-rated AC 100–240 V power. The MIC 2 input does not work on the mini-edge-4S version (the mini-edge SDI has one microphone input).

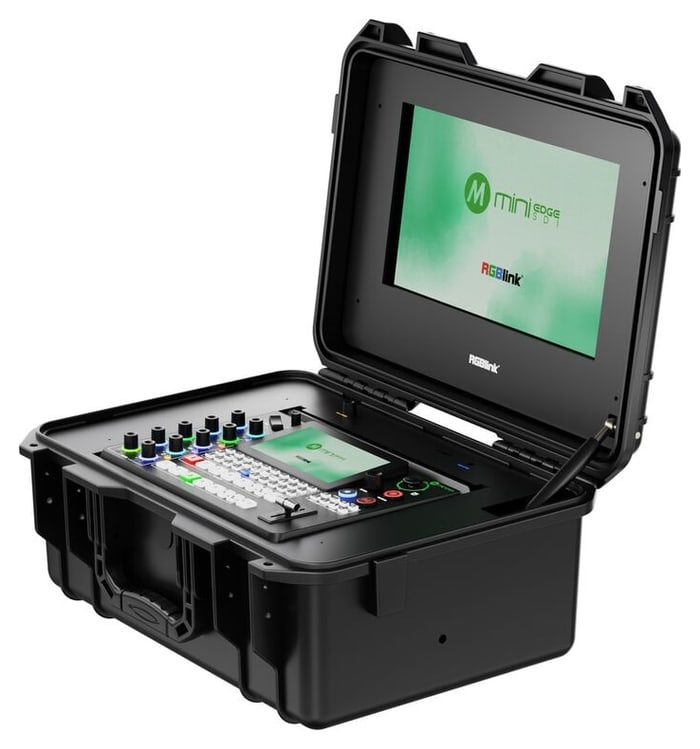

Built for the field

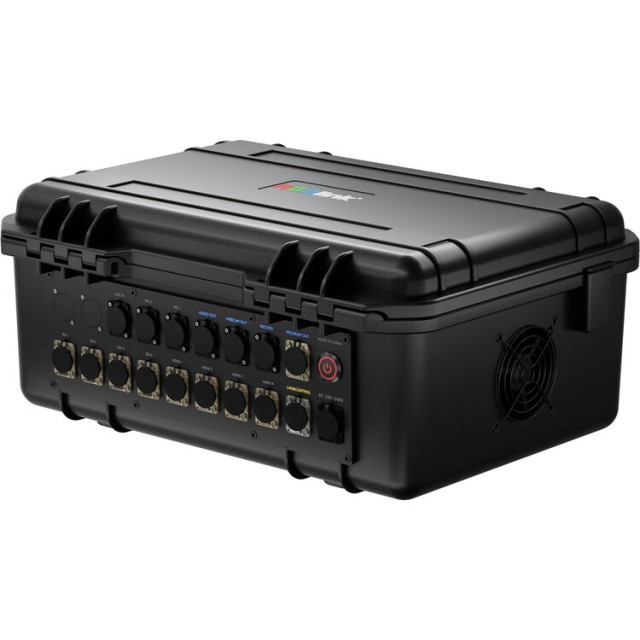

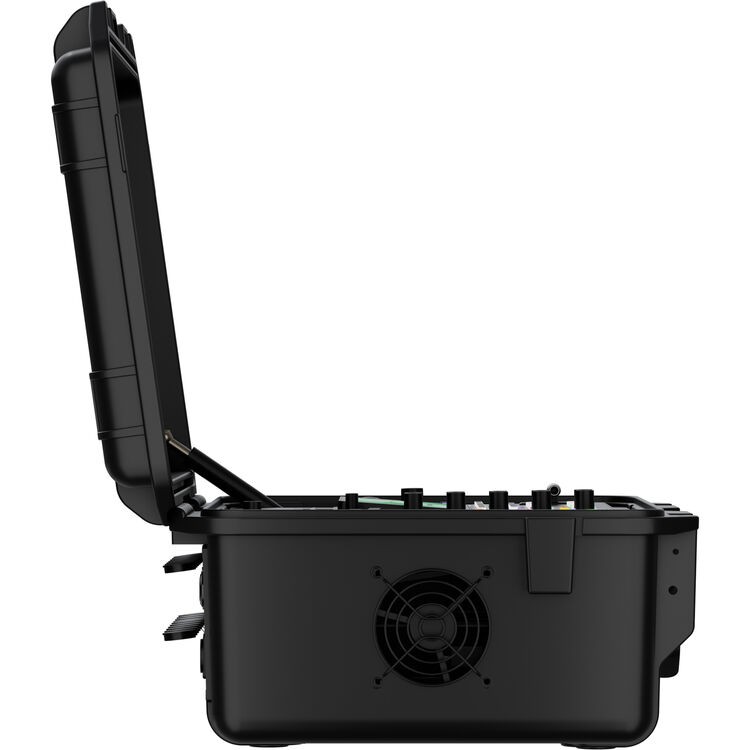

The case, made of high-strength PP plastic, measures 360 × 308 × 177 mm and has built-in air cooling for outdoor use. It suits music festivals, weddings, sports matches and other open-air events where the whole control room has to be set up and packed away quickly.

More information

Featuring quad HDMI 2.0 and quad 3G-SDI inputs, USB-C recording and webcam support, NDI|HX2 streaming, and integrated PTZ control, it is ideal for outdoor events, broadcast workflows, and mobile production environments.

The RGBlink mini-edge-4S HDMI/SDI Portable Field Video Switcher is an all-in-one production solution engineered for demanding live and field-based applications. Built into a high-strength flight case with hydraulic rod support, the system offers exceptional durability, portability, and stability, making it suitable for outdoor use and 24/7 operation. A powerful air-cooling system ensures reliable performance even in challenging environments.

The switcher is equipped with four HDMI 2.0 inputs and four 3G-SDI inputs, supporting a wide range of resolutions up to 4K input formats, while processing is handled at up to 1080p. A large, built-in 14" Full HD IPS TFT display integrated into the case lid provides clear multiview monitoring, preview, and control without the need for external displays.

For streaming and recording, the mini-edge-4S supports IP-based workflows via LAN with NDI|HX2, as well as UVC USB-C connectivity for webcam-style streaming and MP4 recording. An HDMI program output (up to 1080p60) enables connection to external displays or projectors. Audio capabilities include mic and line inputs, embedded HDMI audio, and balanced audio output with professional LPCM processing.

Control options include physical buttons, T-bar, software control, and cloud-based operation through RGBlink TAO Cloud. Integrated PTZ camera control via VISCA and NDI protocols allows real-time pan, tilt, zoom, and focus adjustments. Combining robust construction, professional connectivity, and advanced streaming features, the RGBlink mini-edge-4S is a powerful mobile production hub for live events, broadcasting, and streaming applications.

Key Features:

• Portable video switcher in high-strength flight case
• Built-in 14" Full HD IPS TFT monitor
• 4 × HDMI 2.0 and 4 × 3G-SDI video inputs
• HDMI program output (up to 1080p60)
• USB-C MP4 recording and UVC webcam support
• LAN streaming with NDI | HX2
• TAO Cloud remote streaming and control
• Integrated PTZ camera control (VISCA & NDI)
• Pushbutton, T-bar, and software switching
• Multiview monitoring and professional audio processing
• Designed for outdoor and field operation
