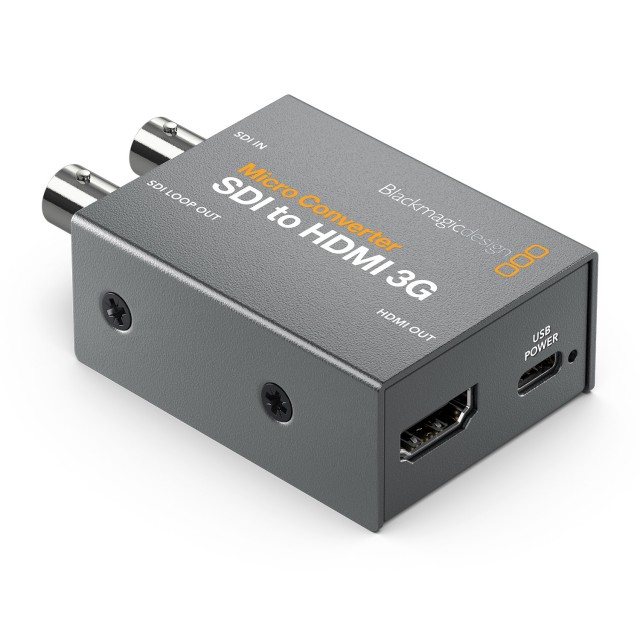

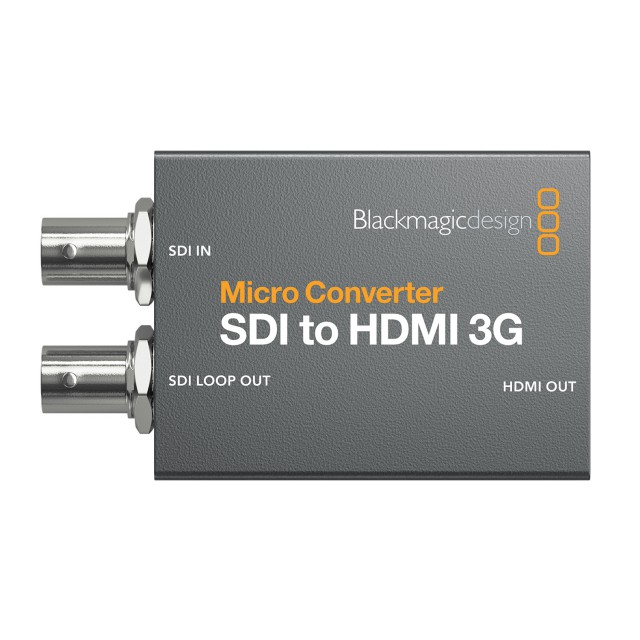

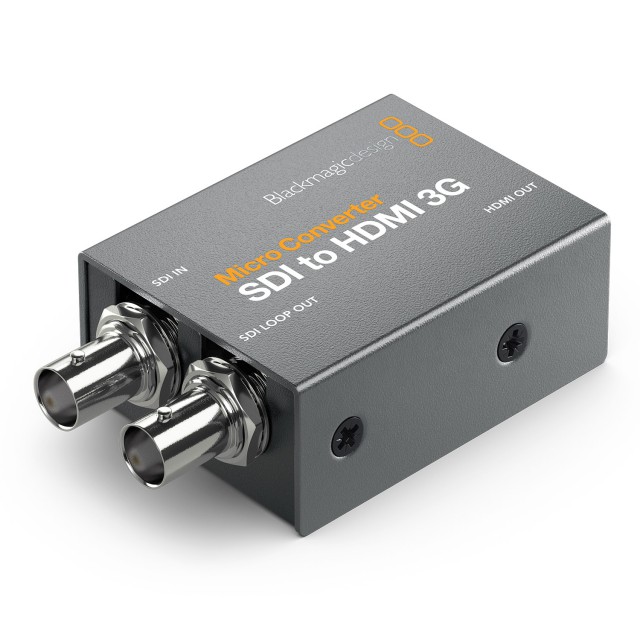

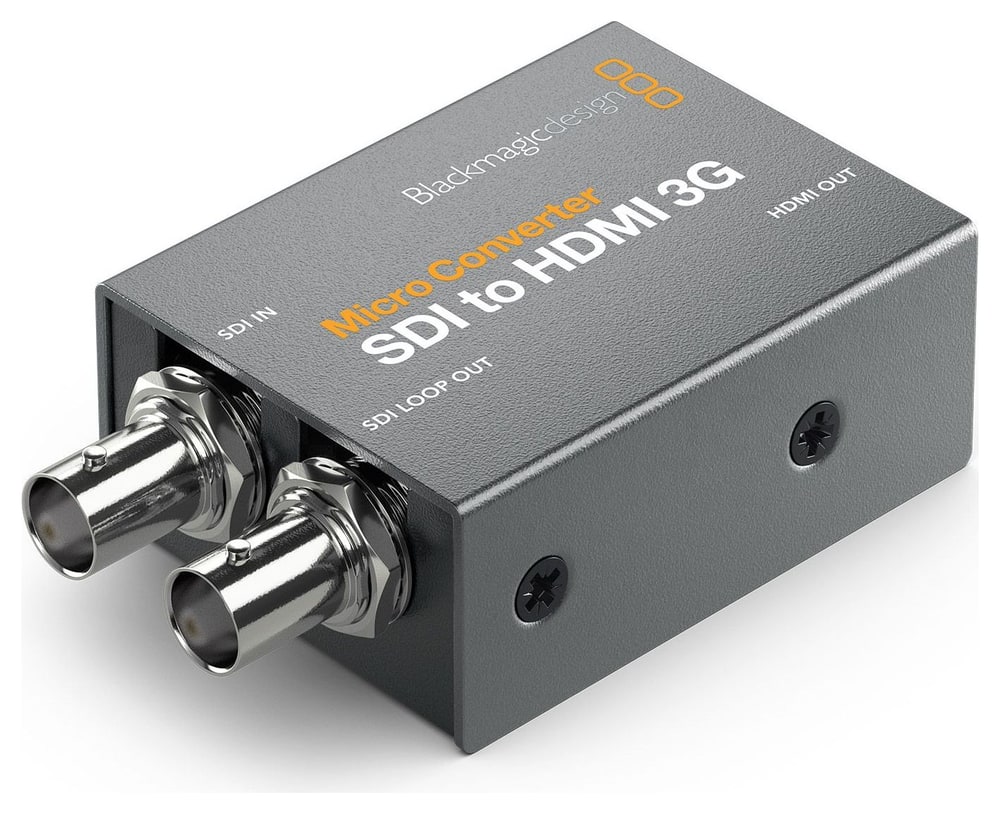

Blackmagic Design Micro Converter SDI to HDMI 3G wPSU

SKU: CONVCMIC/SH03G/WPSU

Turn any HDMI monitor, projector or television into a professional SDI display with loop output and a 17-point 3D LUT for accurate color.

More information

85 € with VAT 70.25 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs, Bratislava 2 pcs
SKU:
CONVCMIC/SH03G/WPSU
Add to Compare Price history

Blackmagic Design Micro Converter SDI to HDMI 3G

In stock > 5 pcs73 €without VAT 60.33 €

Top accessories for Blackmagic Design Micro Converter SDI to HDMI 3G wPSU

INFINITEC HDMI TO HDMI ultra thin flixible 4K cable, 50cm

  • Top product
Ultra-thin and flexible HDMI cables for the needs of all creative professionals.
23 €
To be sent > 5 pcs

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 2 m

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
In stock 4 pcs

INFINITEC HDMI TO HDMI ultra thin flixible 4K cable, 80cm

  • 4K / UHD
Infinitec ultra tenký a flexibilný 4K HDMI v 2,0 kábel pre kreatívnych profesionálov.
23 €
To be sent > 5 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Turn any HDMI monitor, projector or television into a professional SDI display with loop output and a 17-point 3D LUT for accurate color.

3G-SDI TO HDMI MONITORING

Turn any HDMI monitor, projector or television into a professional SDI display with loop output and a 17-point 3D LUT for accurate color.

Micro Converter SDI to HDMI 3G
3G-SDI INPUTHDMI OUTPUT17-POINT 3D LUTSDI LOOP

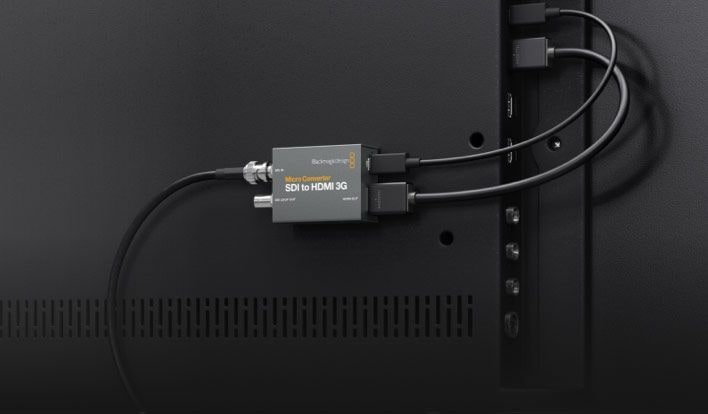

Professional monitoring from SDI
Professional monitoring from SDI

Professional monitoring from SDI

The converter accepts SD, HD and 3G-SDI, automatically detects the incoming format and delivers it over full-size HDMI. The SDI loop output can continue the signal to another device.

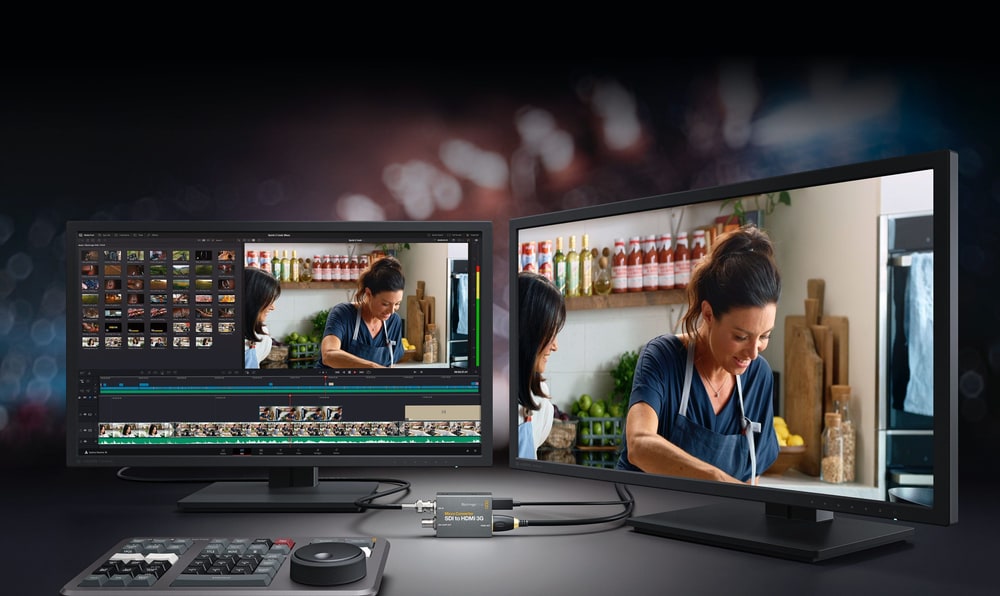

A 17-point LUT for dependable color

A 17-point LUT for dependable color

Load a 17-point 3D LUT through Blackmagic Converters Setup to calibrate or creatively transform the HDMI output. The same LUT can also be applied to the SDI loop output.

Film and broadcast formats

Support spans NTSC, PAL, 720p, 1080i, 1080p and DCI formats, including 1080p24, 1080p47.95 and 1080p48. USB-C handles power, setup and firmware updates.

On-set monitoring

Connect an HDMI display to a professional SDI camera.

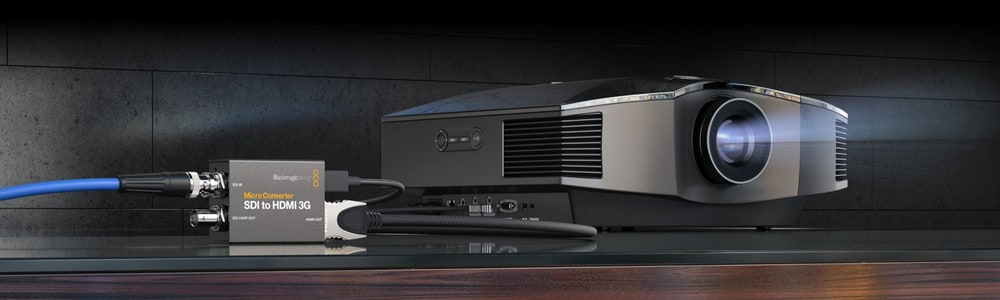

Projectors and televisions

Use readily available HDMI displays in production.

Color calibration

Load a custom LUT for a more dependable preview.

Signal distribution

Continue the source through the SDI loop output.

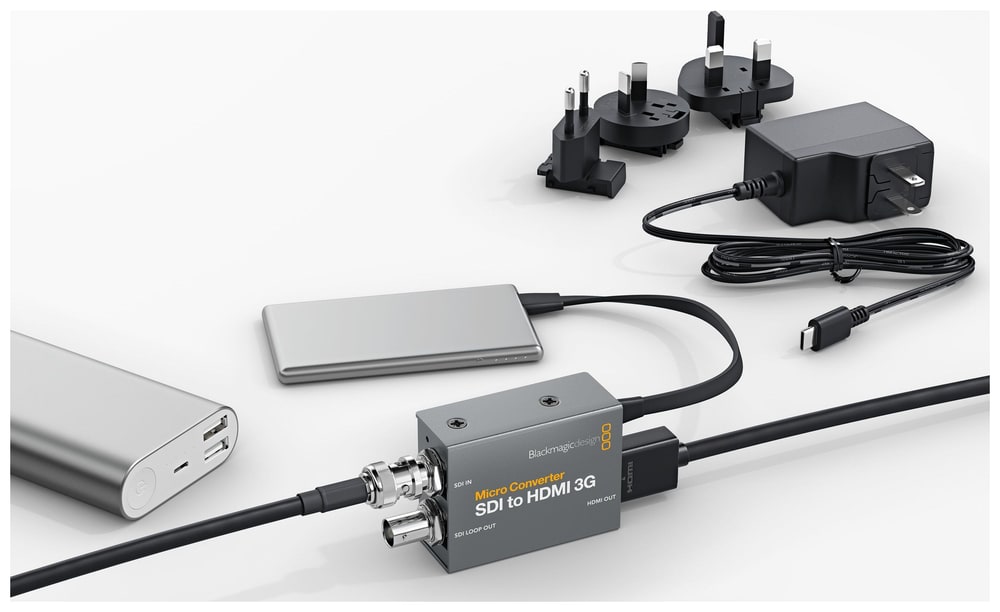

PACKAGE CONTENT

  • Micro Converter SDI to HDMI 3G
  • +5 V universal power supply with international socket adapters

SPECIFICATIONS

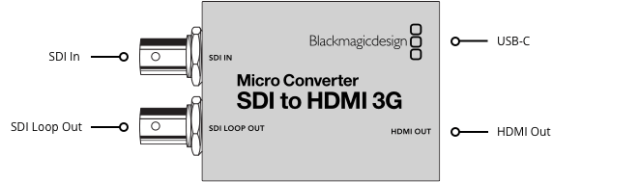

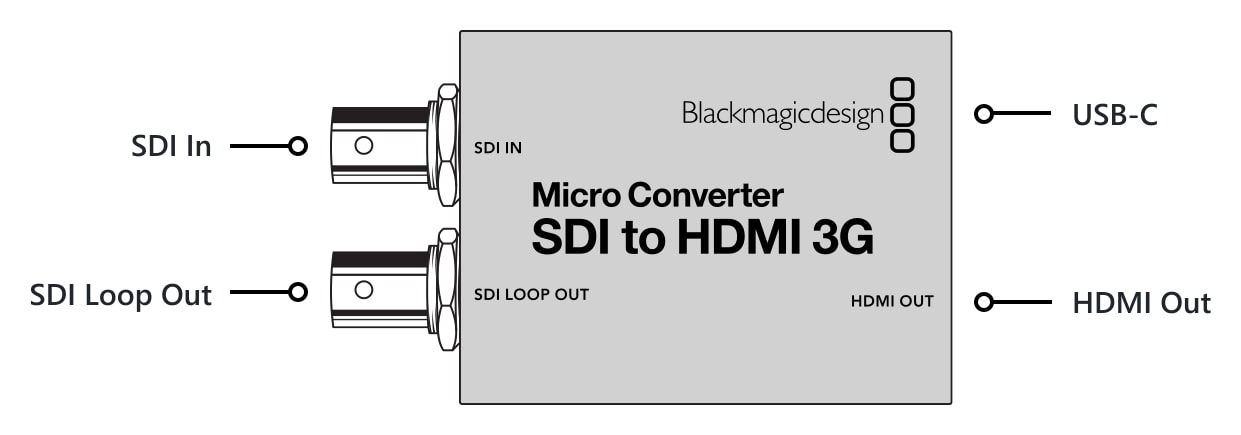

  • SDI video input: 1 × SD/HD/3G-SDI
  • SDI video output: 1 × SDI loop output
  • HDMI video output: 1 × HDMI Type A
  • Multi-rate support: Automatic detection of SD or HD
  • Supported formats: NTSC, PAL, 720p, 1080i, 1080p and 2K DCI up to 60 fps
  • SDI compliance: SMPTE 259M, 292M, 296M, 424M and 425M
  • Color precision: 4:2:2 YUV
  • 3D LUT: 17-point LUT; can also be output on the SDI loop
  • Updates, configuration and power: USB Type-C
  • Power consumption: 1.6 W
  • Operating voltage: 4.4 to 5.25 V DC
  • Operating temperature: 0 to 40 °C
  • Warranty: 3-year limited manufacturer warranty

WE RECOMMEND

The Blackmagic Design Micro Converter SDI to HDMI 3G is a professional converter that allows you to view SDI signals on standard HDMI monitors and TVs with 3D LUT support. For full integration into the production pipeline, it is essential to connect it to cameras with SDI output and integrate it into the post-production workflow.

Cameras with SDI output - Professional cameras that serve as the primary source of the SDI signal for the converter.

Production and Video Interfaces - Equipment for processing and distributing converted HDMI signals or generating SDI inputs.

Cabling and Adapters - Essential accessories for physically connecting SDI interfaces within a video chain.

Software and Post-Production - Tools for video processing and color profile (LUT) management supported by the converter.

Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Signal converters

Main parameters

Other featuresSDI LOOP · 3D LUT
Source3G SDI
TargetHDMI
