Datavideo TLM-102 Dual 10-inch 4RU Rackmount Monitor
SKU: 2100-0102
The TLM-102, dual 10.1” 4RU Rack mount monitor, is a broadcast quality monitoring system with built-in vectorscope/waveform monitor and video signal converters.
1 689 € with VAT
1 395.87 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The TLM-102, dual 10.1” 4RU Rack mount monitor, is a broadcast quality monitoring system with built-in vectorscope/waveform monitor and video signal converters.
Datavideo TLM-102 · Dual HD rack monitor

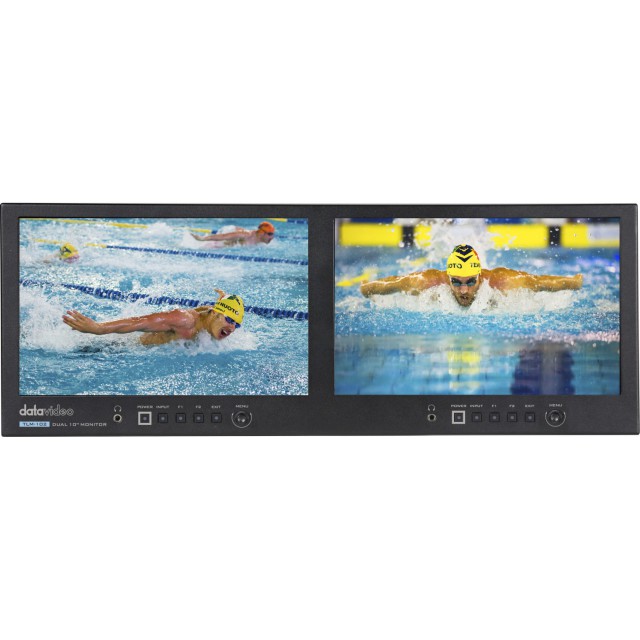

TLM-102 dual monitor
Two 10.1-inch HD LCD panels in one 4RU chassis let you monitor two sources at once in an OB van, control room or rack. Each monitor has its own 3G/HD/SD-SDI and HDMI input with loop-through outputs. The waveform, vectorscope and audio meters help check picture and sound; SDI/HDMI cross conversion also supports mixed signal paths.
2× 10.1″ · IPS · 1280 × 8003G/HD/SD-SDI · HDMI · Tally

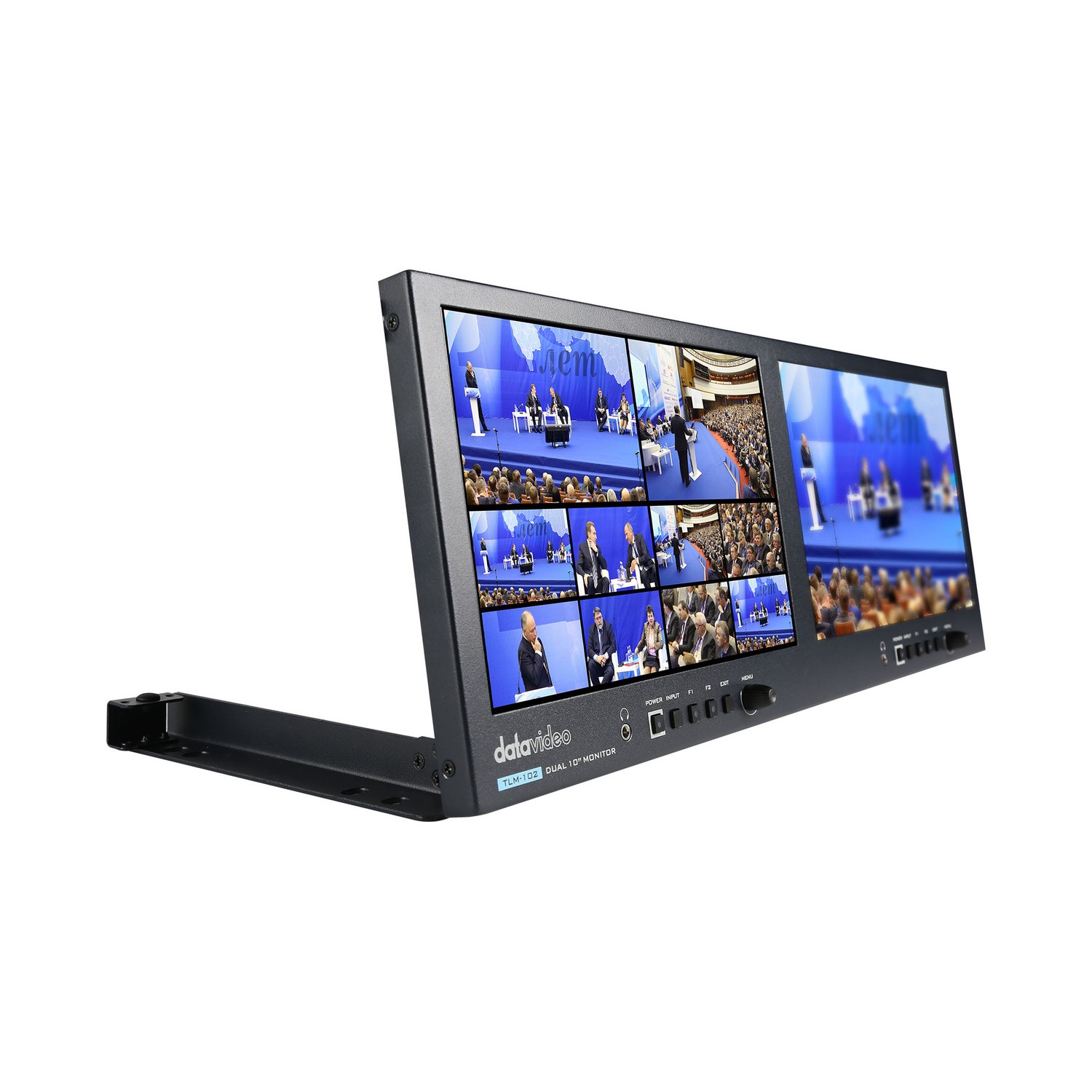

Set the viewing angle for the workspace
The monitor adjusts through an angle of up to 90°, allowing a practical position for rack mounting or desktop use. Both displays remain in one compact chassis.

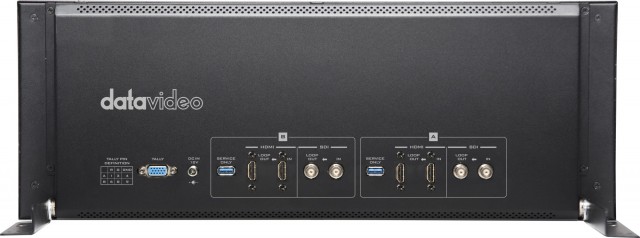

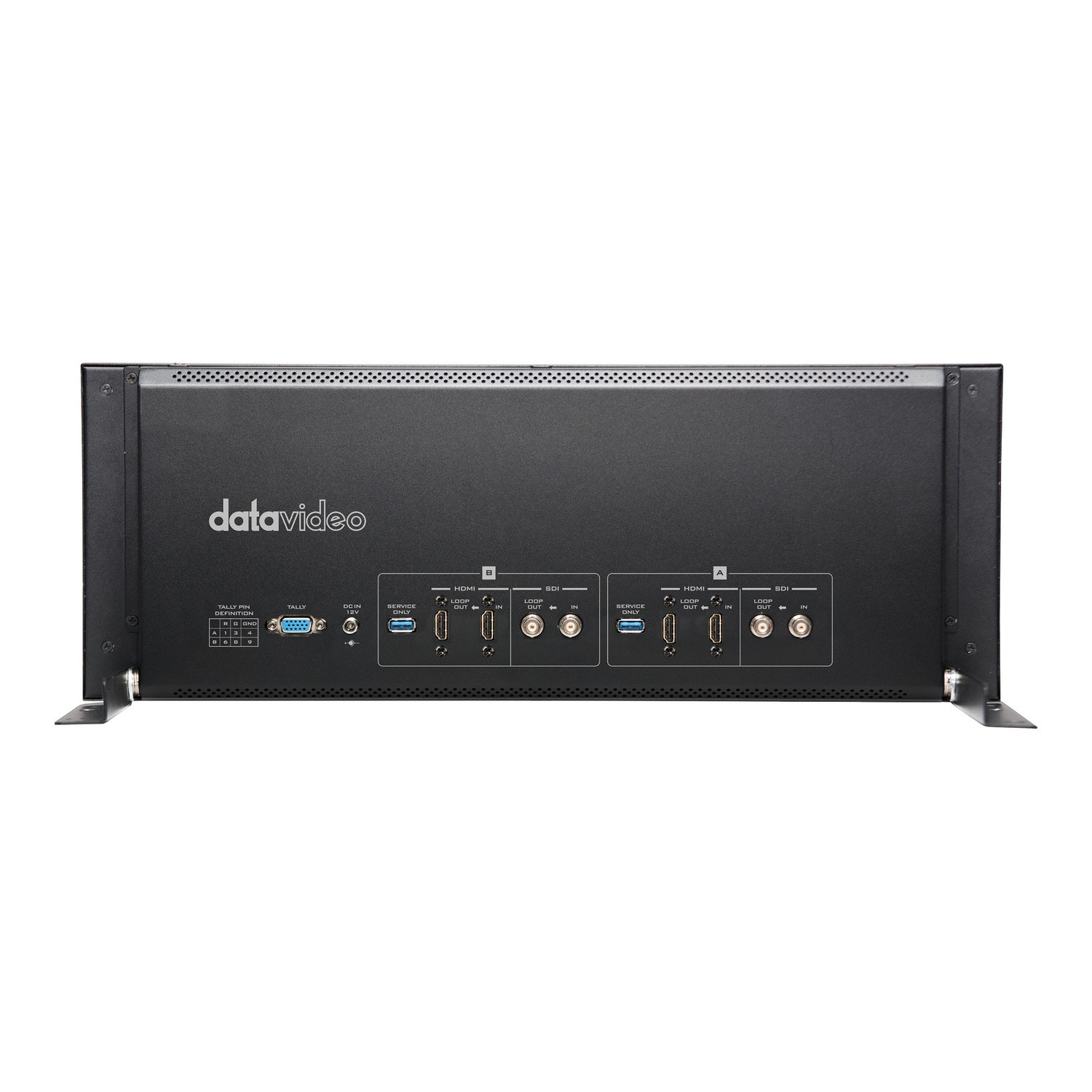

Connections for both monitors
The rear panel provides one SDI and one HDMI input with a loop-through output for each monitor. It also includes a tally connector, USB service port and 12 V DC power input.
Convert between HDMI and SDI
The diagram shows cross conversion in both directions. For example, bring in HDMI and continue through SDI, or convert in the opposite direction; loop-through outputs remain available for downstream equipment.
PACKAGE CONTENT
- 1 × Datavideo TLM-102 monitor
- 1 × 12 V AC/DC switching adapter with AC cord
- 1 × tally converter
- 2 × M3 × 6 mm screws
- 4 × M5 × 10 mm screws
SPECIFICATIONS
- Type: Dual HD monitor, 4RU rack mount
- Displays: 2 × 10.1″ LCD, IPS
- Panel resolution: 1280 × 800
- Viewing angle: H: +85°/−85°; V: +85°/−85°
- Luminance / contrast: 300 cd/m² / 800:1
- Inputs: 2 × 3G/HD/SD-SDI; 2 × HDMI
- Loop-through outputs: 2 × 3G/HD/SD-SDI; 2 × HDMI
- Supported input formats: 1080p 23.98/24/25/29.97/30/50/59.94/60; 1080i 50/59.94/60; 720p 23.98/24/25/29.97/30/50/59.94/60; 480i NTSC; 576i PAL
- Aspect ratio: 16:9, 4:3
- Tally LED: Live red; Cued green
- Audio: Embedded audio on SDI/HDMI; headphone output
- Tools: Waveform, vectorscope, audio level meters, timecode, peaking, zoom, pixel-to-pixel, underscan and field check
- Power: 12 V DC, 28 W
- Operating temperature: 0–40 °C
- Dimensions (W × H × D): 482 × 178 × 38 mm
- Weight: 3.6 kg
WE RECOMMEND
The Datavideo TLM-102 is a professional dual 10.1" monitor designed for installation in a 4RU rack, featuring 3G-SDI and HDMI inputs with waveform and vectorscope support. For full utilization in a production environment, it is recommended to complement it with intercom systems, DAC series signal converters, and other rack components from the Datavideo ecosystem.
Intercom and Tally - Communication and broadcast status signaling systems compatible with the monitor’s Tally input.
Signal Converters and Distribution - Devices for converting and extending SDI and HDMI signals for preview monitors.
- Datavideo DAC-9P
- Datavideo DAC-70
- Datavideo DAC-80
- Datavideo VP-634
- Datavideo CAP-1
- Datavideo DAC-8PA
- DATAVIDEO NVD-35
Production Control and Audio - The studio's main components, which serve as signal sources for the monitoring wall.
Playback devices and accessories - Accessories for studio production using the same system standards.
Installation Accessories - Components for rack mounting and equipment protection.
Parameters
| Manufacturer: | Datavideo |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 10.1" |
| Monitor inputs | HDMI · SDI · 3G-SDI |
| Luminosity | 300cd/m2 |
| Panel resolution | 1280x800 |
| For monitor | Broadcast rack, control room, OB van, professional AV monitoring |
| Monitor power supply | 12 VDC |
Other parameters
| Tally | Yes |
| Other features | Rack-mountable · Tally · Vectorscope |
