Tilta Mini PD V Mount Battery Plate with Adjustable ARCA Receiver Kit – Black

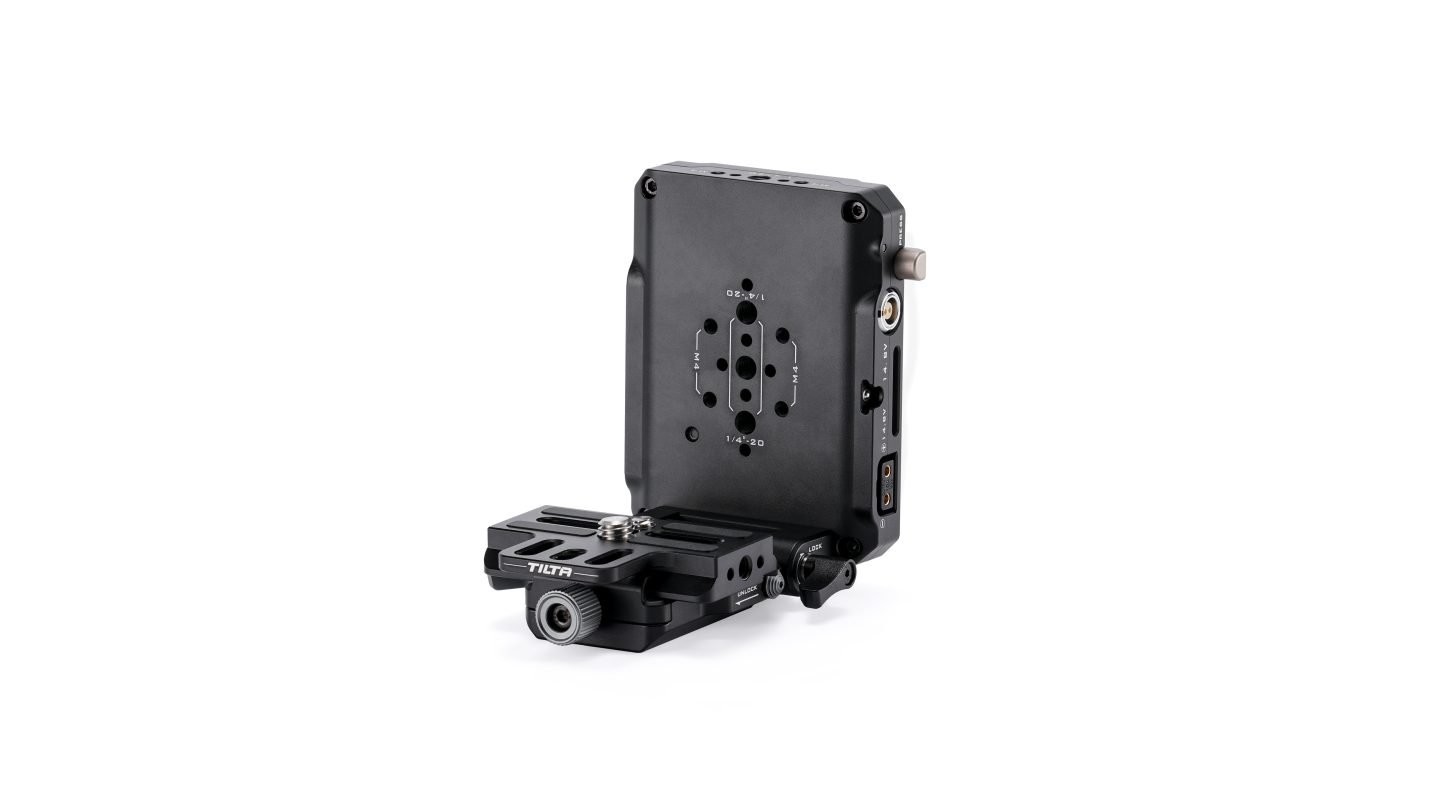

The Tilta TA-BTP4K-V-B kit combines the Mini PD V-Mount battery plate with the adjustable ARCA receiver. It hangs a V-Mount battery straight off the camera through an Arca quick release plate — no baseplate, no 15 mm rods. The plate delivers power over P-Tap, 2-pin LEMO and USB-C, the receiver extends by 37.2 mm and folds through 180 degrees. A rod adapter, an extended quick release plate and a strap that keeps the battery in place are included.

A complete kit for anyone who wants a V-Mount battery on the camera but has neither a baseplate nor 15 mm rods. Plate and receiver come in one box — just add the battery.

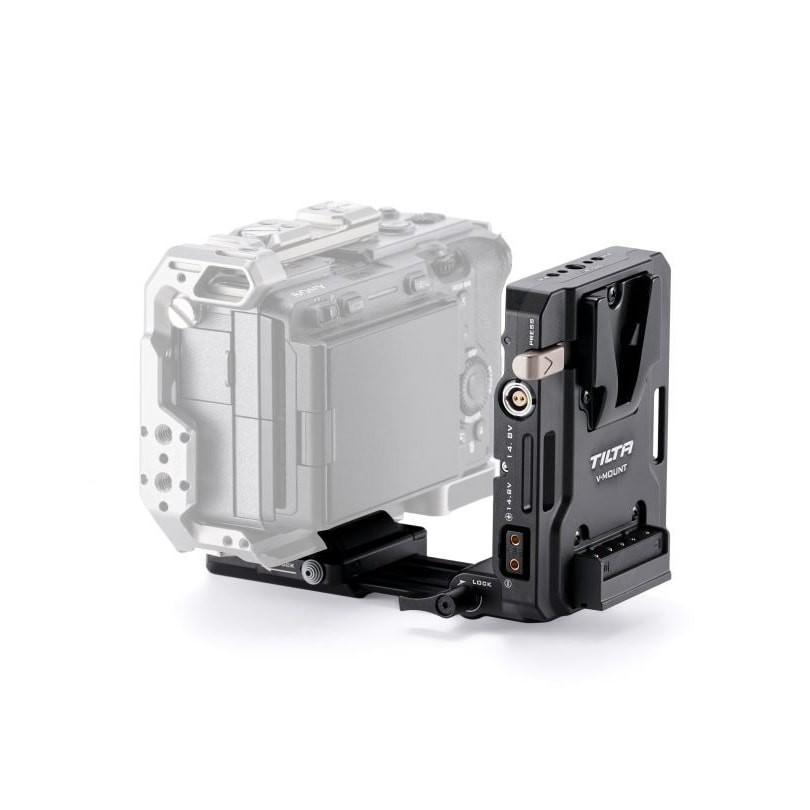

A battery on the camera without a baseplate or rods

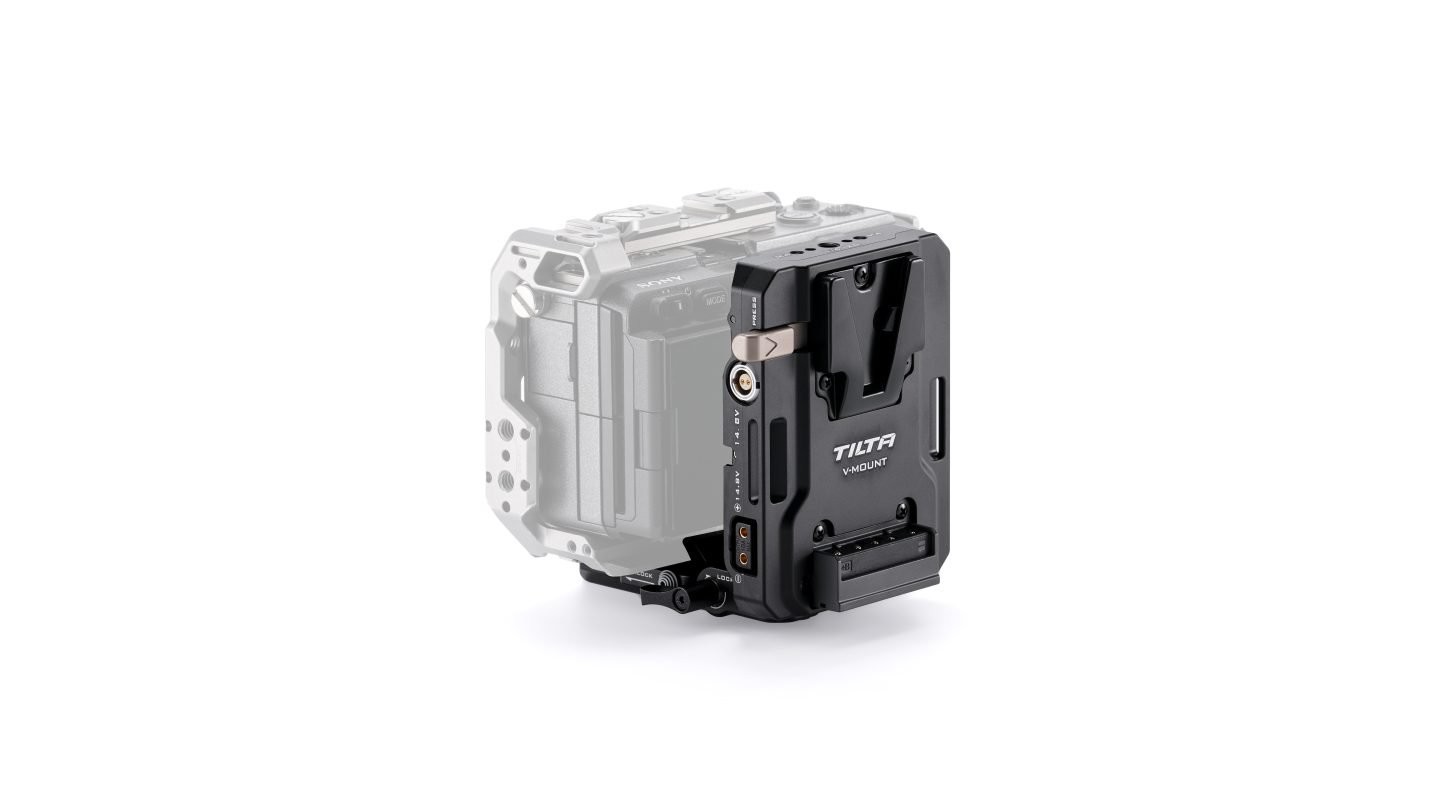

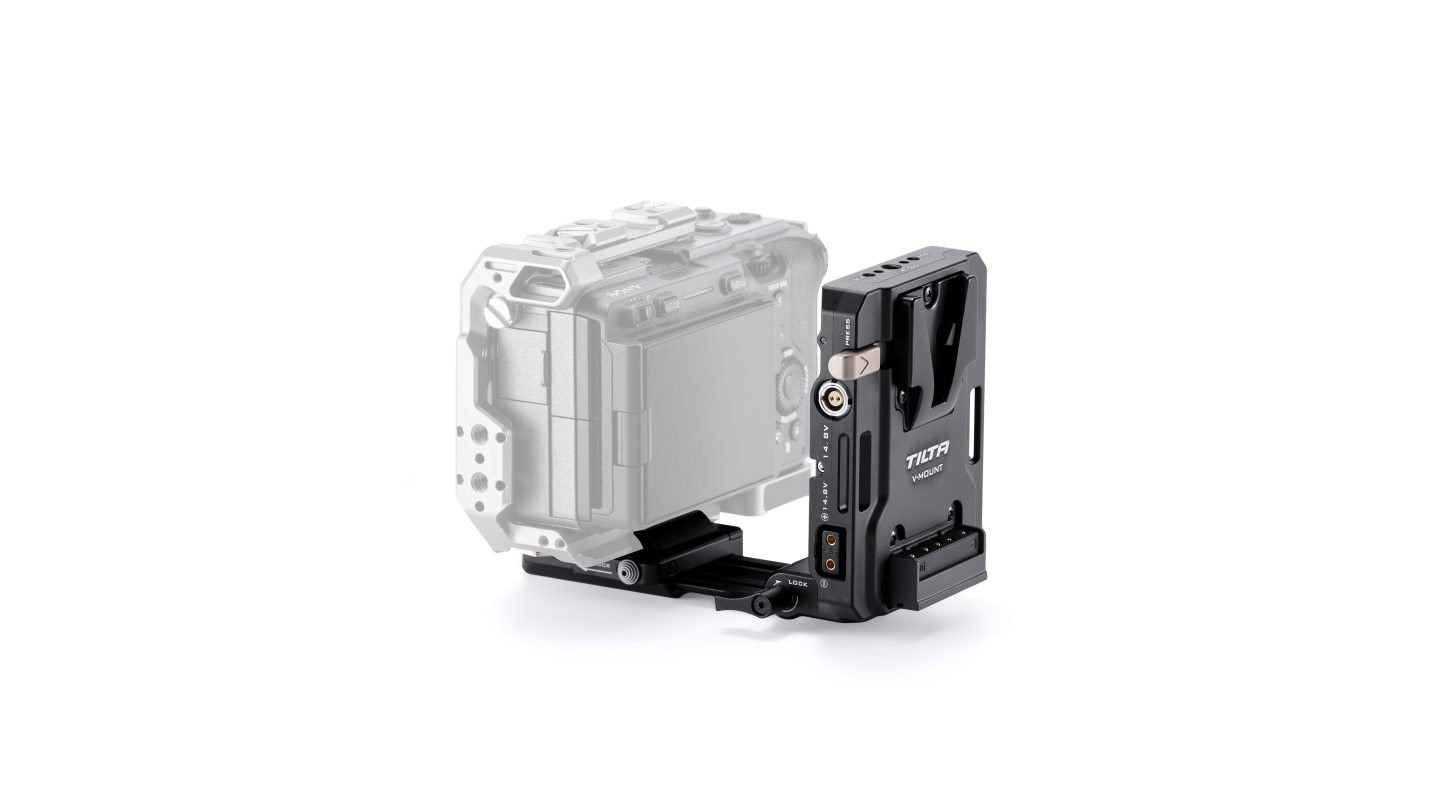

The adjustable ARCA receiver holds a V-Mount battery plate directly on the camera — via a DJI standard ARCA quick release plate or a compatible Tilta camera cage. No baseplate and no 15 mm rods, so the rig is lighter and comes apart faster.

Outputs on the battery plate

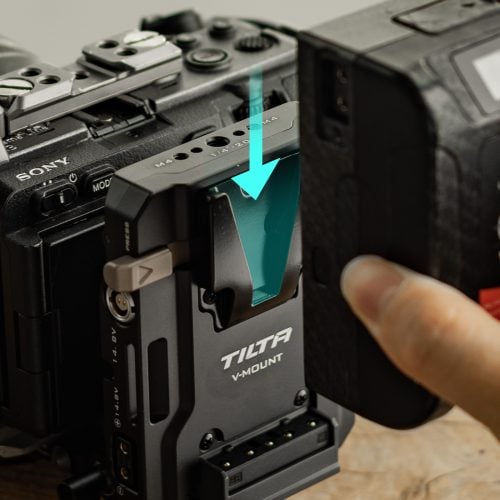

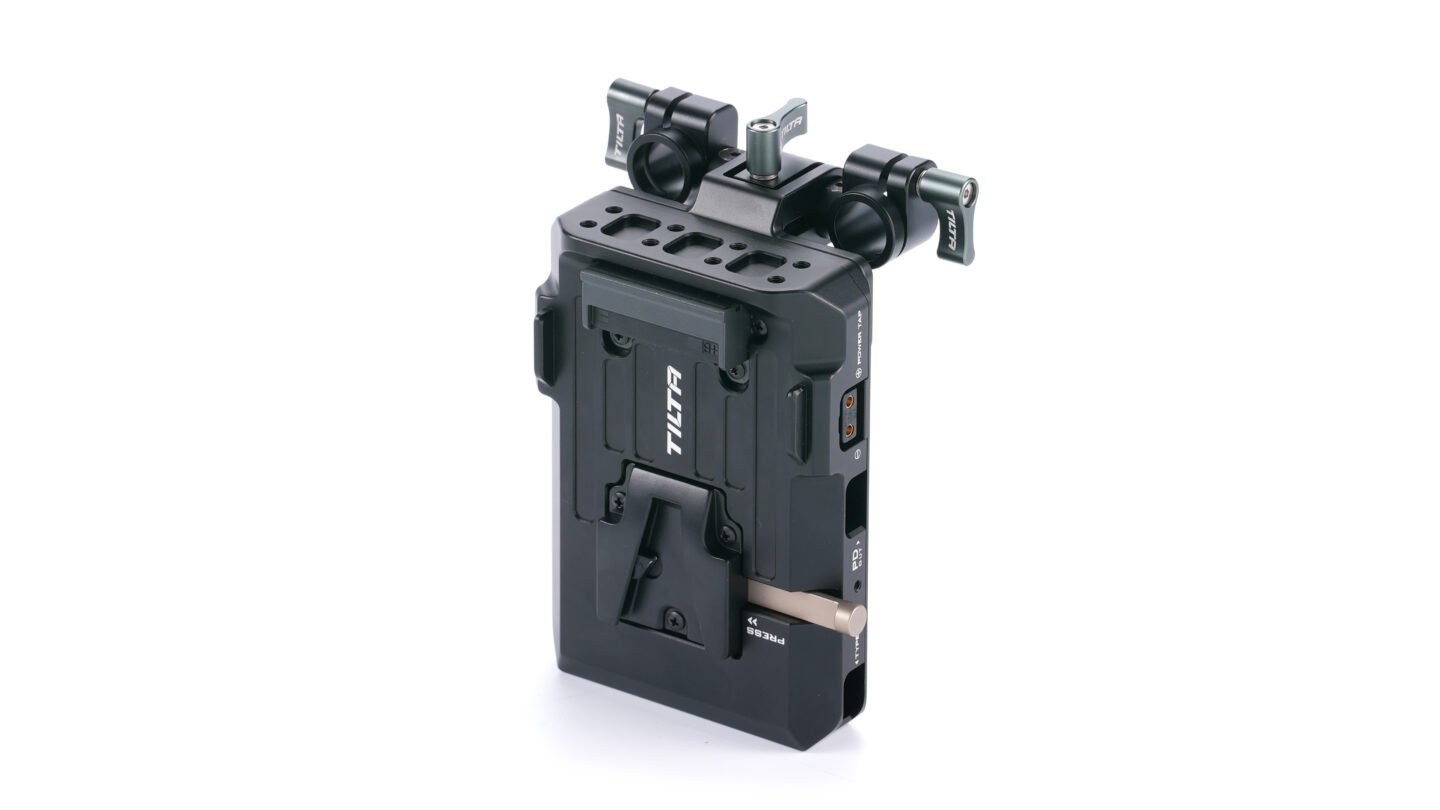

The Mini PD V-Mount plate in the kit has a P-Tap and a 2-pin LEMO output rated 20 V/3 A and a USB-C port with 60 W PD, so one battery runs both camera and accessories. On top are 1/4”-20 and M4 threads, and the side carries strap slots to tie the battery down against accidental release.

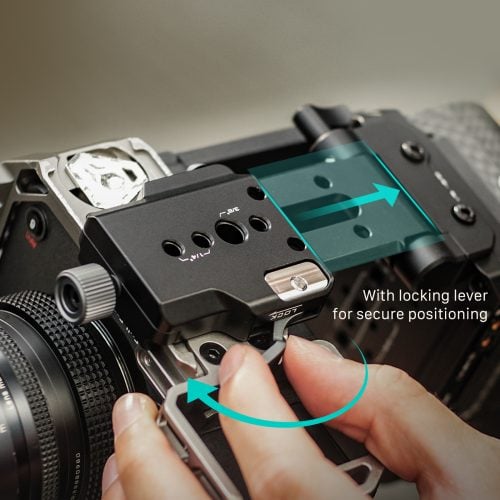

Eight controls, two locks

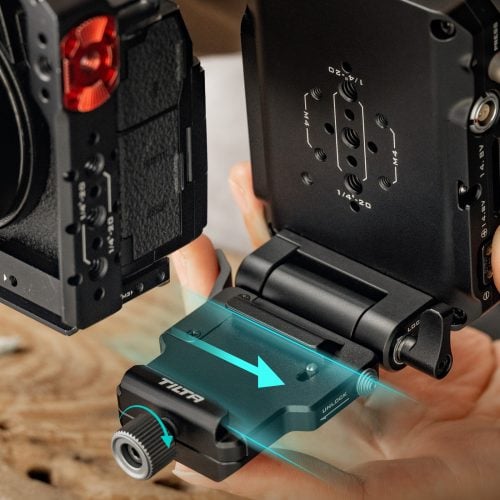

The locking knob holds the Arca plate, one lever locks the extension and a second one the rotation. A safety pin stops the plate sliding out even with the lock released. Everything is operated by hand, no tools.

0 to 37.2 mm of travel

The extension plate moves the battery closer to the camera body or further away and fine-tunes the balance of the whole rig. The range is 37.2 mm and the position is secured by a lever.

A hinge that folds through 180°

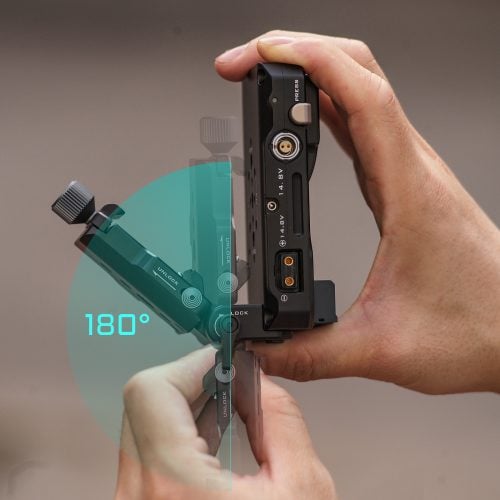

The rotating base lets the battery plate be angled up to 180 degrees relative to the camera — enough to clear a flip-out screen, even out the centre of gravity or fold the whole unit flat for storage.

Folds down to fit the bag

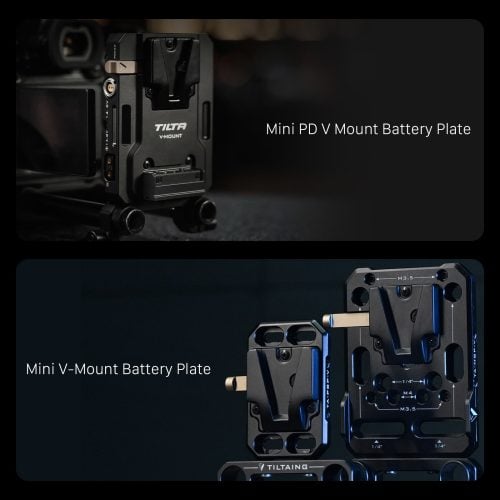

Folded together with a mini V-Mount plate the unit measures 10.15 × 8.4 × 2.92 cm, so it fits into a bag compartment next to a lens. Once adjusted, the camera’s flip-out screen stays freely accessible.

Which cameras it suits

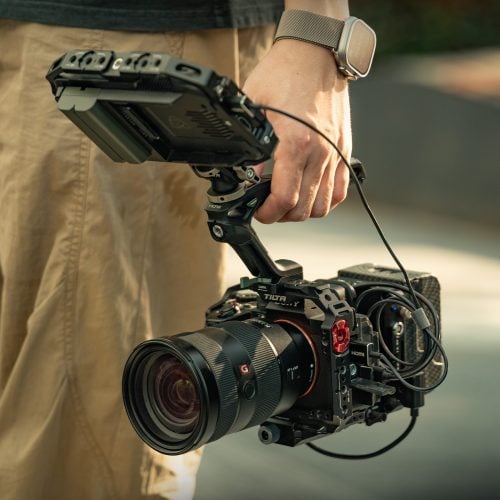

The receiver grips a Tilta camera cage or a standard Arca plate, so it works with mainstream mirrorless and DSLR bodies from Sony, Panasonic, Leica, Canon, Nikon and Fujifilm. Tilta shows it on a Panasonic Lumix GH6, Sony a7S III, Leica SL3 and Sony FX3.

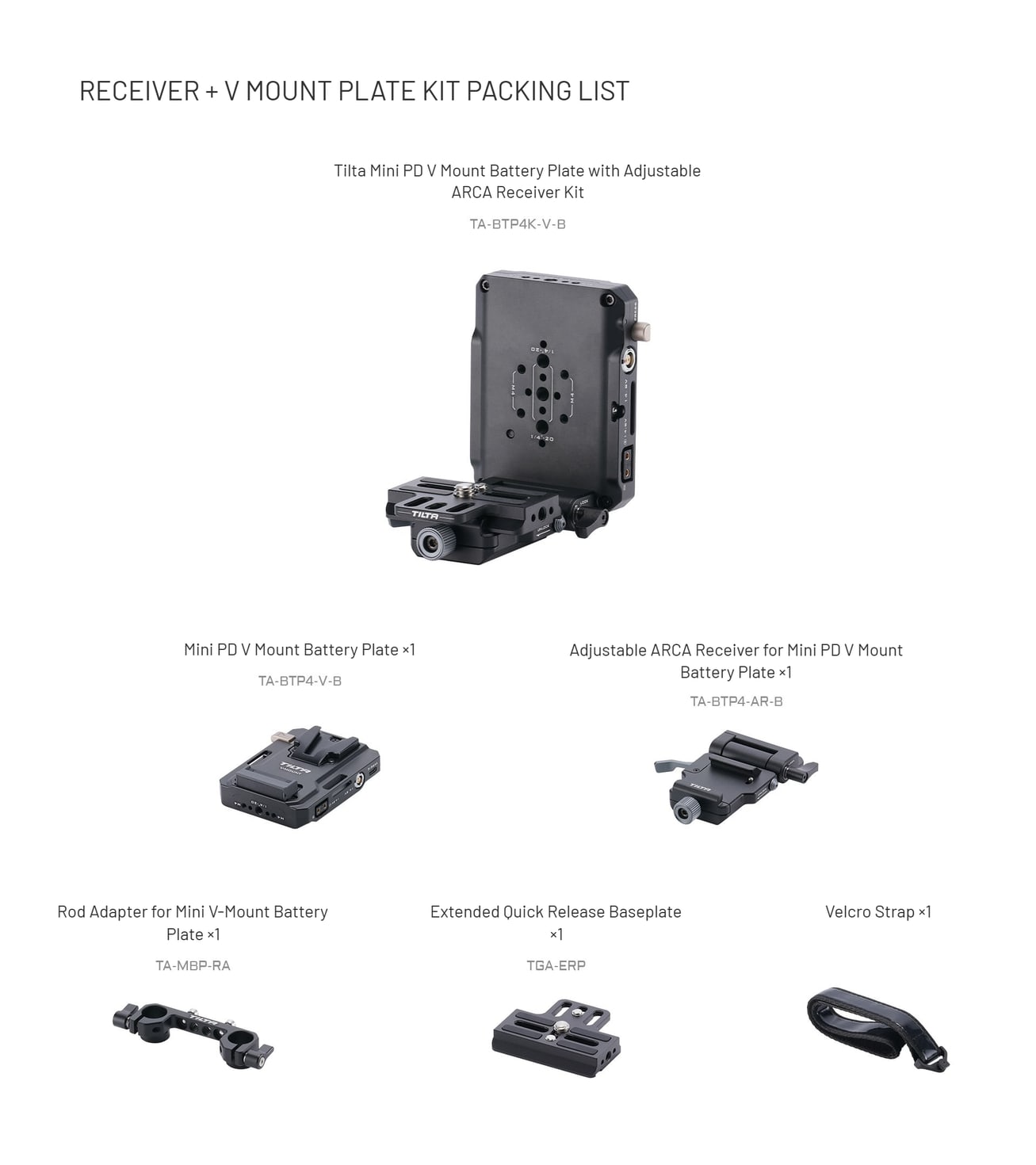

What is in the kit

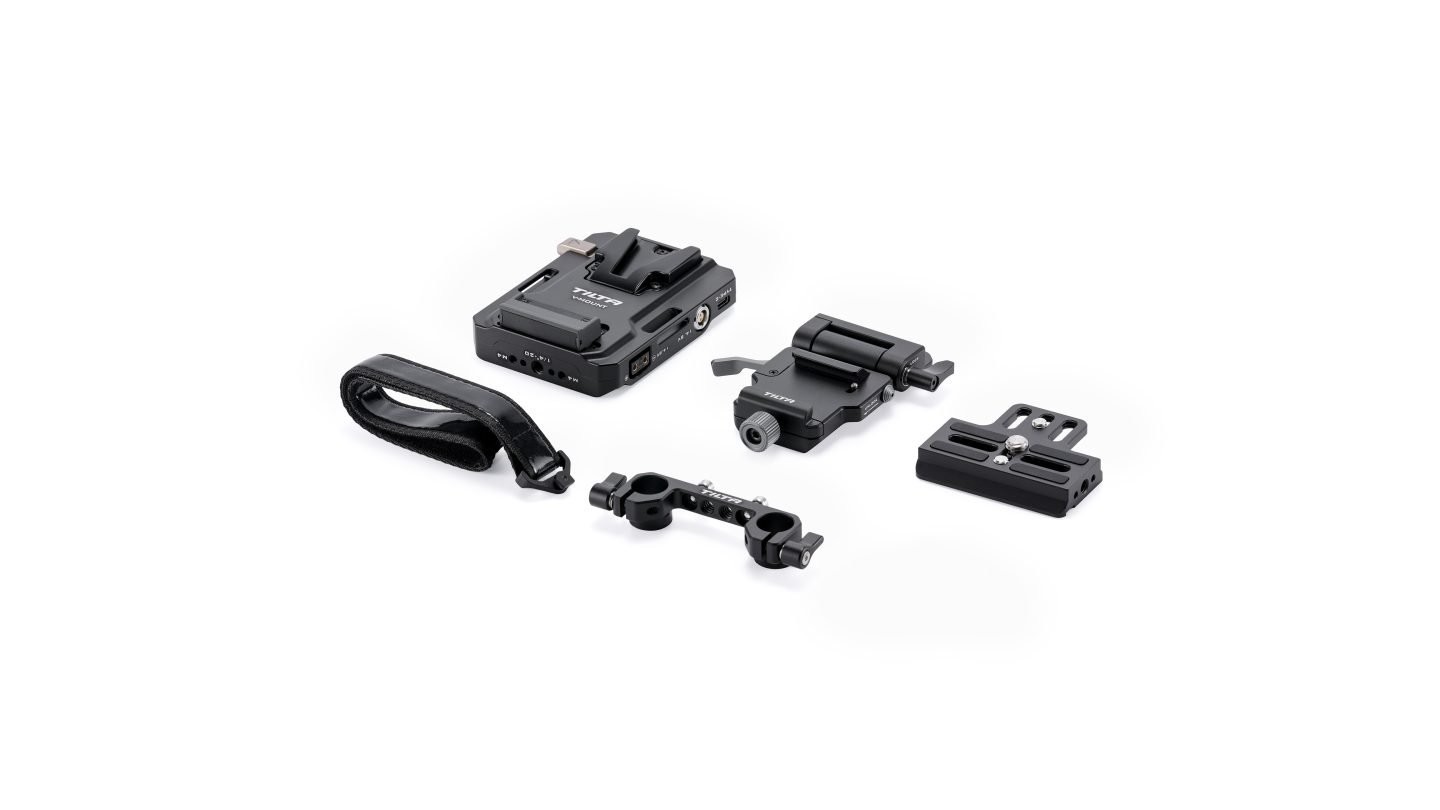

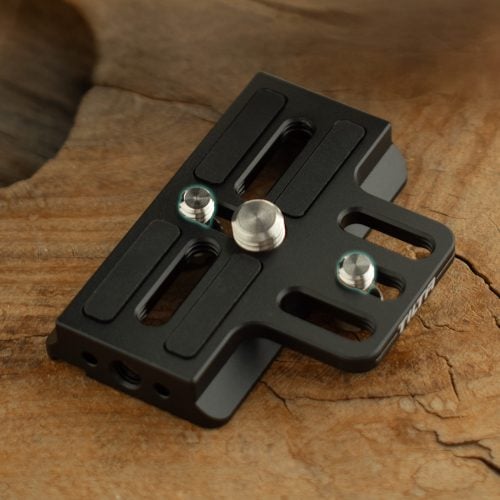

The TA-BTP4K-V-B kit contains the Mini PD V-Mount battery plate, the adjustable ARCA receiver, a rod adapter, an extended quick release baseplate and a velcro strap. A V-Mount battery is not included.
