Tilta Adjustable ARCA Receiver for Mini PD V Mount Battery Plate - Black

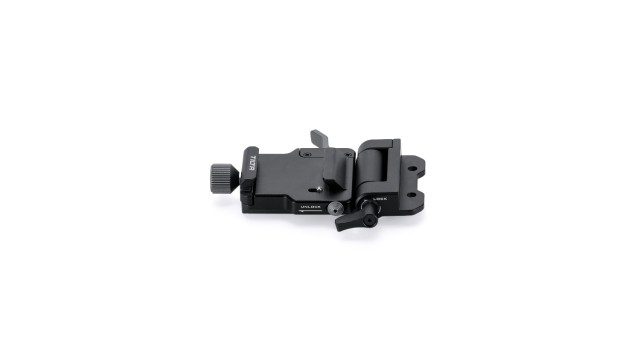

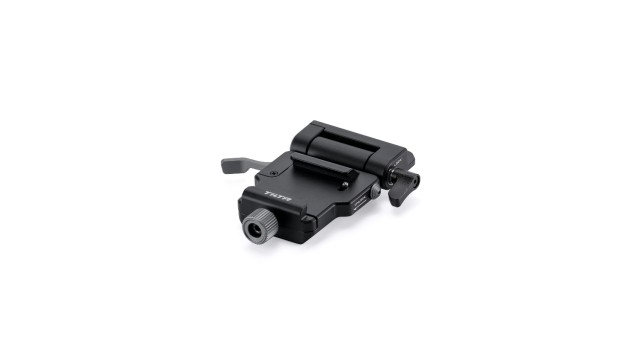

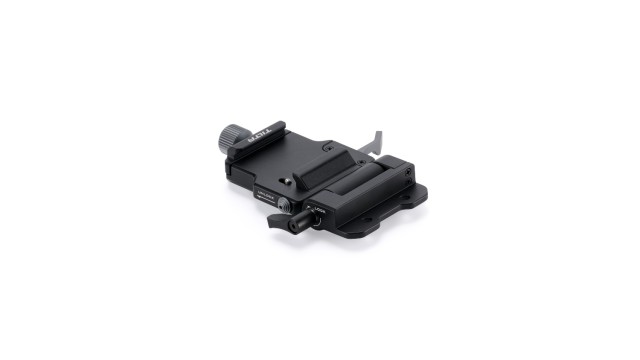

The Tilta TA-BTP4-AR-B adjustable ARCA receiver is the part on its own that hangs a Mini PD V-Mount battery plate on the camera without a baseplate or 15 mm rods. It grips a DJI standard ARCA quick release plate or a Tilta camera cage, extends by 37.2 mm and its rotating base folds through 180 degrees. It weighs 160.5 grams. Neither the battery plate nor a battery is included.

The receiver on its own, for anyone who already owns a Mini PD V-Mount battery plate and wants it off the baseplate and rods. The box holds the receiver only — no battery plate, no quick release plate, no battery.

A battery on the camera without a baseplate or rods

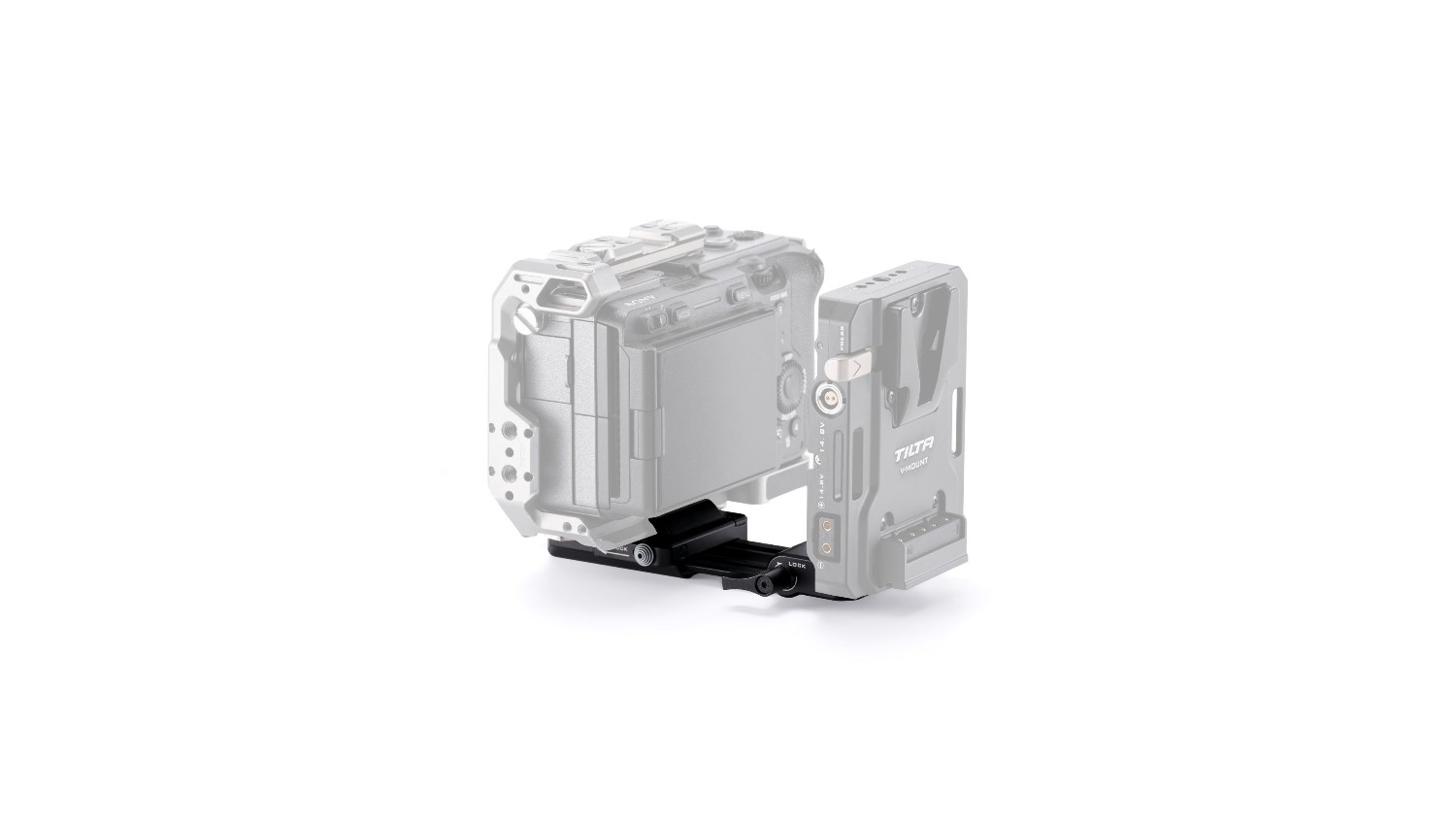

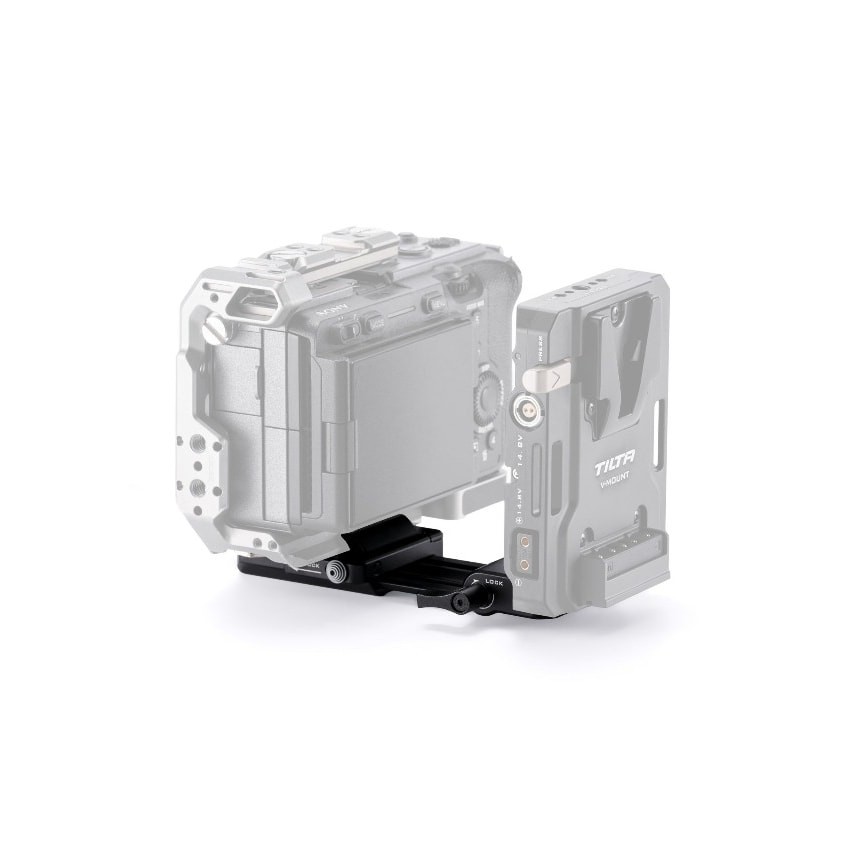

The adjustable ARCA receiver holds a V-Mount battery plate directly on the camera — via a DJI standard ARCA quick release plate or a compatible Tilta camera cage. No baseplate and no 15 mm rods, so the rig is lighter and comes apart faster.

Eight controls, two locks

The locking knob holds the Arca plate, one lever locks the extension and a second one the rotation. A safety pin stops the plate sliding out even with the lock released. Everything is operated by hand, no tools.

0 to 37.2 mm of travel

The extension plate moves the battery closer to the camera body or further away and fine-tunes the balance of the whole rig. The range is 37.2 mm and the position is secured by a lever.

A hinge that folds through 180°

The rotating base lets the battery plate be angled up to 180 degrees relative to the camera — enough to clear a flip-out screen, even out the centre of gravity or fold the whole unit flat for storage.

Which battery plates it belongs to

The receiver is made for the Tilta Mini PD V-Mount, Mini V-Mount and Pocket V-Mount battery plates. Neither the plate itself nor a battery is included — they are bought separately.

Folds down to fit the bag

Folded together with a mini V-Mount plate the unit measures 10.15 × 8.4 × 2.92 cm, so it fits into a bag compartment next to a lens. Once adjusted, the camera’s flip-out screen stays freely accessible.

Which cameras it suits

The receiver grips a Tilta camera cage or a standard Arca plate, so it works with mainstream mirrorless and DSLR bodies from Sony, Panasonic, Leica, Canon, Nikon and Fujifilm. Tilta shows it on a Panasonic Lumix GH6, Sony a7S III, Leica SL3 and Sony FX3.
