Tilta Adjustable ARCA Receiver with Quick Release Plate Kit - Black

The Tilta TA-BTP4-ARK-B kit is the adjustable ARCA receiver together with an extended Arca quick release plate, screws and two hex keys. The plate is screwed onto the camera or the cage, the receiver clicks onto it and then carries a V-Mount battery plate — without a baseplate or 15 mm rods. The receiver extends by 37.2 mm and folds through 180 degrees. Neither the battery plate nor a battery is included.

The receiver together with an Arca quick release plate, so it can also go on a camera or cage that has no Arca plate yet. The battery plate and the battery are not included.

The Arca quick release plate is included

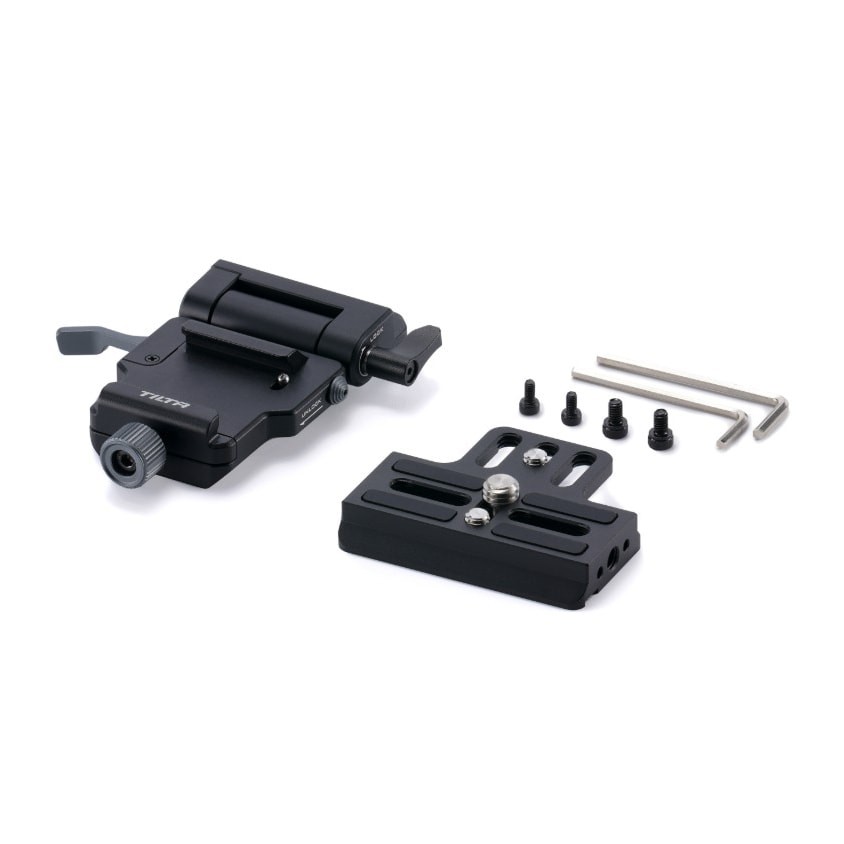

The receiver comes with an extended Arca quick release plate (TGA-ERP), screws and two hex keys. The plate is screwed onto the camera or the cage and the receiver then simply clicks onto it — without it the receiver would have nothing to grip.

A battery on the camera without a baseplate or rods

The adjustable ARCA receiver holds a V-Mount battery plate directly on the camera — via a DJI standard ARCA quick release plate or a compatible Tilta camera cage. No baseplate and no 15 mm rods, so the rig is lighter and comes apart faster.

Eight controls, two locks

The locking knob holds the Arca plate, one lever locks the extension and a second one the rotation. A safety pin stops the plate sliding out even with the lock released. Everything is operated by hand, no tools.

0 to 37.2 mm of travel

The extension plate moves the battery closer to the camera body or further away and fine-tunes the balance of the whole rig. The range is 37.2 mm and the position is secured by a lever.

A hinge that folds through 180°

The rotating base lets the battery plate be angled up to 180 degrees relative to the camera — enough to clear a flip-out screen, even out the centre of gravity or fold the whole unit flat for storage.

Which battery plates it belongs to

The receiver is made for the Tilta Mini PD V-Mount, Mini V-Mount and Pocket V-Mount battery plates. Neither the plate itself nor a battery is included — they are bought separately.

Which cameras it suits

The receiver grips a Tilta camera cage or a standard Arca plate, so it works with mainstream mirrorless and DSLR bodies from Sony, Panasonic, Leica, Canon, Nikon and Fujifilm. Tilta shows it on a Panasonic Lumix GH6, Sony a7S III, Leica SL3 and Sony FX3.
