Tilta 2-Pin Lemo to 5.5/2.1mm DC Male Cable

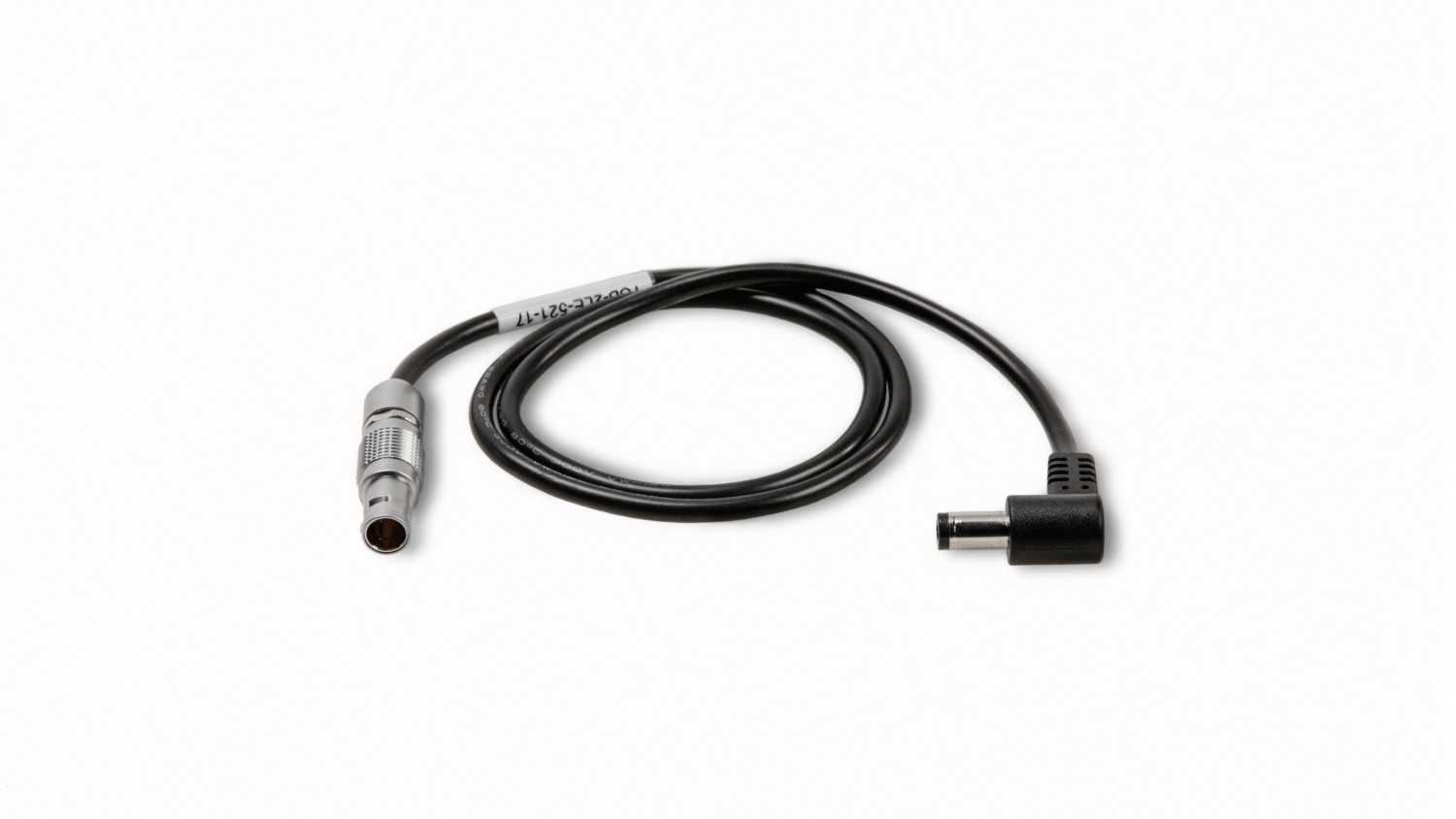

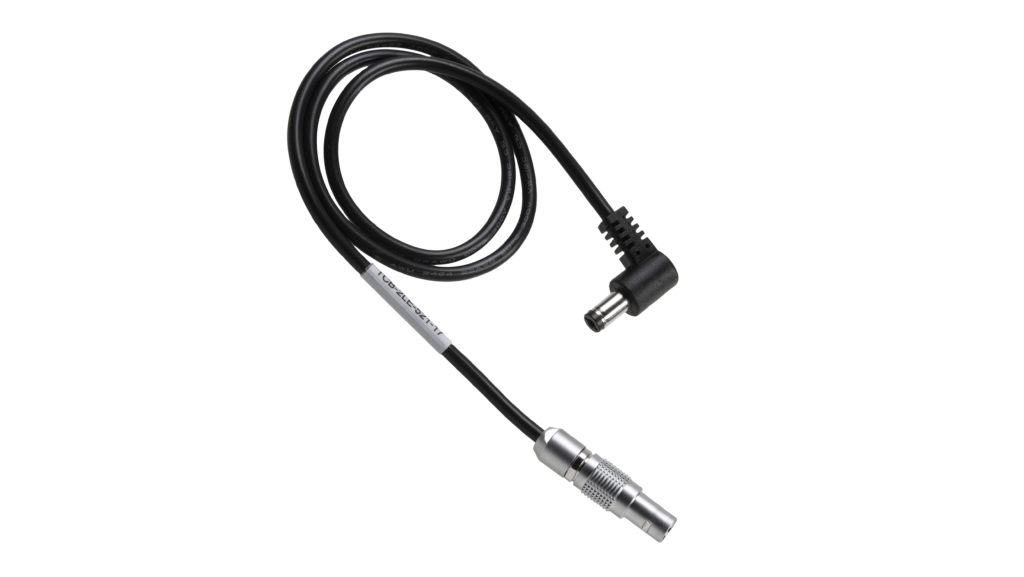

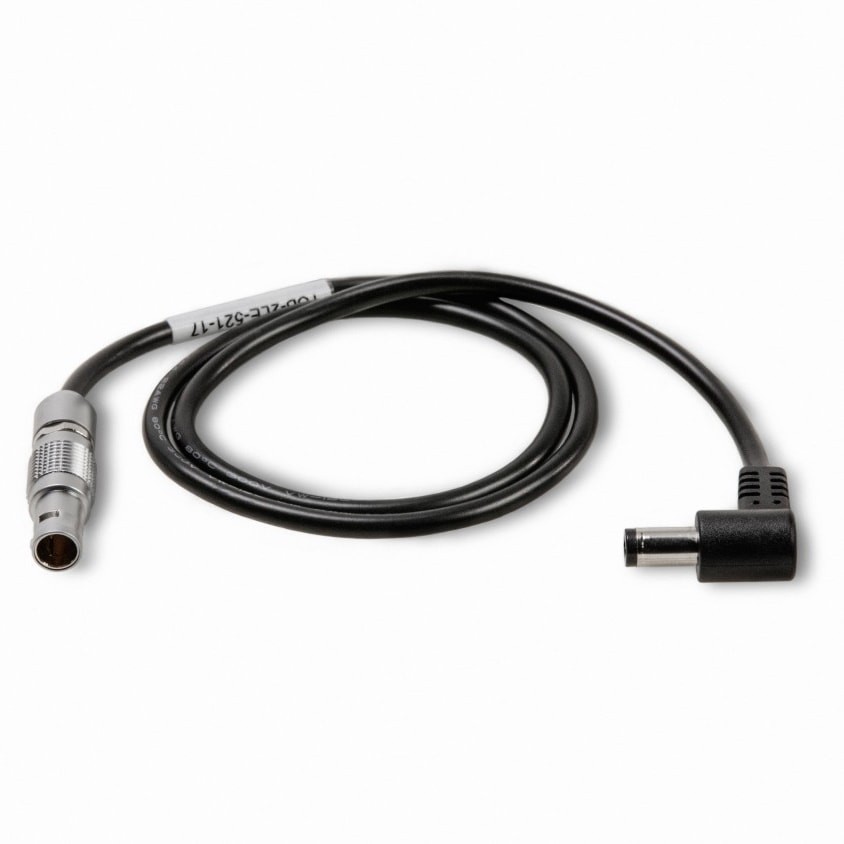

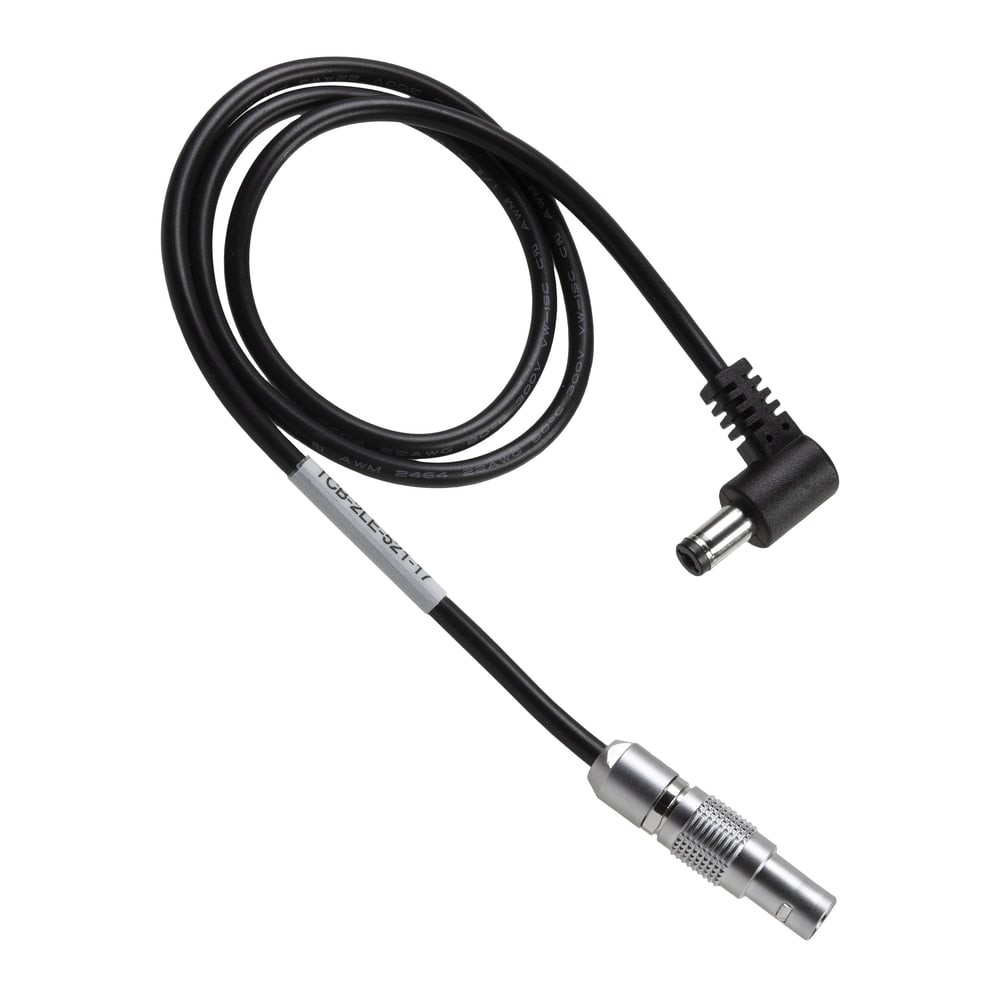

The Tilta TCB-2LE-521-17 is a 2-pin Lemo → DC 5.5/2.1 mm power cable. It plugs into the 2-pin Lemo output of a battery plate or power module on the rig and powers accessories with a 5.5/2.1 mm DC barrel input — a monitor, transmitter or light — from the camera's main battery. Length 55.25 cm; the DC plug is right-angled.

The Tilta TCB-2LE-521-17 is the cable for rigs where the free output is not P-Tap but 2-pin Lemo: Tilta Mini PD battery plates, plates for Blackmagic PYXIS and Sony FX9, or gimbal power modules. An accessory with a DC input then runs from the main battery and needs no pack of its own.

2-pin Lemo → DC 5.5/2.1 mm

The 2-pin Lemo plug goes into the 2-pin Lemo power output of the battery plate or module and locks in the socket. The other end is a right-angled 5.5/2.1 mm DC plug for the barrel socket of monitors, video transmitters, LED lights and other accessories with this input. The cable passes the source voltage through unchanged, so it belongs on devices that accept that voltage. The version with a 2.5 mm pin is the sibling TCB-2LE-525-17.

55 cm of straight cable with a right-angled plug

The 55.25 cm length reaches from the battery plate at the back of the cage to a monitor on the top handle or a transmitter on an arm. The conductors are copper, the jacket rubber and the connectors aluminium alloy. The right-angled DC plug keeps the cable close to the device body so it does not stick out; the locked Lemo connector will not pull out from a tug on the cable.

Tilta cables

The Tilta TCB cable range links camera, battery and accessories on the rig: power from a V-Mount or Gold Mount plate over P-Tap, 2-pin Lemo, 3-pin Fischer or a DC barrel connector, USB-C PD for monitors and handles, 7-pin control cables for the Nucleus system and HDMI or BNC for the picture. Lengths follow the rig — short on the cage, longer out to arms and batteries; this cable is one of them.
