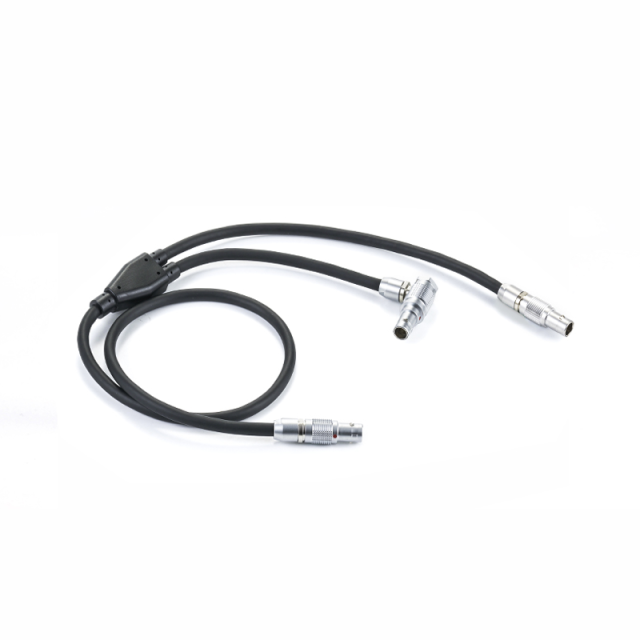

Tilta 2-Pin Lemo to Dual 2-Pin Lemo Splitter Power Cable

The Tilta TCB-2LE-D2LE is a splitter power cable: one 2-pin Lemo plug on the source side and two 2-pin Lemo plugs on the consumer side. From a single 2-pin Lemo output on a battery plate, cage or power module two devices then run at once — say a monitor and a video transmitter — off the same battery as the camera, without a second battery on the rig.

The Tilta TCB-2LE-D2LE turns one 2-pin Lemo output into two. When the source on the rig has a single power port and there are two accessories, neither another battery plate nor a second battery is needed — both devices share one source.

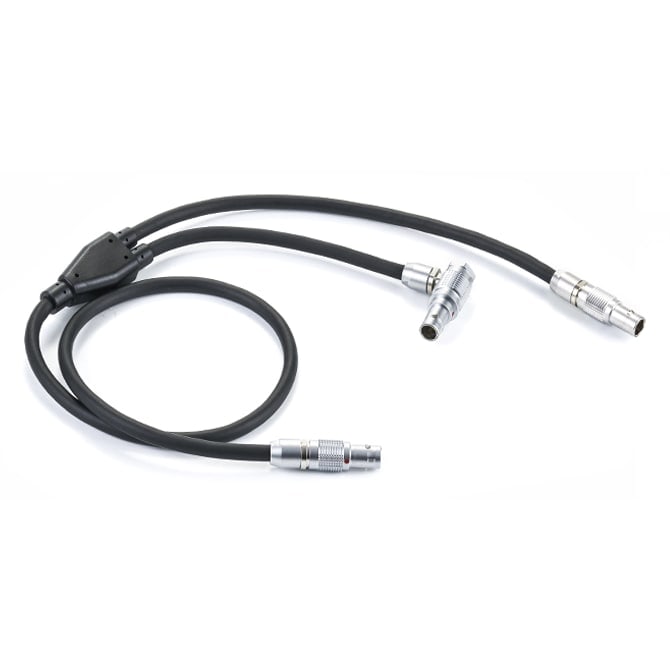

One input, two outputs

The short common section of cable ends in a 2-pin Lemo plug that goes into the source's power output; from the junction two branches lead off, each ending in a 2-pin Lemo plug for one device. All three connectors have push-pull locking. The splitter does not change the voltage, it only divides it: both devices must be built for the source voltage and their combined draw must not exceed what the source output allows.

Where it fits

Typically it powers a monitor and a video transmitter from one cage output, or splits the power from a battery plate between a camera with a 2-pin Lemo input and a second device. The straight black cable runs along the rods on the cage and a hook-and-loop strap gathers the spare length.

Tilta cables

The Tilta TCB cable range links camera, battery and accessories on the rig: power from a V-Mount or Gold Mount plate over P-Tap, 2-pin Lemo, 3-pin Fischer or a DC barrel connector, USB-C PD for monitors and handles, 7-pin control cables for the Nucleus system and HDMI or BNC for the picture. Lengths follow the rig — short on the cage, longer out to arms and batteries; this cable is one of them.
