Tilta 2-Pin Lemo to 4-Pin Lemo Cable

The Tilta TCB-2LE-4LE-17 is a power cable with a 2-pin Lemo plug at one end and a 4-pin Lemo plug at the other. It links a source and a device on the rig that each have a different Lemo connector — the 2-pin Lemo output of a battery plate or cage and the 4-pin Lemo input of an accessory, or the other way round. Straight black cable with push-pull connectors that will not pull out on their own.

The Tilta TCB-2LE-4LE-17 is an adapter cable between two Lemo sizes. An accessory with 4-pin Lemo then runs off a source with 2-pin Lemo without a second battery on the rig — the setup stays small and there is only one battery to swap.

2-pin Lemo at one end, 4-pin Lemo at the other

One end carries a 2-pin Lemo plug, the other a 4-pin Lemo plug, both with push-pull locking: the connector holds until its sleeve is pulled. The cable thus links the 2-pin Lemo power output on a battery plate, splitter or cage power module with a device that has a 4-pin Lemo input, and serves just as well in the opposite direction. It does not change the voltage, it only carries it — source and device must work at the same voltage.

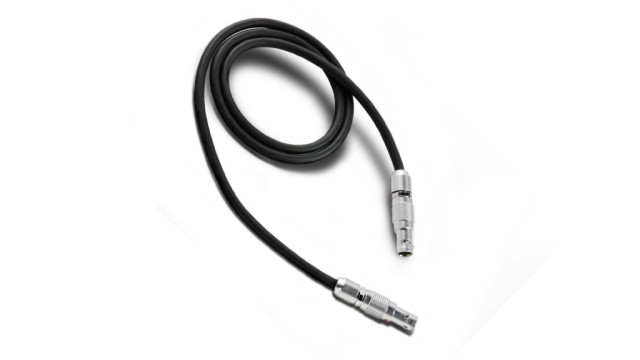

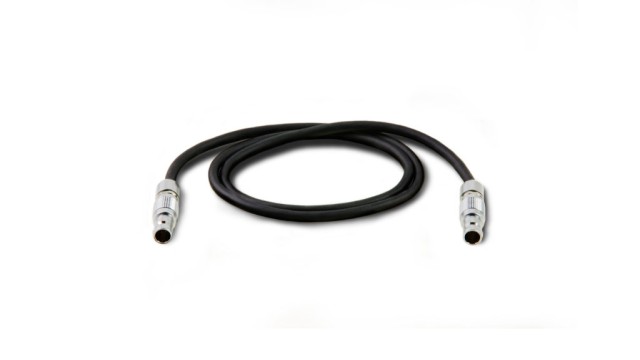

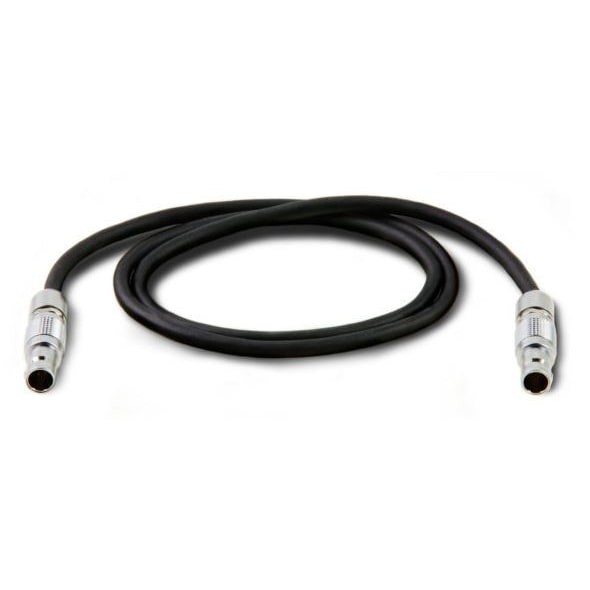

Straight cable in black

The cable is straight and black; on the cage it runs along the rods or the edge of the cage, and a hook-and-loop strap gathers the spare length. Its siblings in the same series are the TCB-2LE-2LE-17 (2-pin to 2-pin), TCB-2LE-3FS-17 (2-pin Lemo to 3-pin Fischer) and TCB-3FS-4LE-17 (3-pin Fischer to 4-pin Lemo).

Tilta cables

The Tilta TCB cable range links camera, battery and accessories on the rig: power from a V-Mount or Gold Mount plate over P-Tap, 2-pin Lemo, 3-pin Fischer or a DC barrel connector, USB-C PD for monitors and handles, 7-pin control cables for the Nucleus system and HDMI or BNC for the picture. Lengths follow the rig — short on the cage, longer out to arms and batteries; this cable is one of them.
