Tilta Foldable Battery Plate for Blackmagic PYXIS 6K/12K - Gold Mount

SKU: ES-T21-FBP-AB

This V-Mount Battery Plate mounts directly to our Camera Cage for Blackmagic PYXIS 6K/12K and features multiple power output ports such as PD USB-C, P-Tap, and 2 Pin as well as a PD USB-C input.

More information

168 € with VAT 138.84 € without VAT
Add to Compare Price history
Availability
on request
SKU:
ES-T21-FBP-AB
Add to Compare Price history

Tilta Foldable Battery Plate for Blackmagic PYXIS 6K/12K - V Mount

168 €without VAT 138.84 €

Top accessories for Tilta Foldable Battery Plate for Blackmagic PYXIS 6K/12K - Gold Mount

Tilta Camera Cage for Blackmagic PYXIS 6K Pro Kit - V Mount

The Tilta Camera Cage for Blackmagic PYXIS 6K Pro Kit is a complete rigging package
429 €
on request

Tilta Full Camera Cage for Blackmagic PYXIS 6K/12K

The Tilta Full Camera Cage for Blackmagic PYXIS 6K/12K is the modular cage on its
132 €
Backordered 1 pcs

Tilta Camera Cage for Blackmagic PYXIS 6K Base Kit

  • SHOWROOM PRAHA
The Tilta Camera Cage for Blackmagic PYXIS 6K Base Kit is a cage for the Blackmagic
204 €
Backordered 1 pcs

Tilta Camera Cage for Blackmagic PYXIS 6K Pro Kit - Gold Mount

The Tilta Camera Cage for Blackmagic PYXIS 6K Pro Kit is a complete rigging package
429 €
on request
Product description SPECIFICATIONS

Product description

This V-Mount Battery Plate mounts directly to our Camera Cage for Blackmagic PYXIS 6K/12K and features multiple power output ports such as PD USB-C, P-Tap, and 2 Pin as well as a PD USB-C input.

Features

Custom Fit saves space

Recessed Design for a secure top-plate connection and a compact setup with large batteries.

Easy to Lock Adjust for Balance

The thumb screw allows for quick battery balance adjustments, keeping the setup stable in both handheld and tripod configurations.

Quick Locking Mechanism

The thumb screw can be pulled out for adjustment, allowing locking at any angle.

    • CUSTOM DESIGNED for our Blackmagic PYXIS 6K/12K Camera Cage
    • GOLD MOUNT BATTERY PLATE Provides Higher Capacity Power for Longer Shooting Duration
    • HOT SWAPPABLE Swivel Design Maintains Access to On-Board Batteries
    • USB-C PD INPUT Port Improves Flexibility for Powering the Battery Plate
    • POWER OUTPUTS Include PD USB-C, 2 Pin, and P-Tap

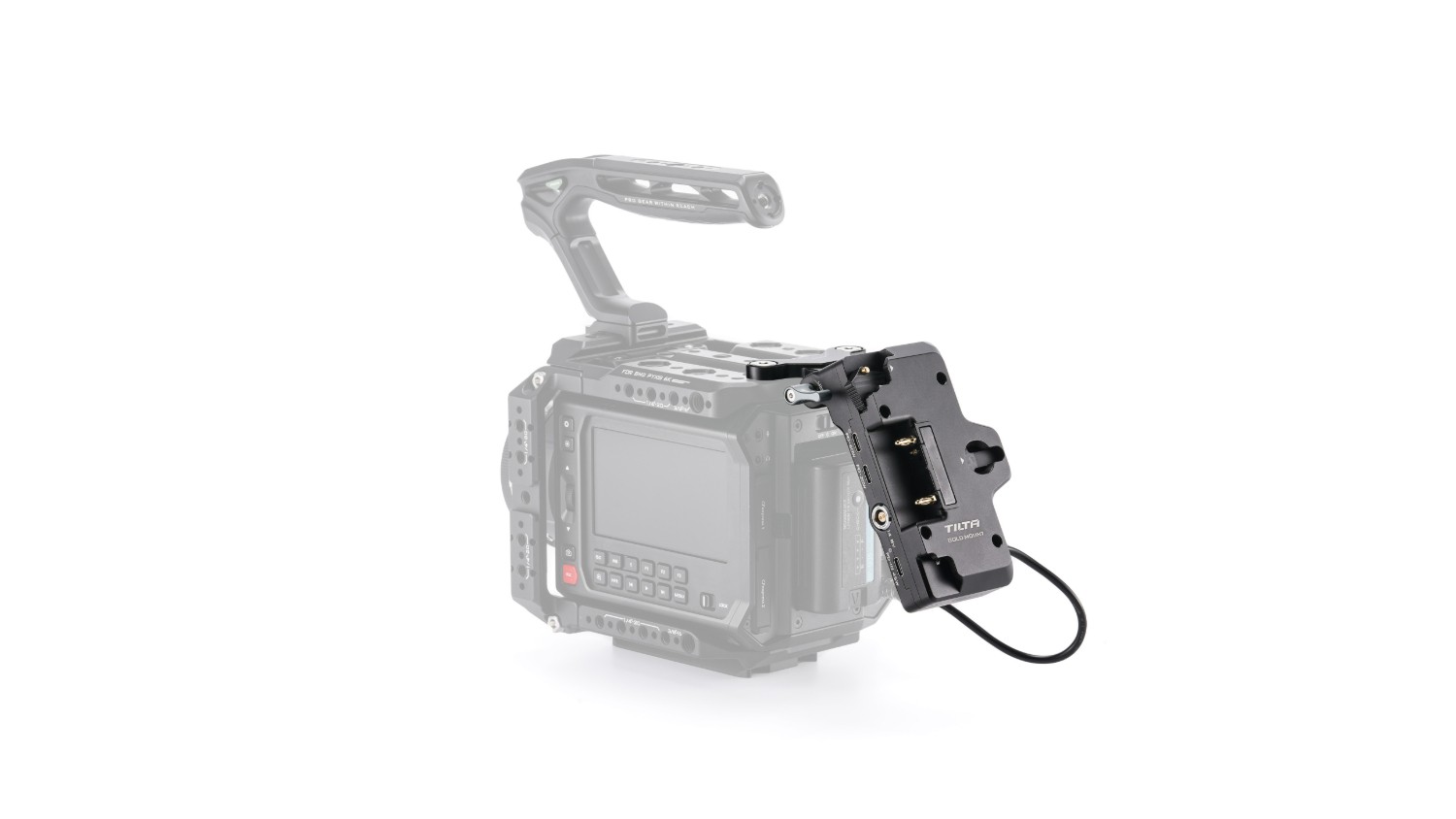

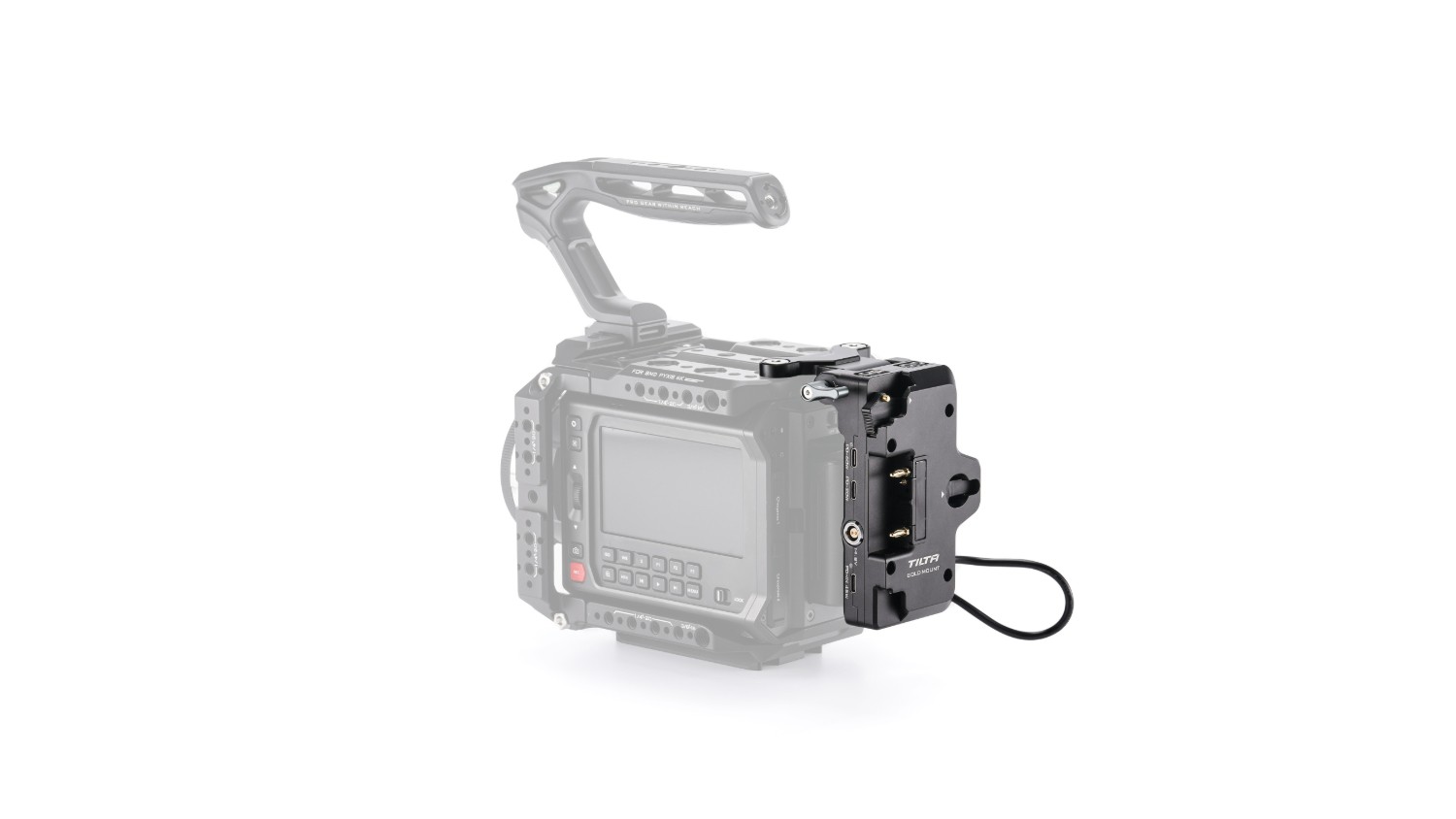

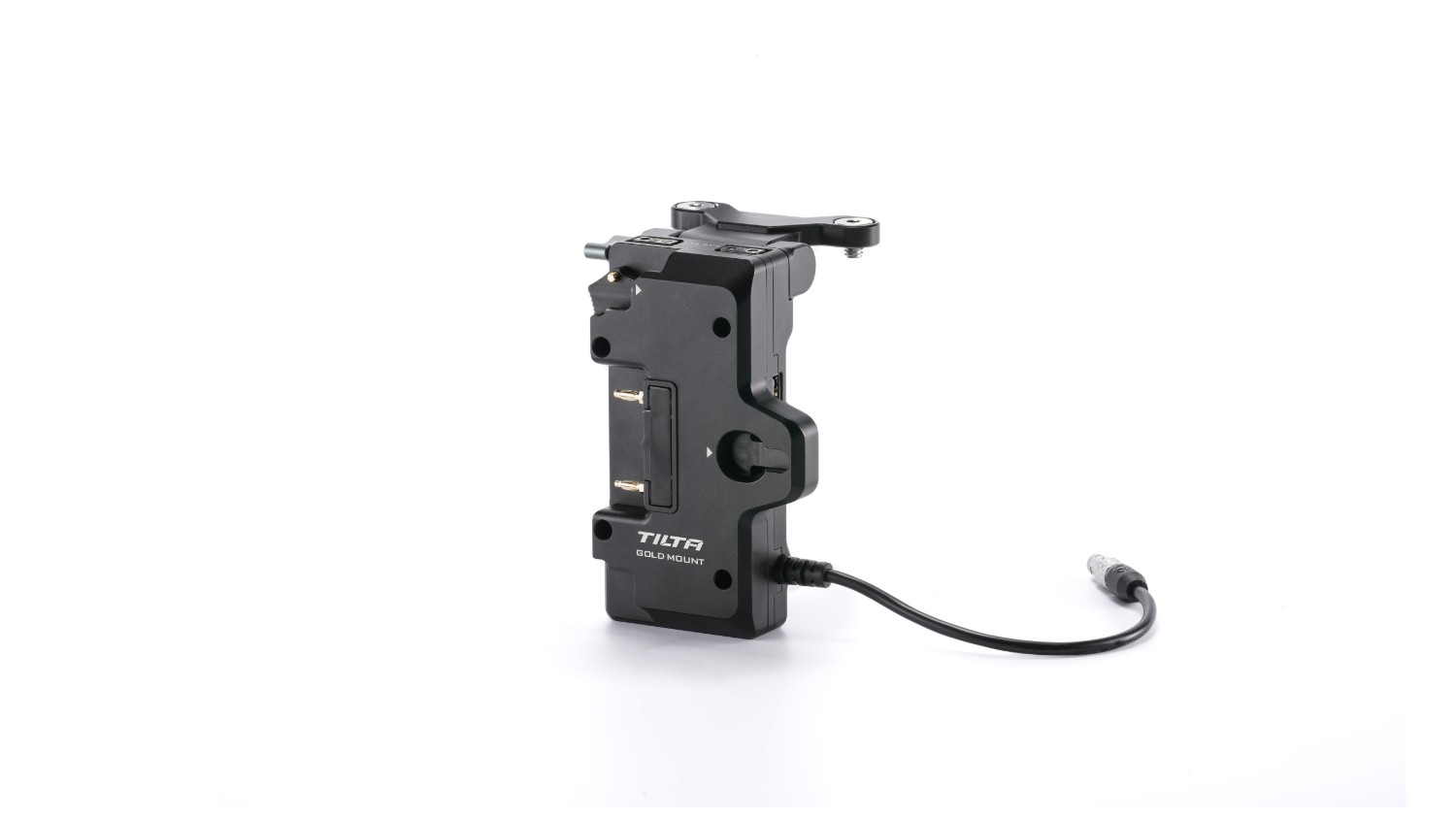

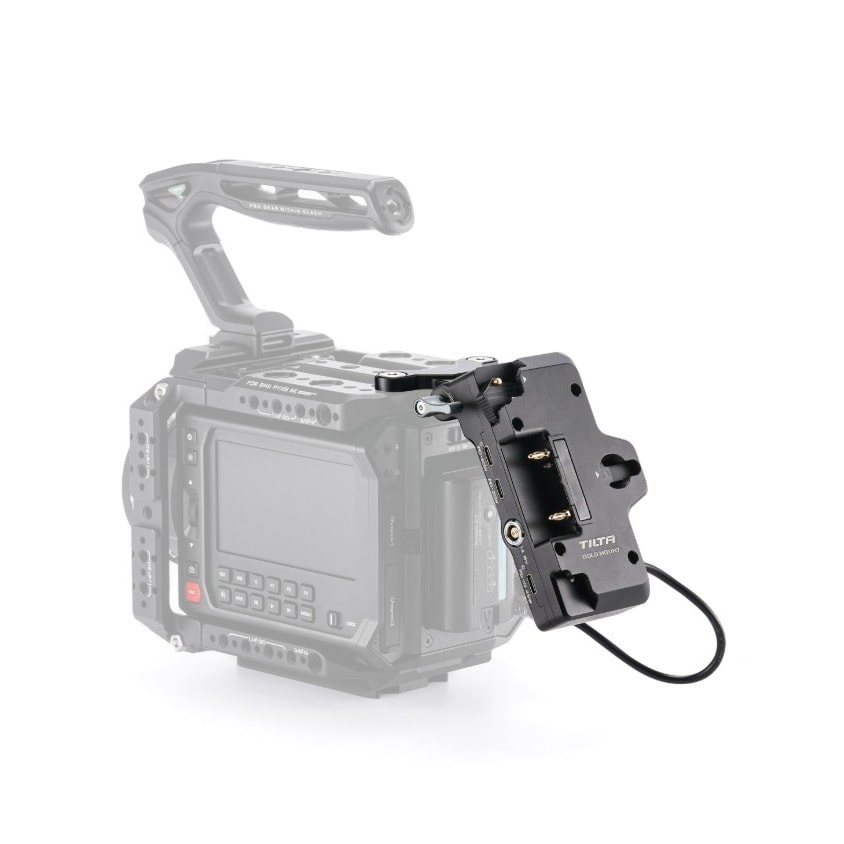

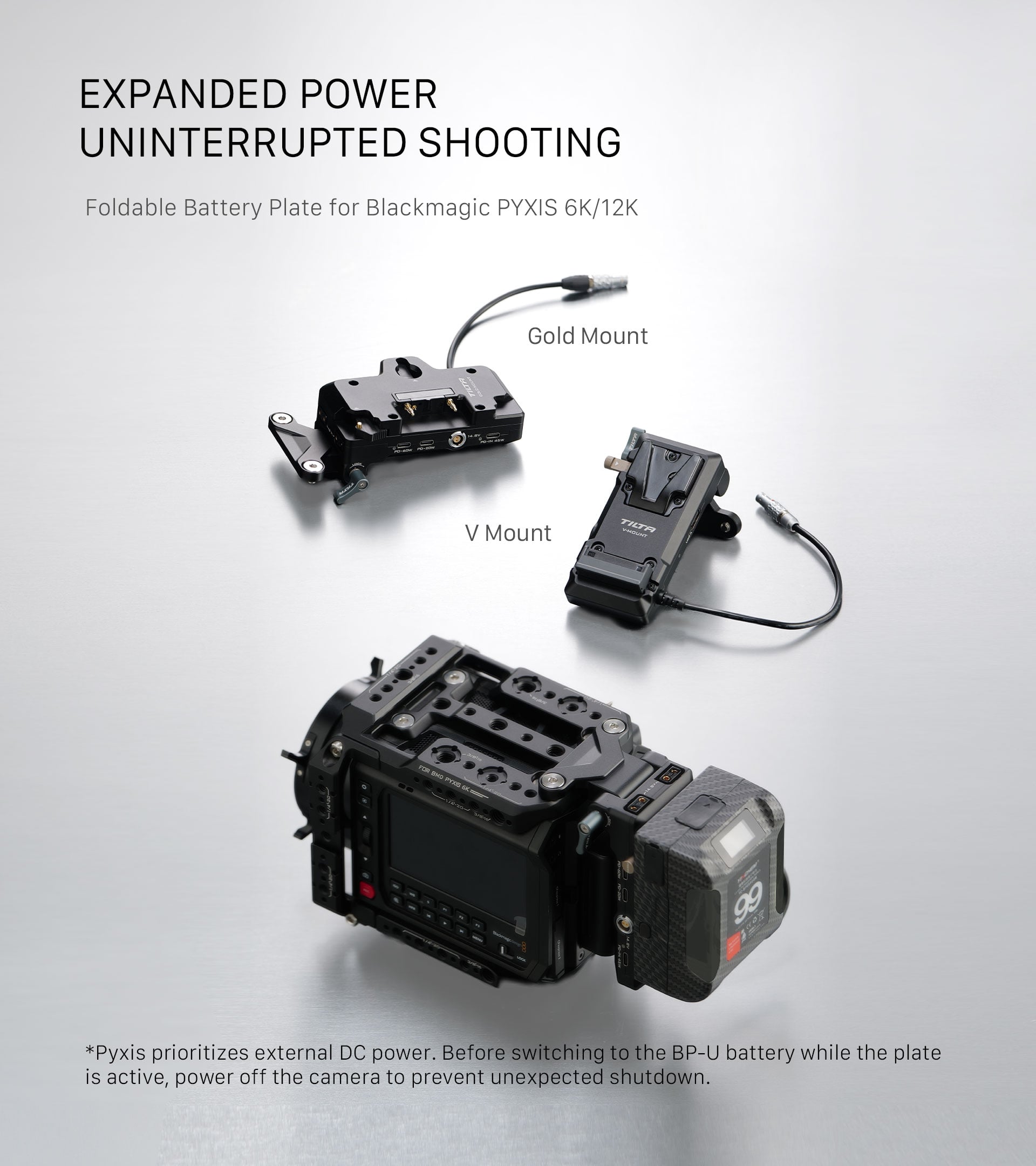

    Introducing the Foldable Battery Plate for Blackmagic PYXIS 6K/12K

    This Gold Mount Battery Plate mounts directly to our Camera Cage for Blackmagic PYXIS 6K/12K and features multiple power output ports such as PD USB-C, P-Tap, and 2 Pin as well as a PD USB-C input.

    The USB-C input is especially useful as it allows users to power the battery plate and all connected accessories without having a V-Mount battery attached which is perfect for hot swapping or rigging the camera in lighter weight configurations.

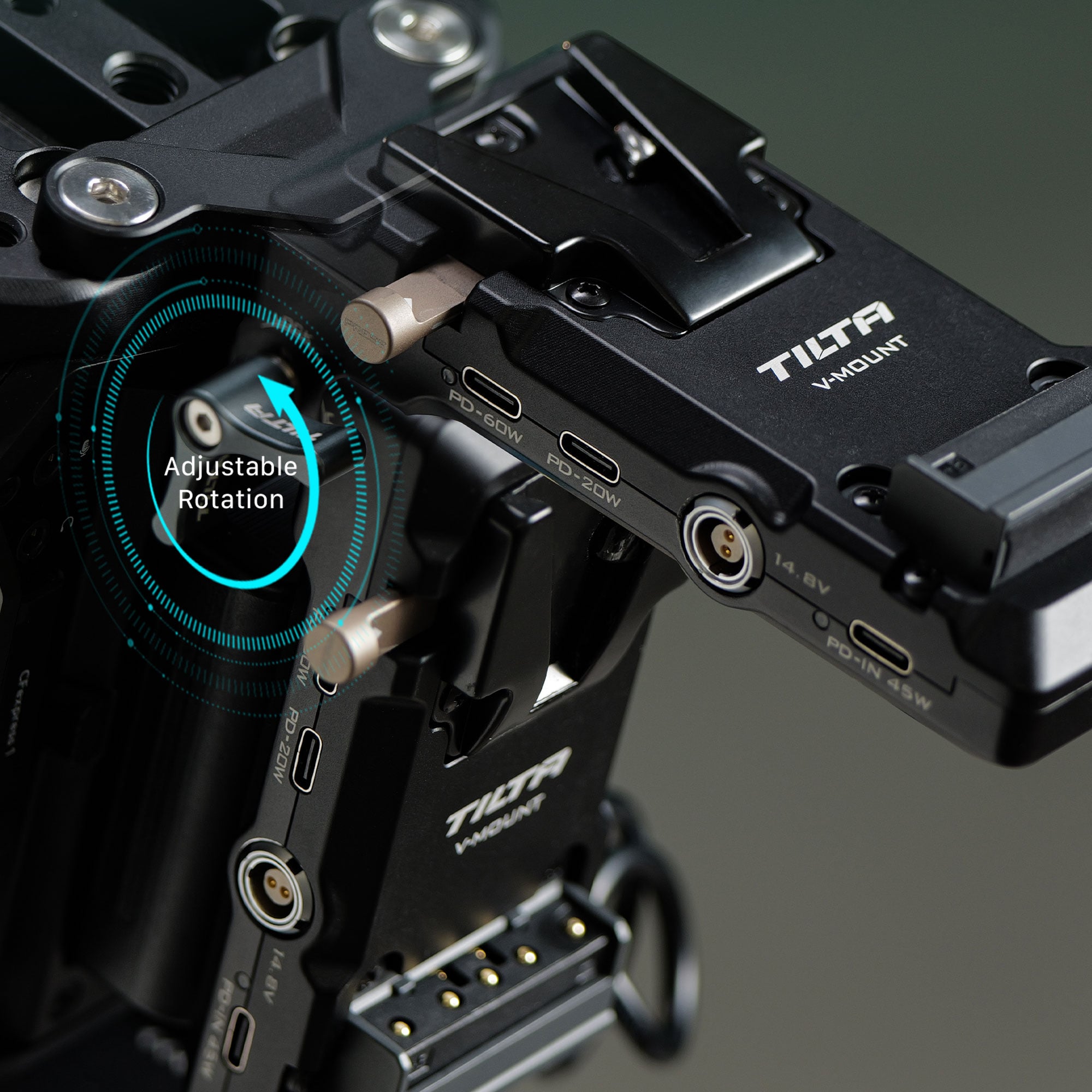

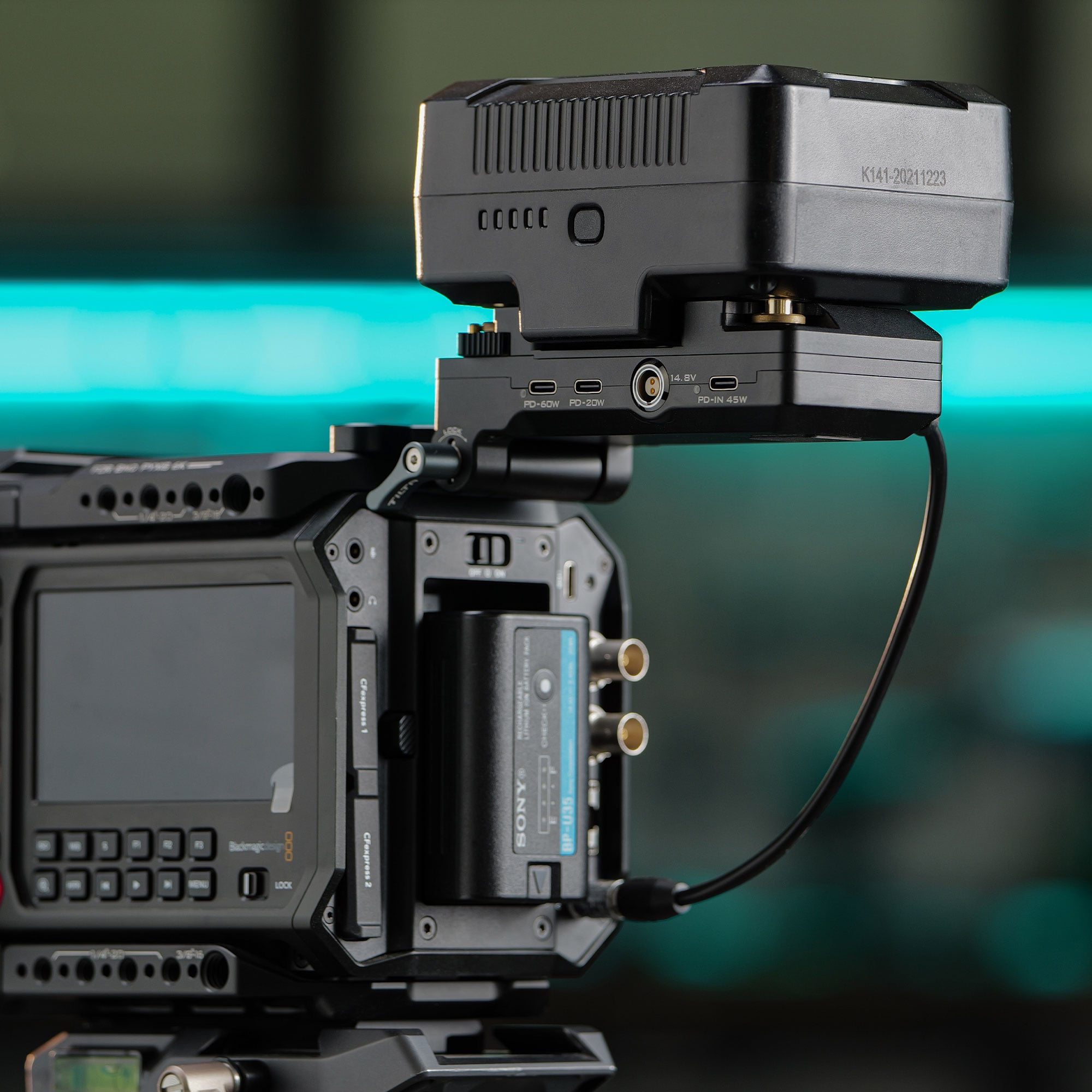

    The Plate also features a swivel mount that allows users to easily access the camera’s on-board batteries which makes this a great option for hot swapping as a small on-board battery can power the camera while a V-Mount is being swapped.

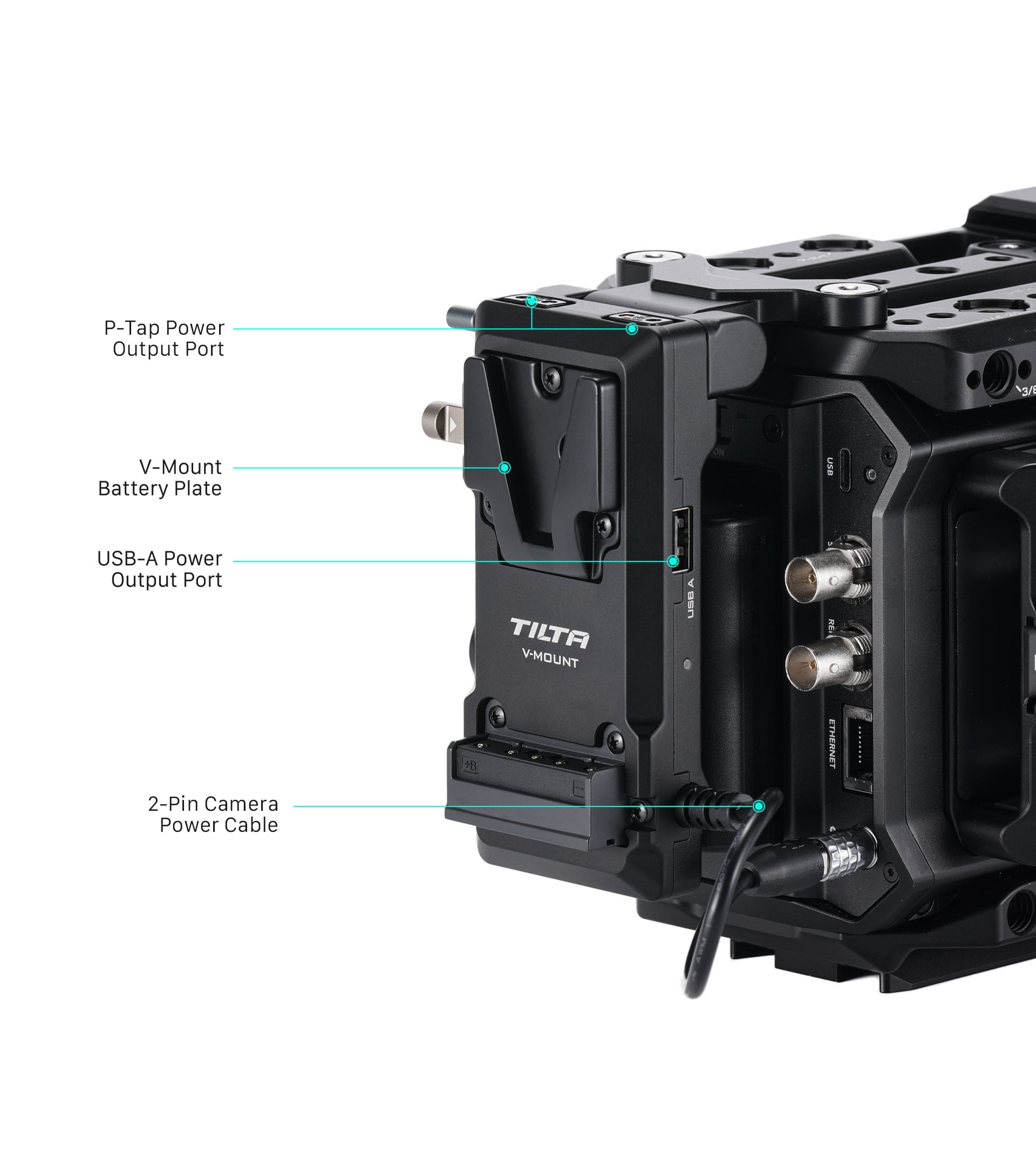

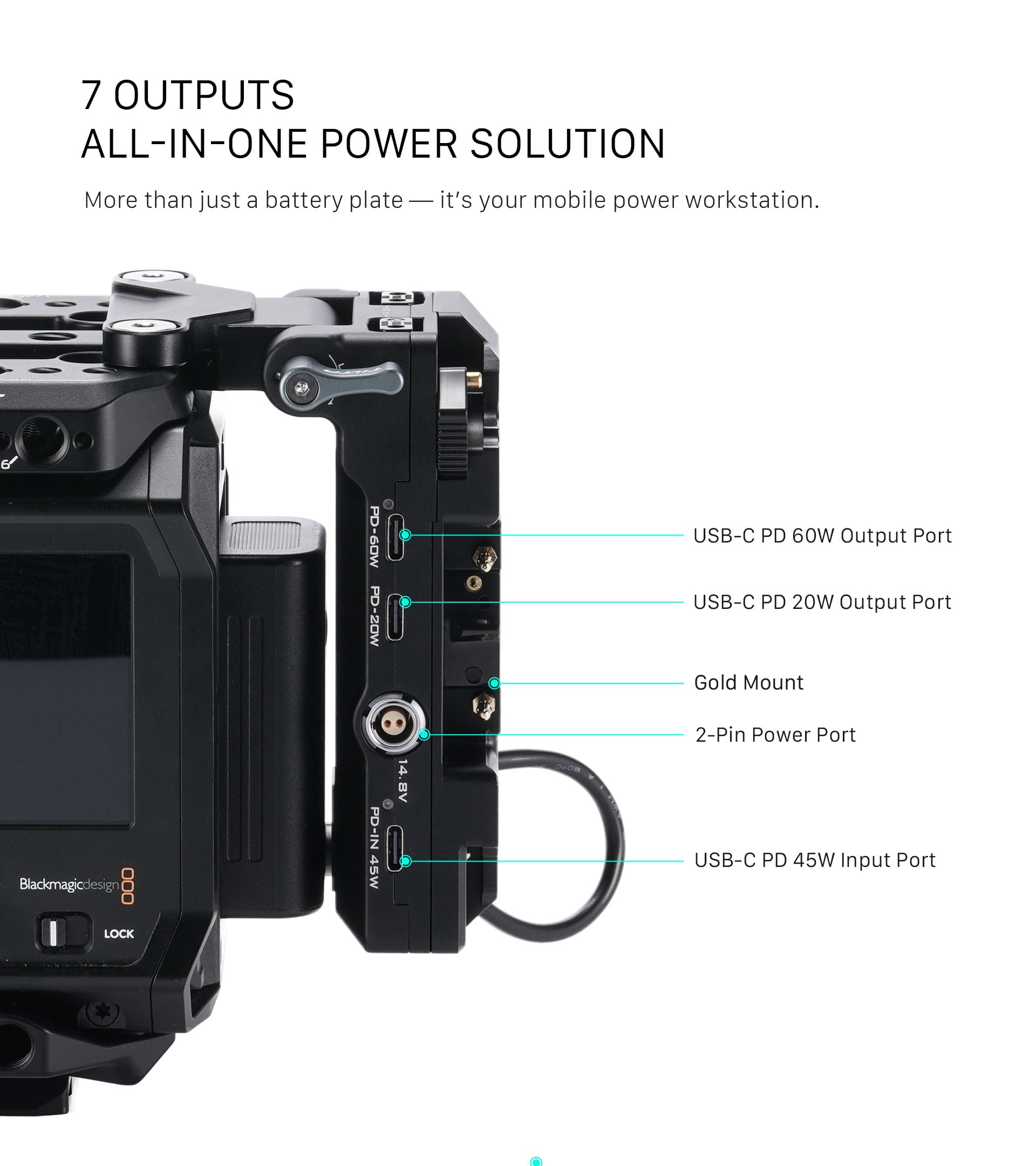

    Power Outputs

    • (2) 14.8V P-Tap
    • (1) 14.8V 2-Pin
    • (1) USB-C PD 60W
    • (1) USB-C PD 20W
    • (1) USB-A 5V

    Power Input

    • (1) USB-C PD 45W

    SPECIFICATIONS

    • Dimensions: 228.6 × 170.2 × 109.2 mm
    • Weight: 590 g
    • Material: aluminium alloy, stainless steel
    • Colour: black
    Parameters

    Parameters

    Manufacturer: Tilta
    Category: Power battery plates

    Main parameters

    Battery Type / MountingGold Mount
    Outputs and InterfacesD-Tap / P-Tap · USB-C PD · 2-pin LEMO
    CompatibilityBlackmagic Design
    For batteryGold Mount
