RGBlink RMS 5533S
SKU: 400-5533-02-0

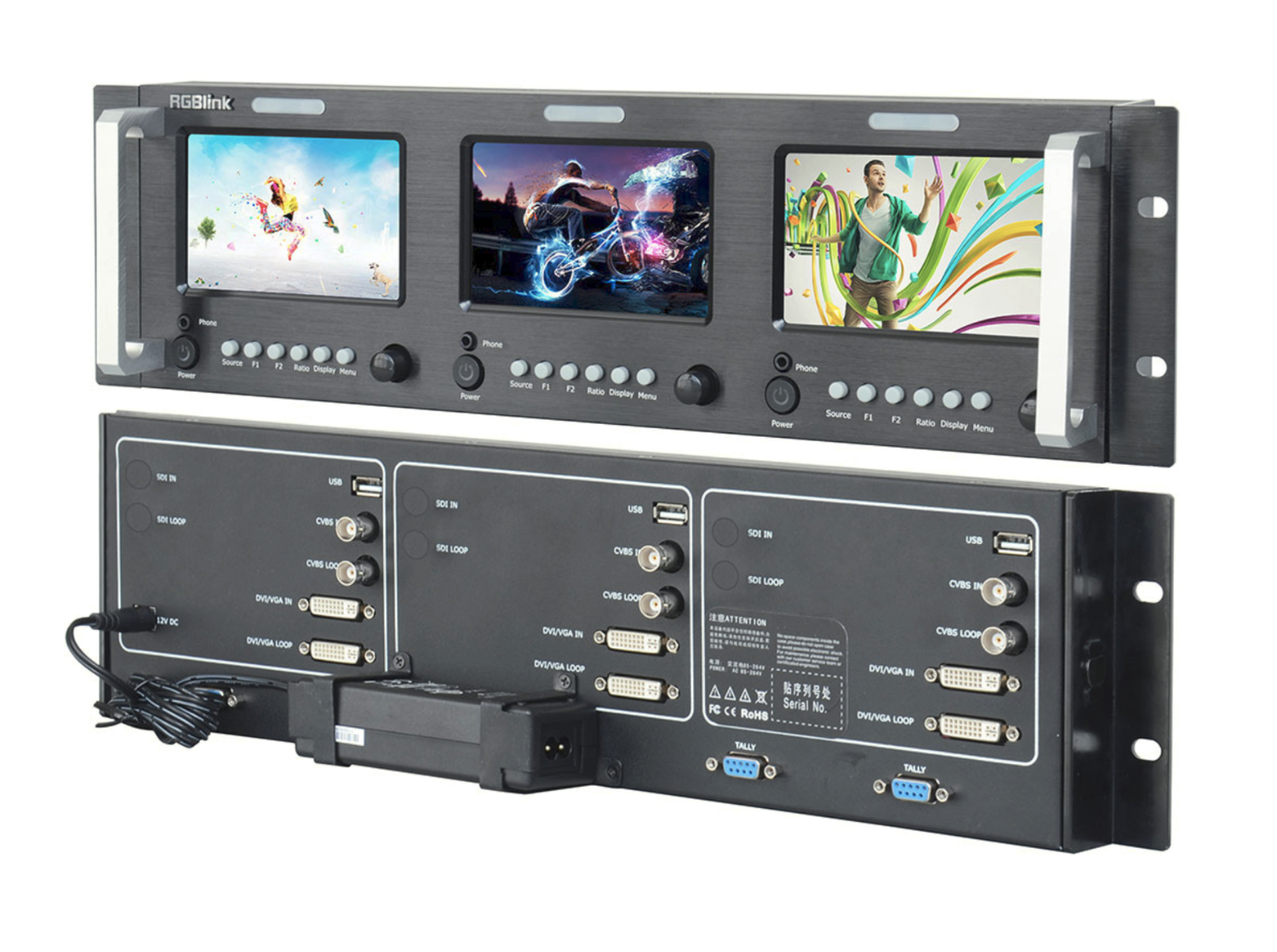

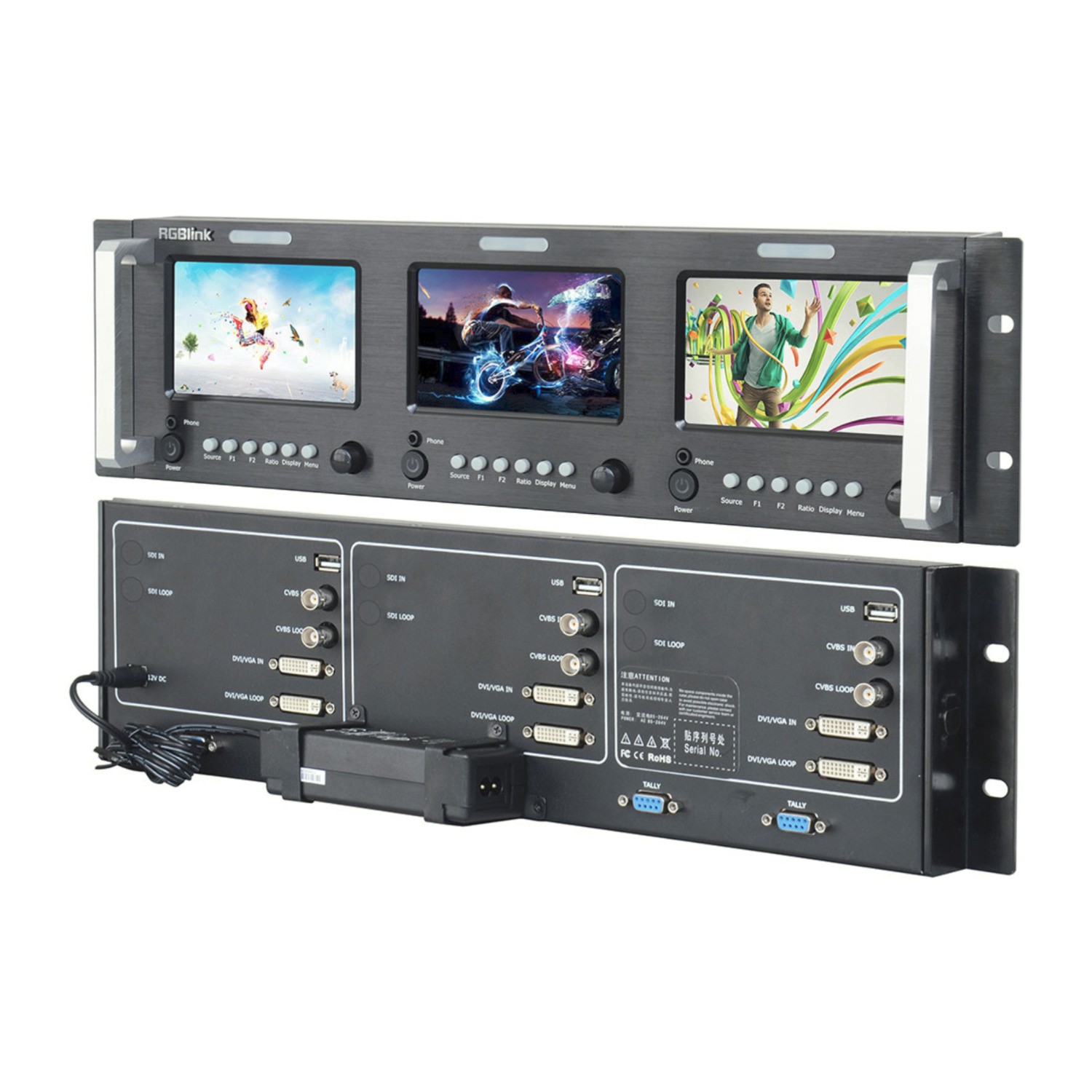

The RGBlink RMS 5533S is a compact 3RU rack-mount monitor featuring three independent 5-inch LCD displays with multi-format video input support, tally indicators, and embedded audio monitoring, making it ideal for broadcast racks, control rooms, and OB van applications. The S version comes with 3G-SDI inputs fitted at the factory.
1 439 € with VAT
1 189.26 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The RGBlink RMS 5533S is a compact 3RU rack-mount monitor featuring three independent 5-inch LCD displays with multi-format video input support, tally indicators, and embedded audio monitoring, making it ideal for broadcast racks, control rooms, and OB van applications. The S version comes with 3G-SDI inputs fitted at the factory.

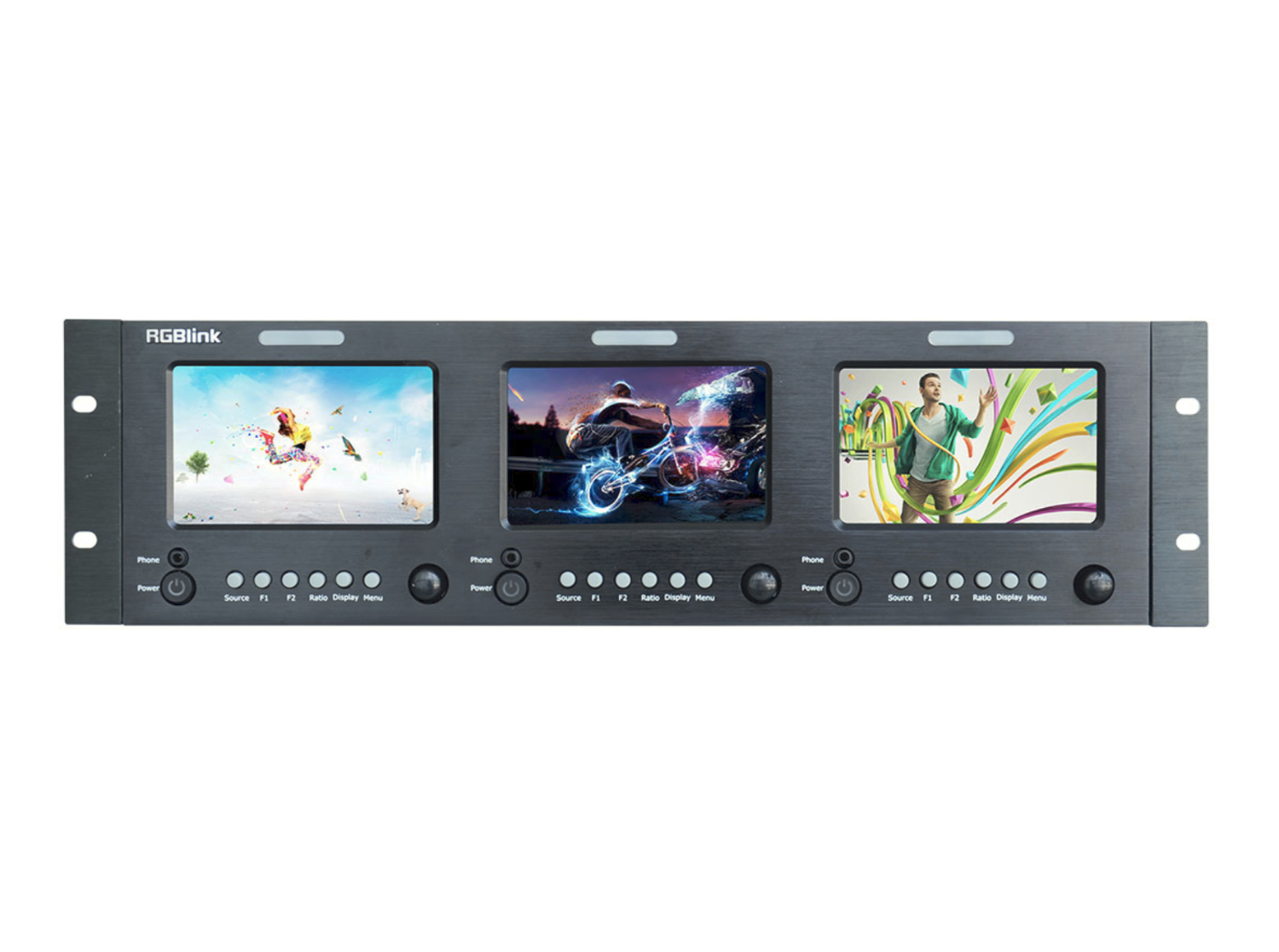

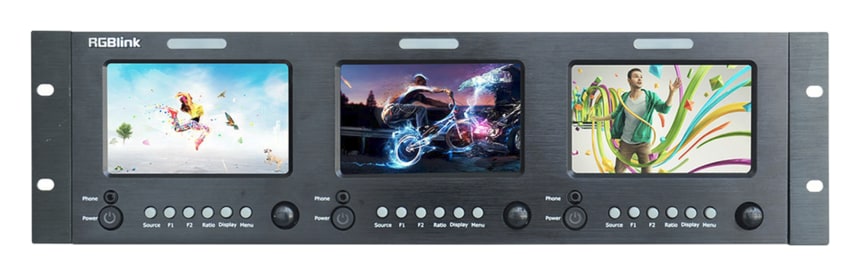

Three 5″ screens in 3U
The RGBlink RMS 5533S is a professional 19-inch 3RU rack-mount LCD monitoring solution designed for broadcast, studio, and mobile production environments. It integrates three independent 5-inch LCD panels, each with a native resolution of 800 × 480 and adjustable 16:9 or 4:3 aspect ratios, allowing simultaneous monitoring of multiple video sources within a compact rack footprint. Each screen supports independent input control and provides a wide viewing angle for clear visibility in dense rack installations.
3 × 5″
screens
800 × 480
resolution
500
brightness (cd/m²)
3U
rack height
24 W
max. power

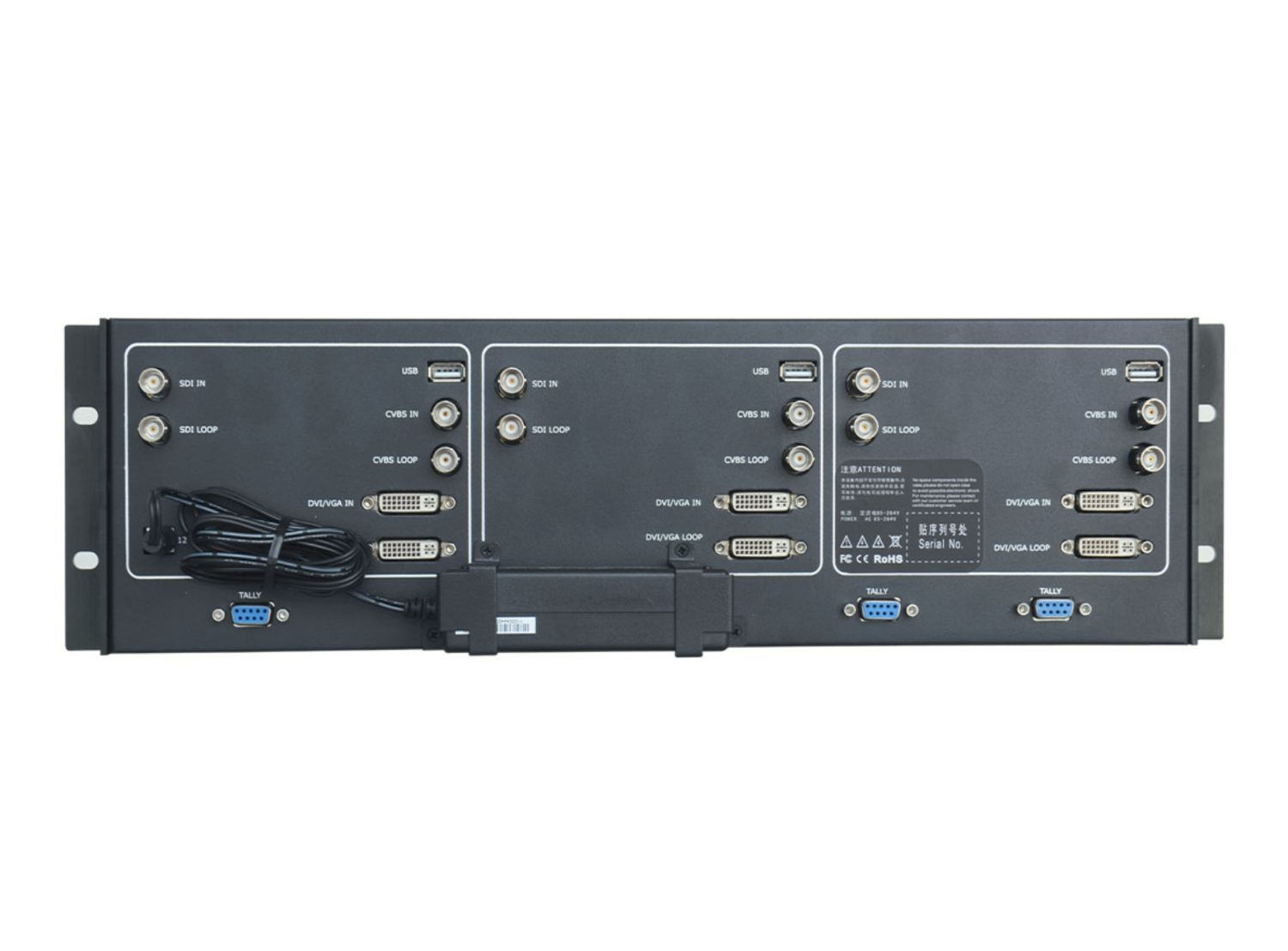

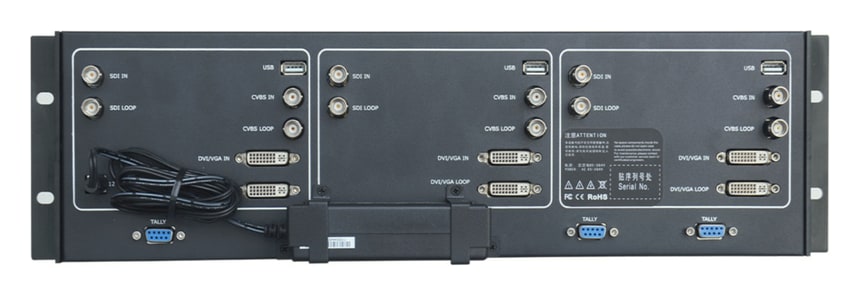

3G-SDI, DVI and CVBS inputs with loop-through
The RMS 5533S supports a wide range of video inputs including DVI, Composite (CVBS), and 3G/HD/SD-SDI, with loop-through outputs available on each input for easy signal distribution. Embedded audio from SDI and HDMI sources can be monitored via a 3.5 mm headphone jack or output to external speakers. Additional professional features include tally lights for each LCD unit, underscan/overscan switching, customer-editable video titles, and automatic input standard detection. Powered via 12V DC with low power consumption, the RGBlink RMS 5533S delivers a reliable and space-efficient monitoring solution for professional AV and broadcast workflows.
More information
Key Features:
- 19" standard 3RU rack-mount design
- Three independent 5" LCD displays
- Native resolution: 800 × 480 per screen
- Adjustable aspect ratio: 16:9 / 4:3
- Supports DVI, CVBS, and 3G/HD/SD-SDI
- Loop-through outputs on all inputs
- Tally light for each LCD unit
- Embedded audio monitoring via 3.5 mm headphone output
- Audio output support for external speakers
- Underscan / overscan switch
- Customer-editable video titles
- Auto input standard detection
- Low power consumption
PACKAGE CONTENT
- RGBlink RMS 5533S
- AC power cord
- Screen protection film
- Warranty card with USB (files and documentation)
- Screwdriver
SPECIFICATIONS
- Display Quantity: 3
- Screen Size: 5" each
- Panel Resolution: 800 × 480 (RGB)
- Aspect Ratio: 4:3 (16:9 selectable)
- Brightness: 500 cd/m²
- Contrast Ratio: 500:1
- Viewing Angle: 140° × 140°
- Video Inputs (per display): 1 × DVI, 1 × Composite (CVBS), 1 × SDI
- Loop Outputs: DVI, CVBS, SDI
- Supported SDI Standards: SMPTE 259M-C, SMPTE 292M, SMPTE 424
- Supported HDMI Standard: HDMI 1.3
- Supported VGA Standard: VGA–UXGA
- Supported CVBS Standard: PAL / NTSC
- Audio: SDI/HDMI embedded audio via 3.5 mm headphone jack
- Audio Output: SDI/DVI audio output for speakers
- Power Input: 12V DC
- Max Power Consumption: 24 W
- Dimensions (Net): 480 × 129 × 113 mm
- Weight (Net): 2.8 kg
- Tally: control via D-SUB15
- USB: 3 × USB-A (media file playback)
- Operating temperature: 0–40 °C; humidity 10–85 %
- Packed weight: 3.7 kg; package dimensions 550 × 205 × 155 mm
WE RECOMMEND
The RGBlink RMS 5533S is a professional triple 5" monitor designed for installation in a 3RU rack, making it ideal for surveillance systems, production control rooms, and OB vans. To fully leverage its potential in a broadcast environment, we recommend pairing it with compatible PTZ cameras, streaming control systems, and wireless video transmission systems.
Video Control Rooms and Streaming - Signal processing and distribution equipment that forms the core of the production chain alongside the monitor.
PTZ cameras and video sources - High-quality signal sources with SDI and HDMI outputs that can be directly monitored on RMS 5533S displays.
- RGBLink Vue PTZ Camera
- RGBlink vue PTZ 2K 20X NDI Camera with TALLY (PoE Support)
- RGBlink RGB12X-PAI-OL
- RGBlink RGB30X-UPAI-OL
- RGBlink RGB12X-UPAI-OL
- RGBlink RGB20X-UNAI-OL
- RGBlink RGB20X-PAI-OL
- RGBlink RGB20X-UPAI-OL
Wireless Video Transmission - Systems for flexible wireless connection of signal sources to a monitoring station.
- RGBLink ASK nano 4K (1TX+2RX)
- RGBlink ASK nano 4K (1T1R)
- RGBlink ASK nano 4K (USB-C)
- RGBlink ASK nano (1TX+1RX)
Accessories and Conversion - Accessories for mounting cameras and devices for recording or converting video signals.
Parameters
| Manufacturer: | RGBlink |
| Category: | Studio Monitors |
Main parameters
| Size | 5" |
| Monitor inputs | SDI · Composite Video · 3G-SDI · DVI · VGA |
| Luminosity | 500cd/m2 |
| Panel resolution | 800x480 |
| For monitor | Broadcast rack, control room, OB van, professional AV monitoring |
| Monitor power supply | 12 VDC |
Other parameters
| Tally | Yes |
| Other features | Rack-mountable · Embedded audio monitoring |
