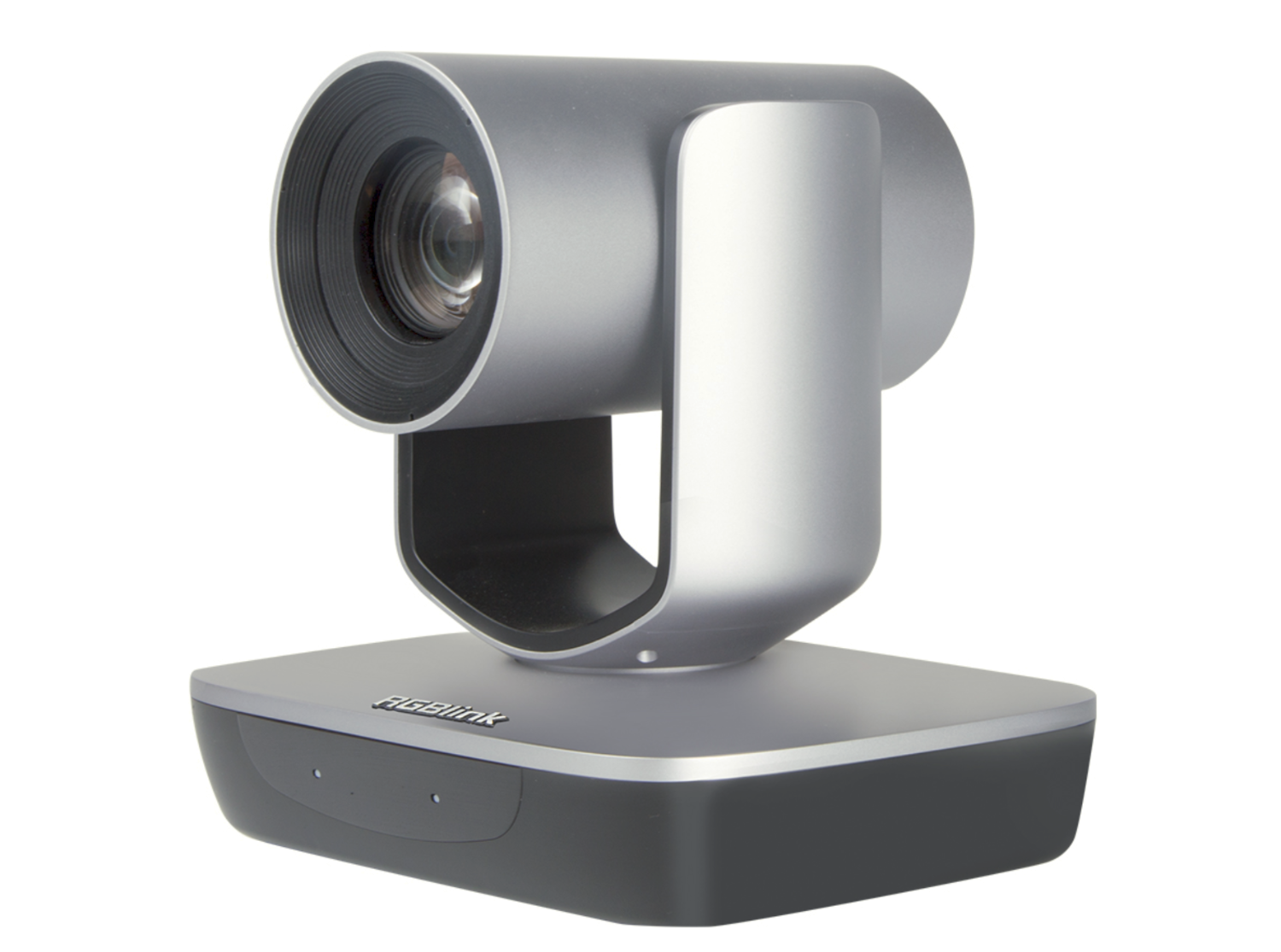

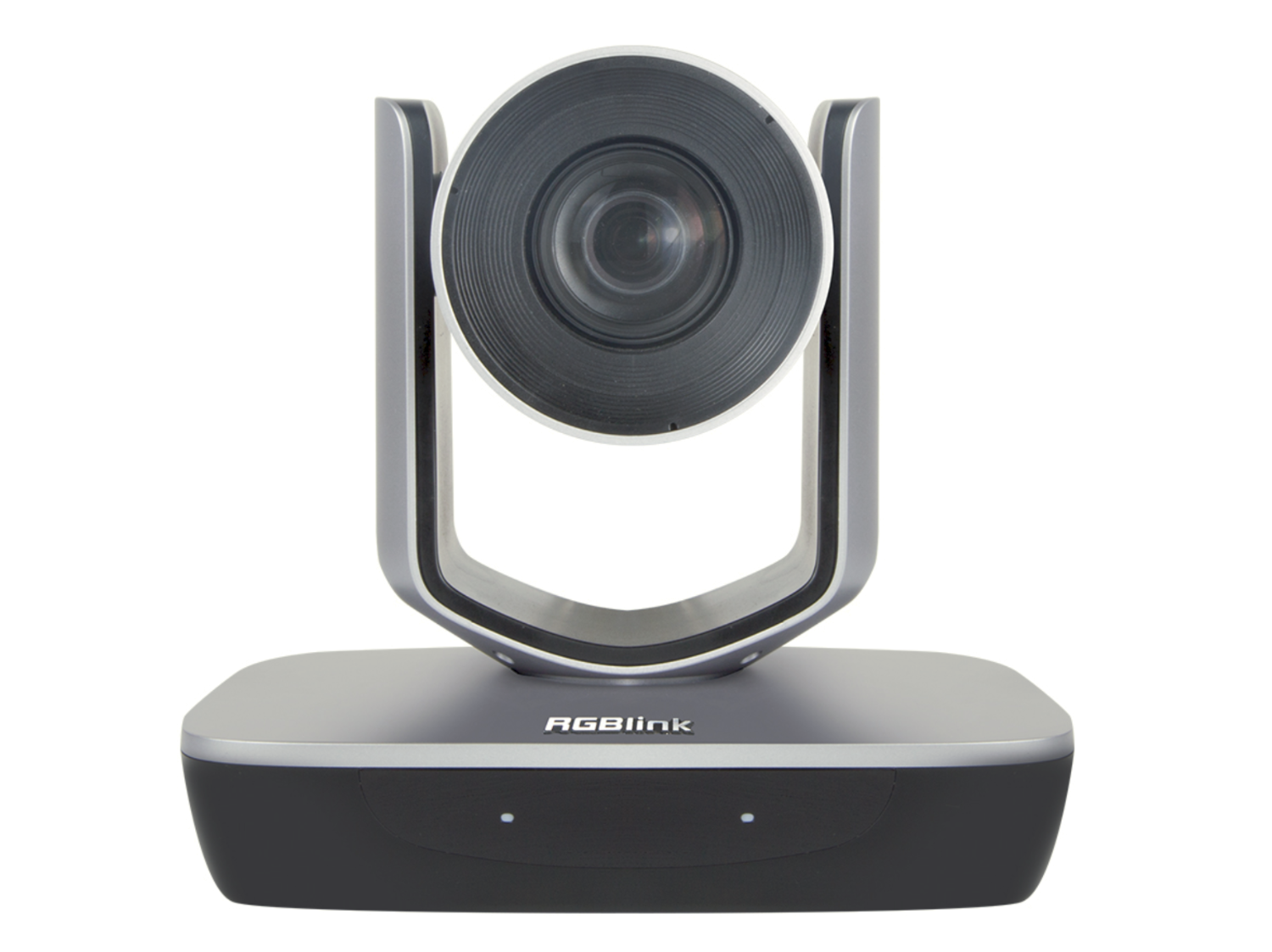

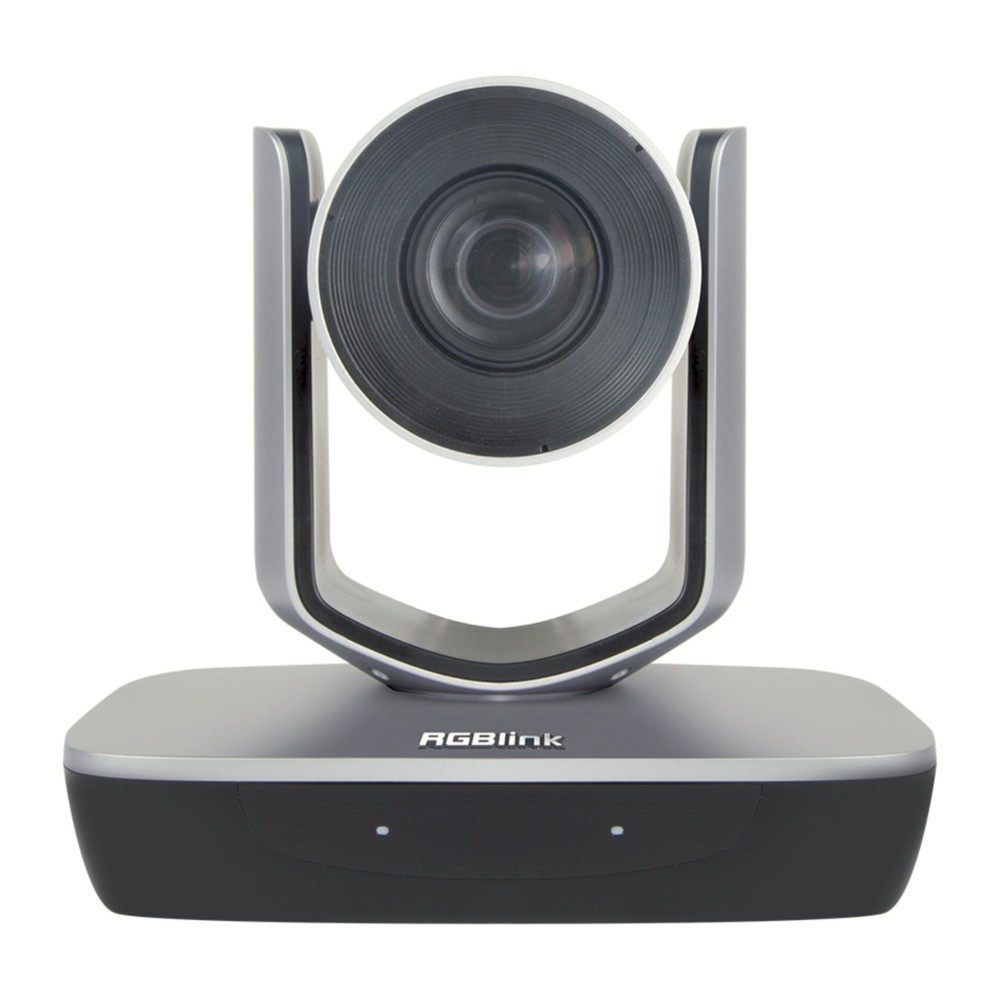

RGBlink RGB20X-NAI-GY
SKU: 981-0011-21-0
The RGBlink RGB20X-NAI-GY is an intelligent auto-tracking PTZ camera designed for education, training, and presentation environments. Featuring smooth teaching tracking, NDI®|HX support, dual-stream IP output, and PoE power, it delivers reliable, low-noise video with accurate subject tracking for professional AV workflows.
2 049 € with VAT
1 693.39 € without VAT
Availability
on request
Top accessories for RGBlink RGB20X-NAI-GY
RGBlink Universal wall mount bracket for PTZ
The universal RGBlink wall bracket holds a PTZ camera on the wall: the vertical part
15 €
In stock > 5 pcs
RGBlink PTZ & NDI camera suction top flip bracket
The black RGBlink ceiling bracket hangs a PTZ or NDI camera from the ceiling, upside
15 €
In stock > 5 pcs
RGBlink mini-edge SDI
The RGBlink mini-edge SDI combines ten input connectors in a single desk – four HDMI
1 099 €
In stock 5 pcs
RGBlink mini-max
The RGBlink mini-max is a compact 4K all-in-one video switcher and streaming solution
1 869 €
In stock 3 pcs
RGBlink RGBCTL-PNDI-OL
Touch Conference Keyboard is a newly designed next-generation network touch keyboard
1 319 €
In stock 2 pcs
RGBlink RGBCTL-PTZ-BK PTZ Controller
The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet
779 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The RGBlink RGB20X-NAI-GY is an intelligent auto-tracking PTZ camera designed for education, training, and presentation environments. Featuring smooth teaching tracking, NDI®|HX support, dual-stream IP output, and PoE power, it delivers reliable, low-noise video with accurate subject tracking for professional AV workflows.

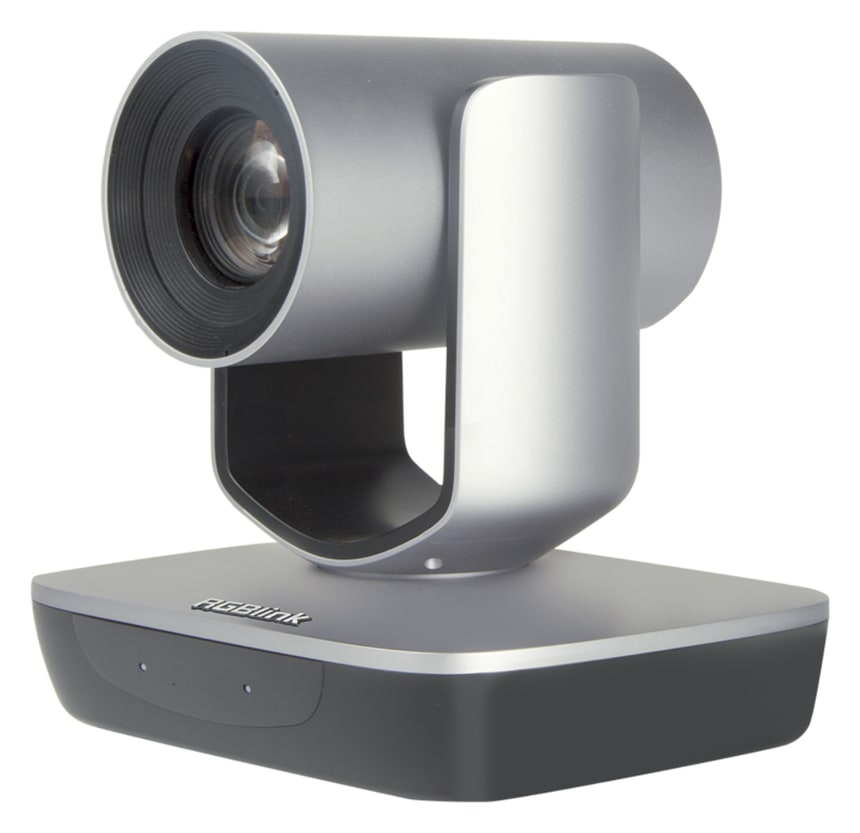

Automatic presenter tracking
The RGBlink RGB20X-NAI-GY Educational Tracking Camera is purpose-built for smart classrooms, training rooms, and lecture halls, combining intelligent tracking with professional AV connectivity. Powered by a high-speed processor and advanced image analysis algorithms, the camera automatically tracks instructors smoothly and accurately, keeping them centered and in focus throughout lessons without manual control.
20×
optical zoom
1080p60
Full HD
NDI|HX
network video
PoE
power over Ethernet
64
presets

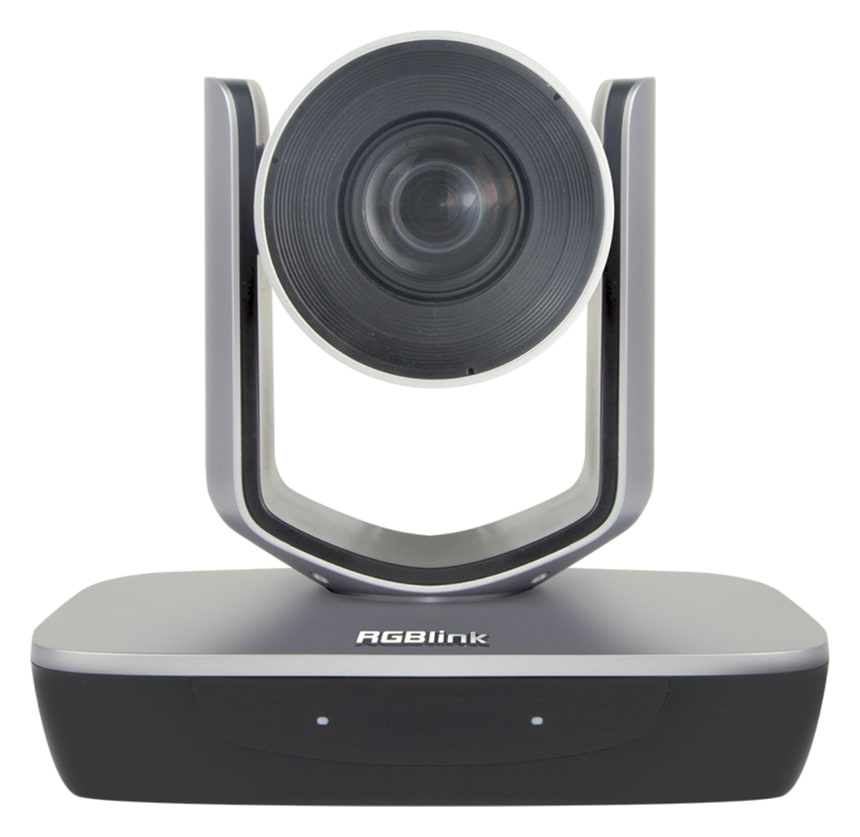

Full HD and 20× optical zoom
Equipped with a 1/2.8″ CMOS sensor and 20× optical zoom lens, the camera captures sharp Full HD video with low noise and a high signal-to-noise ratio, even in challenging lighting conditions. Multiple output options—including HDMI, 3G-SDI, USB 3.0, and IP streaming—allow seamless integration into both traditional AV systems and modern IP workflows. Support for NDI®|HX, RTMP, and RTSP, along with dual-stream output, ensures flexible streaming, recording, and monitoring.

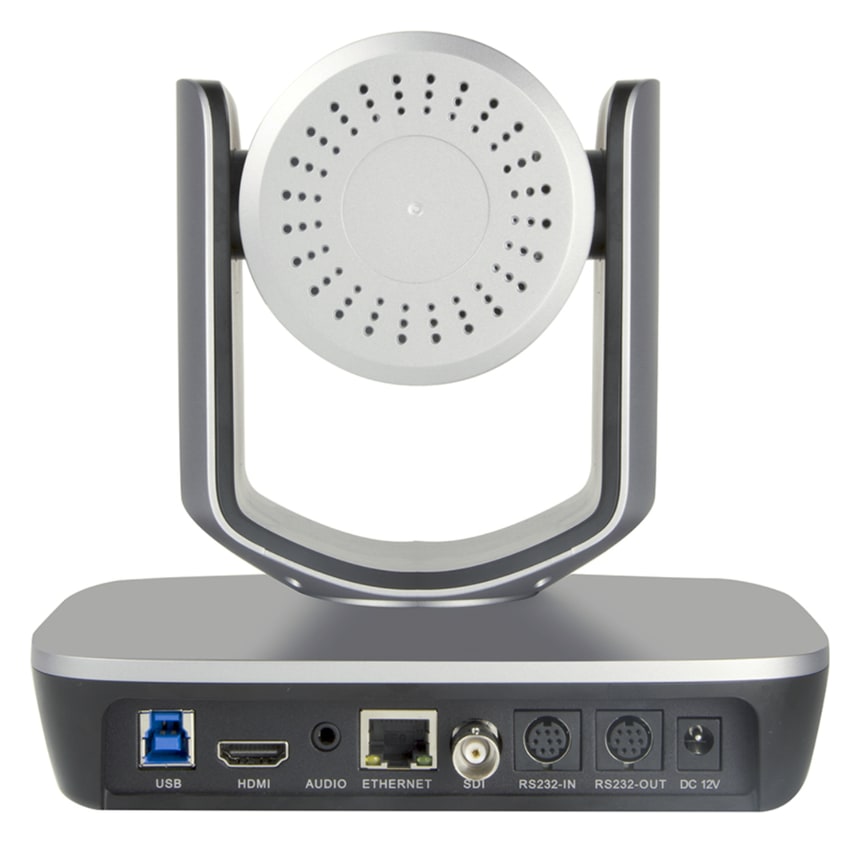

Control, NDI|HX and PoE
With comprehensive control protocol support (VISCA, Pelco-D/P), PoE power, and compact lightweight design, the RGB20X-NAI-GY is easy to install and operate, making it an ideal solution for intelligent teaching, distance learning, and automated lecture capture applications.
More information
Key Features:
- Intelligent and smooth educational auto-tracking
- 1/2.8″ CMOS sensor, 2.14 MP
- 20× optical zoom lens
- Supports NDI®|HX / RTMP / RTSP
- Dual-stream IP output
- Low noise imaging with high SNR (≥55 dB)
- Multiple video compression formats
- HDMI, 3G-SDI, USB 3.0, and IP outputs
- VISCA / Pelco-D / Pelco-P control support
- PoE support for simplified installation
PACKAGE CONTENT
- RGBlink RGB20X-NAI-GY Educational Tracking Camera
- Power adapter
- User documentation
SPECIFICATIONS
- Sensor: 1/2.8″ CMOS, 2.14 MP
- Optical Zoom: 20×
- Focal Length: 4.7 – 94.0 mm
- Aperture: f/1.6 – f/3.5
- Horizontal Field of View: 59.5° – 2.9°
- Shutter Speed: 1/25 – 1/10000 s
- SNR: ≥55 dB
- Video Output Resolutions HDMI 1.3: 1080i@60, 1080p@25/30/50/60
- Video Output Resolutions 3G-SDI: 720p@50/60, 1080i@50/60, 1080p@25/30/50/60
- Video Output Resolutions USB 3.0: 360p@30, 720p@30, 1080p@30
- Video Compression: H.264, H.265, MJPEG
- Audio Compression: AAC
- Pan Range: −170° to +170°
- Tilt Range: −30° to +90°
- Pan Speed: 0.2°/s – 100°/s
- Tilt Speed: 0.2°/s – 60°/s
- Presets: 64

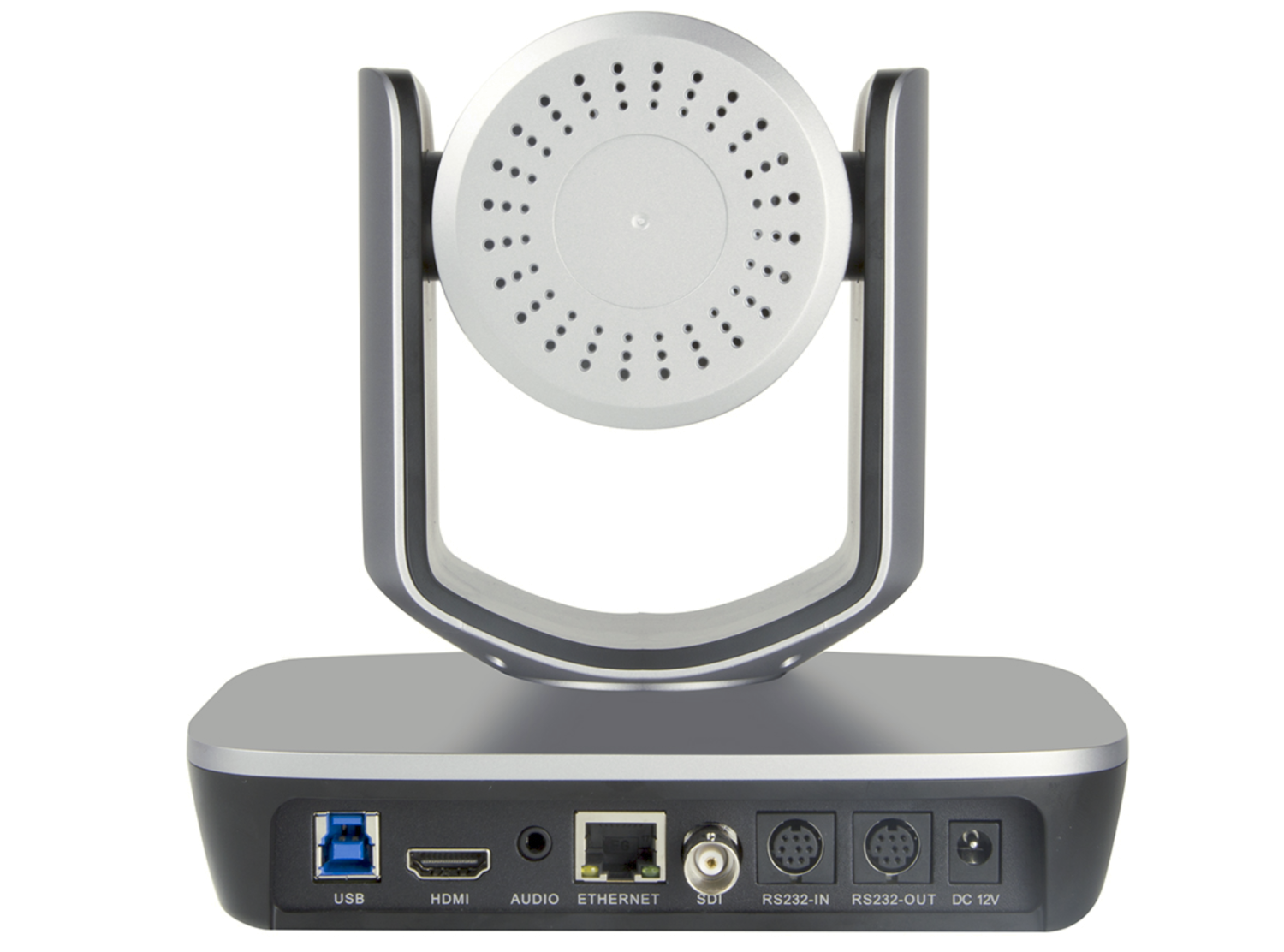

- Video Interfaces: USB 3.0 (USB-B), HDMI 1.3, 3G-SDI
- Network: RJ45 (NDI®|HX / RTMP / RTSP, PoE supported)
- Audio Input: 3.5 mm
- Control: RS-232, RS-485
- Power Input: DC 12 V
- Max Power Consumption: 15 W
- Operating Temperature: 0°C – 40°C
- Humidity: 10% – 90%
- Dimensions: 176 × 169 × 136 mm
- Weight: 1.1 kg
WE RECOMMEND
The RGBlink RGB20X-NAI-GY is a professional Full HD PTZ camera with NDI®|HX support and triple output (HDMI, SDI, USB), making it ideal for complex AV installations. To fully realize its potential, we recommend dedicated hardware controllers for precise movement, mounting kits, and streaming control units for efficient signal processing.
Control and Mounting - Accessories for precise remote control of camera movement and secure installation.
- RGBlink RGBCTL-PTZ-BKPTZ Controller
- RGBlink PTZ & NDI Camera Suction Top Flip Bracket
- RGBlink Universal wall mount bracket for PTZ
- RGBlink RGBCTL-PNDI-OL
Production and Streaming - Equipment for switching between multiple cameras and live streaming to online platforms.
Monitoring and Recording - External monitors and recorders for image preview and local recording archiving.
Wireless Transmission and Conversion - Tools for wireless HDMI signal transmission and conversion between various video formats.
Parameters
| Manufacturer: | RGBlink |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/2,8" |
| Resolution | Full HD 1920 × 1080 |
| Zoom | 20x |
| Type of bayonet | integrated lens |
| Output | HDMI · NDI · 3G-SDI · USB 3.0 |
| Maximum video resolution | Full HD |
| Optical zoom | 20× |
| Video outputs | HDMI · SDI · USB · Ethernet / IP |
| Network protocols | NDI · RTMP / RTMPS · RTSP / RTP |
Other parameters
| Weight | 1.1kg |
| Dimensions | 176x169x136mm |
| Number of preset positions | 64 |
| Version | PTZ |
| Record format | Network streaming (NDI®|HX, RTMP, RTSP) |
| FPS | Up to 60 fps |
| Lens aperture | 1.6f |
| Min. focal length | 4.7mm |
| Max. focal length | 94mm |
| Media type | IP / USB |
| Other features | PoE · NDI / NDI HX · Auto tracking |
| Control protocol | Pelco-P · Pelco-D · VISCA |
