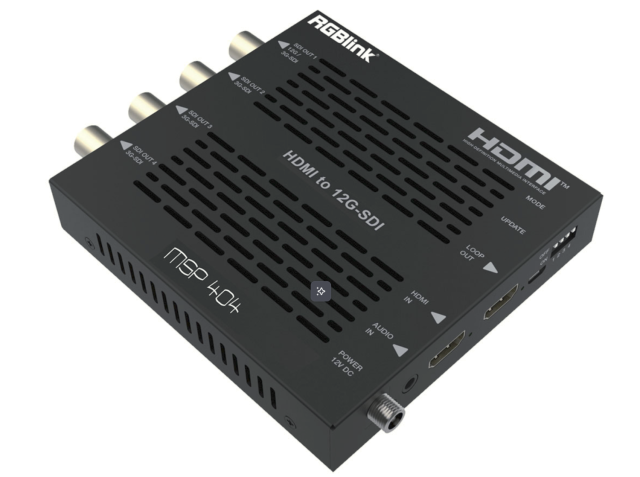

RGBlink MSP 404

The RGBlink MSP 404 is a high-performance HDMI to SDI converter that supports single-link 12G SDI and quad-link 3G SDI outputs, delivering ultra-high-definition video up to 4K2K @ 60Hz YCbCr 4:2:2. With external audio embedding, plug-and-play operation, and flexible output configurations, the MSP 404 is ideal for broadcast, video conferencing, and professional AV installations requiring reliable 4K HDMI-to-SDI conversion.

The RGBlink MSP 404 is a versatile HDMI to SDI converter designed for professional AV applications that require high-resolution video and multi-channel SDI output. It converts a single HDMI input into either one 12G SDI channel or four 3G SDI channels, supporting video resolutions up to 4K2K @ 60Hz YCbCr 4:2:2 with PCM 2.0 audio. The device features external analog audio embedding, HDMI loop-out, and a low-power chip for stable, continuous 24-hour operation.

The MSP 404 offers plug-and-play convenience and a straightforward design, with operation modes switched via DIP switches. It delivers reliable long-distance transmission, with up to 100 meters for 3G SDI and 60 meters for 12G SDI signals. Compact, cost-effective, and highly reliable, the MSP 404 is ideal for video conferencing, SDI/HDMI signal extension, multimedia broadcasting, and video surveillance environments.

Key Features:

• Converts HDMI to single-link 12G SDI or quad-link 3G SDI
• Supports video resolution up to 4K2K @ 60Hz YCbCr 4:2:2
• Compliant with HDMI 2.0b, output without HDCP
• PCM 2.0 audio support
• External analog audio embedding and input (L/R)
• HDMI video loop-out for monitoring
• Transmission distance: 3G SDI up to 100m, 12G SDI up to 60m
• Plug-and-play operation, DIP switch mode selection
• Low-power design for 24-hour stable operation
