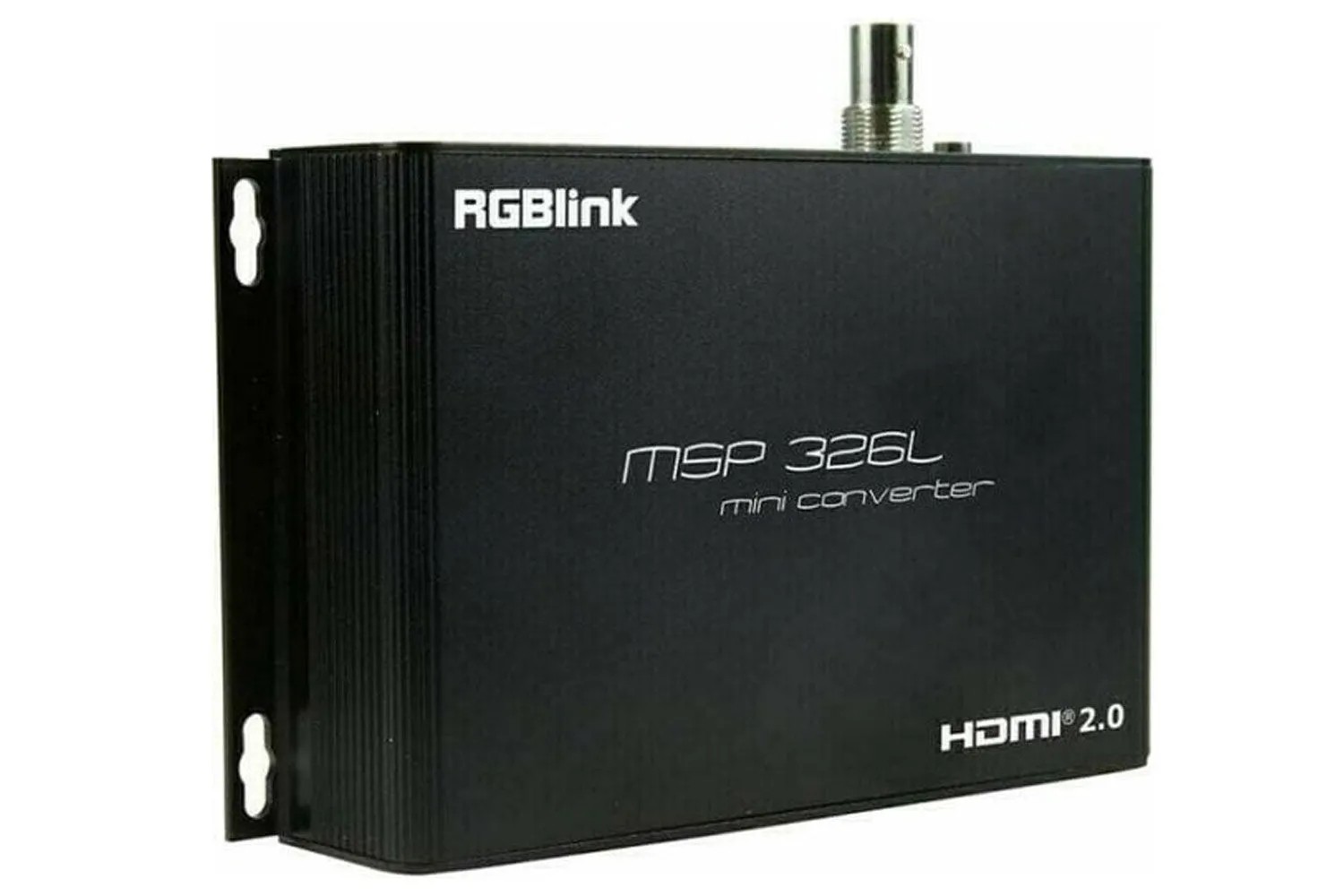

RGBlink MSP 326L

The RGBlink MSP 326L is an H.265 and H.264 stream decoder and transcoder. It receives a stream from the network over RTMP, RTSP, SRT, HLS, HTTP or UDP multicast and plays it on its HDMI output at up to 4K60, on the CVBS composite output and on the two-channel 3.5 mm audio output. It is set up in a web browser and can also convert the stream to H.264 or H.265 and send it on.

The counterpart to the MSP encoders: where an encoder sends the picture into the network, the MSP 326L turns it back at the other end into a signal for a display, a projector or an older monitor with a composite input.

From the network to the display

The H.265 stream arrives over the network through a network switch into the LAN port, and the decoder sends it via the HDMI output to a display. The rear panel also has a CVBS composite output (BNC) for SD monitors, a 3.5 mm audio output, a reset button and DC 12 V power.

HDMI output up to 4K60 and CVBS

The HDMI 2.0 output handles computer resolutions up to 3840 × 2160 and 4096 × 2160 at 60 Hz, and TV formats from 480p to 2160p at 30 Hz. The composite output carries 480i or 576i. The decoder plays H.265, H.264, MJPEG, MPEG-2, MPEG-4, AVS and AVS2, and audio in formats including AAC, AC3, MP3 and PCM A-law.

More information

The RGBlink MSP 326L is a high-performance IP signal decoder that supports both H.265 and H.264 streams, delivering HDMI outputs up to 4K@60Hz or Composite (CVBS). With independent audio extraction for amplified output and easy configuration through its LAN interface, the MSP 326L provides a flexible and reliable solution for live streaming, digital signage, or broadcast applications.

The RGBlink MSP 326L is a professional IP video decoder designed for versatility and ease of use. It efficiently decodes H.265 and H.264 IP streams, providing high-quality output through HDMI or Composite (CVBS) connections, supporting resolutions up to 4K at 60Hz. Audio can be extracted separately, allowing for independent amplification when needed for PA systems or broadcast setups.

Users can conveniently configure all device settings via a web-based LAN interface, enabling simple network management and integration into existing IP infrastructures. The MSP 326L is ideal for digital signage, live streaming, educational environments, and corporate AV systems where reliable video decoding and flexible output options are critical.

Key Features

• Decodes H.265 and H.264 IP streams
• Outputs via HDMI (up to 4K@60Hz) or Composite
• Independent audio extraction for amplified output
• Web-based LAN configuration for easy setup and control
• Compact, reliable, and easy to integrate into IP networks
