RGBlink MSP 315-4 TX

The RGBlink MSP 315-4 TX is the HDBaseT transmitter of the MSP 315-4 set, sold separately. It sends the HDMI 1.4 signal from the source over a Cat 5e or Cat 6a cable to the MSP 315-4 RX receiver: 1080p up to 70 m, 4K at 30 Hz up to 40 m. The cable also carries bi-directional IR and RS-232 and PoE power. The receiver is sold separately.

The transmitter serves as a replacement for or addition to the MSP 315-4 set: it connects to the HDMI source, and a single network cable links it to the MSP 315-4 RX receiver.

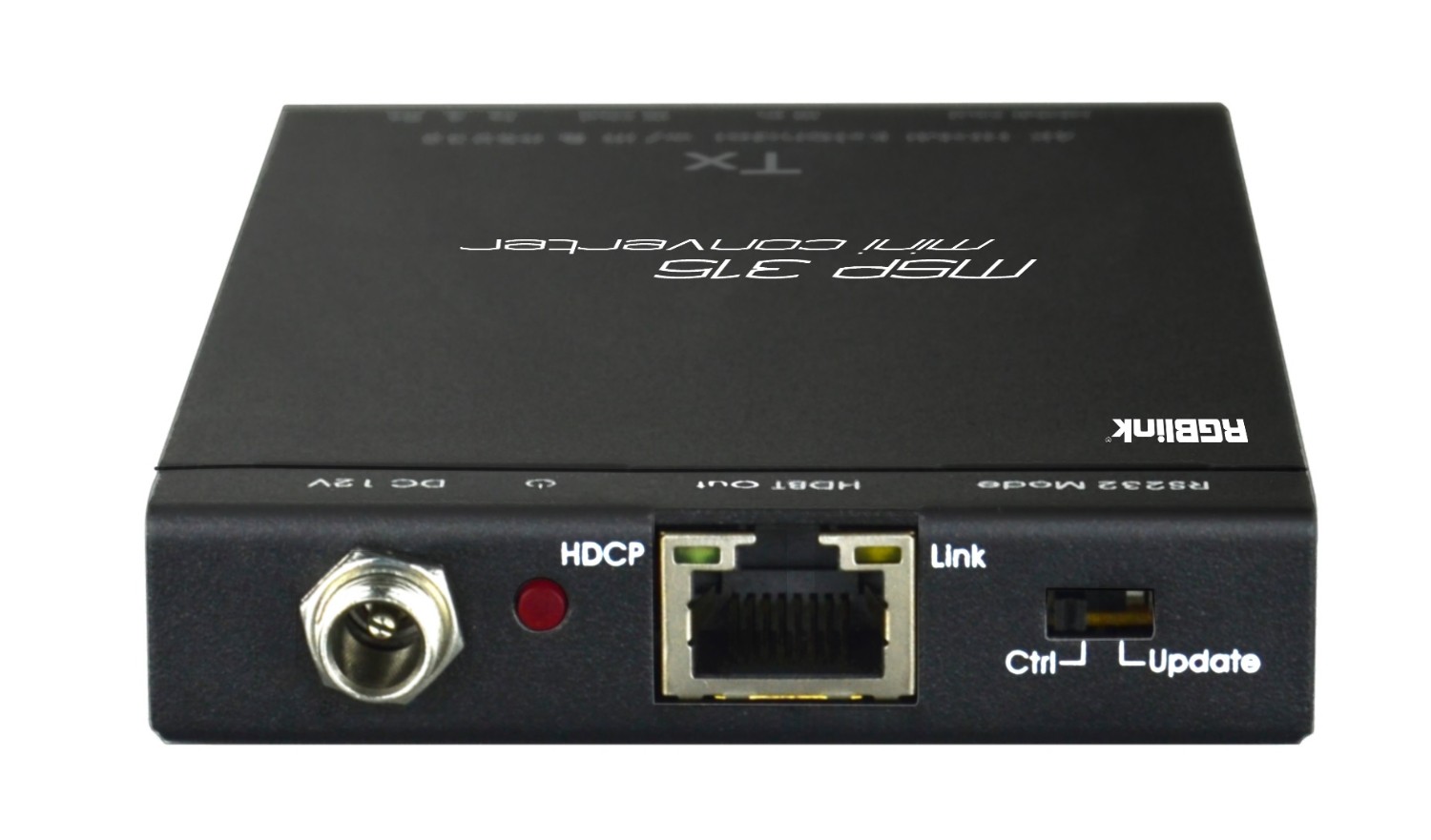

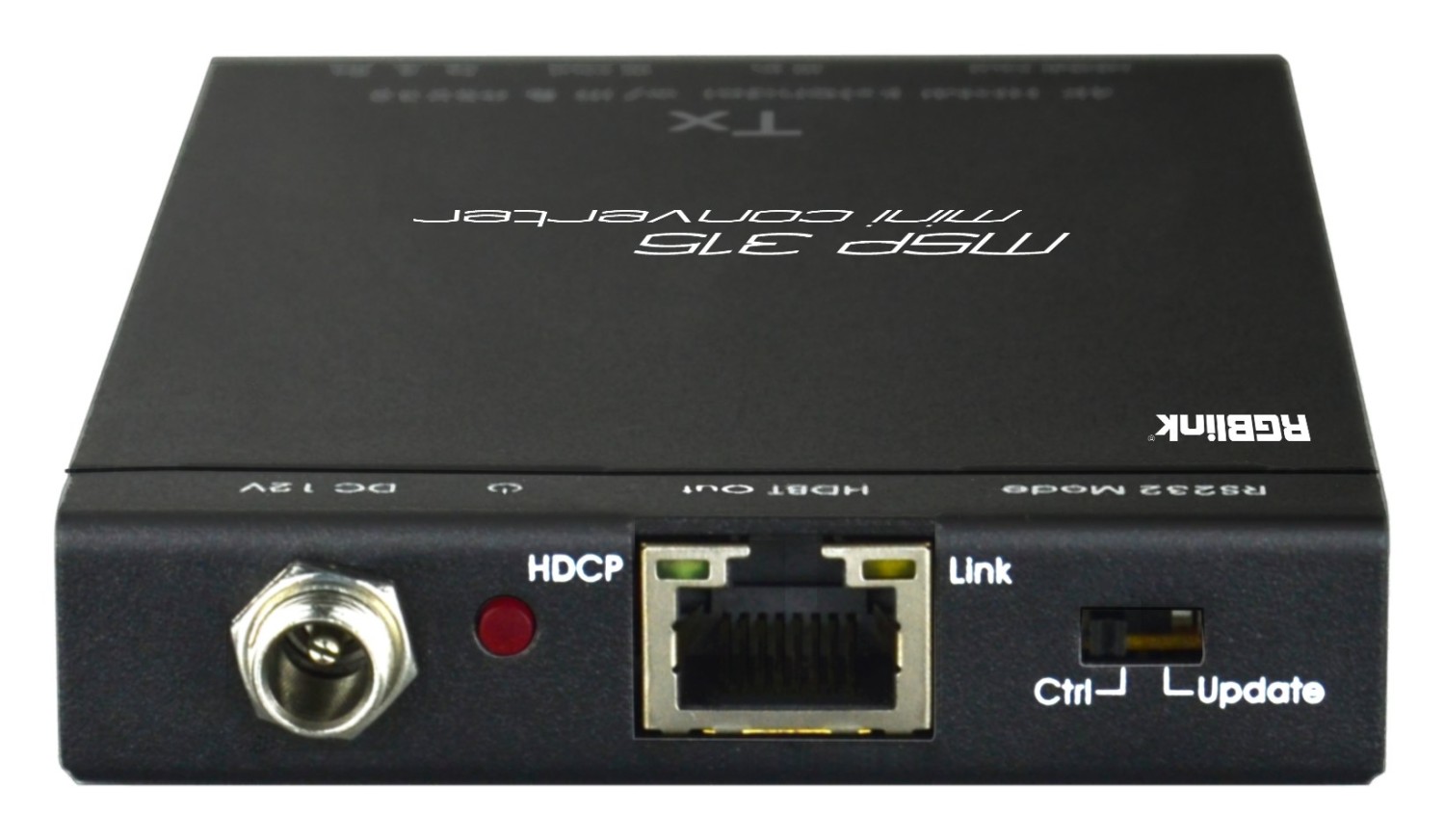

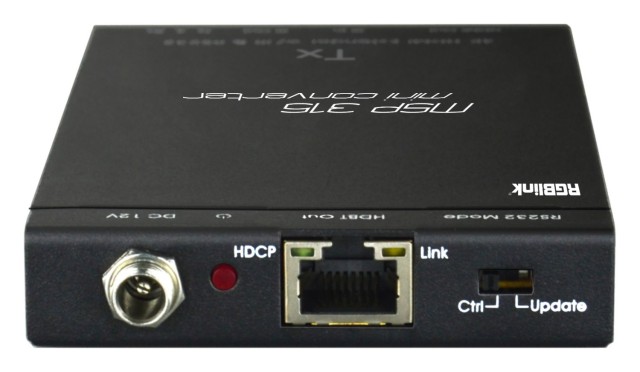

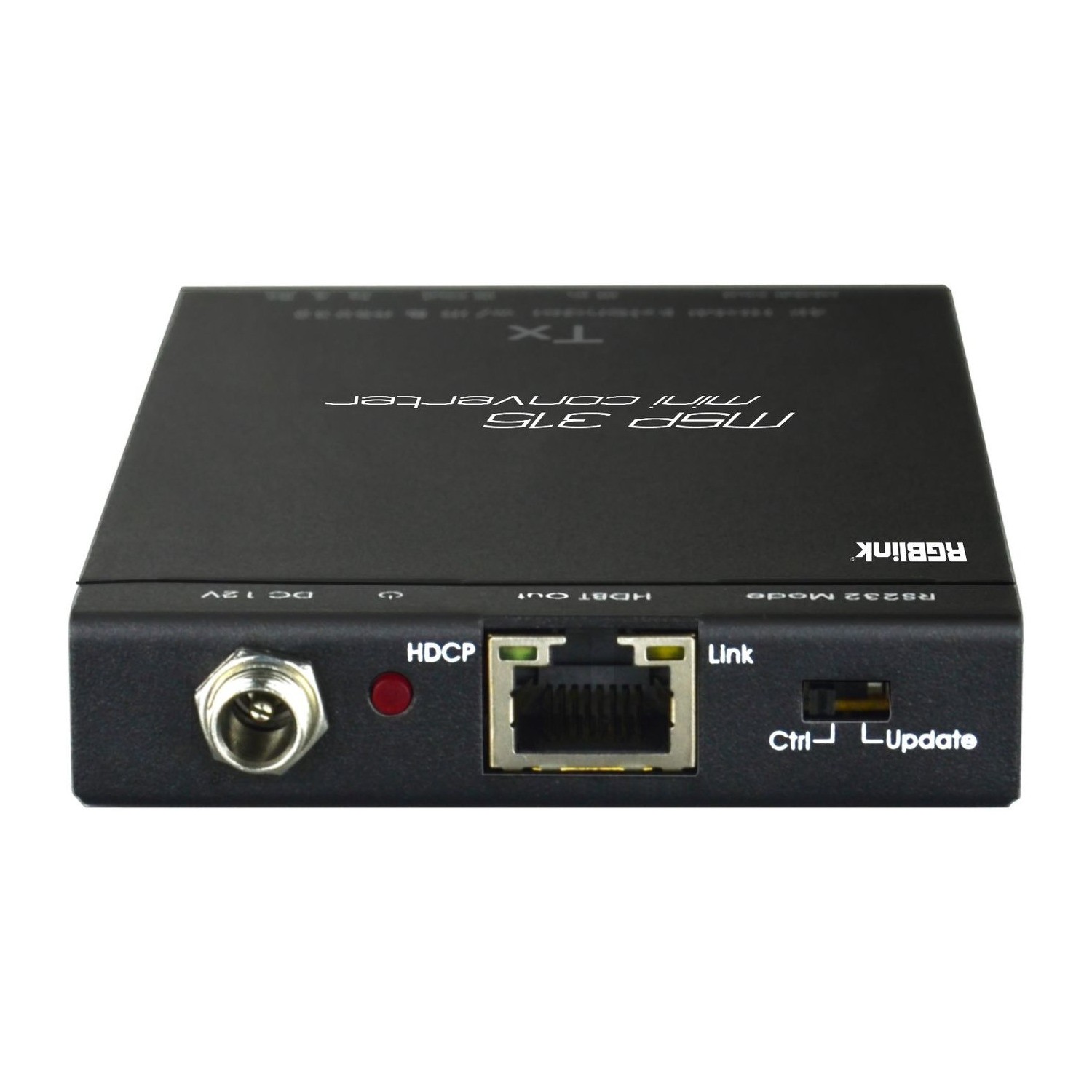

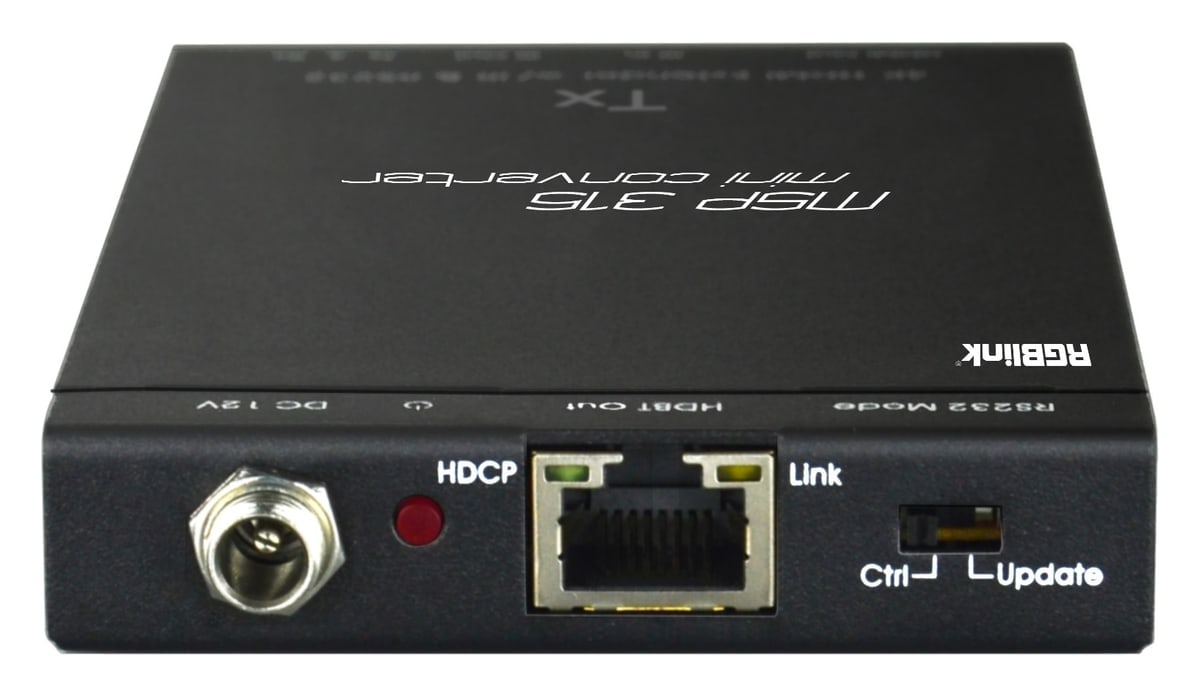

Transmitter ports

The transmitter has an HDMI 1.4 input (type A), an HDBaseT output (RJ45), a DC 12 V / 1 A power input, IR input and output (3.5 mm jack), an RS-232 terminal block, an HDCP indicator and a DIP switch to choose between RS-232 control and firmware update.

Works with the MSP 315-4 RX receiver

The transmitter sends the picture to the MSP 315-4 RX receiver, which is sold separately or in the MSP 315-4 set. Thanks to PoE (12 V, max. 125 mA) one unit powers the other, so a power adapter is needed at one end of the line only.

More information

The RGBlink MSP 315-4 TX is a compact, high-performance HDBaseT HDMI transmitter designed to deliver long-distance HDMI signals over standard Ethernet cabling. Paired with the MSP 315-4 RX, the TX unit can extend 1080p signals up to 70 m and 4K 2160p@30Hz signals up to 40 m using CAT-5e or CAT-6a cables, making it ideal for AV installations in conference rooms, digital signage, and educational environments.

Supporting HDMI 1.4 and HDCP 2.2, the MSP 315-4 TX ensures full compatibility with modern displays and media sources. Bi-directional IR and RS232 communication allow remote control of connected devices and integration with automation systems. The TX can also power the receiver via Power over Ethernet (PoE), reducing cabling requirements and simplifying installation. Compact (120 × 16 × 74 mm) and lightweight (0.24 kg), the MSP 315-4 TX is plug-and-play ready for seamless deployment in professional AV environments.

Key features

• Extend 1080p HDMI signals up to 70 m via CAT-5e / CAT-6a
• Extend 4K HDMI signals (2160p@30Hz) up to 40 m
• Supports HDMI 1.4 and HDCP 2.2 compliance
• Bi-directional IR and RS232 communication
• Power over Ethernet (PoE) to power RX unit from TX end
• Compact and lightweight (120 × 16 × 74 mm; 0.24 kg)
• Plug-and-play operation with the MSP 315-4 RX unit (sold separately)
