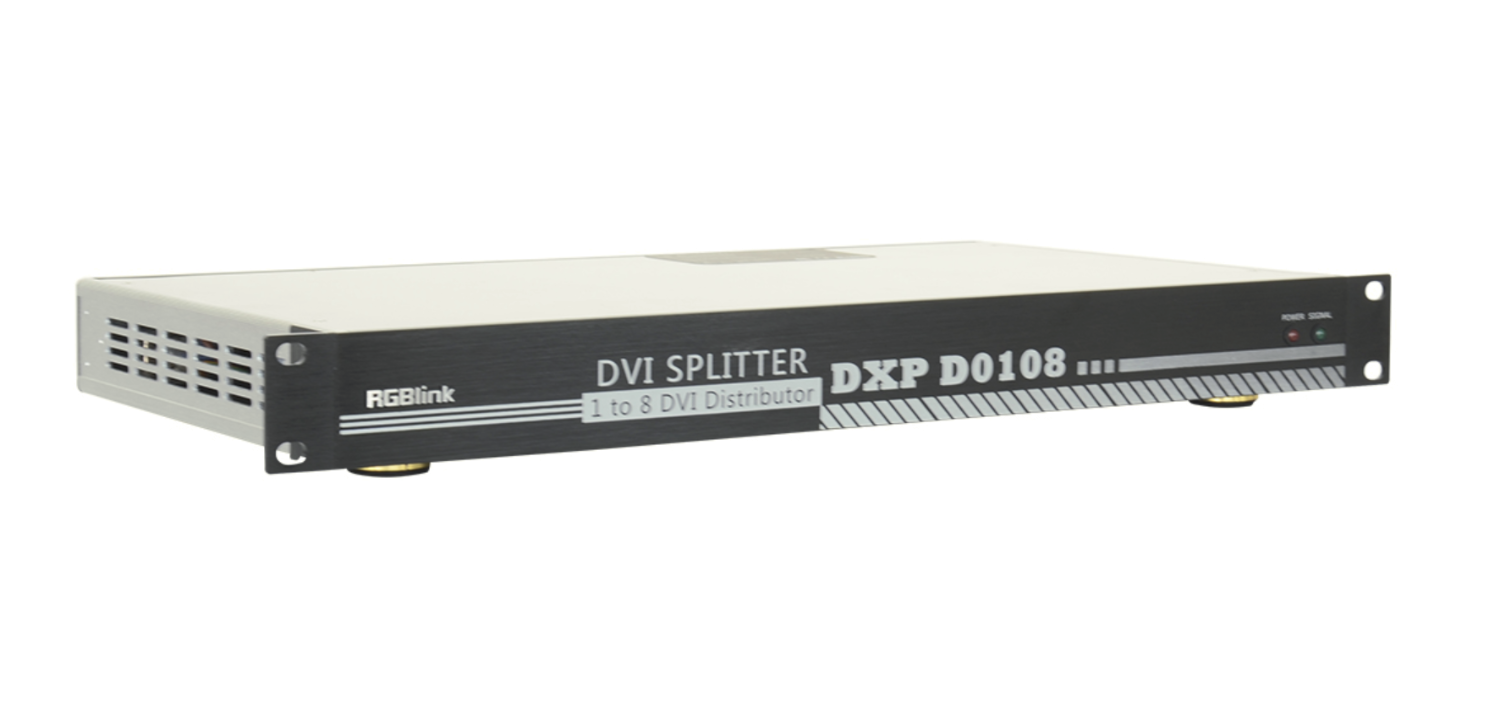

RGBlink DXP D0108
SKU: 500-0108-01-0
The RGBlink DXP D0108 is a DVI distributor in a compact 1U rack chassis: it splits one DVI input into eight DVI outputs carrying the same picture. It recognises the input format on its own, handles VESA resolutions up to 2560 × 816 at 60 Hz as well as SMPTE up to 1080p60, is HDCP compliant and also passes HDMI signals. It suits control rooms,…
409 € with VAT
338.02 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The RGBlink DXP D0108 is a DVI distributor in a compact 1U rack chassis: it splits one DVI input into eight DVI outputs carrying the same picture. It recognises the input format on its own, handles VESA resolutions up to 2560 × 816 at 60 Hz as well as SMPTE up to 1080p60, is HDCP compliant and also passes HDMI signals. It suits control rooms, classrooms, exhibitions and multi-display setups.

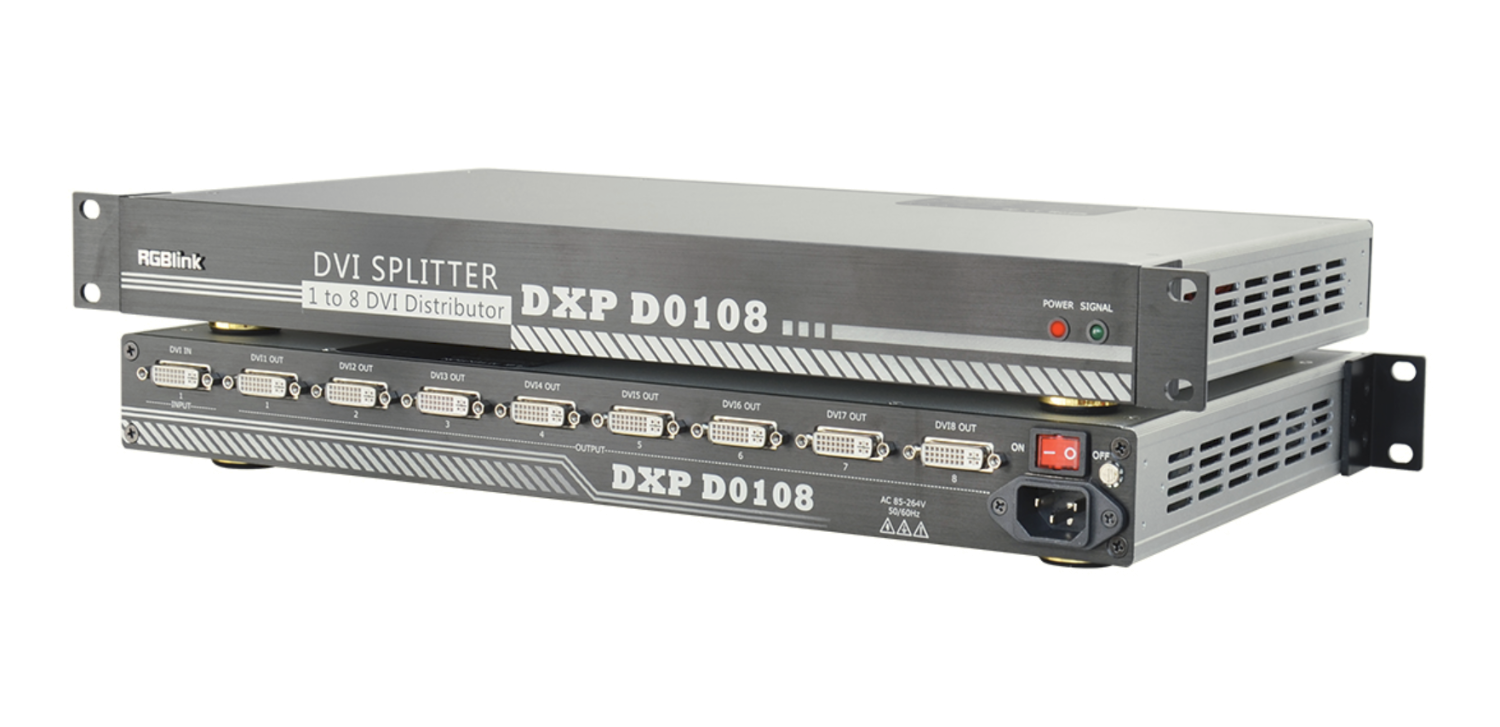

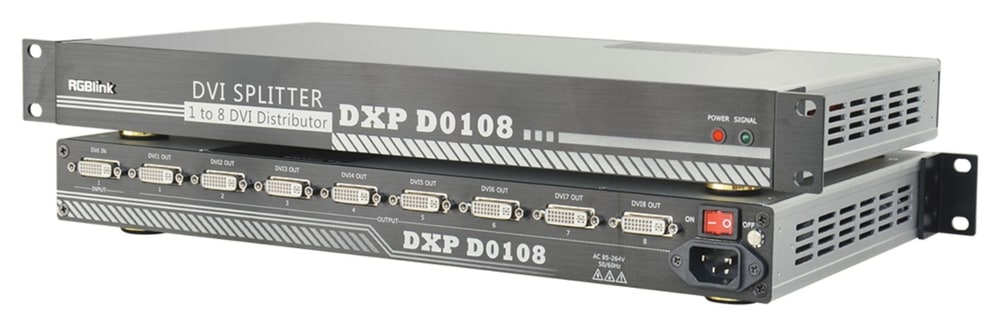

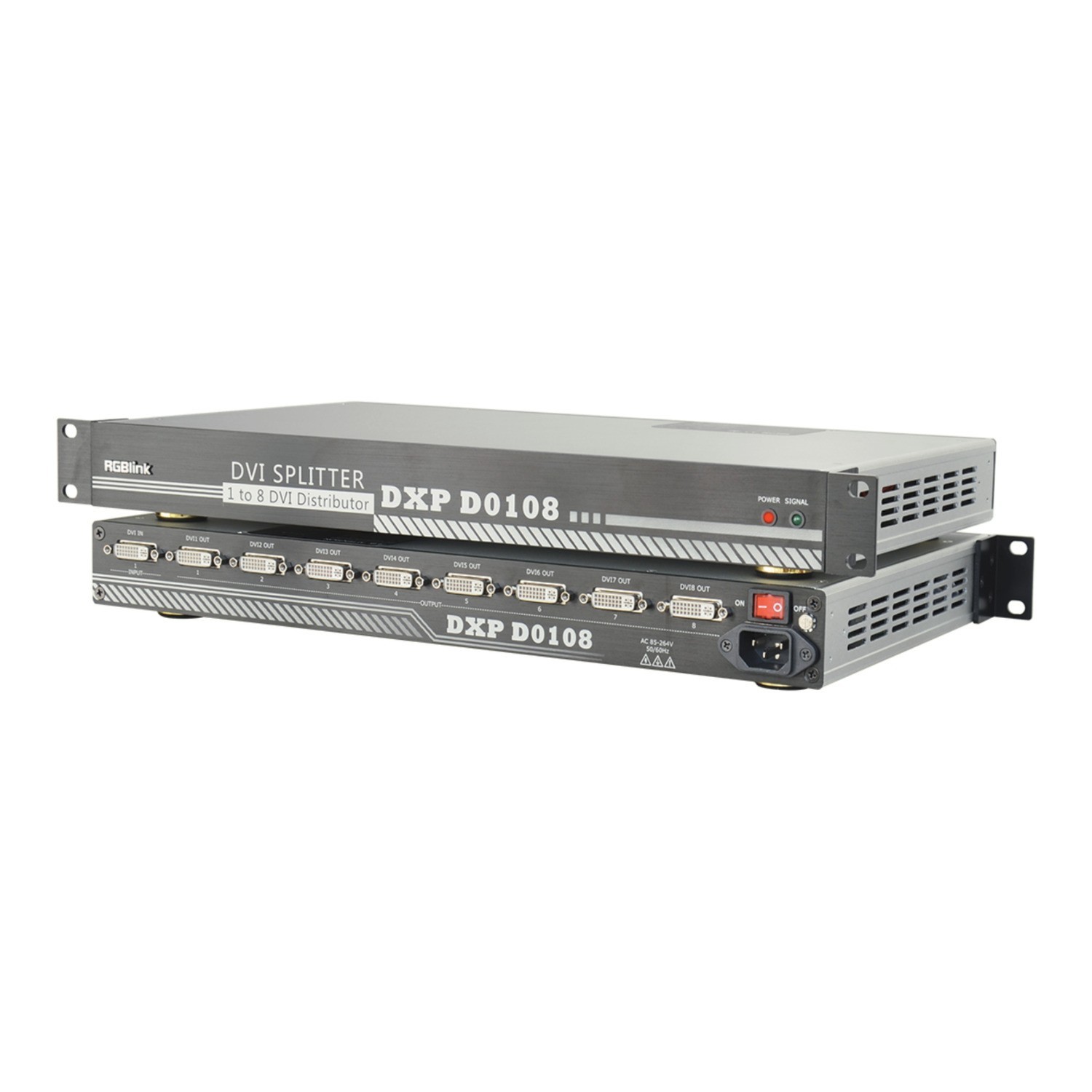

Front and rear panel

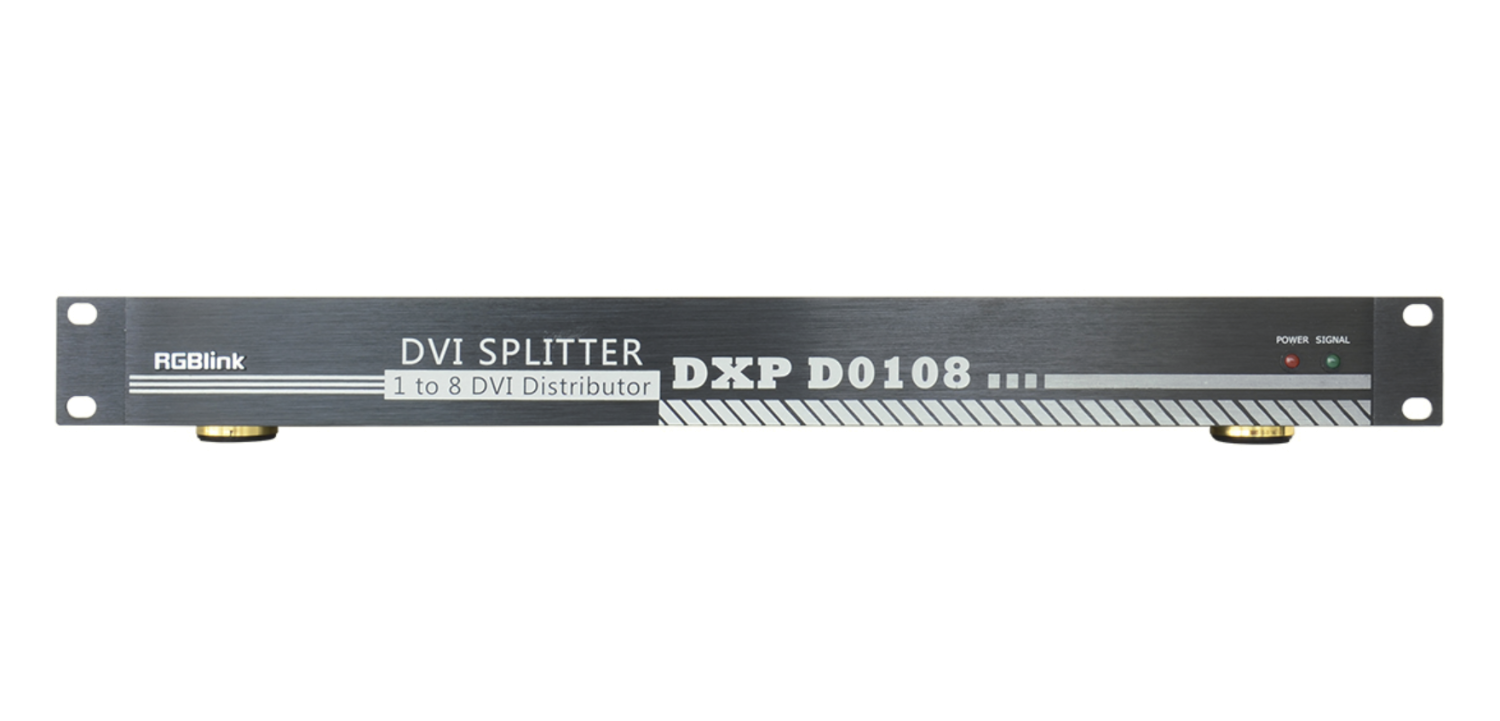

The front panel has POWER and SIGNAL indicators, the rear the input and eight DVI-I outputs, a power switch and an IEC mains inlet. The distributor supports EDID management and runs directly from 85–264 V mains.
Key features
- 1 DVI input, 8 DVI outputs
- 1U rack chassis
- Automatic input format recognition
- HDCP and HDMI 1.3 compatible
- Resolutions up to 2560 × 816 / 2048 × 1152 at 60 Hz
- EDID management
PACKAGE CONTENT
- RGBlink DXP D0108 DVI distributor – 1×
- Power cable and rack-mount parts
SPECIFICATIONS
- Inputs: 1× DVI-I
- Outputs: 8× DVI-I
- Signal: TMDS, single link, 165 MHz bandwidth
- Resolutions: VESA 800 × 600 – 1920 × 1200, 2048 × 1152, 2560 × 812, 2560 × 816 @ 60 Hz; SMPTE 480i60, 576i50, 720p23.98–60, 1080i50/59.94/60, 1080p23.98–60
- Standards: DVI, HDMI 1.3, HDCP
- Indicators: POWER, SIGNAL
- Power: 85–264 V AC, 2 A, IEC inlet
- Operating temperature: 0 to 45 °C
- Humidity: 10–90 %
- Dimensions: 480 × 268 × 44 mm (1U)
- Order code: 500-0108-01-0
Parameters
Parameters
| Manufacturer: | RGBlink |
| Category: | Signal converters |
Main parameters
| Other features | Splitter · HDCP support |
| Source | DVI |
| Target | DVI |
